The GDP Supreme Autoclave with Inbuilt Printer - 23 ltrs is a cutting-edge sterilization solution designed for dental clinics and laboratories. This autoclave offers multiple selectable programs at 134°C and 121°C to cater to various sterilization requirements. With a 4” large digital display showing detailed cycle parameters like temperature, pressure, and cycle time, users can monitor the sterilization process effectively. It features a total of 6 vacuum cycles, including pre-sterilization, post-sterilization, and dry cycles, accommodating a wide range of instruments from wrapped/unwrapped to porous/non-porous items. Equipped with an ARM microprocessor control, thermal insulation, an imported Motorola pressure sensor for precise control, and an inbuilt thermal printer for printing detailed cycle data, this autoclave ensures efficient and accurate sterilization processes. Additionally, it includes 13 error codes for diagnostic purposes and a silicon gasket to prevent air leakage, making it a comprehensive and reliable sterilization solution

• Multiple Selectable Programs: Offers programs at 134°C and 121°C to meet various sterilization requirements.
• Digital Display: Features a 4” large digital display showing detailed cycle parameters like temperature, pressure, and cycle time for monitoring.
• Vacuum Cycles: Includes a total of 6 vacuum cycles, comprising 3 pre-sterilization, 1 post-sterilization, and 2 dry cycles.
• Versatile Instrument Compatibility: Can sterilize wrapped/unwrapped, porous/non-porous, hollow, solid instruments, and even cotton swabs.
• Control System: Equipped with ARM microprocessor control for precise operation.
• Thermal Insulation: Special thermal wool and cloth insulation for efficient sterilization processes.
• Pressure Sensor: Utilizes an imported Motorola pressure sensor for accurate control.
• Inbuilt Printer: Prints detailed cycle data such as cycle time, cycle count, selected cycle, total time, and sequence of operation.
• Vacuum Pump: Features an inbuilt two-headed high vacuum pump for post and pre-vacuum cycles.
• Error Codes & Safety Features: Includes 13 error codes for diagnostics and automatic alarms in case of malfunctions, along with a silicon gasket to prevent air leakage.
• Specialized Cycle: Offers a B+ cycle tailored for implantologists.

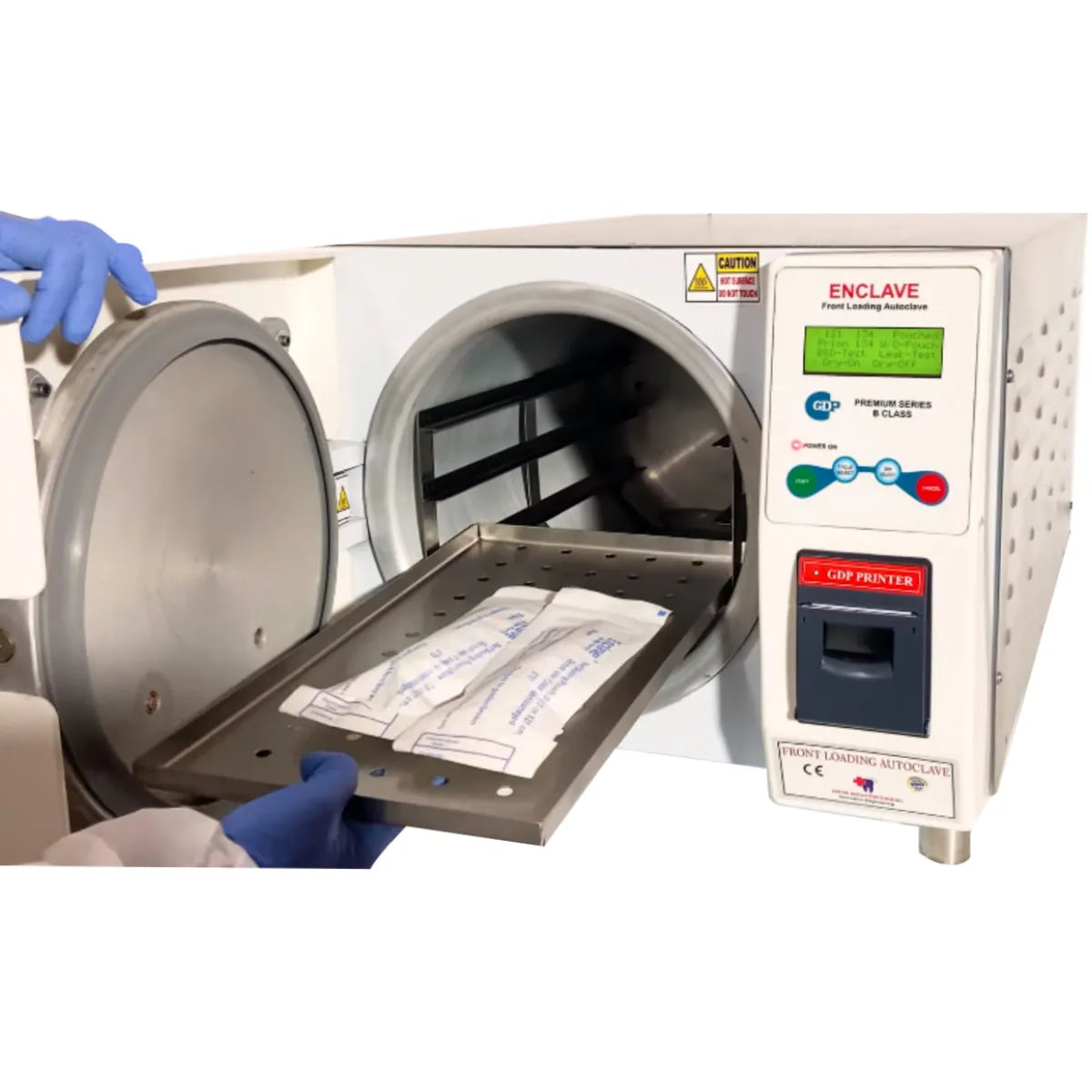

• Large Tray Size: Accommodates any size of implant kit with its large stainless steel tray size.

Key Specifications

• Width: 470mm
• Height: 400mm
• Depth: 585mm
• Capacity: 23Ltr
• Power Consumption: 2KW
• Gross Weight: 35kg
• Inter Chamber Size: 260x450mm
• Tray: 3 Number of trays
• Dimension of Tray: 215x405mm
• Tray Material: Stainless Steel

Sterilization instrument:

• Sterilization Time: 16 Mins wrapped solid instruments.

Fast procedure:

• Sterilization Time: 6 Mins Wrapped instruments, surgical kits, phaco tubes and so on.

Quick Cycle:

• Sterilization Time: 5 Mins Rubber, fabric, wrapped hollow instruments, and so on.

Prion Cycle:

• Sterilization Time: 18 Mins Hollow instruments which contain a bloodthirsty virus, solid instruments, and so on.

Solid custom:

• Sterilization Time: 16 Mins Rubber, fabric, wrapped hollow instruments, and so on.

Vacuum test:

• Holding Time: 5 Mins Sterilizer sealing test.
