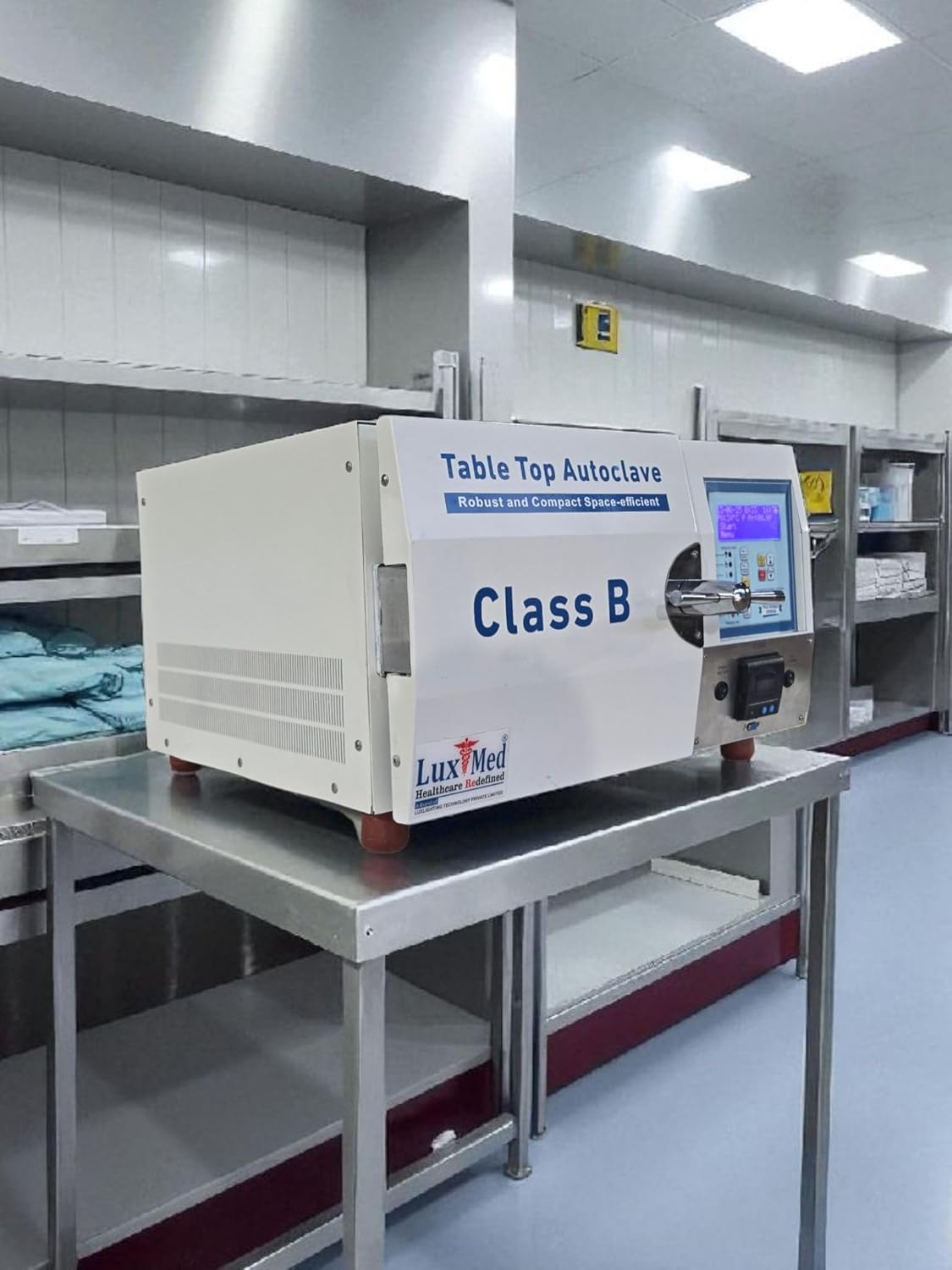

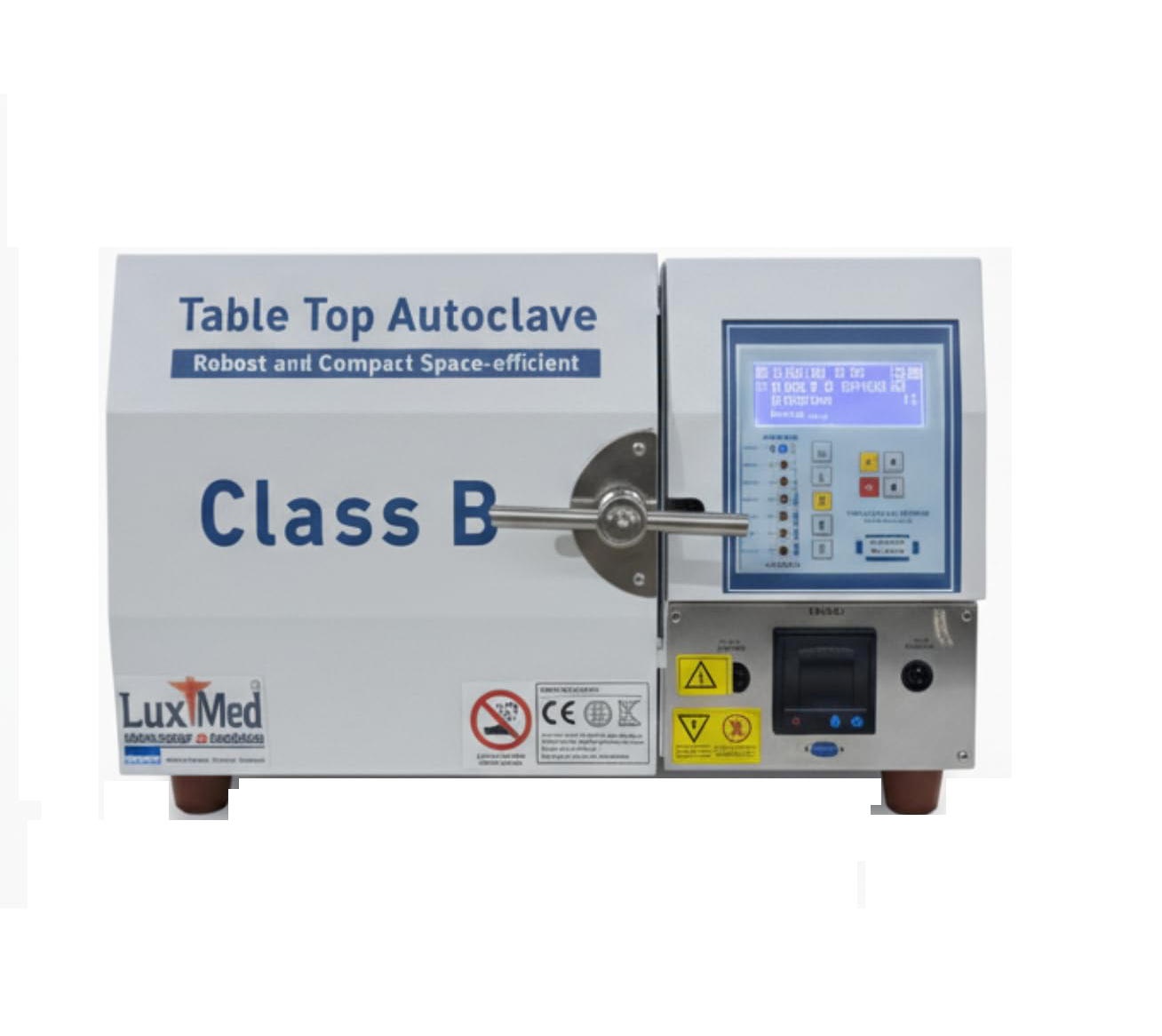

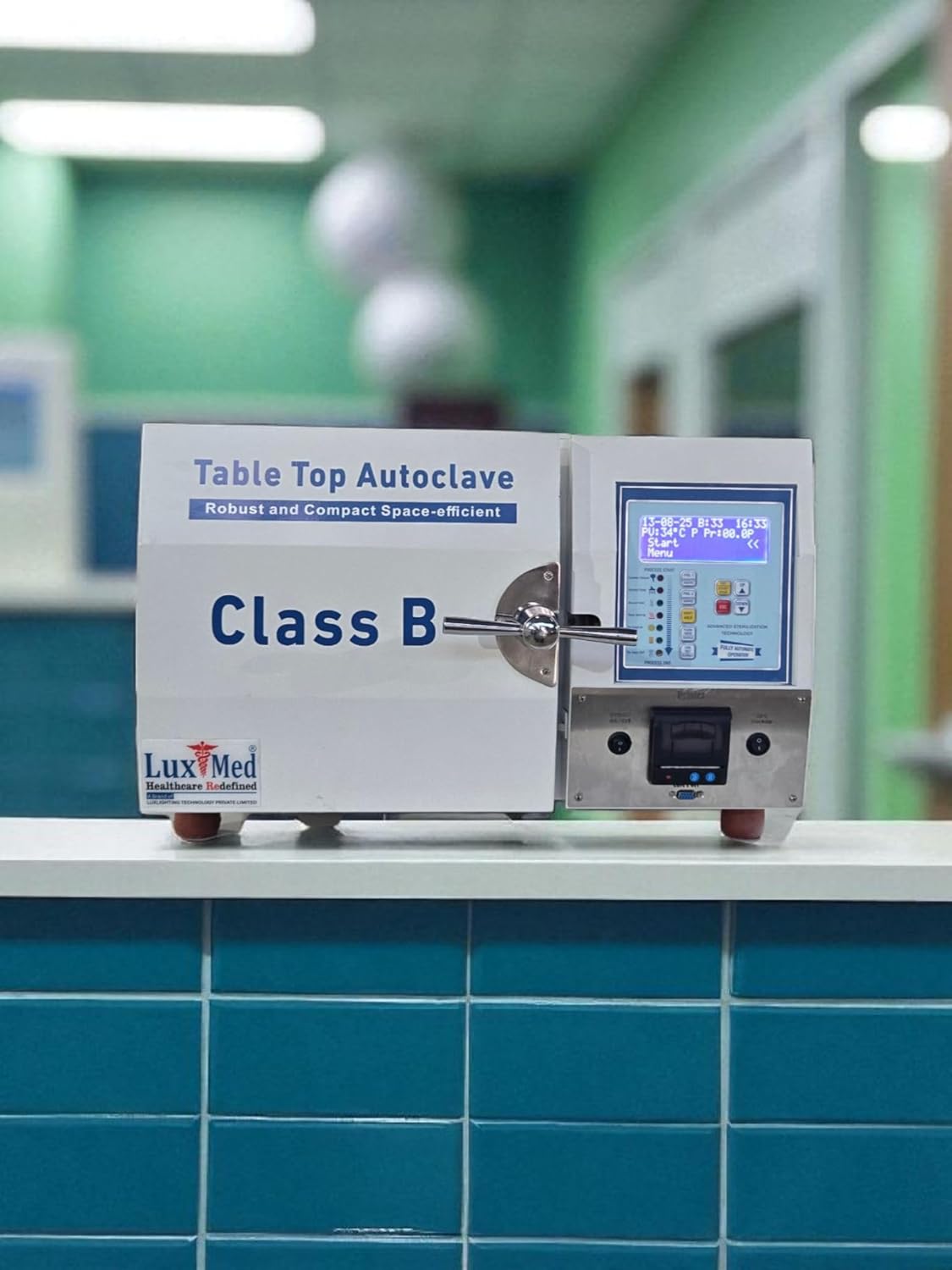

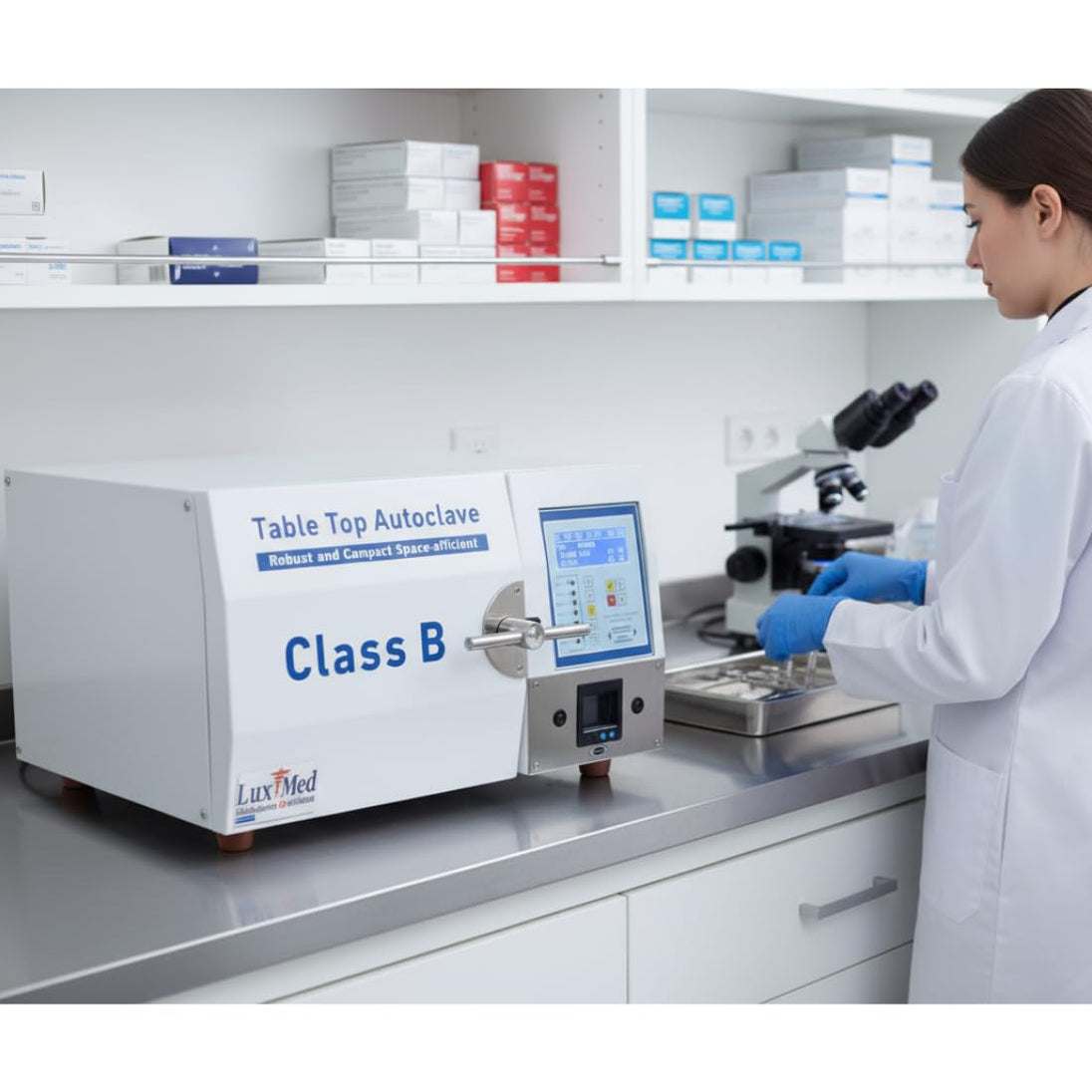

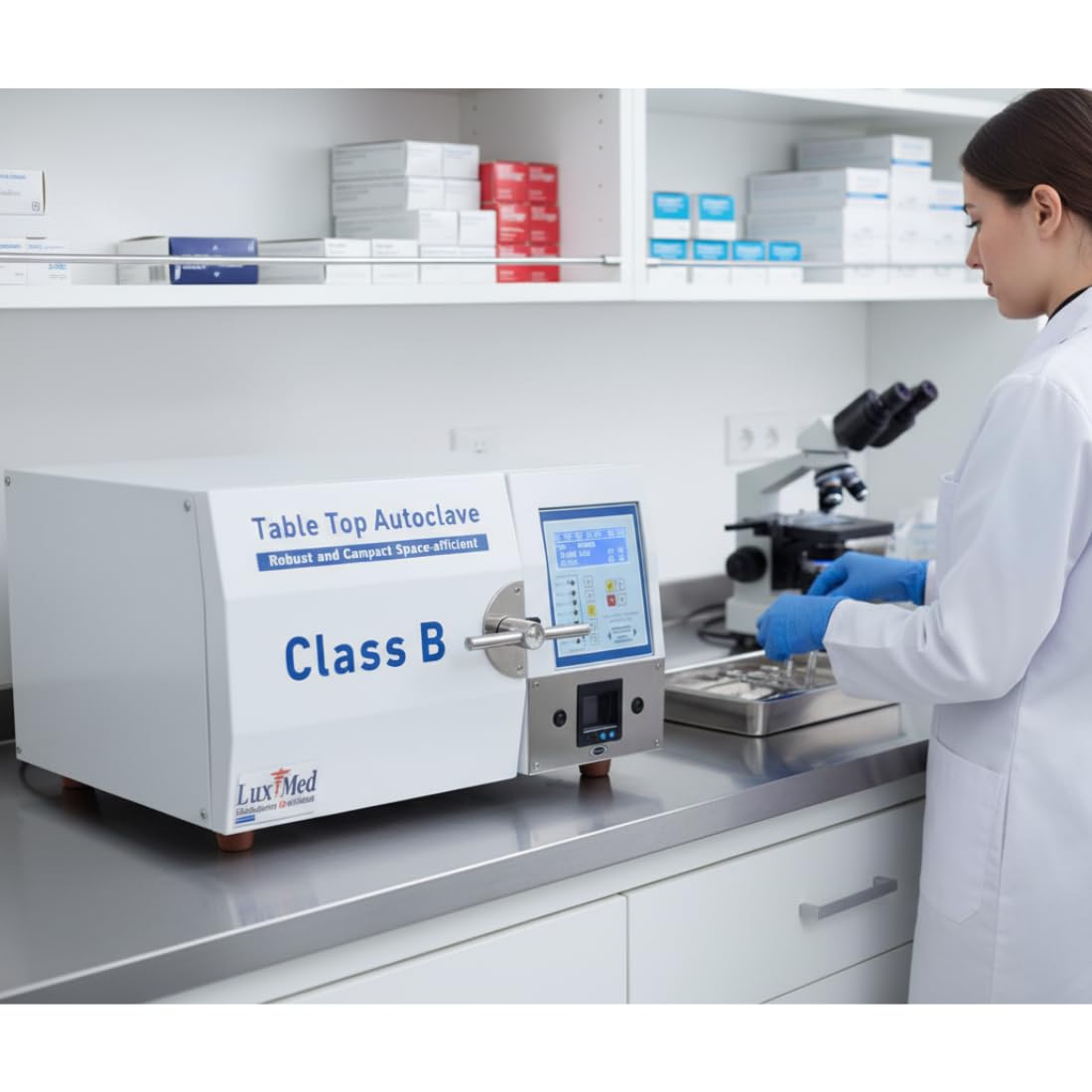

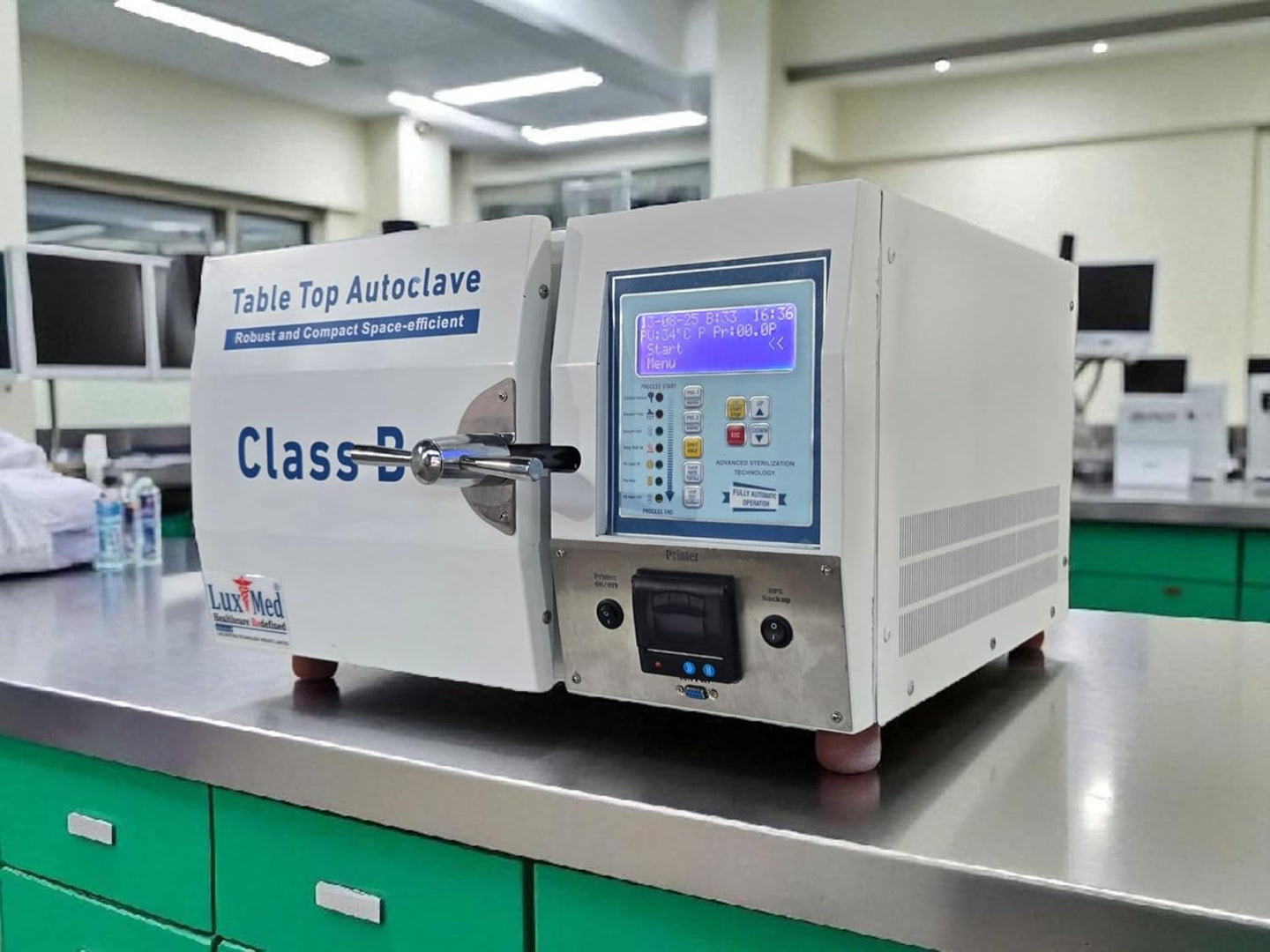

Table Top Autoclave Class B Series The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories. LM-TTA-B series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Capacity   -25L

Chamber Size(mm) - φ270*460

 Sterilization Class- Class B

Sterilization Temperature -121℃,134

Drying System-  Vacuum drying system

Display - LCD display

 B&D Test - Vacuum Test Helix Test

Temperature: 1℃

Pressure: 0.1bar

Sterilization Data LM-TTA-B-25B: RS-232 / USBand printer (standard) .

Hand lock door -Pressure lock system Relief valve in case of over pressurePressure or temperature over load protection

Alarm for system failure, finish reminding, water level warning

Water Supply System-  Build-in water tank easy to cleanWater

Tank Capacity- 3.5L

Water Consumption- 0.16L~0.18L in one cycle

Tray Holder- 3 pcs SS trays on SS shelf SUS304

Max working pressure: 2.3bar

Min working pressure: -0.9bar

Design temperature: 140℃

Ambient Temp. 5～4 0

Noise <65dB

Consumption 1950VA

Power Supply Standard: 220V±10%,50Hz/60Hz; Optional: 110V±10%,50Hz/60Hz.
