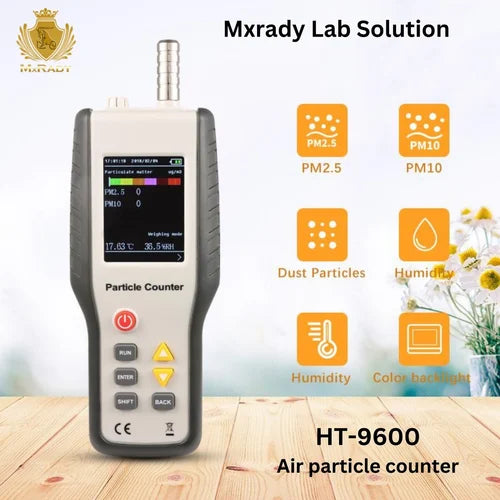

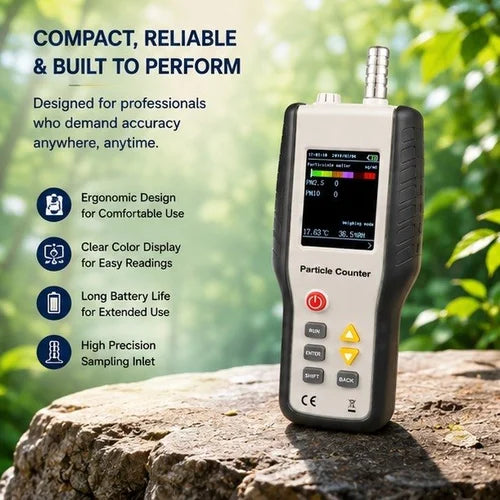

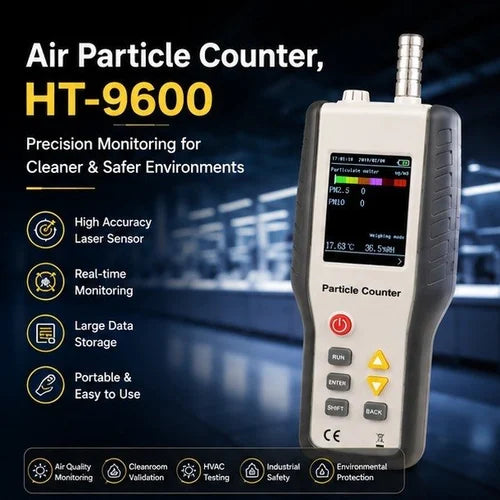

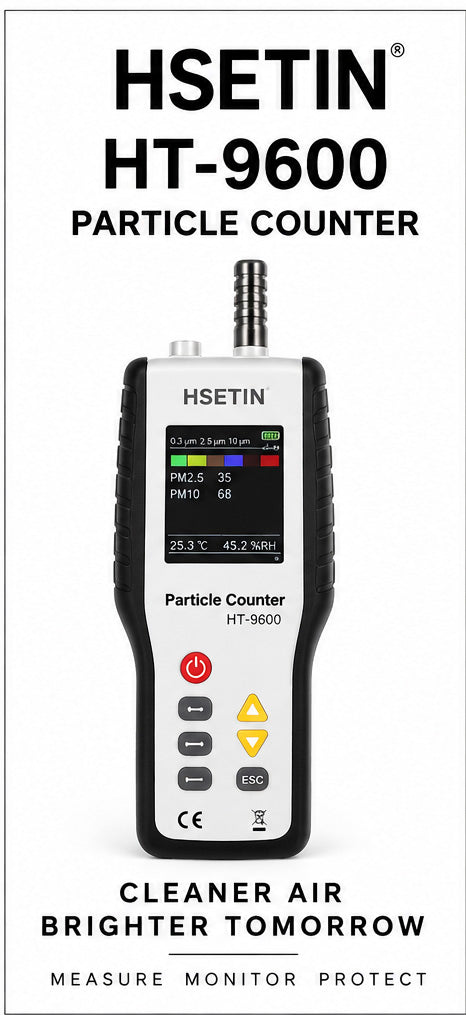

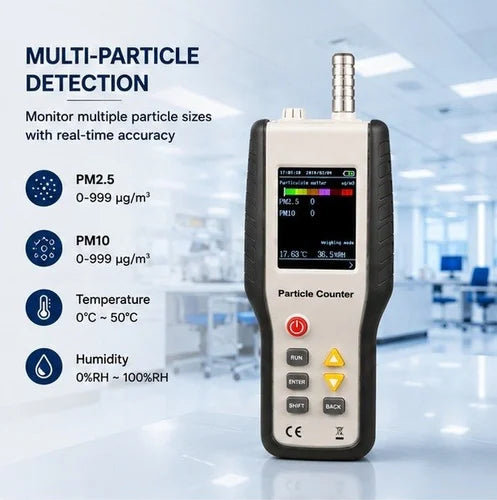

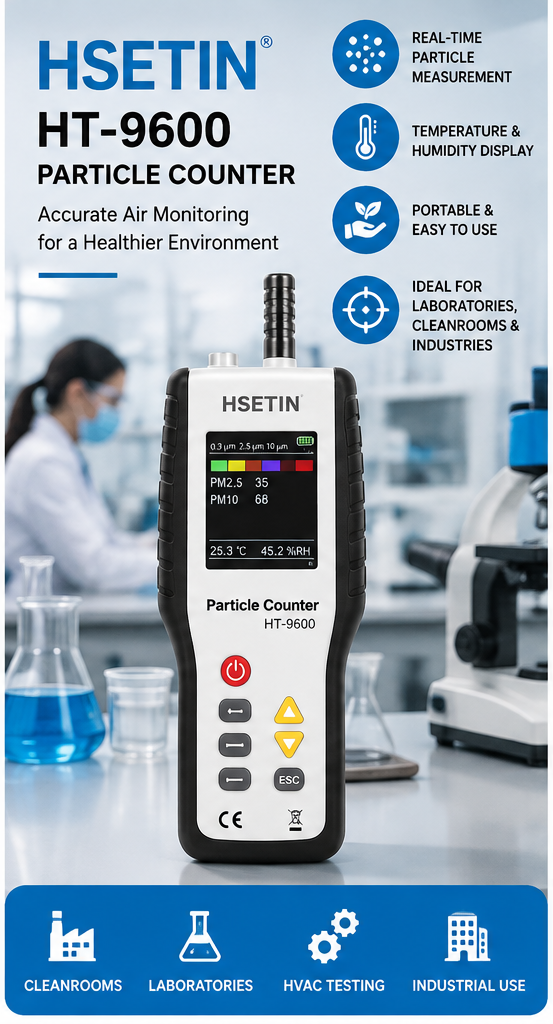

The HT-9600 Air Particle Counter 3 Channel is a portable particle and air-quality monitoring instrument for measuring particles at 0.3 µm, 2.5 µm and 10 µm channels. It also measures temperature and relative humidity, with a 2.8-inch colour LCD, manual sampling and onboard data storage.

Product Overview

The HT-9600 is a handheld three-channel air particle counter designed for rapid assessment of airborne particulate concentration. It uses a semiconductor laser light source and optoelectronic detection principle to measure particles in three size channels: 0.3 µm, 2.5 µm and 10 µm.

The instrument provides particle concentration in particles/L or µg/m³, together with temperature and humidity measurements. Its compact design, colour LCD and rechargeable/portable operation make it suitable for field measurements and indoor environmental assessments.

It is particularly useful for cleanroom cleanliness checks, air-cleaner performance testing, filter evaluation, indoor air-quality testing and general particulate monitoring.

Key Features & Benefits

• Three particle-size channels: 0.3, 2.5 and 10 µm
• Semiconductor laser diode light source
• Optoelectronic particle detection
• Particle concentration displayed in Piece/L and µg/m³
• Measurement range up to 1000 µg/m³
• 1 µg resolution
• 1 L/min sampling flow
• 50-second sampling time
• Temperature and humidity measurement
• 2.8-inch colour LCD with backlight
• 320 × 240 display resolution
• Up to 999 records storage
• Automatic power-off after 2 minutes without key operation
• Compact handheld design
• USB interface
• Suitable for cleanroom and air-filter testing

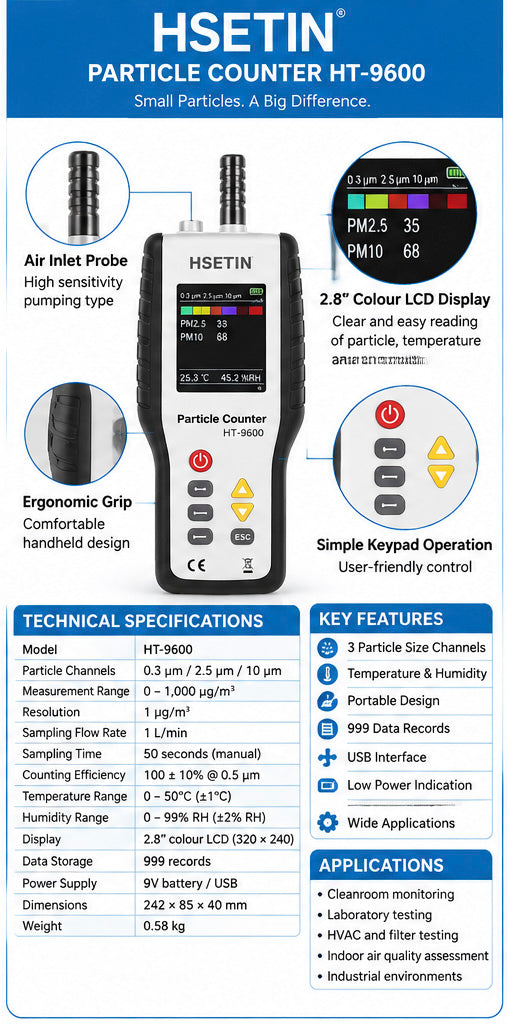

4. Technical Specifications

*Some product documentation specifies configurable sampling intervals/frequency. The standard product specification identifies a 50-second sampling time.

5. Applications

The HT-9600 can be used for:

• Cleanroom cleanliness testing
• Indoor air-quality testing
• Dust particle monitoring
• Air-cleaner performance testing
• Air-conditioner testing
• Filter performance evaluation
• Ventilation equipment monitoring
• HVAC inspection
• Industrial particulate monitoring
• Laboratory environmental monitoring
• Public-area air-quality assessment
• Indoor smog analysis
• General environmental surveys

6. Suitable For

• Pharmaceutical laboratories
• Cleanroom facilities
• Electronics manufacturing
• Medical facilities
• Microbiology laboratories
• Precision manufacturing
• HVAC service providers
• Air-filter manufacturers
• Air-cleaner manufacturers
• Environmental monitoring teams
• Industrial QC departments
• Research laboratories
• Facility-management teams

7. Product Benefits

• Three particle channels provide simultaneous monitoring of key particle sizes.
• 0.3 µm detection capability makes it suitable for fine-particle monitoring.
• Laser-based detection supports optical particle measurement.
• 1 L/min flow rate provides controlled air sampling.
• Temperature and humidity measurement adds environmental context to particle measurements.
• Portable construction makes the instrument suitable for field measurements.
• Colour backlit display allows convenient viewing of measurements.
• 999-record memory allows historical readings to be retained.
• USB interface supports data connectivity.
• Multiple concentration units allow results to be viewed according to the measurement requirement.
• Cleanroom suitability makes it useful for cleanliness and particulate assessments.
