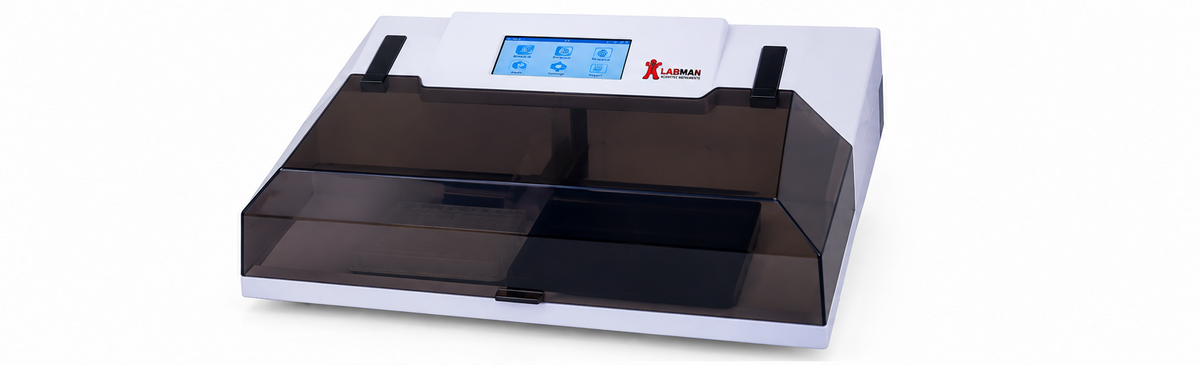

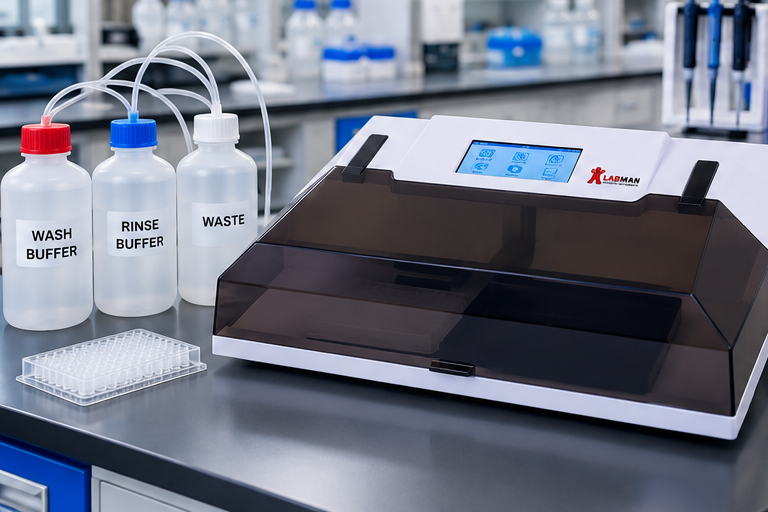

The Labmart AEPW99 Automatic ELISA Plate Washer is designed for efficient and uniform washing of ELISA microplates. It supports 96-well plates, programmable washing cycles, adjustable washing volume, residual-liquid cleaning and compatibility with different well geometries including flat-bottom, U-shaped, V-shaped and C-shaped wells.
3. Detailed Product Description
Product Overview
The AEPW99 Automatic ELISA Plate Washer is an automated microplate washing system designed to streamline the ELISA workflow by providing controlled and repeatable washing of microplates.
The system is designed to reduce manual handling and help minimize errors during the washing stage. The catalogue highlights precise liquid handling, uniform washing and contamination control, making it suitable for high-throughput laboratory workflows.
The AEPW99 supports a 96-well plate format and is supplied with an 8-channel / 12-channel cleaning head configuration. Washing can be programmed from 1 to 99 washes, with a washing-volume range of 50 ml to 3000 ml.
The instrument provides full-plate wash and row-by-row wash modes, along with residual-liquid cleaning. Its compact design incorporates a diaphragm pump and a colour touchscreen interface.

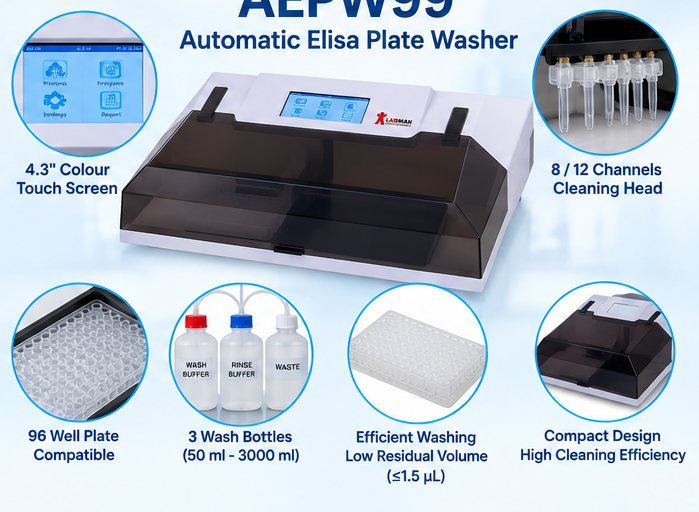

Key Features and Benefits
96-Well Microplate Washing
The AEPW99 is designed for 96-well microplate washing applications.
8-Channel / 12-Channel Cleaning Head
The catalogue specifies an 8-channel / 12-channel cleaning head, providing a choice of cleaning-head configuration.
Programmable Washing Cycles
The number of washes can be set from 1 to 99, allowing the washing sequence to be adapted to the assay procedure.
Adjustable Washing Volume
The specified washing volume range is 50 ml to 3000 ml.
Full-Plate and Row-by-Row Washing
Two process modes are specified:
- Full plate wash
- Row by row wash
Residual Liquid Cleaning
A dedicated residual liquid cleaning function is provided to help remove remaining liquid following the washing process.
Multiple Microplate Well Geometries
The AEPW99 is specified as compatible with:
- Flat-bottom wells
- U-shaped wells
- V-shaped wells
- C-shaped wells
Touchscreen Operation
The instrument incorporates a 4.3-inch colour touchscreen, providing an interface for operation and parameter setting.
Diaphragm Pump
The liquid pump type is specified as a diaphragm pump.
4. Technical Specifications
| Specification | AEPW99 Catalogue Specification |
|---|---|
| Product | Automatic ELISA Plate Washer |
| Model | AEPW99 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Residual Liquid Volume | ≤1.5 µL |
| Plate Format | 96 |
| Wash Head | 8 Channels / 12 Channels cleaning head |
| Number of Washes | 1–99 |
| Washing Volume | 50 ml–3000 ml |
| Wash Bottles | 3 bottles |
| Injection Accuracy | ≤2% (300 µl) |
| Soaking Time | 1 sec–99 min |
| Timer | Available |
| Display | 4.3-inch Colour Touch Screen |
| Process Modes | Full plate wash / Row by row wash |
| Microplate Compatibility | Flat, bottom U-shaped, V-shaped and C-shaped wells |
| Liquid Pump Type | Diaphragm pump |
| Packing Dimensions (L × W × H) | 453 × 388 × 155 mm |
| Gross Weight | 14 kg |
| Standard Accessories | Main instrument, washing head, wash bottles, power cord, instruction manual, test certificate |
The technical specifications above are taken from the AEPW99 catalogue specification table.
5. Applications
- ELISA microplate washing
- 96-well microplate washing
- Automated immunoassay workflows
- Laboratory ELISA processing
- Pharmaceutical research
- Biotechnology laboratories
- Biochemistry laboratories
- Clinical research laboratories
- High-throughput laboratory workflows
- Research applications requiring repeatable microplate washing
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical laboratories
- Clinical research laboratories
- Academic and institutional laboratories
- Research and development laboratories
- High-throughput analytical laboratories
- Laboratories requiring automated microplate washing
7. FAQs
1. What is the AEPW99?
The AEPW99 is an Automatic ELISA Plate Washer designed for automated washing of microplates used in ELISA workflows.
2. What plate format does the AEPW99 support?
The catalogue specifies a 96-well plate format.
3. What type of washing head is provided?
The catalogue specifies an 8-channel / 12-channel cleaning head.
4. How many washing cycles can be programmed?
The number of washes can be set from 1 to 99.
5. What is the washing-volume range?
The specified washing volume is 50 ml to 3000 ml.
6. What washing modes are available?
The AEPW99 provides:
- Full plate wash
- Row by row wash
7. What types of microplate wells are supported?
The catalogue specifies compatibility with flat, bottom U-shaped, V-shaped and C-shaped wells.
8. Does the AEPW99 provide residual-liquid cleaning?
Yes. It includes a residual liquid cleaning function.
9. What is the specified residual liquid volume?
The catalogue specifies a residual liquid volume of ≤1.5 µL.
10. What is the soaking-time range?
The specified soaking time is 1 second to 99 minutes.
11. How is the AEPW99 operated?
The instrument uses a 4.3-inch colour touchscreen.
12. What type of pump does the AEPW99 use?
The catalogue specifies a diaphragm pump.
13. How many wash bottles are specified?
The system specification lists 3 wash bottles.
14. What is the injection accuracy?
The catalogue specifies ≤2% at 300 µl.
15. What is included as standard?
The standard accessories are listed as the main instrument, washing head, wash bottles, power cord, instruction manual and test certificate.
- Regular price
- Rs.177,799.00
- Sale price
- Rs.120,799.00
The Labmart AEPW99 Automatic ELISA Plate Washer is designed for efficient and uniform washing of ELISA microplates. It supports 96-well plates, programmable washing cycles, adjustable washing volume, residual-liquid cleaning and compatibility with different well geometries including flat-bottom, U-shaped, V-shaped and C-shaped wells.
3. Detailed Product Description
Product Overview
The AEPW99 Automatic ELISA Plate Washer is an automated microplate washing system designed to streamline the ELISA workflow by providing controlled and repeatable washing of microplates.
The system is designed to reduce manual handling and help minimize errors during the washing stage. The catalogue highlights precise liquid handling, uniform washing and contamination control, making it suitable for high-throughput laboratory workflows.
The AEPW99 supports a 96-well plate format and is supplied with an 8-channel / 12-channel cleaning head configuration. Washing can be programmed from 1 to 99 washes, with a washing-volume range of 50 ml to 3000 ml.
The instrument provides full-plate wash and row-by-row wash modes, along with residual-liquid cleaning. Its compact design incorporates a diaphragm pump and a colour touchscreen interface.
Key Features and Benefits
96-Well Microplate Washing
The AEPW99 is designed for 96-well microplate washing applications.
8-Channel / 12-Channel Cleaning Head
The catalogue specifies an 8-channel / 12-channel cleaning head, providing a choice of cleaning-head configuration.
Programmable Washing Cycles
The number of washes can be set from 1 to 99, allowing the washing sequence to be adapted to the assay procedure.
Adjustable Washing Volume
The specified washing volume range is 50 ml to 3000 ml.
Full-Plate and Row-by-Row Washing
Two process modes are specified:
- Full plate wash
- Row by row wash
Residual Liquid Cleaning
A dedicated residual liquid cleaning function is provided to help remove remaining liquid following the washing process.
Multiple Microplate Well Geometries
The AEPW99 is specified as compatible with:
- Flat-bottom wells
- U-shaped wells
- V-shaped wells
- C-shaped wells
Touchscreen Operation
The instrument incorporates a 4.3-inch colour touchscreen, providing an interface for operation and parameter setting.
Diaphragm Pump
The liquid pump type is specified as a diaphragm pump.
4. Technical Specifications
| Specification | AEPW99 Catalogue Specification |
|---|---|
| Product | Automatic ELISA Plate Washer |
| Model | AEPW99 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Residual Liquid Volume | ≤1.5 µL |
| Plate Format | 96 |
| Wash Head | 8 Channels / 12 Channels cleaning head |
| Number of Washes | 1–99 |
| Washing Volume | 50 ml–3000 ml |
| Wash Bottles | 3 bottles |
| Injection Accuracy | ≤2% (300 µl) |
| Soaking Time | 1 sec–99 min |
| Timer | Available |
| Display | 4.3-inch Colour Touch Screen |
| Process Modes | Full plate wash / Row by row wash |
| Microplate Compatibility | Flat, bottom U-shaped, V-shaped and C-shaped wells |
| Liquid Pump Type | Diaphragm pump |
| Packing Dimensions (L × W × H) | 453 × 388 × 155 mm |
| Gross Weight | 14 kg |
| Standard Accessories | Main instrument, washing head, wash bottles, power cord, instruction manual, test certificate |
The technical specifications above are taken from the AEPW99 catalogue specification table.
5. Applications
- ELISA microplate washing
- 96-well microplate washing
- Automated immunoassay workflows
- Laboratory ELISA processing
- Pharmaceutical research
- Biotechnology laboratories
- Biochemistry laboratories
- Clinical research laboratories
- High-throughput laboratory workflows
- Research applications requiring repeatable microplate washing
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical laboratories
- Clinical research laboratories
- Academic and institutional laboratories
- Research and development laboratories
- High-throughput analytical laboratories
- Laboratories requiring automated microplate washing
7. FAQs
1. What is the AEPW99?
The AEPW99 is an Automatic ELISA Plate Washer designed for automated washing of microplates used in ELISA workflows.
2. What plate format does the AEPW99 support?
The catalogue specifies a 96-well plate format.
3. What type of washing head is provided?
The catalogue specifies an 8-channel / 12-channel cleaning head.
4. How many washing cycles can be programmed?
The number of washes can be set from 1 to 99.
5. What is the washing-volume range?
The specified washing volume is 50 ml to 3000 ml.
6. What washing modes are available?
The AEPW99 provides:
- Full plate wash
- Row by row wash
7. What types of microplate wells are supported?
The catalogue specifies compatibility with flat, bottom U-shaped, V-shaped and C-shaped wells.
8. Does the AEPW99 provide residual-liquid cleaning?
Yes. It includes a residual liquid cleaning function.
9. What is the specified residual liquid volume?
The catalogue specifies a residual liquid volume of ≤1.5 µL.
10. What is the soaking-time range?
The specified soaking time is 1 second to 99 minutes.
11. How is the AEPW99 operated?
The instrument uses a 4.3-inch colour touchscreen.
12. What type of pump does the AEPW99 use?
The catalogue specifies a diaphragm pump.
13. How many wash bottles are specified?
The system specification lists 3 wash bottles.
14. What is the injection accuracy?
The catalogue specifies ≤2% at 300 µl.
15. What is included as standard?
The standard accessories are listed as the main instrument, washing head, wash bottles, power cord, instruction manual and test certificate.
- Regular price
- Rs.177,799.00
- Sale price
- Rs.120,799.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Labmart AEPW99 Automatic ELISA Plate Washer is designed for efficient and uniform washing of ELISA microplates. It supports 96-well plates, programmable washing cycles, adjustable washing volume, residual-liquid cleaning and compatibility with different well geometries including flat-bottom, U-shaped, V-shaped and C-shaped wells.
3. Detailed Product Description
Product Overview
The AEPW99 Automatic ELISA Plate Washer is an automated microplate washing system designed to streamline the ELISA workflow by providing controlled and repeatable washing of microplates.
The system is designed to reduce manual handling and help minimize errors during the washing stage. The catalogue highlights precise liquid handling, uniform washing and contamination control, making it suitable for high-throughput laboratory workflows.
The AEPW99 supports a 96-well plate format and is supplied with an 8-channel / 12-channel cleaning head configuration. Washing can be programmed from 1 to 99 washes, with a washing-volume range of 50 ml to 3000 ml.
The instrument provides full-plate wash and row-by-row wash modes, along with residual-liquid cleaning. Its compact design incorporates a diaphragm pump and a colour touchscreen interface.
Key Features and Benefits
96-Well Microplate Washing
The AEPW99 is designed for 96-well microplate washing applications.
8-Channel / 12-Channel Cleaning Head
The catalogue specifies an 8-channel / 12-channel cleaning head, providing a choice of cleaning-head configuration.
Programmable Washing Cycles
The number of washes can be set from 1 to 99, allowing the washing sequence to be adapted to the assay procedure.
Adjustable Washing Volume
The specified washing volume range is 50 ml to 3000 ml.
Full-Plate and Row-by-Row Washing
Two process modes are specified:
- Full plate wash
- Row by row wash
Residual Liquid Cleaning
A dedicated residual liquid cleaning function is provided to help remove remaining liquid following the washing process.
Multiple Microplate Well Geometries
The AEPW99 is specified as compatible with:
- Flat-bottom wells
- U-shaped wells
- V-shaped wells
- C-shaped wells
Touchscreen Operation
The instrument incorporates a 4.3-inch colour touchscreen, providing an interface for operation and parameter setting.
Diaphragm Pump
The liquid pump type is specified as a diaphragm pump.
4. Technical Specifications
| Specification | AEPW99 Catalogue Specification |
|---|---|
| Product | Automatic ELISA Plate Washer |
| Model | AEPW99 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Residual Liquid Volume | ≤1.5 µL |
| Plate Format | 96 |
| Wash Head | 8 Channels / 12 Channels cleaning head |
| Number of Washes | 1–99 |
| Washing Volume | 50 ml–3000 ml |
| Wash Bottles | 3 bottles |
| Injection Accuracy | ≤2% (300 µl) |
| Soaking Time | 1 sec–99 min |
| Timer | Available |
| Display | 4.3-inch Colour Touch Screen |
| Process Modes | Full plate wash / Row by row wash |
| Microplate Compatibility | Flat, bottom U-shaped, V-shaped and C-shaped wells |
| Liquid Pump Type | Diaphragm pump |
| Packing Dimensions (L × W × H) | 453 × 388 × 155 mm |
| Gross Weight | 14 kg |
| Standard Accessories | Main instrument, washing head, wash bottles, power cord, instruction manual, test certificate |
The technical specifications above are taken from the AEPW99 catalogue specification table.
5. Applications
- ELISA microplate washing
- 96-well microplate washing
- Automated immunoassay workflows
- Laboratory ELISA processing
- Pharmaceutical research
- Biotechnology laboratories
- Biochemistry laboratories
- Clinical research laboratories
- High-throughput laboratory workflows
- Research applications requiring repeatable microplate washing
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical laboratories
- Clinical research laboratories
- Academic and institutional laboratories
- Research and development laboratories
- High-throughput analytical laboratories
- Laboratories requiring automated microplate washing
7. FAQs
1. What is the AEPW99?
The AEPW99 is an Automatic ELISA Plate Washer designed for automated washing of microplates used in ELISA workflows.
2. What plate format does the AEPW99 support?
The catalogue specifies a 96-well plate format.
3. What type of washing head is provided?
The catalogue specifies an 8-channel / 12-channel cleaning head.
4. How many washing cycles can be programmed?
The number of washes can be set from 1 to 99.
5. What is the washing-volume range?
The specified washing volume is 50 ml to 3000 ml.
6. What washing modes are available?
The AEPW99 provides:
- Full plate wash
- Row by row wash
7. What types of microplate wells are supported?
The catalogue specifies compatibility with flat, bottom U-shaped, V-shaped and C-shaped wells.
8. Does the AEPW99 provide residual-liquid cleaning?
Yes. It includes a residual liquid cleaning function.
9. What is the specified residual liquid volume?
The catalogue specifies a residual liquid volume of ≤1.5 µL.
10. What is the soaking-time range?
The specified soaking time is 1 second to 99 minutes.
11. How is the AEPW99 operated?
The instrument uses a 4.3-inch colour touchscreen.
12. What type of pump does the AEPW99 use?
The catalogue specifies a diaphragm pump.
13. How many wash bottles are specified?
The system specification lists 3 wash bottles.
14. What is the injection accuracy?
The catalogue specifies ≤2% at 300 µl.
15. What is included as standard?
The standard accessories are listed as the main instrument, washing head, wash bottles, power cord, instruction manual and test certificate.
Similar Products
-
Vendor: Labman

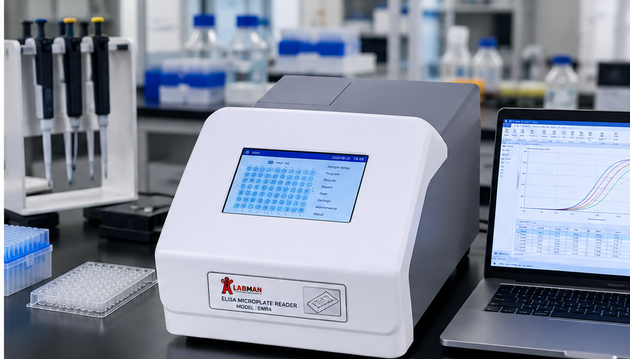

EMR4 ELISA Microplate Reader – 96-Well Absorbance Microplate Reader
Sale price Rs.195,599.00Regular price Rs.249,099.00 -
Vendor: Labmart
Elisa Microplate Washer I Automatic 3 channel I Multiplate Operation
Sale price Rs.124,000.00Regular price Rs.250,000.00 -
Vendor: Spectrix
Elisa Microplate Reader Touch Screen Automatic
Sale price Rs.149,999.00Regular price Rs.250,000.00
