Salient Features

• Android Operating System

• 10.1” Touch Screen Display

• Built-in standard program templates for quick file editing

• Adjustable hot lid temperature and work mode

• USB support for storing and copying PCR data and USB mouse control

• Instrument can connect with Wi-Fi

• One-click quick incubation function

• Hot lid temperature and work mode adjustable for different experiments

• Automatic restart after power failure (continues unfinished program)

• Air channel design allows machines to be placed side by side

• Graphical menu navigation for simple operation

• High heating and cooling rate

• Maximum ramping rate: 6°C/s

• Lock screen function available

Specifications

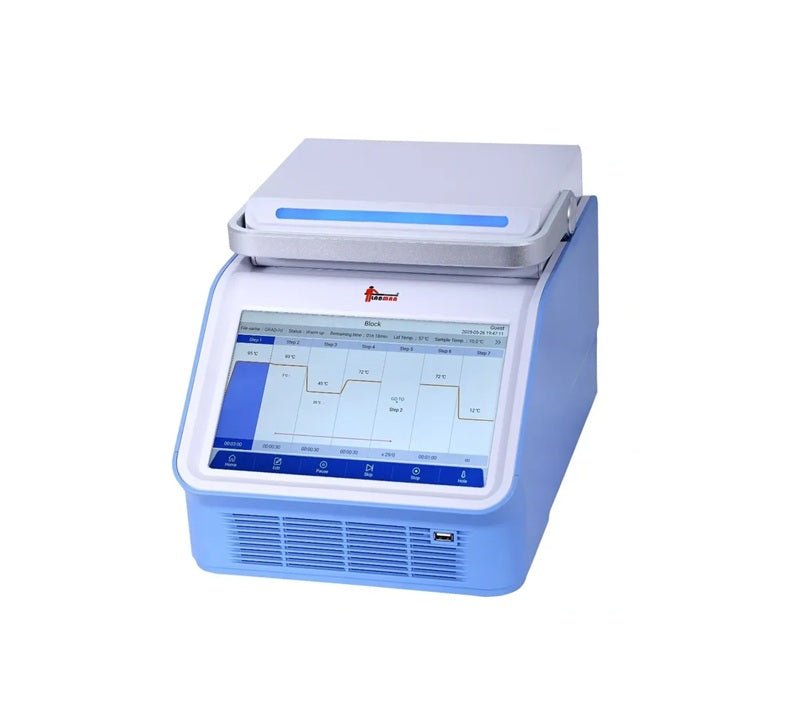

Model: GPTC96
Make: LABMAN

Capacity

• 96 × 0.2 ml

Compatible Formats

• 0.2 ml tube

• 8 strips

• 12 strips

• Half skirt 96 wells plate

• No skirt 96 wells plate

Reaction Volume

• 5 – 100 µl

Temperature Range

• 0 – 105°C

Maximum Ramp Rate

• 6°C/s

Temperature Uniformity

• ≤ ±0.2°C

Temperature Accuracy

• ≤ ±0.1°C

Display Resolution

• 0.1°C

Temperature Control

• Block / Tube

Adjustable Ramping Rate

• 0.01°C – 6°C/s

Hold Temperature

• Hold at 4°C – Forever

Gradient Temperature Range

• 30°C – 105°C

Gradient Type

• Normal / Linear

Gradient Spread

• 0.1°C – 42°C

Hot Lid Temperature

• 30°C – 115°C

Number of Programs

• 2,00,000+ (USB Flash)

Maximum Number of Steps

• 30 (Multiple nested PCR experiments)

Maximum Number of Cycles

• 200 (Up to 1,00,000 in nested cycle)

Time Increment / Decrement

• 1 s – 600 s

Temperature Increment / Decrement

• 0.1 – 10.0°C

Pause Function & Auto Data Protection

• Yes

Temperature Curve

• Yes (Single page and sliding view)

GLP Report

• Yes – export CSV and PDF format

File Encryption

• Individual program files can be encrypted

User Management

• Three levels of access:

  • Administrator

  • User

  • Guest

Email Notification

• Email notification after experiment completion

Display

• Touch Screen Display

Communication

• USB & Wi-Fi

Power Supply

• 100 – 240 VAC, 50/60 Hz, 600 W

Dimensions

• 520 × 400 × 390 mm

Weight

• 13 kg

HSN Code

• 90275030

Standard Accessories

• Main Instrument

• Touch Pen

• Power Cord

• 8A Fuse

• Instruction Manual

• Test Certificate
