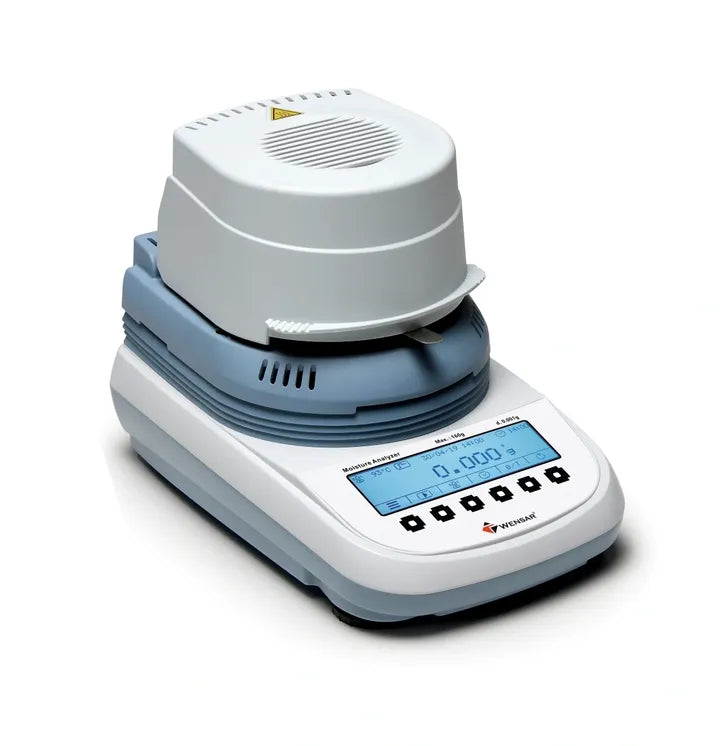

files/rs_w_720_cg_true_18.webp
SALIENT FEATURES:
Halogen Heating System
Large Graphic Display
GLP/ ISO record of last stored calibration data
Two heating modes: Standard and Rapid
Temperature Range: 40ºC -160ºC/1ºC
RS232C Interface
Multi language
Pre-heating on/off
Loadcell Based, Unit- g, mg
Date and Time
SPECIFICATIONS:
|
MODEL |
LMB16 |
|
Make |
WENSAR |
|
Capacity |
160g |
|
Readability |
0.001g (1mg) |
|
Repeatability |
0.001g (1mg) |
|
Linearity ± |
0.002g |
|
Display |
Graphic Display with back light |
|
Display Results |
Moisture % , Dry residue % , ATRO, Weight |
|
Printout Of Results |
Date, Time, Instrument ID, User ID, Project ID, Temp., Mode, Moisture % ,Signature |
|
Pan Size |
100mm |
|
Sensor |
Loadcell |
|
Calibration |
Automatic External |
|
Operating Temperature |
5°C - 35°C |
|
Heating Source |
Halogen Lamp |
|
Interface |
RS232C |
|
Temperature Profiles |
Standard and Rapid |
|
Temperature Setting |
40ºC-160°C |
|
Temp. Step |
1°C |
|
Time Setting |
Time (1-99min) / Autostop |
|
Dry Readability |
0.01% |
|
Aluminium Sample PAN |
10pcs. |
|
Power Supply |
AC 220V / 50-60 Hz |
|
Dimension (LxWXH) |
455 x 290 x 395 mm |
|
Net Weight |
4.7kg |
|
Gross Weight |
6kg |
