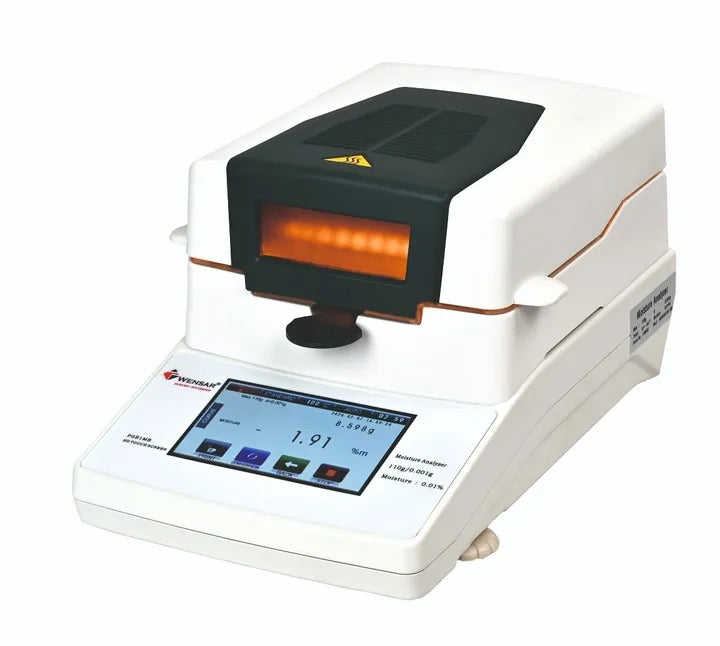

The Wensar LMB1IR (often referred to as the LMB1 R) is the infrared heating version of the LMB1 moisture analyzer. While it maintains the same 110g capacity and 1mg readability, it uses an infrared lamp instead of a halogen lamp, which is often preferred for materials that might be sensitive to the more intense light of a halogen source.
SALIENT FEATURES:
LMB1 - Halogen Lamp Heating Source
LMB1IR - Infrared Lamp Heating Source
Touch Screen, Loadcell Sensor
Temperature and time can be set
The percentage of Moisture content
Curve (Graph) residual
The percentage of dry
Store historical setting
RS232C Interface
SPECIFICATIONS:
|
MODEL |
LMB1 |
|
Heating Source |
Halogen Lamp |
|
Temperature Setting |
40℃~199℃ |
|
Make |
WENSAR |
|
Capacity |
110g |
|
Readability |
0.001g ( 1mg ) |
|
Repeatability |
0.001g |
|
Linearity ( ± ) |
0.003g |
|
Display |
Touch Screen |
|
Pan Size |
90 mm Ø |
|
Sensor |
loadcell |
|
Calibration |
Automatic Externa |
|
Operating Temperature |
5 C to o 35 C |
|
Temp. Sensor |
PT - 100 |
|
Interface |
RS232C |
|
Temp. Step |
1 C |
|
Time Setting |
1~99 minutes |
|
Dry Readability |
0.01% |
|
Dry Range |
100.00% ~ 0.00% |
|
Curve |
Yes |
|
Aluminium Sample PAN |
Available |
|
No. of Storage |
20 |
|
Power Supply |
AC 220V / 50-60 Hz |
|
Dimension (LxWxH) |
490 x 350 x 355 mm |
|
Weight |
7 kg |
- Regular price
- Rs.90,000.00
- Sale price
- Rs.69,999.00
The Wensar LMB1IR (often referred to as the LMB1 R) is the infrared heating version of the LMB1 moisture analyzer. While it maintains the same 110g capacity and 1mg readability, it uses an infrared lamp instead of a halogen lamp, which is often preferred for materials that might be sensitive to the more intense light of a halogen source.
SALIENT FEATURES:
LMB1 - Halogen Lamp Heating Source
LMB1IR - Infrared Lamp Heating Source
Touch Screen, Loadcell Sensor
Temperature and time can be set
The percentage of Moisture content
Curve (Graph) residual
The percentage of dry
Store historical setting
RS232C Interface
SPECIFICATIONS:
|
MODEL |
LMB1 |
|
Heating Source |
Halogen Lamp |
|
Temperature Setting |
40℃~199℃ |
|
Make |
WENSAR |
|
Capacity |
110g |
|
Readability |
0.001g ( 1mg ) |
|
Repeatability |
0.001g |
|
Linearity ( ± ) |
0.003g |
|
Display |
Touch Screen |
|
Pan Size |
90 mm Ø |
|
Sensor |
loadcell |
|
Calibration |
Automatic Externa |
|
Operating Temperature |
5 C to o 35 C |
|
Temp. Sensor |
PT - 100 |
|
Interface |
RS232C |
|
Temp. Step |
1 C |
|
Time Setting |
1~99 minutes |
|
Dry Readability |
0.01% |
|
Dry Range |
100.00% ~ 0.00% |
|
Curve |
Yes |
|
Aluminium Sample PAN |
Available |
|
No. of Storage |
20 |
|
Power Supply |
AC 220V / 50-60 Hz |
|
Dimension (LxWxH) |
490 x 350 x 355 mm |
|
Weight |
7 kg |
- Regular price
- Rs.90,000.00
- Sale price
- Rs.69,999.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
