Application Range:

Applicable to health services, scientific research, agricultural and other units, to lab equipment, dressings, glassware, solution culture medium to carry out sterilization. Also necessary test equipment for food factory, drinking water plant to do QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

• Over pressure – Safety valve can automatically open to release pressure.
• Over temperature – The system will power off automatically.
• Door sensor – Sensor at door closing position to check door status. If door is open, operation will stop.
• Anti-dry out function – If water level is too low, system will power off and error code displays on screen.
• Over current – Over voltage or electric leakage protection apparatus – air switch.
• Door cover – The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

• Water inlet filter to keep high water quality.
• Optional printer for recording sterilization data.
• Jumbo LCD display screen displays all steps of full process as well as error codes.
• Independent quick service window, easy for repairing and maintenance.
• Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
• Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
• Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
• Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
• Adopting certain temperature (98~102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
• Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
• Drying function.
• Optional stainless steel bucket and tray.
• Standard 1 pc stainless steel tray.

• B-process
• N-process
• Dri-Tec Drying Process

Class B Steam Sterilizer

Technical Specifications

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ386×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material S30408
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105~136°C 50~134°C
Temp. Display Accuracy 0.1°C
Timing Range 0~999 min 0~99 h
Dynamic Pulse Exhaust Times 0~9 times
Dynamic Pulse Exhaust Temp 105~136°C
Temp. Holding Range 45~60°C 50~100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V 50Hz / 200V 50/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190

Luxmed

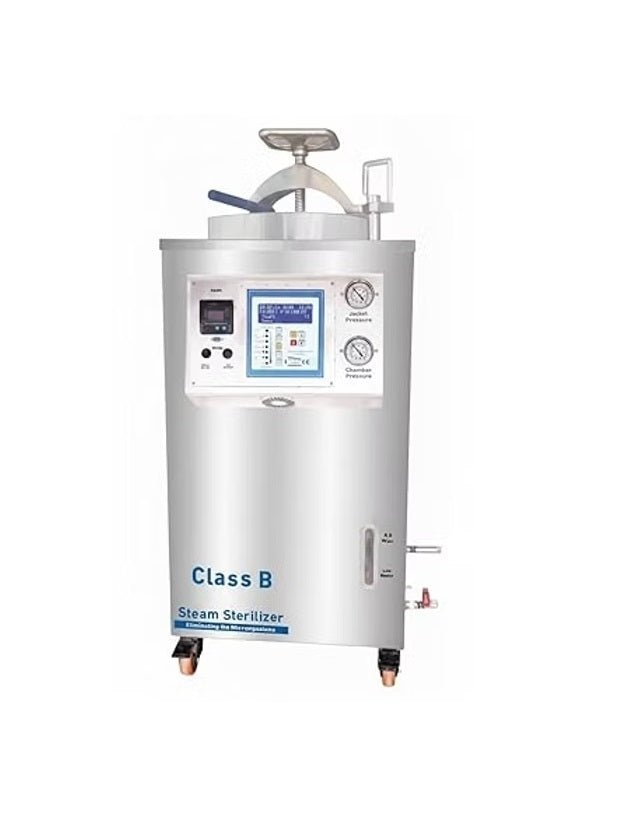

Steam Sterilizer (Cylindrical Vertical)

SKU LM-VA50V
Rs.0.00

Application Range:

Applicable to health services, scientific research, agricultural and other units, to lab equipment, dressings, glassware, solution culture medium to carry out sterilization. Also necessary test equipment for food factory, drinking water plant to do QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

• Over pressure – Safety valve can automatically open to release pressure.
• Over temperature – The system will power off automatically.
• Door sensor – Sensor at door closing position to check door status. If door is open, operation will stop.
• Anti-dry out function – If water level is too low, system will power off and error code displays on screen.
• Over current – Over voltage or electric leakage protection apparatus – air switch.
• Door cover – The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

• Water inlet filter to keep high water quality.
• Optional printer for recording sterilization data.
• Jumbo LCD display screen displays all steps of full process as well as error codes.
• Independent quick service window, easy for repairing and maintenance.
• Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
• Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
• Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
• Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
• Adopting certain temperature (98~102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
• Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
• Drying function.
• Optional stainless steel bucket and tray.
• Standard 1 pc stainless steel tray.

• B-process
• N-process
• Dri-Tec Drying Process

Class B Steam Sterilizer

Technical Specifications

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ386×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material S30408
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105~136°C 50~134°C
Temp. Display Accuracy 0.1°C
Timing Range 0~999 min 0~99 h
Dynamic Pulse Exhaust Times 0~9 times
Dynamic Pulse Exhaust Temp 105~136°C
Temp. Holding Range 45~60°C 50~100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V 50Hz / 200V 50/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190
Rs.0.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Application Range:

Applicable to health services, scientific research, agricultural and other units, to lab equipment, dressings, glassware, solution culture medium to carry out sterilization. Also necessary test equipment for food factory, drinking water plant to do QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

• Over pressure – Safety valve can automatically open to release pressure.
• Over temperature – The system will power off automatically.
• Door sensor – Sensor at door closing position to check door status. If door is open, operation will stop.
• Anti-dry out function – If water level is too low, system will power off and error code displays on screen.
• Over current – Over voltage or electric leakage protection apparatus – air switch.
• Door cover – The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

• Water inlet filter to keep high water quality.
• Optional printer for recording sterilization data.
• Jumbo LCD display screen displays all steps of full process as well as error codes.
• Independent quick service window, easy for repairing and maintenance.
• Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
• Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
• Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
• Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
• Adopting certain temperature (98~102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
• Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
• Drying function.
• Optional stainless steel bucket and tray.
• Standard 1 pc stainless steel tray.

• B-process
• N-process
• Dri-Tec Drying Process

Class B Steam Sterilizer

Technical Specifications

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ386×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material S30408
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105~136°C 50~134°C
Temp. Display Accuracy 0.1°C
Timing Range 0~999 min 0~99 h
Dynamic Pulse Exhaust Times 0~9 times
Dynamic Pulse Exhaust Temp 105~136°C
Temp. Holding Range 45~60°C 50~100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V 50Hz / 200V 50/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190
