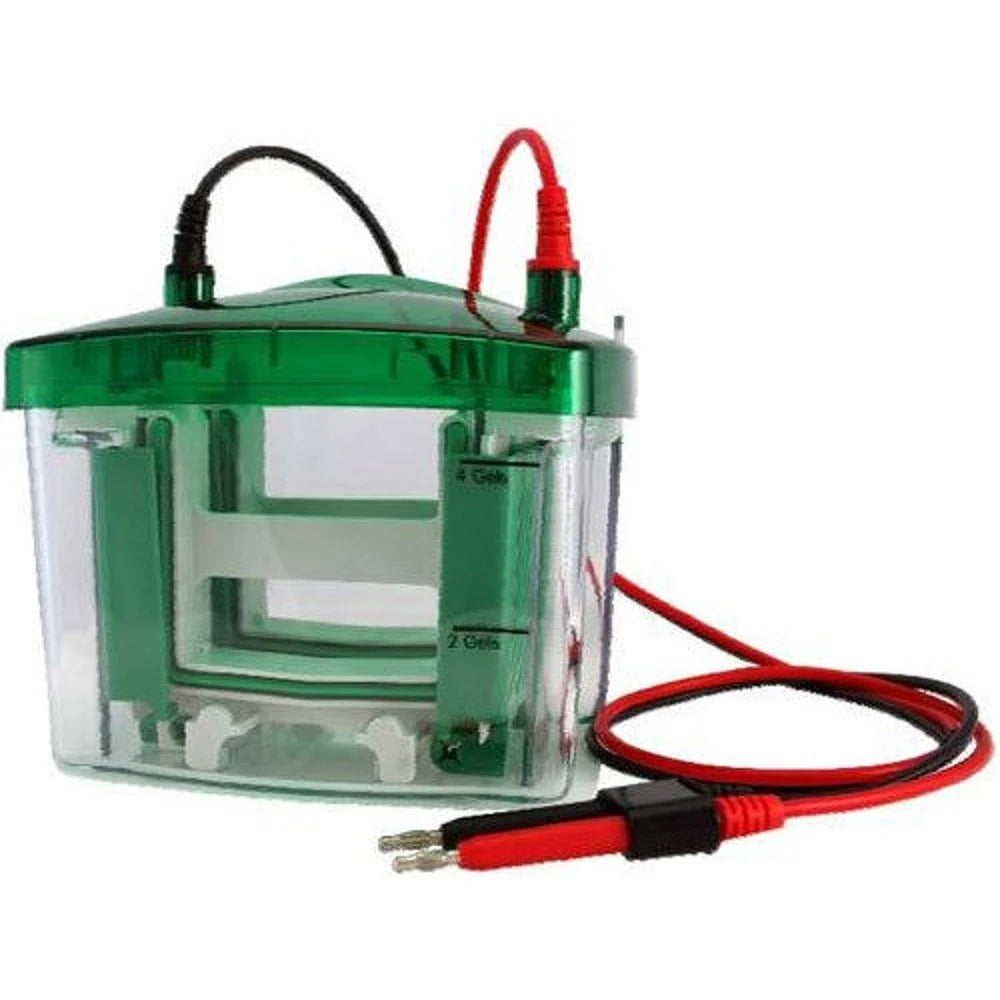

Vertical Electrophoresis system is designed for running 1-2 precast or handcast gels
(cassette size 10cm x 8cm) for electrophoresis.

• The locking side fasteners provide a tight seal that ensure rapid and easy electrophoresis.

• The unit comes equipped with 2 gel casting stands and casting frames, perfect for handcasting your own gels.

• Simply align the spacer and short glass plates, seal between the hinges, and allow your gel to polymerize.

• Insert the polymerized gel into the electrophoresis module for an efficient gel running experiment.

  • The modular configurations are:Mini P-4 electrophoresis cell — for running handcastor precast PAGE gel and (SDS)-PAGE gels Mini TBC electrophoretic transfer cell — for westernblotting
  • The Mini-P-4 cell is ideal for your vertical mini gel electrophoresis needs. Easy to use, easy to assemble, robust, and versatile, the cell accommodates up to four handcast or precast gels. Casting and running gels have never been quicker or easier.
  • Run up to 4 mini gels in less than an hourRun four 2-D gels in less than a day


Specifications:

  • Number of gels: 1–4Precast gels precast gelsHandcast gels Cast using spacer plates
  • Glass plate size (W x L)
  • Short plate 10.1 x 7.3 cmSpacer plate 10.1 x 8.2 cm
  • Gel size (W x L)Handcast 8.3 x 7.3 cmPrecast 8.6 x 6.8 cm
  • Total buffer volume for 2 gels 700 mlTotal buffer volume for 4 gels 1,000 ml
  • Typical run times for SDS-PAGE 35–45 min (at 200 V constant)


System Component:

  • High transparency molded PC, clearly display the running status; easy-to-useElectrode Assembly and leak-free
  • Casting Stand: side-by-side design allows access to two gels simultaneously,
  • Casting Frame: Simple cam closure; no bulky clamps or thumbscrews.
  • Gaskets: Silicone rubber foaming against leakage

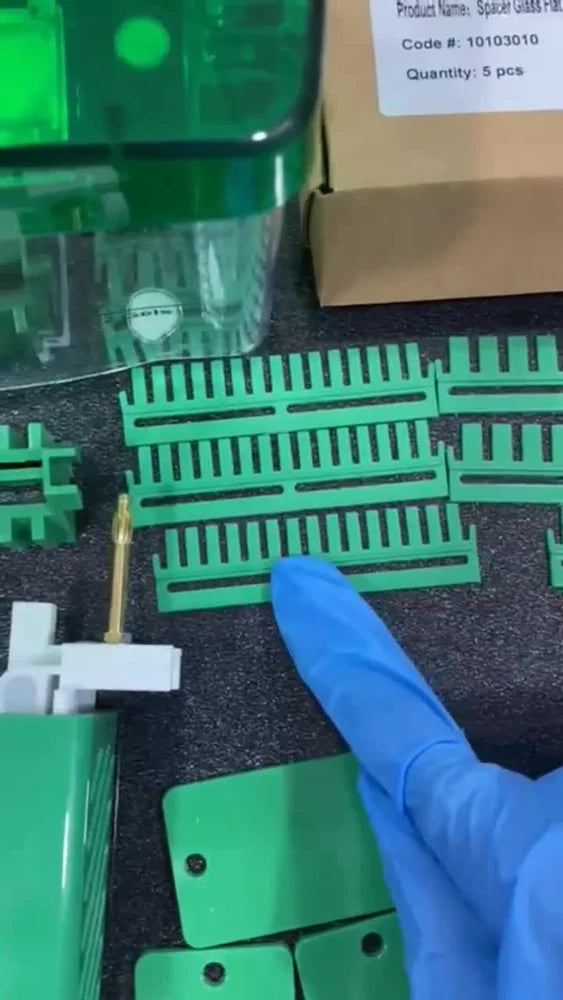

  • Plastic Comb: do not inhibit polymerization and have a built-in ridge to eliminate air contactduring gel casting for uniform gel polymerization
  • Glass Plate: labeled with thickness for instant identification

STANDARD
ACCESSORIES:
• 2 gel casting stands and casting frames • 1 buffer dam
• 3 spacer plates (1mm)
• 5 short glass plates

• 3 15-well combs • 3 10-well combs • 5 sealing gaskets

• Tank and upper lid with power cables
• Primary and Secondary Electrode Cores

Br Biochem

Vertical Gel Electrophoresis System

SKU MP-8001
Rs.50,000.00
Rs.36,999.00

Vertical Electrophoresis system is designed for running 1-2 precast or handcast gels
(cassette size 10cm x 8cm) for electrophoresis.

• The locking side fasteners provide a tight seal that ensure rapid and easy electrophoresis.

• The unit comes equipped with 2 gel casting stands and casting frames, perfect for handcasting your own gels.

• Simply align the spacer and short glass plates, seal between the hinges, and allow your gel to polymerize.

• Insert the polymerized gel into the electrophoresis module for an efficient gel running experiment.

  • The modular configurations are:Mini P-4 electrophoresis cell — for running handcastor precast PAGE gel and (SDS)-PAGE gels Mini TBC electrophoretic transfer cell — for westernblotting
  • The Mini-P-4 cell is ideal for your vertical mini gel electrophoresis needs. Easy to use, easy to assemble, robust, and versatile, the cell accommodates up to four handcast or precast gels. Casting and running gels have never been quicker or easier.
  • Run up to 4 mini gels in less than an hourRun four 2-D gels in less than a day


Specifications:

  • Number of gels: 1–4Precast gels precast gelsHandcast gels Cast using spacer plates
  • Glass plate size (W x L)
  • Short plate 10.1 x 7.3 cmSpacer plate 10.1 x 8.2 cm
  • Gel size (W x L)Handcast 8.3 x 7.3 cmPrecast 8.6 x 6.8 cm
  • Total buffer volume for 2 gels 700 mlTotal buffer volume for 4 gels 1,000 ml
  • Typical run times for SDS-PAGE 35–45 min (at 200 V constant)


System Component:

  • High transparency molded PC, clearly display the running status; easy-to-useElectrode Assembly and leak-free
  • Casting Stand: side-by-side design allows access to two gels simultaneously,
  • Casting Frame: Simple cam closure; no bulky clamps or thumbscrews.
  • Gaskets: Silicone rubber foaming against leakage
  • Plastic Comb: do not inhibit polymerization and have a built-in ridge to eliminate air contactduring gel casting for uniform gel polymerization
  • Glass Plate: labeled with thickness for instant identification

STANDARD
ACCESSORIES:
• 2 gel casting stands and casting frames • 1 buffer dam
• 3 spacer plates (1mm)
• 5 short glass plates

• 3 15-well combs • 3 10-well combs • 5 sealing gaskets

• Tank and upper lid with power cables
• Primary and Secondary Electrode Cores

Rs.50,000.00
Rs.36,999.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Vertical Electrophoresis system is designed for running 1-2 precast or handcast gels
(cassette size 10cm x 8cm) for electrophoresis.

• The locking side fasteners provide a tight seal that ensure rapid and easy electrophoresis.

• The unit comes equipped with 2 gel casting stands and casting frames, perfect for handcasting your own gels.

• Simply align the spacer and short glass plates, seal between the hinges, and allow your gel to polymerize.

• Insert the polymerized gel into the electrophoresis module for an efficient gel running experiment.

  • The modular configurations are:Mini P-4 electrophoresis cell — for running handcastor precast PAGE gel and (SDS)-PAGE gels Mini TBC electrophoretic transfer cell — for westernblotting
  • The Mini-P-4 cell is ideal for your vertical mini gel electrophoresis needs. Easy to use, easy to assemble, robust, and versatile, the cell accommodates up to four handcast or precast gels. Casting and running gels have never been quicker or easier.
  • Run up to 4 mini gels in less than an hourRun four 2-D gels in less than a day


Specifications:

  • Number of gels: 1–4Precast gels precast gelsHandcast gels Cast using spacer plates
  • Glass plate size (W x L)
  • Short plate 10.1 x 7.3 cmSpacer plate 10.1 x 8.2 cm
  • Gel size (W x L)Handcast 8.3 x 7.3 cmPrecast 8.6 x 6.8 cm
  • Total buffer volume for 2 gels 700 mlTotal buffer volume for 4 gels 1,000 ml
  • Typical run times for SDS-PAGE 35–45 min (at 200 V constant)


System Component:

  • High transparency molded PC, clearly display the running status; easy-to-useElectrode Assembly and leak-free
  • Casting Stand: side-by-side design allows access to two gels simultaneously,
  • Casting Frame: Simple cam closure; no bulky clamps or thumbscrews.
  • Gaskets: Silicone rubber foaming against leakage
  • Plastic Comb: do not inhibit polymerization and have a built-in ridge to eliminate air contactduring gel casting for uniform gel polymerization
  • Glass Plate: labeled with thickness for instant identification

STANDARD
ACCESSORIES:
• 2 gel casting stands and casting frames • 1 buffer dam
• 3 spacer plates (1mm)
• 5 short glass plates

• 3 15-well combs • 3 10-well combs • 5 sealing gaskets

• Tank and upper lid with power cables
• Primary and Secondary Electrode Cores
