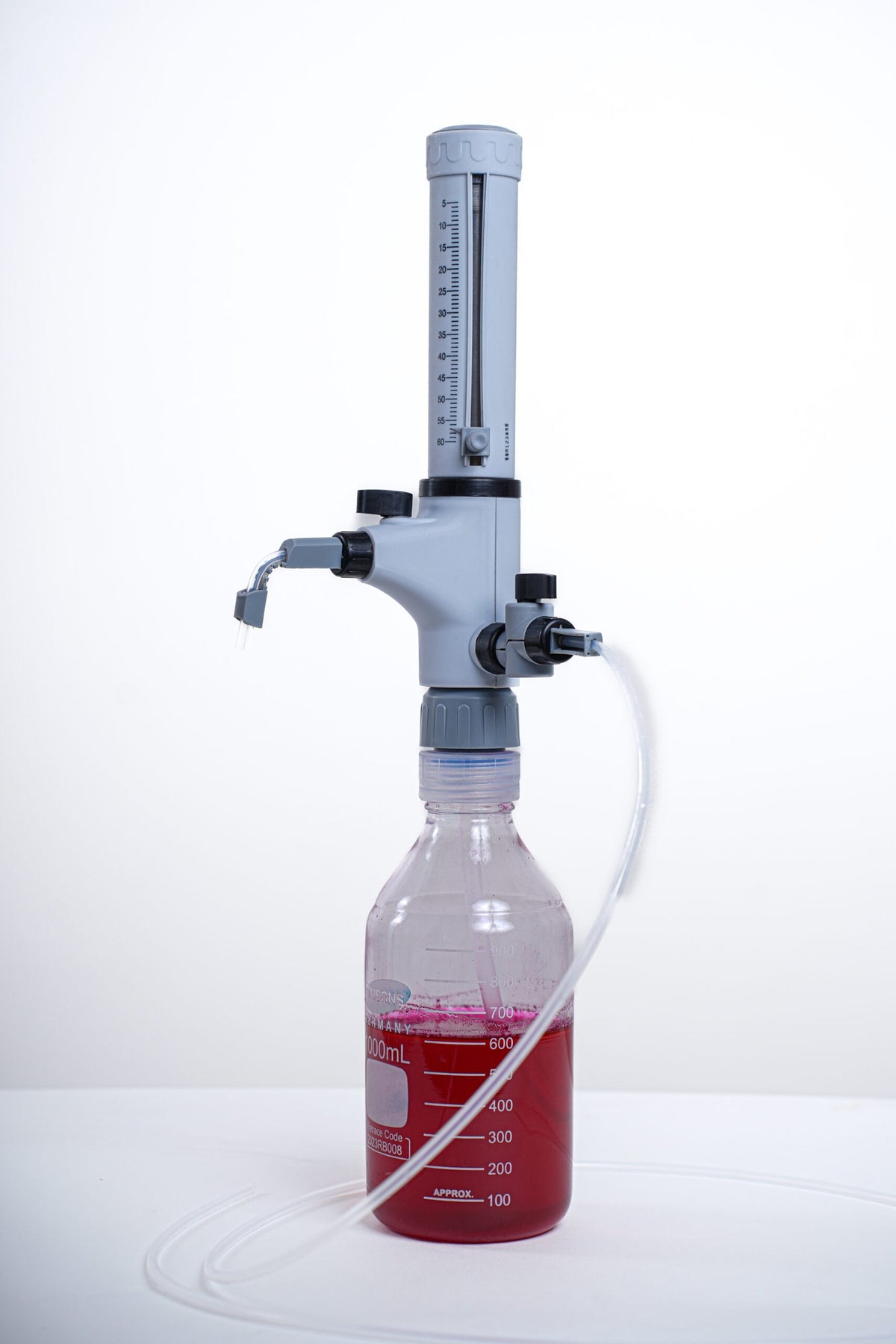

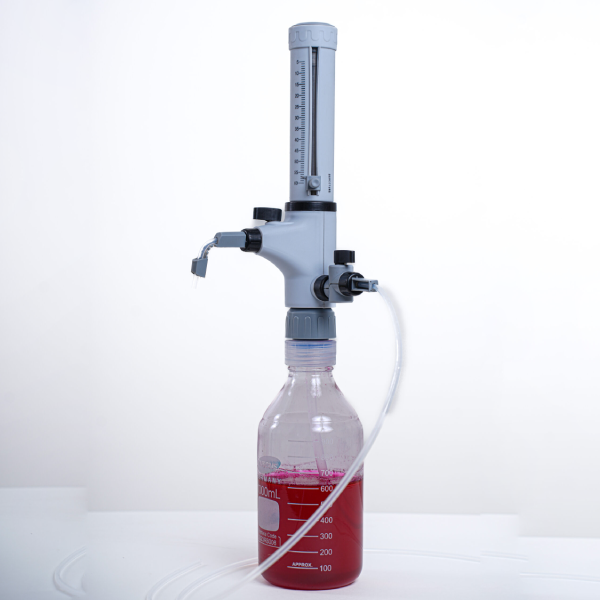

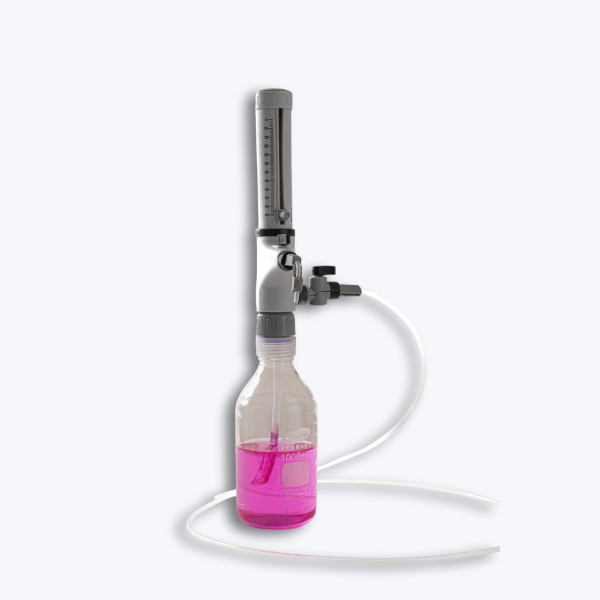

The Vertex Regular bottle top dispenser fits a standard 30 mm reagent bottle thread and delivers set volumes with a smooth, bubble-free plunger action. It is available in eight adjustable ranges from 0.25 ml to 100 ml. Each unit is individually calibrated to ISO 8655 and supplied with a calibration certificate, five bottle adaptors and a universal calibration tool.
Key features
- Simple construction with smooth, bubble-free plunger action
- PTFE piston with silicone O-ring
- Screw-type volume adjustment knob with large pointer
- Glass barrel protected by a polypropylene sleeve
- Nozzle cap prevents drips on the bench
- Easy disassembly for cleaning and servicing
- Standard 30 mm thread with 28, 32, 38, 42 and 45 mm bottle adaptors
- Universal calibration tool for in-lab recalibration
- Individually calibrated to ISO 8655 with a calibration certificate
Technical specifications
Volume ranges and specifications
| Model | Volume range | Graduation (ml) | Accuracy ± (%) | Accuracy ± (ml) | CV ± (%) | CV ± (ml) |
|---|---|---|---|---|---|---|
| BTDR-1 | 0.25–2.5 ml | 0.05 | 0.6 | 0.015 | 0.2 | 0.005 |
| BTDR-2 | 0.5–5 ml | 0.1 | 0.5 | 0.025 | 0.1 | 0.005 |
| BTDR-3 | 1–10 ml | 0.2 | 0.5 | 0.050 | 0.1 | 0.010 |
| BTDR-4 | 2.5–25 ml | 0.5 | 0.5 | 0.125 | 0.1 | 0.025 |
| BTDR-5 | 2.5–30 ml | 0.5 | 0.5 | 0.150 | 0.1 | 0.030 |
| BTDR-6 | 5–50 ml | 1.0 | 0.5 | 0.250 | 0.1 | 0.050 |
| BTDR-7 | 5–60 ml | 1.0 | 0.5 | 0.300 | 0.1 | 0.060 |
| BTDR-8 | 10–100 ml | 2.0 | 0.5 | 0.500 | 0.1 | 0.100 |
Materials
| Component | Material |
|---|---|
| Piston | PTFE |
| Cylinder | Glass |
| Volume knob | Screw type |
| Valve assembly | Glass ball and seat |
| Valve housing | Polypropylene |
| Discharge assembly | PTFE |
| Delivery tube | FEP |
| Inlet tube | FEP |
What is supplied
- Bottle top dispenser in the volume range selected
- Five bottle adaptors (28, 32, 38, 42 and 45 mm)
- Universal calibration tool
- Individual calibration certificate
Frequently asked questions
What is the Vertex Regular bottle top dispenser used for?
Dispensing set volumes of liquid straight from a reagent bottle in chemical and laboratory work.
What volume ranges are available?
Eight ranges: 0.25–2.5, 0.5–5, 1–10, 2.5–25, 2.5–30, 5–50, 5–60 and 10–100 ml.
Which reagents can I dispense?
The manufacturer states it can be used with all laboratory reagents except hydrofluoric acid (HF).
Which bottle necks does it fit?
It has a standard 30 mm thread and comes with adaptors for 28, 32, 38, 42 and 45 mm bottles.
Is it autoclavable?
The Regular model data in our source does not state autoclaving. To confirm: please ask us before autoclaving.
Is it calibrated?
Yes. Each unit is individually calibrated to ISO 8655 with a calibration certificate, and a universal calibration tool is provided for recalibration in your lab.
Can I clean and service it?
Yes. It disassembles easily for cleaning and servicing.
What is the warranty?
Labmart supplies this product with a 1-year standard warranty.
What does the nozzle cap do?
It prevents drips on the work surface.
Do you provide a GST invoice and bulk or institutional quotations?
Yes. Labmart (Chemlab Equipment) issues a GST invoice with every order. For colleges, hospitals, pharma companies and government labs we also give bulk and institutional quotations. Send us the model, volume range, quantity and delivery location and we will quote.
- Regular price
- Rs.15,399.00
- Sale price
- Rs.9,599.00
The Vertex Regular bottle top dispenser fits a standard 30 mm reagent bottle thread and delivers set volumes with a smooth, bubble-free plunger action. It is available in eight adjustable ranges from 0.25 ml to 100 ml. Each unit is individually calibrated to ISO 8655 and supplied with a calibration certificate, five bottle adaptors and a universal calibration tool.
Key features
- Simple construction with smooth, bubble-free plunger action
- PTFE piston with silicone O-ring
- Screw-type volume adjustment knob with large pointer
- Glass barrel protected by a polypropylene sleeve
- Nozzle cap prevents drips on the bench
- Easy disassembly for cleaning and servicing
- Standard 30 mm thread with 28, 32, 38, 42 and 45 mm bottle adaptors
- Universal calibration tool for in-lab recalibration
- Individually calibrated to ISO 8655 with a calibration certificate
Technical specifications
Volume ranges and specifications
| Model | Volume range | Graduation (ml) | Accuracy ± (%) | Accuracy ± (ml) | CV ± (%) | CV ± (ml) |
|---|---|---|---|---|---|---|
| BTDR-1 | 0.25–2.5 ml | 0.05 | 0.6 | 0.015 | 0.2 | 0.005 |
| BTDR-2 | 0.5–5 ml | 0.1 | 0.5 | 0.025 | 0.1 | 0.005 |
| BTDR-3 | 1–10 ml | 0.2 | 0.5 | 0.050 | 0.1 | 0.010 |
| BTDR-4 | 2.5–25 ml | 0.5 | 0.5 | 0.125 | 0.1 | 0.025 |
| BTDR-5 | 2.5–30 ml | 0.5 | 0.5 | 0.150 | 0.1 | 0.030 |
| BTDR-6 | 5–50 ml | 1.0 | 0.5 | 0.250 | 0.1 | 0.050 |
| BTDR-7 | 5–60 ml | 1.0 | 0.5 | 0.300 | 0.1 | 0.060 |
| BTDR-8 | 10–100 ml | 2.0 | 0.5 | 0.500 | 0.1 | 0.100 |
Materials
| Component | Material |
|---|---|
| Piston | PTFE |
| Cylinder | Glass |
| Volume knob | Screw type |
| Valve assembly | Glass ball and seat |
| Valve housing | Polypropylene |
| Discharge assembly | PTFE |
| Delivery tube | FEP |
| Inlet tube | FEP |
What is supplied
- Bottle top dispenser in the volume range selected
- Five bottle adaptors (28, 32, 38, 42 and 45 mm)
- Universal calibration tool
- Individual calibration certificate
Frequently asked questions
What is the Vertex Regular bottle top dispenser used for?
Dispensing set volumes of liquid straight from a reagent bottle in chemical and laboratory work.
What volume ranges are available?
Eight ranges: 0.25–2.5, 0.5–5, 1–10, 2.5–25, 2.5–30, 5–50, 5–60 and 10–100 ml.
Which reagents can I dispense?
The manufacturer states it can be used with all laboratory reagents except hydrofluoric acid (HF).
Which bottle necks does it fit?
It has a standard 30 mm thread and comes with adaptors for 28, 32, 38, 42 and 45 mm bottles.
Is it autoclavable?
The Regular model data in our source does not state autoclaving. To confirm: please ask us before autoclaving.
Is it calibrated?
Yes. Each unit is individually calibrated to ISO 8655 with a calibration certificate, and a universal calibration tool is provided for recalibration in your lab.
Can I clean and service it?
Yes. It disassembles easily for cleaning and servicing.
What is the warranty?
Labmart supplies this product with a 1-year standard warranty.
What does the nozzle cap do?
It prevents drips on the work surface.
Do you provide a GST invoice and bulk or institutional quotations?
Yes. Labmart (Chemlab Equipment) issues a GST invoice with every order. For colleges, hospitals, pharma companies and government labs we also give bulk and institutional quotations. Send us the model, volume range, quantity and delivery location and we will quote.
- Regular price
- Rs.15,399.00
- Sale price
- Rs.9,599.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Vertex Regular bottle top dispenser fits a standard 30 mm reagent bottle thread and delivers set volumes with a smooth, bubble-free plunger action. It is available in eight adjustable ranges from 0.25 ml to 100 ml. Each unit is individually calibrated to ISO 8655 and supplied with a calibration certificate, five bottle adaptors and a universal calibration tool.
Key features
- Simple construction with smooth, bubble-free plunger action
- PTFE piston with silicone O-ring
- Screw-type volume adjustment knob with large pointer
- Glass barrel protected by a polypropylene sleeve
- Nozzle cap prevents drips on the bench
- Easy disassembly for cleaning and servicing
- Standard 30 mm thread with 28, 32, 38, 42 and 45 mm bottle adaptors
- Universal calibration tool for in-lab recalibration
- Individually calibrated to ISO 8655 with a calibration certificate
Technical specifications
Volume ranges and specifications
| Model | Volume range | Graduation (ml) | Accuracy ± (%) | Accuracy ± (ml) | CV ± (%) | CV ± (ml) |
|---|---|---|---|---|---|---|
| BTDR-1 | 0.25–2.5 ml | 0.05 | 0.6 | 0.015 | 0.2 | 0.005 |
| BTDR-2 | 0.5–5 ml | 0.1 | 0.5 | 0.025 | 0.1 | 0.005 |
| BTDR-3 | 1–10 ml | 0.2 | 0.5 | 0.050 | 0.1 | 0.010 |
| BTDR-4 | 2.5–25 ml | 0.5 | 0.5 | 0.125 | 0.1 | 0.025 |
| BTDR-5 | 2.5–30 ml | 0.5 | 0.5 | 0.150 | 0.1 | 0.030 |
| BTDR-6 | 5–50 ml | 1.0 | 0.5 | 0.250 | 0.1 | 0.050 |
| BTDR-7 | 5–60 ml | 1.0 | 0.5 | 0.300 | 0.1 | 0.060 |
| BTDR-8 | 10–100 ml | 2.0 | 0.5 | 0.500 | 0.1 | 0.100 |
Materials
| Component | Material |
|---|---|
| Piston | PTFE |
| Cylinder | Glass |
| Volume knob | Screw type |
| Valve assembly | Glass ball and seat |
| Valve housing | Polypropylene |
| Discharge assembly | PTFE |
| Delivery tube | FEP |
| Inlet tube | FEP |
What is supplied
- Bottle top dispenser in the volume range selected
- Five bottle adaptors (28, 32, 38, 42 and 45 mm)
- Universal calibration tool
- Individual calibration certificate
Frequently asked questions
What is the Vertex Regular bottle top dispenser used for?
Dispensing set volumes of liquid straight from a reagent bottle in chemical and laboratory work.
What volume ranges are available?
Eight ranges: 0.25–2.5, 0.5–5, 1–10, 2.5–25, 2.5–30, 5–50, 5–60 and 10–100 ml.
Which reagents can I dispense?
The manufacturer states it can be used with all laboratory reagents except hydrofluoric acid (HF).
Which bottle necks does it fit?
It has a standard 30 mm thread and comes with adaptors for 28, 32, 38, 42 and 45 mm bottles.
Is it autoclavable?
The Regular model data in our source does not state autoclaving. To confirm: please ask us before autoclaving.
Is it calibrated?
Yes. Each unit is individually calibrated to ISO 8655 with a calibration certificate, and a universal calibration tool is provided for recalibration in your lab.
Can I clean and service it?
Yes. It disassembles easily for cleaning and servicing.
What is the warranty?
Labmart supplies this product with a 1-year standard warranty.
What does the nozzle cap do?
It prevents drips on the work surface.
Do you provide a GST invoice and bulk or institutional quotations?
Yes. Labmart (Chemlab Equipment) issues a GST invoice with every order. For colleges, hospitals, pharma companies and government labs we also give bulk and institutional quotations. Send us the model, volume range, quantity and delivery location and we will quote.
Similar Products
-
Vendor: Vertex

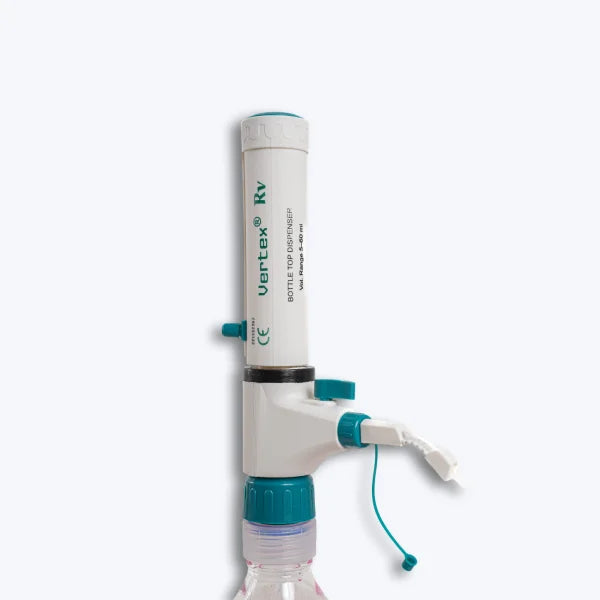

Vertex Premium Bottle Top Dispenser, Chemical Resistant,0.25 ml to 100 ml, 8 Ranges I With Recirculating Valve
