Product Description

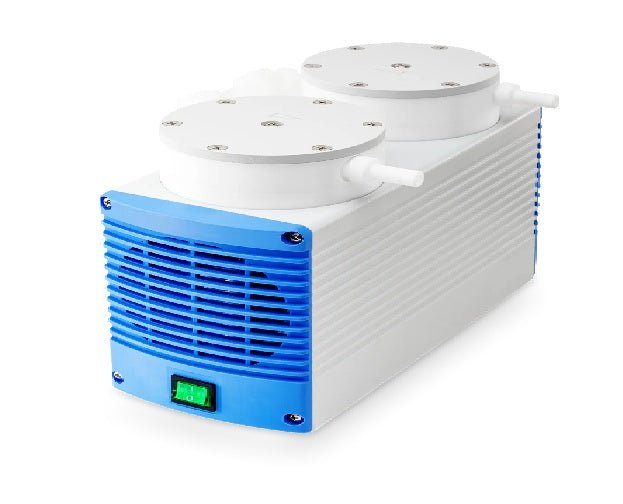

The C410 is a high-performance diaphragm pump designed specifically for Chemistry, where accuracy and reliability are required in the laboratory environment. This laboratory equipment delivers a powerful maximum vacuum of 13 mbar and is suited for scientific applications. The C410 can be used continuously and is also intended to deliver optimal flow rates at different pressures to enable consistency in performance during research or analysis. As a scientific instrument, the C410 has low operation sound at 50dB, with a strong construction designed to handle chemical resistance. The C410 laboratory instrument is an ideal fit for the RE100-Pro and RE100-S distillation systems. This laboratory equipment is a reliable research-laboratory equipment, particularly for the academic or professional bereau, suitable for the work yet varying between laboratory applications that require a vacuum.

Key Features

Performance

  • High vacuum performance with 13 mbar maximum vacuum
  • Continuous operation capability
  • Optimized flow rates across various pressure levels
  • Efficient 1450 rpm motor operation

Design

  • Chemistry-designed diaphragm pump construction
  • Compact 8mm nozzle size configuration
  • Low noise operation at 50dB
  • Chemical-resistant materials and components

Durability

  • Robust motor design with 95W power rating
  • Continuous duty operation capability
  • Chemical-compatible construction
  • Long-lasting mechanical components

Compatibility

  • Designed for RE100-Pro & RE100-S distillation systems
  • Standard 8mm connections
  • Comprehensive accessory compatibility
  • Multiple flask clip options available

Technical Specifications

Performance

  • Maximum Vacuum: 13 mbar
  • Power Consumption: 95 W
  • Motor Speed: 1450 rpm
  • Operation Mode: Continuous operation

Flow Rate Performance

  • Flow Rates: 25–5 L/min across decreasing pressures
  • Pressure Levels: 1000 to 280 mbar
  • Performance Curve: Stable flow under varying loads
  • Suitability: Ideal for controlled vacuum applications

Material Specifications

  • Construction Materials: PVDF, PTFE, ABS, Borosilicate Glass, Stainless Steel
  • Seal Materials: PTFE with Viton
  • Durability: Chemical-resistant build
  • Reliability: Designed for long-term lab use

Accessory Compatibility

  • Evaporation Components: Vacuum seals & bottle springs
  • Flask Clips: NS24/40, NS29/32, NS29/42
  • Hose Lines: Compatible with silicone cooling water hoses
  • Protective Shields: Suitable for RE100-Pro & RE100-S
