APPLICATIONS OF VACCINE STORAGE CABINET

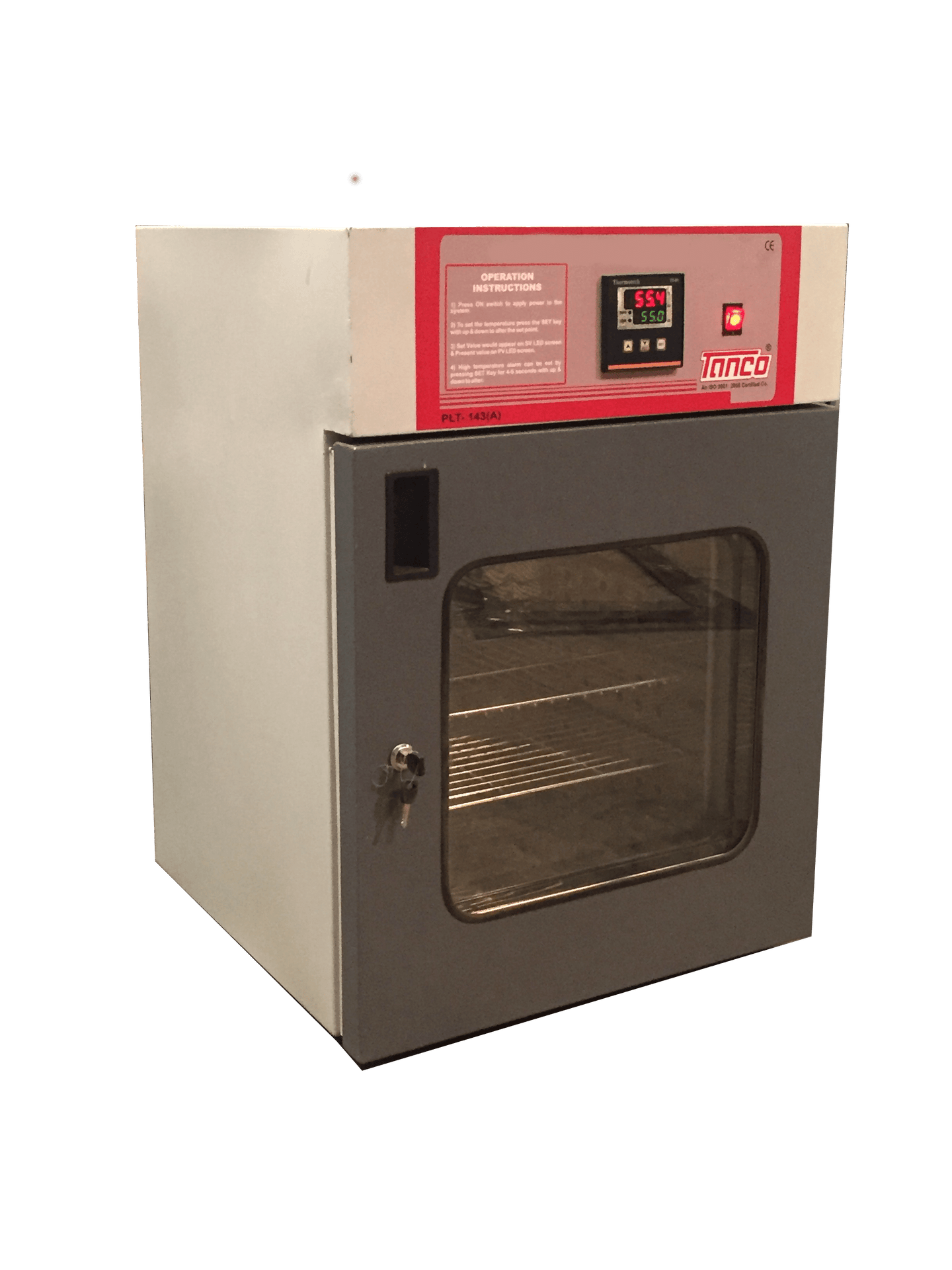

- “TANCO” brings the ultra-high-tech Triple walled Microprocessor controlled, solid-state Vaccine/Semen Storage Cabinet.
- Specially designed for storing the semen storage bottles/containers in an automatically controlled temperature of 3°C to 6°C for small medium and large blood centers
- Suitable for hospitals anti-epidemic stations and clinics.
VACCINE STORAGE CABINET SALIENT FEATURES & CONSTRUCTION
- Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
- Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
- Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
- Door operated illumination lamp is fitted inside the chamber for easy visibility .
- A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
- High grade PUF INSULA TION between outer and inner chamber for minimal thermal losses.
- Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
- Temperature is controlled by Electronic Digital T emperature Indicator Cum Controller fitted With Audio Visual Alarm incorporated with battery back which triggers in the event of fluctuation exceeding permitted tolerance.
- Drawers are provided for accommodating Semen bottles or Containers.
- Caster wheel mounted for easy portability.
- Supplied with cord and plug.
- Operating Voltage: 220 Volts AC (50 Hz).
VACCINE STORAGE CABINET TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
| Model No. | VSC-1 | VSC-1 |
| Usable Space in mm | 450 x 450 x 900 | 600 x 600 x 900 |
| Approx Volume (Ltr) | 150 | 340 |
| Chamber | Inner Chamber Made of Stainless Steel | |
| Temperature Range | 3°C to 6°C | |
| Temperature Controller | By Microprocessor Based PID Digital T emperature Indicator cum Controller with alarm facility | |
| Temperature Alarm | For High & Low Temperature Deviation | |
| Display | LED Display | |
| Relay | Solid state electronic relay with protective heat sink. | |
| Illumination | By Fluorescent Tube | |
| Air Circulation | By forced convection system | |
| Insulation | By High density PUF insulation | |
| Voltage Indicator | By Volt Meter fitted on Panel | |
| High Voltage Protection | Through automatic voltage stabilizer (Optional) | |
| Electric Supply | 220/230V AC, 50/60Hz | |
