The Labmart Type A2 Micro Spectrophotometer Cuvette is a precision micro spectrophotometer cell featuring two polished windows and thermally fused construction. It is available in quartz and glass configurations with sample volumes from 0.35 mL to 1.7 mL. The optical-path tolerance is specified as ±0.1 mm, supporting consistent spectrophotometric measurements.
Product Overview
The Labmart Type A2 Micro Spectrophotometer Cuvette is designed for spectrophotometric applications requiring relatively small sample volumes. The Type A2 configuration incorporates two polished optical windows and a fused-cell construction.
The connected sides are joined using fire-flame or thermal-fusing techniques, rather than glued or fritted assembly. According to the supplied product information, this construction maintains the surface quality of the cell and provides highly transparent connected sides.
The optical path is manufactured with high parallel precision, with the light-path tolerance maintained within ±0.1 mm. The source also specifies acid-proof, alkali-proof and organic-solvent-resistant properties.

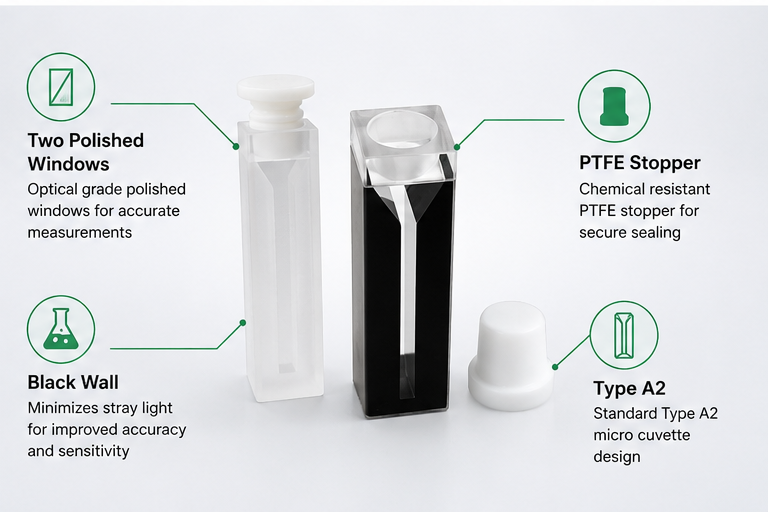

Key Features and Benefits
- Micro Spectrophotometer Cuvette – Designed for spectrophotometric measurements with small sample volumes.
- Two Polished Windows – Provides two polished optical surfaces for spectrophotometric measurements.
- Thermal-Fused Construction – Uses fire-flame or thermal fusing rather than glued or fritted assembly.
- ±0.1 mm Light-Path Tolerance – Supports consistent optical-path geometry.
- Quartz and Glass Options – Available in both material configurations.
- Chemical Resistance – The source describes the cell as acid-proof, alkali-proof and organic-solvent resistant.
- Integrated Fused Sides – The fused sides form an integrated construction intended to prevent leakage and reduce cross-contamination concerns.
- Well-Matched Cells – The source describes the cuvettes as well consistent and well matched.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Micro Spectrophotometer Cuvette |
| Type | A2 |
| Brand | Labmart |
| Optical Windows | Two Polished Windows |
| Construction | Fire-Flame / Thermal Fused |
| Optical-Path Tolerance | ±0.1 mm |
| Chemical Resistance | Acid-proof, alkali-proof and organic-solvent resistant |
| Available Materials | Quartz / Glass |
| Path Length | 10 mm |
| Sample Volume Range | 0.35–1.7 mL |
| Dimensions | 12.5 × 12.5 × 45 mm |
| Stopper | PTFE Stopper |
| Supply | Pair |
| Matching | Well consistent and well matched |
| Certifications / Standards | Not specified by the manufacturer |
Available Configurations
| Volume | Dimensions (L × W × H) | Quartz Code | Glass Code |
|---|---|---|---|
| 0.35 mL | 12.5 × 12.5 × 45 mm | LAQ-124 ST | LAQ-374 |
| 0.5 mL | 12.5 × 12.5 × 45 mm | LAQ-1245 ST | LAQ-3745 |
| 0.7 mL | 12.5 × 12.5 × 45 mm | LAQ-44 ST | LAQ-284 |
| 1.0 mL | 12.5 × 12.5 × 45 mm | LAQ-134 ST | LAQ-384 |
| 1.4 mL | 12.5 × 12.5 × 45 mm | LAQ-24 ST | LAQ-29 |
| 1.7 mL | 12.5 × 12.5 × 45 mm | LAQ-144 ST | LAQ-394 |
The source table lists separate quartz and glass codes for each volume configuration. It also identifies the product as having a PTFE stopper and a 10 mm path length.
5. Applications
- Spectrophotometric analysis
- Absorbance measurements
- Small-volume sample analysis
- Chemical analysis
- Analytical laboratory testing
- Research and development
- Quality-control testing
- Routine spectrophotometer measurements
6. Suitable For
- Analytical laboratories
- Chemical laboratories
- Pharmaceutical laboratories
- Research laboratories
- Quality-control laboratories
- Industrial testing laboratories
- Educational laboratories
- Spectroscopy laboratories
7. Product Benefits
- Designed for small-volume spectrophotometric testing
- Two polished optical windows
- Precision thermal-fused construction
- ±0.1 mm light-path tolerance
- Quartz and glass options
- Multiple sample-volume configurations
- Specified resistance to acids, alkalis and organic solvents
- Integrated fused construction
- Well-matched cuvette configuration
