Technical Specifications:

OPTICS: Entire optics should be complete Apo chromatic Corrected.

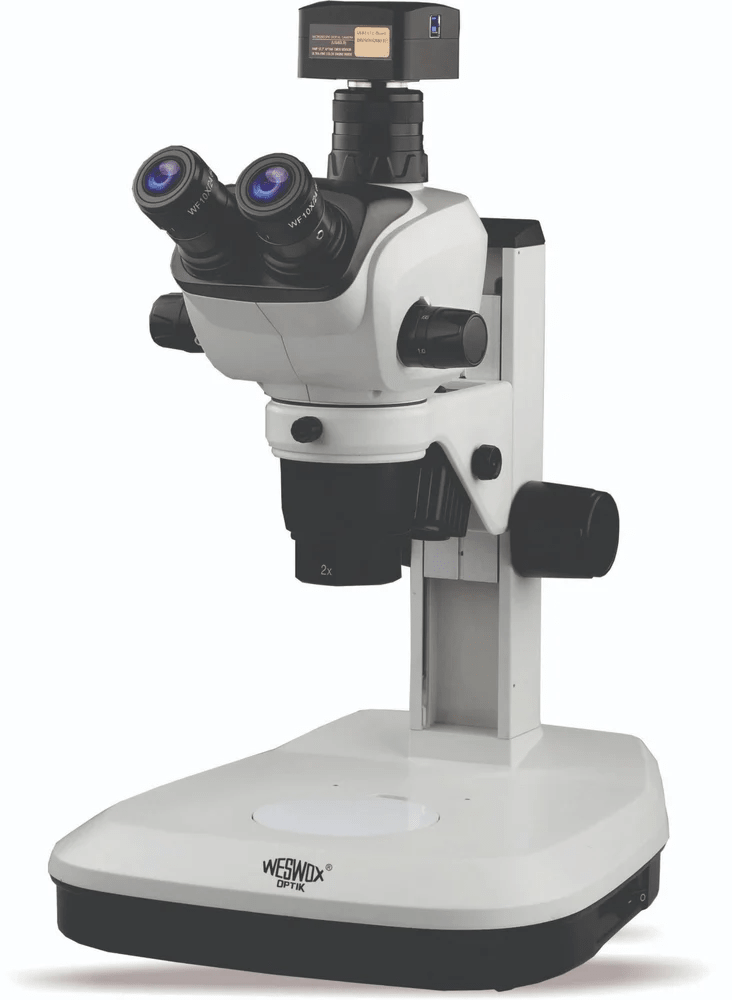

MECHANICALBODY: Incident light stand with focus column, focus travel Range 135mm, with tension adjustable focus drive. Entire optics should be complete Apo chromatic Corrected.

OBSERVATION HEAD: Trinocular35inclined.Interpupillarydistanceadjustable between 55-75mm. EYEPIECES: Focusable Extra Wide Field Eyepiece 10x (PAIRED) Field of View 24mm with diopter adjustment, rubber eye shields, rubber eye guard.

OBJECTIVES: Zoom objective 0.61X to 5.5X Twin with magnification ratio of 9:1. Apochrromatic Objective 1x. Depth of field or body angle:120mm.

FOCUS RANGE: 135 mm, with tension adjustable focus drive.

MAGNIFICATION RANGE: 8X-80XWORKING

DISTANCE: 120 mm.

ILLUMINATION: Incorporates Inclined and transmitted light system with LED lamp. The system regulated with transformer has intensity control knob. On/Off switch to provide flexibility to use either both light or any of them.
