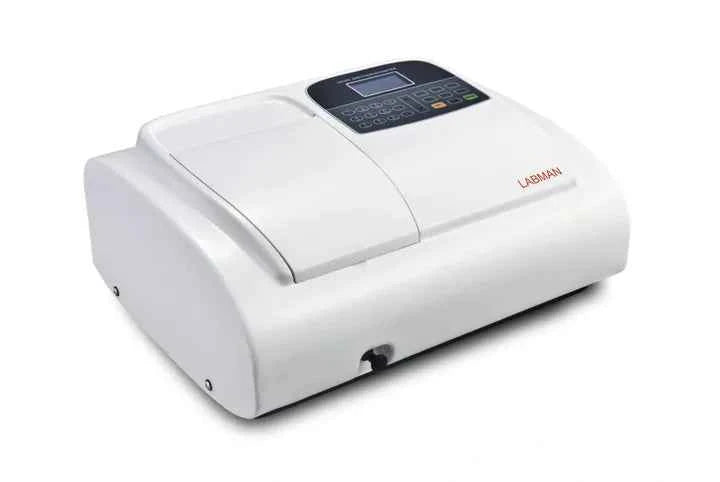

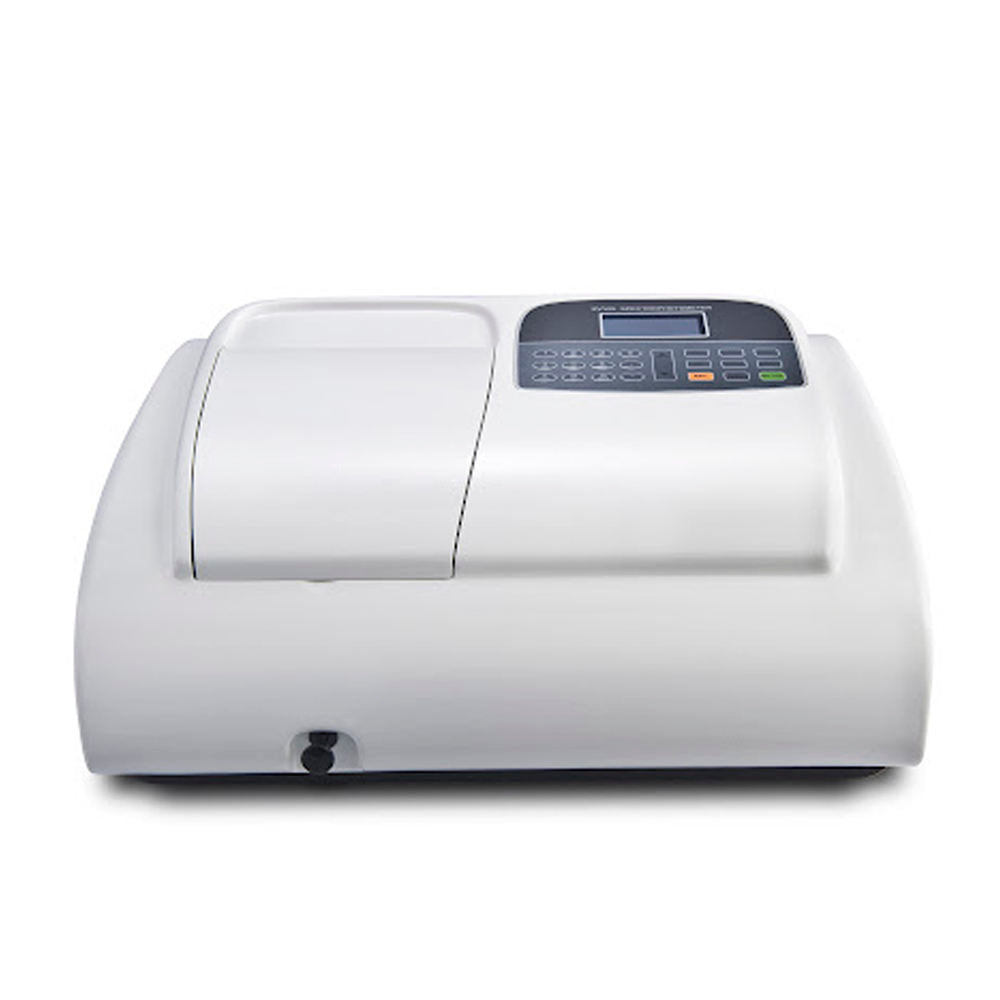

The LABMAN LMSPUV1200 is a microprocessor-controlled single beam UV-Vis spectrophotometer covering 190–1100 nm with a 2 nm bandwidth, 1200 lines/mm grating, deuterium and tungsten halogen lamps and a USB port for PC software (spectrum scanning, kinetics and multi-wavelength tests).
Key features
- Free onsite installation
- Numerical keys; automatic wavelength setting through arrow keys
- Rigid die-cast aluminium optical base for stability
- Standard curve function to find the concentration of unknown solutions
- Imported flanged deuterium lamp with low stray light; tungsten and deuterium lamps can be switched off separately to extend lamp life
- USB port to connect a PC for spectrum scanning, kinetics and multi-wavelength testing
- Data restored after a sudden power cut
- Large sample compartment; accepts 5–100 mm path-length cuvettes with optional holders
Technical specifications
| Parameter | Specification |
|---|---|
| Model | LMSPUV1200 |
| Make | LABMAN |
| Wavelength range | 190–1100 nm |
| Bandwidth | 2 nm |
| Optical system | Single beam, grating 1200 lines/mm |
| Wavelength accuracy | ±0.8 nm |
| Wavelength repeatability | ±0.2 nm |
| Wavelength setting | Automatic |
| Photometric accuracy | ±0.3 %T |
| Photometric repeatability | ±0.2 %T |
| Photometric range | −0.3 to 3 A, 0–200 %T |
| Stability | ±0.002 A/h @ 500 nm |
| Baseline flatness | ±0.002 A/h |
| Stray light | < 0.05 %T |
| Data output | USB |
| Printer port | Parallel port |
| Display | LCD |
| Cell holder | 10 mm, 4-position cuvette holder |
| Light source | D2 lamp & tungsten halogen (W) lamp |
| Detector | Silicon photodiode |
| Power supply | AC 220 V, 50/60 Hz |
| Packing dimension (L×W×H) | 640 × 550 × 400 mm |
| Gross weight | 24 kg |
| HSN code | 90273020 |
Supplied with
Main instrument, 10 mm glass cuvette (4 pcs), 10 mm quartz cuvette (2 pcs), dongle, pen drive, power cable, dust cover, instruction manual, test certificate.
Frequently asked questions
What wavelength range does the LMSPUV1200 cover?
190–1100 nm with 2 nm bandwidth and ±0.8 nm accuracy.
Which lamps does it use?
A deuterium (D2) lamp for UV and a tungsten halogen lamp for visible, which can be turned on or off individually.
Can I use longer path-length cuvettes?
Yes, 5–100 mm path-length cuvettes with optional holders; the standard holder is a 4-position 10 mm holder.
What accessories are optional?
Peltier / sipper system and a multi-cell holder (up to 100 mm).
Can it connect to a PC?
Yes, through the USB port for spectrum scanning, kinetics and multi-wavelength testing.
What power supply does it need?
AC 220 V, 50/60 Hz.
What is supplied with it?
Main instrument, 10 mm glass cuvette (4 pcs), 10 mm quartz cuvette (2 pcs), dongle, pen drive, power cable, dust cover, instruction manual, test certificate.
What are the packing size and weight?
640 × 550 × 400 mm (L×W×H as per catalogue), gross weight 24 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
