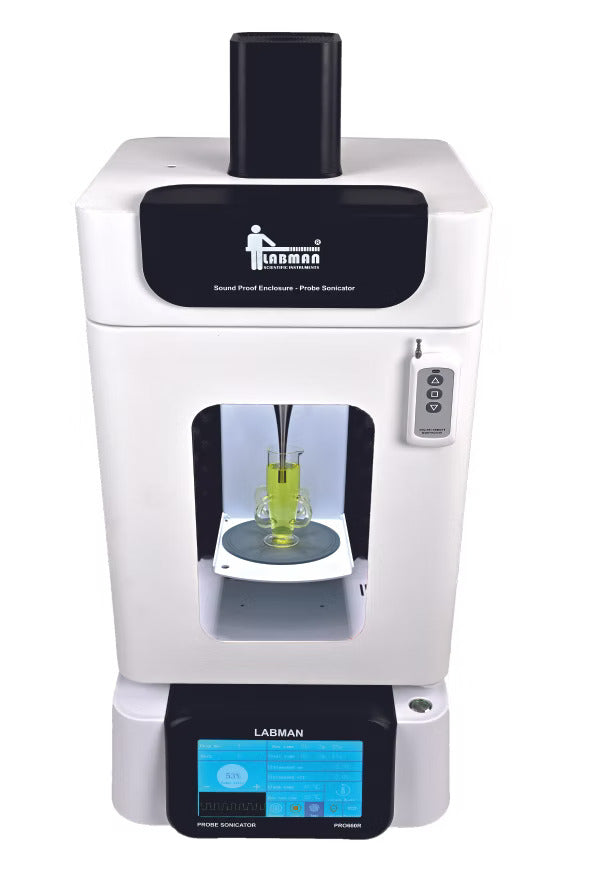

The LABMAN PRO660R is a touch screen probe sonicator with a compact soundproof enclosure and a remote control that moves the sample stand up and down. It delivers 6.5–650 W at 20–25 kHz with a titanium alloy probe to disrupt cells and for emulsification, homogenization and extraction, processing 0.2–500 ml.

Key features

• Free onsite installation
• Remote control moves the sample stand up and down; 7" TFT touch screen
• Compact soundproof enclosure that can fix on the ultrasonic generator; ultraviolet sterilization
• Built-in LED light in the enclosure with ON/OFF function
• Circulating glass beaker to rotate the sample – standard supply
• Microprocessor controlled and completely programmable; auto frequency tracking
• Over-temperature, overload and time alarms; user password protection

Technical specifications

Supplied with

Main instrument, transducer with 6 mm probe, temperature probe, power cable, soundproof box set, 5 A fuse, lamp control cable, transducer connecting cable, RF remote, beaker stand pad, circulating glass beaker, instruction manual, test certificate.

Frequently asked questions

What makes the PRO660R different from PRO656?

It adds a remote control that moves the sample stand up and down, and a compact soundproof enclosure that fixes on the generator.

What can it process?

0.2–500 ml, depending on the probe.

What probe sizes are available?

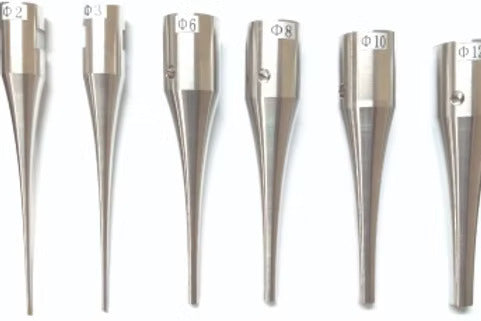

6 mm is standard; optional probes are 2, 3, 6, 8, 10 and 12 mm (titanium alloy).

What is the process capacity per probe?

Ø2 mm: 0.2–5 ml (1–35% power); Ø3: 3–10 ml (1–45%); Ø6: 10–100 ml (1–70%); Ø8: 20–200 ml (1–80%); Ø10: 30–300 ml (1–90%); Ø12: 50–500 ml (10–90%).

Is a stabilizer needed?

The catalogue recommends using the probe sonicator with a stabilizer for better results and long life.

What power supply does it need?

AC 220 V, 50/60 Hz.

What is supplied with it?

Main instrument, transducer with 6 mm probe, temperature probe, power cable, soundproof box set, 5 A fuse, lamp control cable, transducer connecting cable, RF remote, beaker stand pad, circulating glass beaker, instruction manual, test certificate.

What are the packing size and weight?

520 × 430 × 360 mm (L×W×H as per catalogue), gross weight 19 kg.

Can I get a GST invoice and a bulk or institutional quotation?

Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.

What is the warranty and delivery time?

LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
