Pilot Freeze Dryer
  • Pilot Freeze Dryer

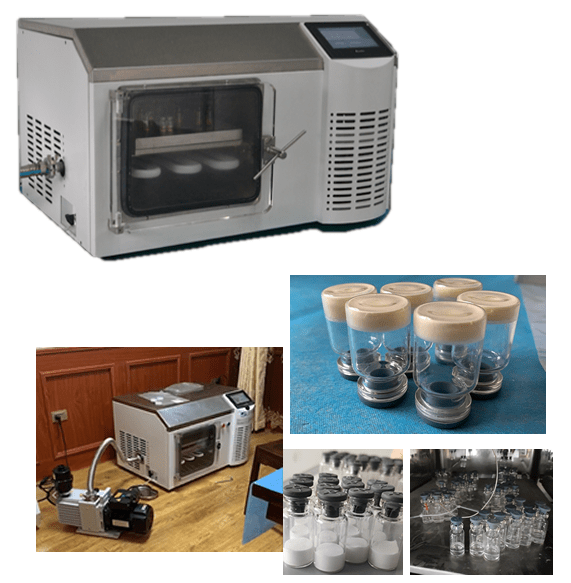

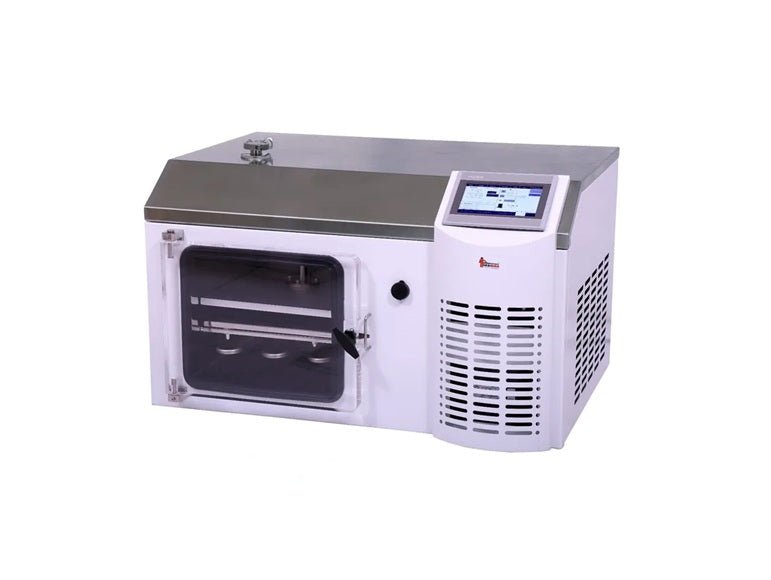

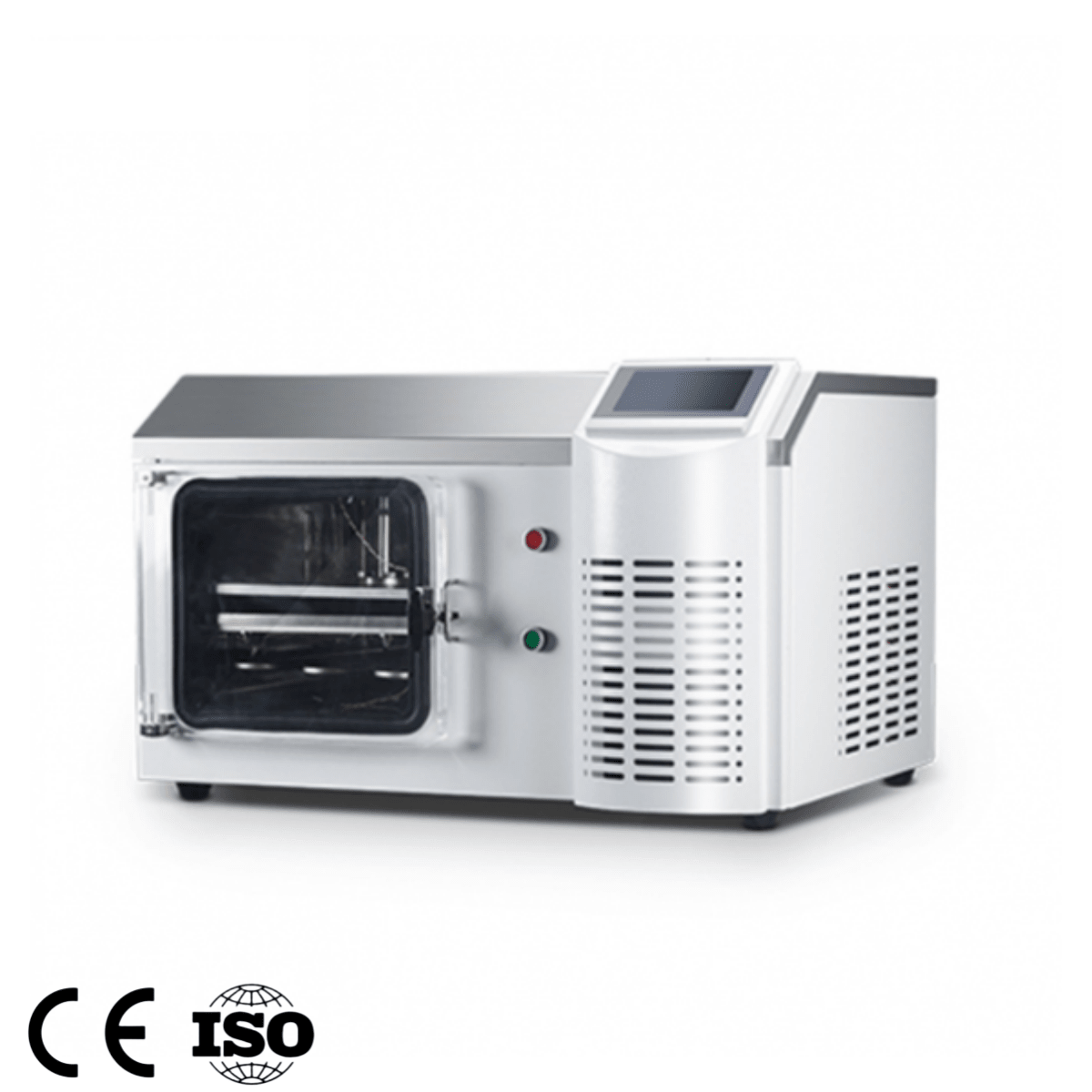

The Pilot Freeze Dryer (Lyophilizer) is a high-performance laboratory system designed for small-scale production, research, and process development. It efficiently removes moisture from sensitive materials using advanced freeze-drying (lyophilization) technology, ensuring preservation of structure, bioactivity, and chemical stability.

The LMFD260PL model features a –60°C condenser temperature (with an optional –80°C variant), enabling effective drying of both aqueous and low freezing point samples. It is ideal for processing materials in vials, ampules, tubes, dishes, and other laboratory containers, making it highly versatile for pharmaceutical and research applications. Labmart.in

Equipped with a 7-inch touchscreen interface, real-time monitoring, and advanced vacuum control (≤0.01 mbar), the system ensures precise control over temperature, pressure, and drying cycles. The SS304 stainless steel chamber and shelves, combined with a transparent acrylic door, provide durability and easy observation during operation. Labmart.in

With features like auto & manual programs, data export, multi-user access, and graph visualization, this pilot freeze dryer delivers high efficiency, reproducibility, and process optimization—making it an essential tool for laboratories transitioning to production-scale freeze drying.

Salient Features

  • LMFD260PL: –60°C condenser temperature

  • LMFD280PL: –80°C condenser temperature

  • Suitable for water solvents and low freezing point substances

  • Pilot Freeze Dryer for drying solid or liquid samples

  • Control settings:

    • Temperature

    • Cooling

    • Heating

    • Vacuum control

  • Overheat protection

  • 7-inch touch screen display

  • SS304 shelf & chamber material

  • Graph display available

  • Password protection

  • Vacuum Pump (DSVP55) supplied as standard

  • Transparent acrylic door for easy viewing

  • Multi-user creation

  • Auto program and manual program

  • Data export option

  • Real-time monitoring function

Specifications

Parameter LMFD260PL LMFD280PL
Condenser Temperature –60°C –80°C
Shelf Temp Cooling Rate (20°C to –40°C) ≤ 60 min ≤ 40 min
Make LABMAN LABMAN
Ice Capacity 2 L 2 L
Number of Shelves 1 1
Stopper Hydraulic Hydraulic
Shelf Size 300 × 400 mm 300 × 400 mm
Shelf Distance 60 mm 60 mm
Drying Area 0.12 m² 0.12 m²
Shelf Temperature Range –50°C to 60°C –50°C to 60°C
Temperature Control Accuracy ±0.5°C ±0.5°C
Vial Capacity (Ø16 mm) 450 pcs 450 pcs
Vial Capacity (Ø22 mm) 234 pcs 234 pcs
Display 7" Touch Screen 7" Touch Screen
Vacuum Pressure ≤ 0.01 mbar ≤ 0.01 mbar
Vacuum Leakage <1 Pa·L/min <1 Pa·L/min
Vacuum Pump DSVP55 DSVP55
Vacuum Control Air Injection Air Injection
Vacuum Range 1 Pa – 50 Pa 1 Pa – 50 Pa
Lowest Pressure <1 Pa <1 Pa
Recycling Pump Stainless Steel Magnetic Pump Same
Noise Level 55 dB 55 dB
Cooling Air Cooling Air Cooling
Shelf Cooling Silicone Oil Recycling Same
Ambient Temperature 10°C – 25°C Same
Power Supply AC 220V / 50–60Hz Same

Standard Accessories

  • Main Instrument

  • Vacuum Pump SS Hose

  • Vacuum Pump (DSVP55)

  • Drain Tube

  • Coupler Seal Ring – 5 pcs

  • L-Key Set

  • Coupler Lock – 5 pcs

  • Vacuum Controller

  • Vacuum Purification Funnel

  • 3-Pin Power Cord

  • Instruction Manual

  • Test Certificate

❓ Frequently Asked Questions (FAQ)

1. What is a pilot freeze dryer used for?

A pilot freeze dryer is used for small-batch production, research, and process optimization before scaling up to industrial freeze drying.

2. What is the working principle of a pilot freeze dryer?

It works by:

  • Freezing the sample

  • Applying vacuum

  • Converting ice directly into vapor (sublimation) without passing through liquid phase Labmart.in

3. What is the condenser temperature of the LMFD260PL?

The LMFD260PL operates at –60°C, while another model (LMFD280PL) offers –80°C for deeper freezing applications. Labmart.in

4. What types of samples can be dried?

It can process:

  • Vials and ampules

  • Tubes and dishes

  • Liquid and solid samples Labmart.in

5. Does the system support automation?

Yes, it includes:

  • Auto and manual programs

  • Real-time monitoring

  • Data export and graph display

  • Multi-user access Labmart.in

6. What is the vacuum performance?

The system operates at ≤0.01 mbar vacuum pressure, ensuring efficient sublimation and drying performance. Labmart.in

7. Is it suitable for research laboratories?

Yes, pilot freeze dryers are specifically designed for R&D, pharmaceuticals, and small-scale production environments.

  •
