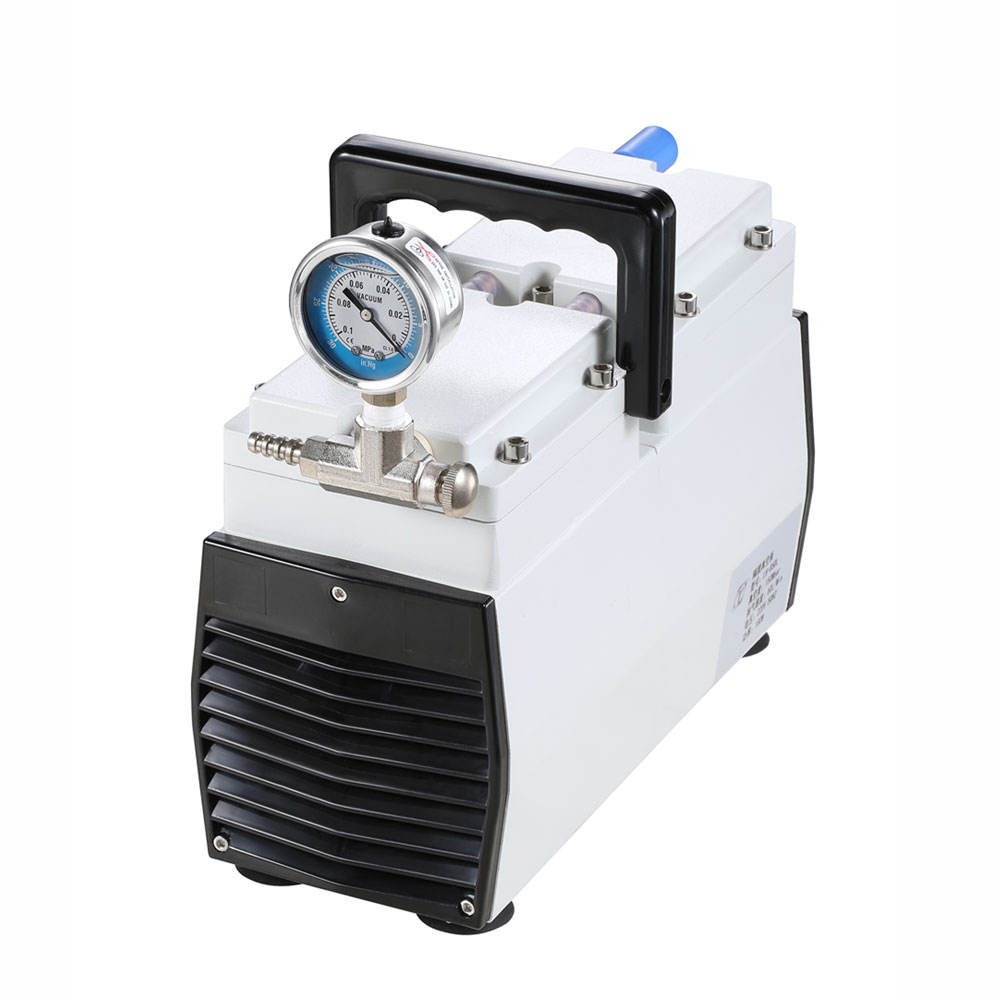

The LABMAN LMVP60 Diaphragm Vacuum Pump is a high-capacity, oil-free, two-stage vacuum pump designed for laboratory, chemical, pharmaceutical, petrochemical and other industrial applications. It provides a 60 L/min flow rate at atmospheric pressure while achieving a final vacuum of 8–15 mbar absolute.
The LMVP60 incorporates a PTFE-coated pump head and diaphragm for high chemical corrosion resistance. Its direct-drive motor provides low-vibration operation, while the built-in overheat protection and automatic temperature cooling and stability features support reliable operation during demanding vacuum processes.
Product Specifications
| Specification | Details |
|---|---|
| Model | LMVP60 |
| Make | LABMAN |
| Pump Type | Diaphragm Vacuum Pump |
| Pump Head Type | Two-stage |
| Flow Rate at Atmospheric Pressure | 60 L/min |
| Final Vacuum | 8–15 mbar abs. |
| Maximum Operating Pressure | 1 bar |
| Ambient / Operating Temperature | +5°C to +40°C |
| Pump Head Material & Diaphragm | PTFE coated |
| Valves | FFPM |
| Rated Speed | 1450 rpm |
| Noise Level | <80 dB |
| Tube Connector | 12 mm |
| Power Consumption | 375 W |
| Power Supply | AC 220 V / 50 Hz |
| Packing Dimensions (L × W × H) | 465 × 325 × 270 mm |
| Gross Weight | 19 kg |
| HSN Code | 84141090 |

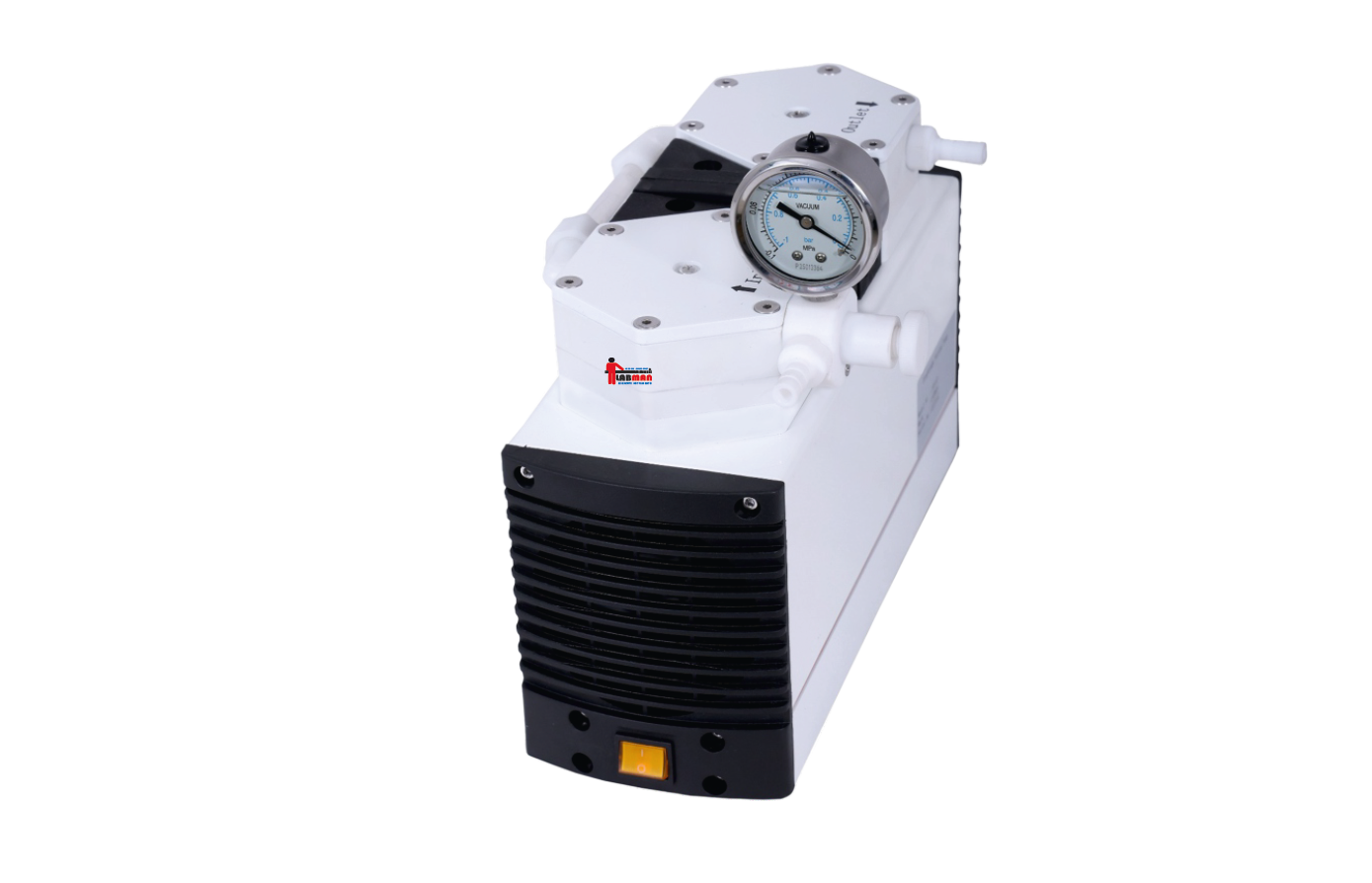

The LMVP60 specifications are listed in the LABMAN 2025–26 catalogue alongside the LMVP20 and LMVP40 models.
Key Features
-
Oil-free diaphragm vacuum pump for clean and pollution-free operation.
-
Two-stage pump head for effective vacuum generation.
-
60 L/min flow rate at atmospheric pressure.
-
8–15 mbar absolute final vacuum.
-
PTFE-coated pump head and diaphragm for high corrosion resistance.
-
FFPM valves for demanding chemical applications.
-
Low-vibration direct-drive motor design.
-
Overheat protection mechanism for operational safety.
-
Automatic temperature cooling and stability for reliable operation.
-
Designed for applications involving corrosive gases and chemical vapours.
-
Higher-capacity configuration suitable for applications requiring increased pumping throughput.
Applications
The LMVP60 is designed for use in chemical, pharmaceutical, petrochemical and other industries, particularly for corrosive gas treatment and laboratory vacuum processes.
Typical applications include:
-
Suction filtration
-
Vacuum distillation
-
Rotary evaporation
-
Vacuum concentration
-
Centrifugal concentration
-
Solid-phase extraction
-
Corrosive gas treatment
Standard Accessories
-
Main Instrument
-
Instruction Manual
-
Test Certificate
- Regular price
- Rs.220,000.00
- Sale price
- Rs.189,000.00
The LABMAN LMVP60 Diaphragm Vacuum Pump is a high-capacity, oil-free, two-stage vacuum pump designed for laboratory, chemical, pharmaceutical, petrochemical and other industrial applications. It provides a 60 L/min flow rate at atmospheric pressure while achieving a final vacuum of 8–15 mbar absolute.
The LMVP60 incorporates a PTFE-coated pump head and diaphragm for high chemical corrosion resistance. Its direct-drive motor provides low-vibration operation, while the built-in overheat protection and automatic temperature cooling and stability features support reliable operation during demanding vacuum processes.
Product Specifications
| Specification | Details |
|---|---|
| Model | LMVP60 |
| Make | LABMAN |
| Pump Type | Diaphragm Vacuum Pump |
| Pump Head Type | Two-stage |
| Flow Rate at Atmospheric Pressure | 60 L/min |
| Final Vacuum | 8–15 mbar abs. |
| Maximum Operating Pressure | 1 bar |
| Ambient / Operating Temperature | +5°C to +40°C |
| Pump Head Material & Diaphragm | PTFE coated |
| Valves | FFPM |
| Rated Speed | 1450 rpm |
| Noise Level | <80 dB |
| Tube Connector | 12 mm |
| Power Consumption | 375 W |
| Power Supply | AC 220 V / 50 Hz |
| Packing Dimensions (L × W × H) | 465 × 325 × 270 mm |
| Gross Weight | 19 kg |
| HSN Code | 84141090 |
The LMVP60 specifications are listed in the LABMAN 2025–26 catalogue alongside the LMVP20 and LMVP40 models.
Key Features
-
Oil-free diaphragm vacuum pump for clean and pollution-free operation.
-
Two-stage pump head for effective vacuum generation.
-
60 L/min flow rate at atmospheric pressure.
-
8–15 mbar absolute final vacuum.
-
PTFE-coated pump head and diaphragm for high corrosion resistance.
-
FFPM valves for demanding chemical applications.
-
Low-vibration direct-drive motor design.
-
Overheat protection mechanism for operational safety.
-
Automatic temperature cooling and stability for reliable operation.
-
Designed for applications involving corrosive gases and chemical vapours.
-
Higher-capacity configuration suitable for applications requiring increased pumping throughput.
Applications
The LMVP60 is designed for use in chemical, pharmaceutical, petrochemical and other industries, particularly for corrosive gas treatment and laboratory vacuum processes.
Typical applications include:
-
Suction filtration
-
Vacuum distillation
-
Rotary evaporation
-
Vacuum concentration
-
Centrifugal concentration
-
Solid-phase extraction
-
Corrosive gas treatment
Standard Accessories
-
Main Instrument
-
Instruction Manual
-
Test Certificate
- Regular price
- Rs.220,000.00
- Sale price
- Rs.189,000.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The LABMAN LMVP60 Diaphragm Vacuum Pump is a high-capacity, oil-free, two-stage vacuum pump designed for laboratory, chemical, pharmaceutical, petrochemical and other industrial applications. It provides a 60 L/min flow rate at atmospheric pressure while achieving a final vacuum of 8–15 mbar absolute.
The LMVP60 incorporates a PTFE-coated pump head and diaphragm for high chemical corrosion resistance. Its direct-drive motor provides low-vibration operation, while the built-in overheat protection and automatic temperature cooling and stability features support reliable operation during demanding vacuum processes.
Product Specifications
| Specification | Details |
|---|---|
| Model | LMVP60 |
| Make | LABMAN |
| Pump Type | Diaphragm Vacuum Pump |
| Pump Head Type | Two-stage |
| Flow Rate at Atmospheric Pressure | 60 L/min |
| Final Vacuum | 8–15 mbar abs. |
| Maximum Operating Pressure | 1 bar |
| Ambient / Operating Temperature | +5°C to +40°C |
| Pump Head Material & Diaphragm | PTFE coated |
| Valves | FFPM |
| Rated Speed | 1450 rpm |
| Noise Level | <80 dB |
| Tube Connector | 12 mm |
| Power Consumption | 375 W |
| Power Supply | AC 220 V / 50 Hz |
| Packing Dimensions (L × W × H) | 465 × 325 × 270 mm |
| Gross Weight | 19 kg |
| HSN Code | 84141090 |
The LMVP60 specifications are listed in the LABMAN 2025–26 catalogue alongside the LMVP20 and LMVP40 models.
Key Features
-
Oil-free diaphragm vacuum pump for clean and pollution-free operation.
-
Two-stage pump head for effective vacuum generation.
-
60 L/min flow rate at atmospheric pressure.
-
8–15 mbar absolute final vacuum.
-
PTFE-coated pump head and diaphragm for high corrosion resistance.
-
FFPM valves for demanding chemical applications.
-
Low-vibration direct-drive motor design.
-
Overheat protection mechanism for operational safety.
-
Automatic temperature cooling and stability for reliable operation.
-
Designed for applications involving corrosive gases and chemical vapours.
-
Higher-capacity configuration suitable for applications requiring increased pumping throughput.
Applications
The LMVP60 is designed for use in chemical, pharmaceutical, petrochemical and other industries, particularly for corrosive gas treatment and laboratory vacuum processes.
Typical applications include:
-
Suction filtration
-
Vacuum distillation
-
Rotary evaporation
-
Vacuum concentration
-
Centrifugal concentration
-
Solid-phase extraction
-
Corrosive gas treatment
Standard Accessories
-
Main Instrument
-
Instruction Manual
-
Test Certificate
