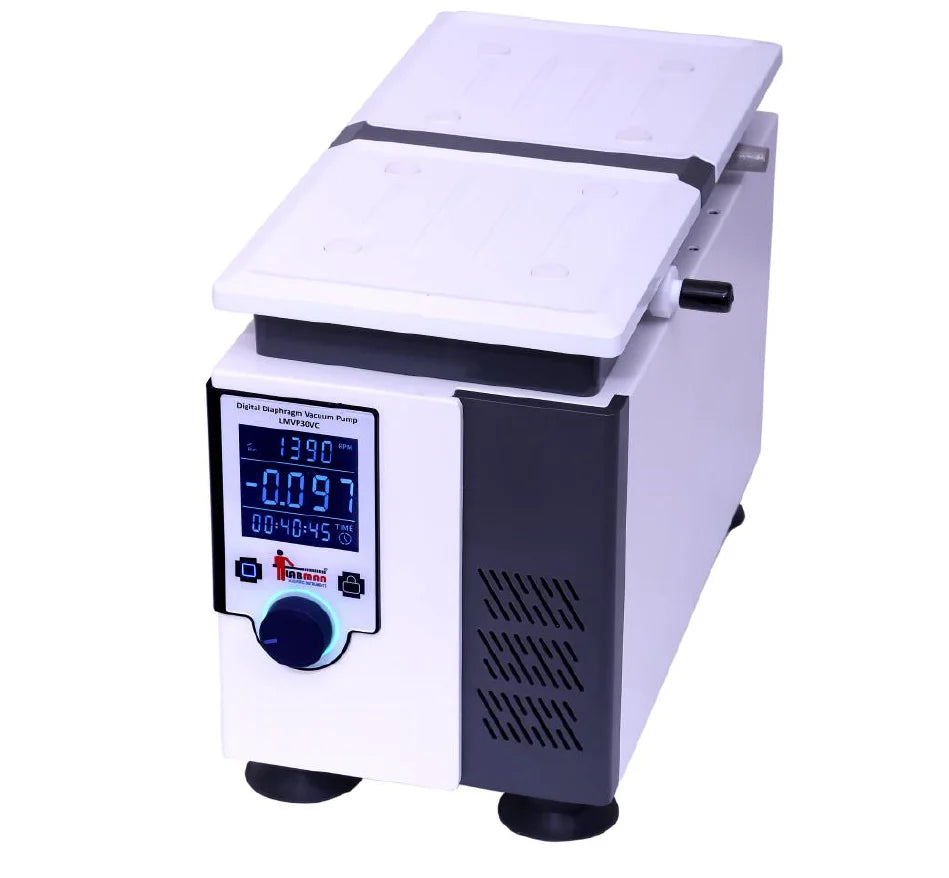

The LMVP30VC Digital Diaphragm Vacuum Pump is an oil-free, dry vacuum pump designed for laboratory applications requiring clean, stable and adjustable vacuum performance. It features a 30 L/min flow rate, two-stage pump head and corrosion-resistant construction with a PTFE pump head.
The LMVP30VC is equipped with a built-in adjustable vacuum controller, LCD display and digital/knob vacuum control, allowing convenient adjustment and monitoring of vacuum conditions. Its DC brushless motor, overheat protection system, automatic power-off function and shock-absorbing foot pads are designed for stable and smooth operation.
Product Specifications
| Specification | Details |
|---|---|
| Model | LMVP30VC |
| Make | LABMAN |
| Pump Type | Oil-Free Diaphragm Vacuum Pump |
| Speed Range | 800–1400 RPM, Adjustable |
| Flow Rate | 30 L/min |
| Tube Connector | 15 mm |
| Maximum Vacuum Degree | 0.098 MPa |
| Ultimate Vacuum | 20 mbar |
| Pump Head | Two Stage Pump |
| Pump Head Material | PTFE |
| Valve Material | EPDM |
| Display | LCD |
| Vacuum Control / Indication | Yes, Digital & Knob |
| Operating Temperature | 5°C to 35°C |
| Keypad & Time Setting | Yes |
| Power / Power Supply | 200 W & 48 V DC, 220 V AC, 50–60 Hz |
| Instrument Dimensions (L × W × H) | 185 × 325 × 225 mm |
| Packing Dimensions (L × W × H) | 275 × 450 × 460 mm |
| Net / Gross Weight | 12 kg / 21 kg |
| Packing Type | Wooden Packing |
| HSN Code | 84141090 |
The specifications above are taken from the LMVP30VC specification table in the attached LABMAN catalogue.
Key Features
-
Oil-free diaphragm vacuum pump for clean, dry vacuum operation.
-
30 L/min flow rate for efficient laboratory vacuum applications.
-
Adjustable speed from 800 to 1400 RPM.
-
Built-in adjustable vacuum controller for stable vacuum performance.
-
Digital and knob vacuum control for convenient operation.
-
LCD display for monitoring operating parameters.
-
Two-stage pump head for effective vacuum generation.
-
PTFE pump head for chemical-resistant operation.
-
EPDM valve material.
-
DC brushless motor for efficient and reliable operation.
-
Overheat protection system.
-
Automatic power-off when motor temperature becomes too high.
-
Friction-free diaphragm movement designed to generate less heat and reduce friction loss.
-
Shock-absorbing foot pads for smoother operation.
-
Low-noise operation supported by the thickened outer-wall design.
-
No oil pollution, helping prevent oil contamination of the vacuum system.
Applications
The LMVP30VC is a versatile laboratory vacuum pump suitable for:
-
Rotary evaporation
-
Filtration
-
Distillation
-
Drying
-
Gas transfer
The attached catalogue describes the diaphragm pump as an oil-free, dry vacuum pump that generates suction and compression through the movement of a flexible diaphragm.
Standard Accessories
The LMVP30VC is supplied with:
-
Main Instrument
-
External Gas Hose
-
Fuse
-
Adaptor
-
Instruction Manual
-
Test Certificate
