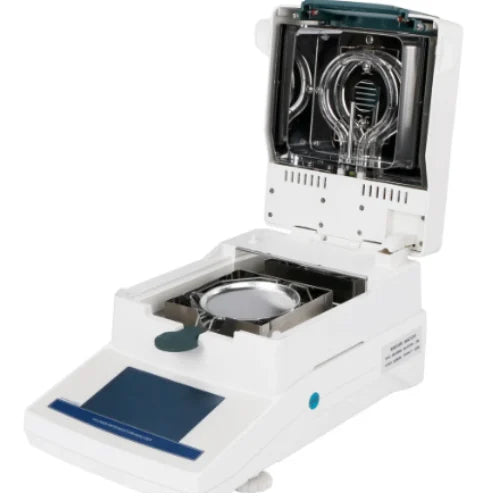

The Labmart DMB-103 Moisture Analyzer I uses a halogen heating system to distribute heat uniformly over the sample and accelerate the drying process. Moisture determination is based on heating the sample and monitoring weight loss during the drying process.

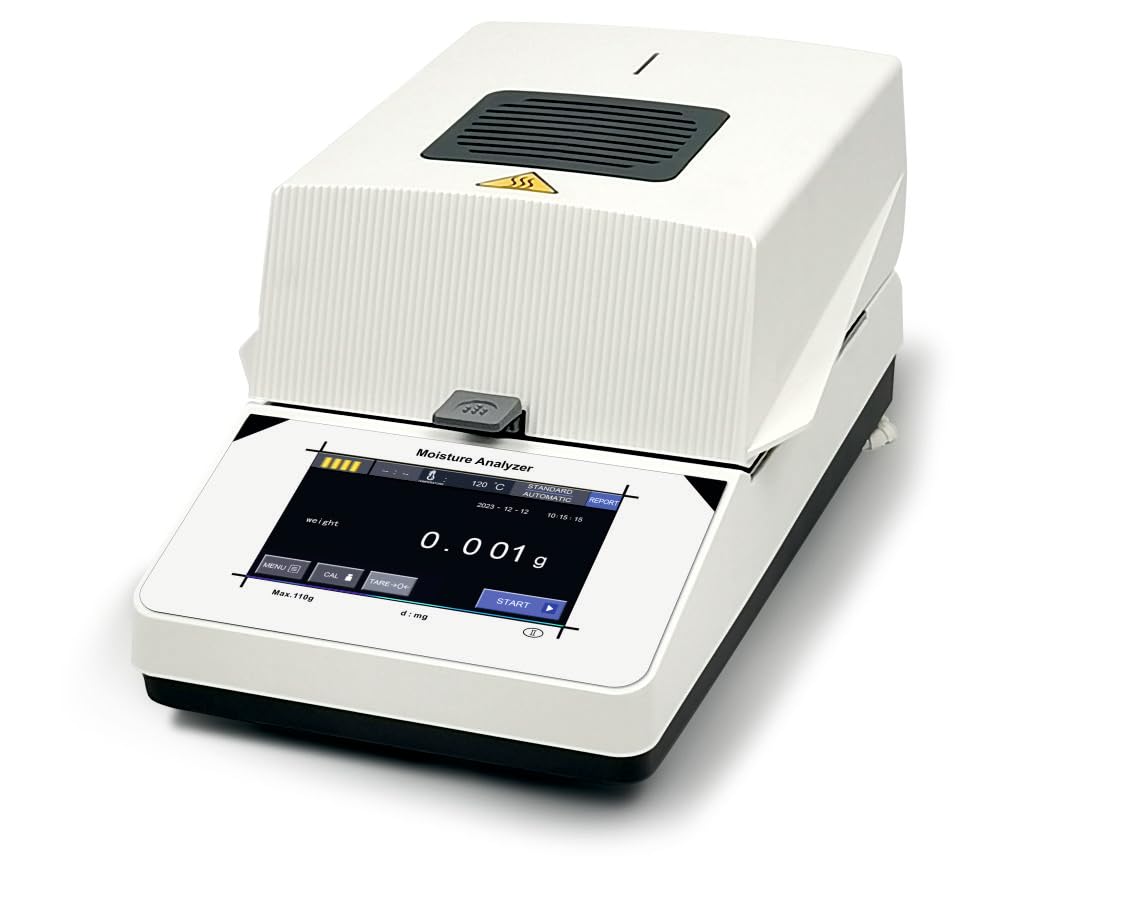

The instrument features a high-precision load cell with 1mg readability and ±1mg repeatability, along with an intuitive touchscreen interface and icon-driven menu navigation.

Multiple operating modes—Auto, Timing and Manual—allow the instrument to be adapted to different moisture-testing procedures. An RS232C interface supports data transfer to compatible printers or computers.

The design also allows tool-free cleaning, with removable components intended to simplify maintenance.

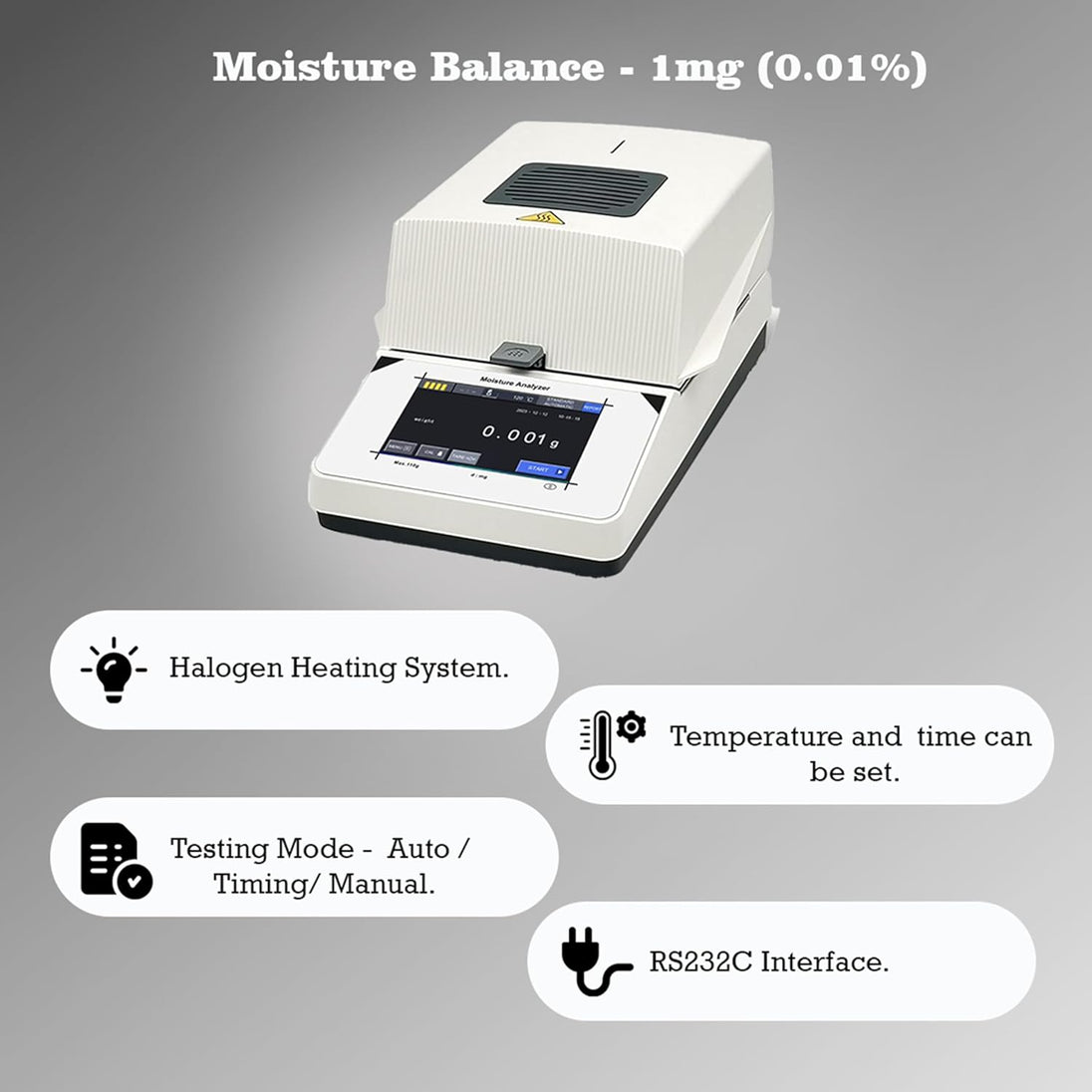

Key Features and Benefits

• Maximum weighing capacity of 110g

• 1mg (0.001g) readability

• ±0.001g repeatability

• Halogen heating system for fast, uniform drying

• Temperature range of 40°C–160°C

• Adjustable drying temperature

• Touchscreen operation

• Icon-driven menu navigation

• Auto, Timing and Manual operating modes

• RS232C interface for data transfer

• 90mm sample pan

• Supplied with 20 aluminium pans

• Tool-free cleaning design

• Suitable for grains, food, powders and industrial samples


5. Applications

• Moisture analysis of grains

• Food sample testing

• Powder moisture determination

• Industrial sample testing

• Routine laboratory moisture analysis

• Quality-control testing

• Determination of moisture content through heating and weighing

6. Suitable For

• Food-testing laboratories

• Agricultural laboratories

• Grain testing laboratories

• Industrial quality-control laboratories

• Chemical laboratories

• Research laboratories

• Laboratories performing routine moisture determination

7. Product Benefits

• Fast moisture determination: Halogen heating accelerates the drying process.

• 1mg readability: Provides fine weighing resolution for moisture analysis.

• High repeatability: ±0.001g repeatability supports consistent measurements.

• Large 110g capacity: Accommodates a broad range of sample quantities.

• Touchscreen operation: Simplifies instrument operation and menu navigation.

• Flexible testing: Auto, Timing and Manual modes accommodate different procedures.

• Uniform heating: Halogen heating is designed to distribute heat evenly across the sample.

• Easy maintenance: Tool-free cleaning makes routine cleaning and maintenance more convenient.

• Data connectivity: RS232C interface supports transfer of measurement data to compatible devices.

• Ready-to-use setup: Supplied with aluminium pans and other standard accessories.

8. Compatibility

9. Installation / Usage

1. Place the moisture analyzer on a stable, level laboratory surface.

2. Connect the supplied power cable.

3. Install the pan support, pan holder and sample pan as required.

4. Switch on the instrument.

5. Select the appropriate operating mode: Auto, Timing or Manual.

6. Set the required drying temperature within the 40°C–160°C range.

7. Place the prepared sample in the aluminium pan.

8. Start the moisture analysis.

9. The halogen heating system dries the sample while the balance monitors the change in weight.

10. Review the moisture and residue information shown on the touchscreen.

11. After testing, allow the instrument and sample area to cool as appropriate.

12. Remove sample residues and clean the removable components.

10. FAQs

1. What is the capacity of the DMB-103 Moisture Analyzer?

The maximum capacity is 110g.

2. What is its readability?

The readability is 1mg (0.001g).

3. What is the repeatability?

The specified repeatability is ±0.001g.

4. What heating system does it use?

The product is described as using a halogen heating system. The specification section on the product page also identifies the heating as infrared (IR).

5. What is the temperature range?

The adjustable temperature range is 40°C to 160°C.

6. Does it have a touchscreen?

Yes. The DMB-103 uses a touchscreen display with icon-driven menu navigation.

7. What operating modes are available?

The analyzer provides Auto, Timing and Manual modes.

8. Can the analyzer connect to a printer or computer?

Yes. It has an RS232/RS232C interface for data transfer to compatible printers or PCs.

9. What type of samples can be tested?

The product page identifies grains, food, powders and industrial samples as applications.

10. How many aluminium pans are included?

The standard setup includes 20 aluminium pans.

11. What is the diameter of the sample pan?

The specified pan diameter is 90mm.

12. Is cleaning difficult?

The analyzer is designed for tool-free cleaning, with components that can be removed for easier maintenance.
