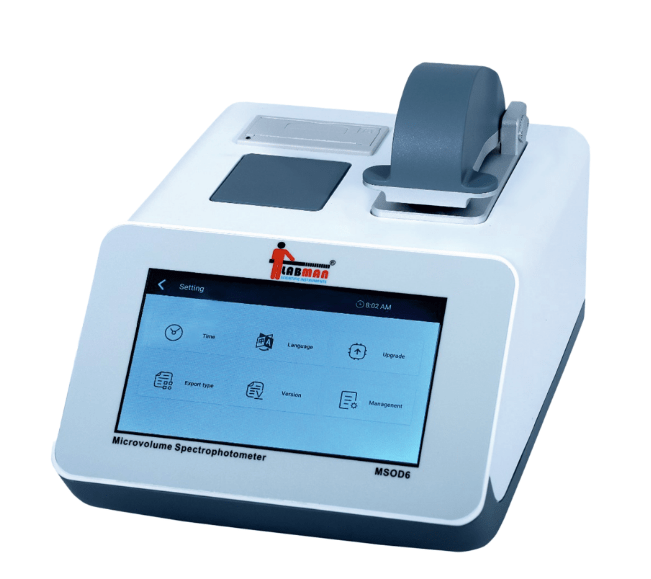

The LABMAN MSOD6 is a microvolume spectrophotometer (biophotometer) that measures nucleic acids, proteins and cell cultures from just 0.5–2 µl of sample over 190–850 nm. It uses a xenon flash lamp, four optical paths, a 7" Android touch screen and a built-in thermal printer, and also supports OD600 and fluorescence quantification.
Key features
- Full wavelength detection 190–850 nm
- Four optical path detection modes for a wide concentration range
- Nucleic acid, protein, colorimetric, UV-Vis and kinetics modes; OD600 measurement
- Fluorescence quantification of dsDNA down to pg concentrations
- Direct sample spotting on the quartz fibre pedestal; no cuvette or capillary needed
- Cuvette mode for bacterial and other culture concentration
- Built-in Android OS, 7" touch screen and built-in thermal printer; USB output
- Test time under 6 seconds; aluminium box packing
Technical specifications
| Parameter | Specification |
|---|---|
| Model | MSOD6 |
| Make | LABMAN |
| Wavelength range | 190–850 nm |
| Sample volume | 0.5–2 µl |
| Optical path | 0.02 mm, 0.05 mm (high concentration); 0.2 mm, 1.0 mm (general concentration) |
| Nucleic acid testing range | 2–27500 ng/µl (dsDNA) |
| Light source | Xenon flash lamp |
| Detector | UV-enhanced CMOS line array sensor (1) |
| Absorbance accuracy | 0.002 Abs (0.2 mm path); ±1% (7.332 Abs at 260 nm) |
| Absorbance range | 0.02–3.00 A |
| OD600 absorbance range | 0–6.000 Abs |
| Testing time | < 6 s |
| Fluorescence linearity | R² > 0.995 |
| Fluorescence repeatability | < 1.5% |
| Fluorescence sensitivity | dsDNA 0.5 pg/µl |
| Sample base material | Quartz fibre and stainless steel |
| Display | 7" touch screen |
| Output | USB interface |
| Operating system | Built-in Android |
| Printing | In-built thermal printer |
| Power supply | Adaptor, AC 220 V, 50 Hz |
| Packing dimension (L×W×H) | 555 × 410 × 330 mm |
| Gross weight | 10 kg |
| HSN code | 90273020 |
Supplied with
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
Frequently asked questions
How much sample does the MSOD6 need?
0.5–2 µl, spotted directly on the sample pedestal.
What can it measure?
Nucleic acids (dsDNA, RNA), proteins, colorimetric assays, UV-Vis, kinetics and OD600, plus fluorescence quantification.
What is the nucleic acid range?
2–27500 ng/µl for dsDNA.
Can it measure bacterial cultures?
Yes. A cuvette mode and OD600 measurement are available (0–6.000 Abs).
How fast is a measurement?
Under 6 seconds.
What power supply does it need?
Adaptor, AC 220 V, 50 Hz.
What is supplied with it?
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
What are the packing size and weight?
555 × 410 × 330 mm (L×W×H as per catalogue), gross weight 10 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
Labman
MSOD6 Microvolume Spectrophotometer – 190–850 nm, 0.5–2 µl Sample, Xenon Flash Lamp, 7" Touch Screen, Built-in Printer, Free Onsite Installation
- Regular price
- Rs.518,999.00
- Sale price
- Rs.345,999.00
The LABMAN MSOD6 is a microvolume spectrophotometer (biophotometer) that measures nucleic acids, proteins and cell cultures from just 0.5–2 µl of sample over 190–850 nm. It uses a xenon flash lamp, four optical paths, a 7" Android touch screen and a built-in thermal printer, and also supports OD600 and fluorescence quantification.
Key features
- Full wavelength detection 190–850 nm
- Four optical path detection modes for a wide concentration range
- Nucleic acid, protein, colorimetric, UV-Vis and kinetics modes; OD600 measurement
- Fluorescence quantification of dsDNA down to pg concentrations
- Direct sample spotting on the quartz fibre pedestal; no cuvette or capillary needed
- Cuvette mode for bacterial and other culture concentration
- Built-in Android OS, 7" touch screen and built-in thermal printer; USB output
- Test time under 6 seconds; aluminium box packing
Technical specifications
| Parameter | Specification |
|---|---|
| Model | MSOD6 |
| Make | LABMAN |
| Wavelength range | 190–850 nm |
| Sample volume | 0.5–2 µl |
| Optical path | 0.02 mm, 0.05 mm (high concentration); 0.2 mm, 1.0 mm (general concentration) |
| Nucleic acid testing range | 2–27500 ng/µl (dsDNA) |
| Light source | Xenon flash lamp |
| Detector | UV-enhanced CMOS line array sensor (1) |
| Absorbance accuracy | 0.002 Abs (0.2 mm path); ±1% (7.332 Abs at 260 nm) |
| Absorbance range | 0.02–3.00 A |
| OD600 absorbance range | 0–6.000 Abs |
| Testing time | < 6 s |
| Fluorescence linearity | R² > 0.995 |
| Fluorescence repeatability | < 1.5% |
| Fluorescence sensitivity | dsDNA 0.5 pg/µl |
| Sample base material | Quartz fibre and stainless steel |
| Display | 7" touch screen |
| Output | USB interface |
| Operating system | Built-in Android |
| Printing | In-built thermal printer |
| Power supply | Adaptor, AC 220 V, 50 Hz |
| Packing dimension (L×W×H) | 555 × 410 × 330 mm |
| Gross weight | 10 kg |
| HSN code | 90273020 |
Supplied with
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
Frequently asked questions
How much sample does the MSOD6 need?
0.5–2 µl, spotted directly on the sample pedestal.
What can it measure?
Nucleic acids (dsDNA, RNA), proteins, colorimetric assays, UV-Vis, kinetics and OD600, plus fluorescence quantification.
What is the nucleic acid range?
2–27500 ng/µl for dsDNA.
Can it measure bacterial cultures?
Yes. A cuvette mode and OD600 measurement are available (0–6.000 Abs).
How fast is a measurement?
Under 6 seconds.
What power supply does it need?
Adaptor, AC 220 V, 50 Hz.
What is supplied with it?
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
What are the packing size and weight?
555 × 410 × 330 mm (L×W×H as per catalogue), gross weight 10 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
- Regular price
- Rs.518,999.00
- Sale price
- Rs.345,999.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The LABMAN MSOD6 is a microvolume spectrophotometer (biophotometer) that measures nucleic acids, proteins and cell cultures from just 0.5–2 µl of sample over 190–850 nm. It uses a xenon flash lamp, four optical paths, a 7" Android touch screen and a built-in thermal printer, and also supports OD600 and fluorescence quantification.
Key features
- Full wavelength detection 190–850 nm
- Four optical path detection modes for a wide concentration range
- Nucleic acid, protein, colorimetric, UV-Vis and kinetics modes; OD600 measurement
- Fluorescence quantification of dsDNA down to pg concentrations
- Direct sample spotting on the quartz fibre pedestal; no cuvette or capillary needed
- Cuvette mode for bacterial and other culture concentration
- Built-in Android OS, 7" touch screen and built-in thermal printer; USB output
- Test time under 6 seconds; aluminium box packing
Technical specifications
| Parameter | Specification |
|---|---|
| Model | MSOD6 |
| Make | LABMAN |
| Wavelength range | 190–850 nm |
| Sample volume | 0.5–2 µl |
| Optical path | 0.02 mm, 0.05 mm (high concentration); 0.2 mm, 1.0 mm (general concentration) |
| Nucleic acid testing range | 2–27500 ng/µl (dsDNA) |
| Light source | Xenon flash lamp |
| Detector | UV-enhanced CMOS line array sensor (1) |
| Absorbance accuracy | 0.002 Abs (0.2 mm path); ±1% (7.332 Abs at 260 nm) |
| Absorbance range | 0.02–3.00 A |
| OD600 absorbance range | 0–6.000 Abs |
| Testing time | < 6 s |
| Fluorescence linearity | R² > 0.995 |
| Fluorescence repeatability | < 1.5% |
| Fluorescence sensitivity | dsDNA 0.5 pg/µl |
| Sample base material | Quartz fibre and stainless steel |
| Display | 7" touch screen |
| Output | USB interface |
| Operating system | Built-in Android |
| Printing | In-built thermal printer |
| Power supply | Adaptor, AC 220 V, 50 Hz |
| Packing dimension (L×W×H) | 555 × 410 × 330 mm |
| Gross weight | 10 kg |
| HSN code | 90273020 |
Supplied with
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
Frequently asked questions
How much sample does the MSOD6 need?
0.5–2 µl, spotted directly on the sample pedestal.
What can it measure?
Nucleic acids (dsDNA, RNA), proteins, colorimetric assays, UV-Vis, kinetics and OD600, plus fluorescence quantification.
What is the nucleic acid range?
2–27500 ng/µl for dsDNA.
Can it measure bacterial cultures?
Yes. A cuvette mode and OD600 measurement are available (0–6.000 Abs).
How fast is a measurement?
Under 6 seconds.
What power supply does it need?
Adaptor, AC 220 V, 50 Hz.
What is supplied with it?
Main instrument, quartz cuvettes (2 nos.), sample holder box, 2" thermal roll, adaptor, power cord, instruction manual, test certificate.
What are the packing size and weight?
555 × 410 × 330 mm (L×W×H as per catalogue), gross weight 10 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
