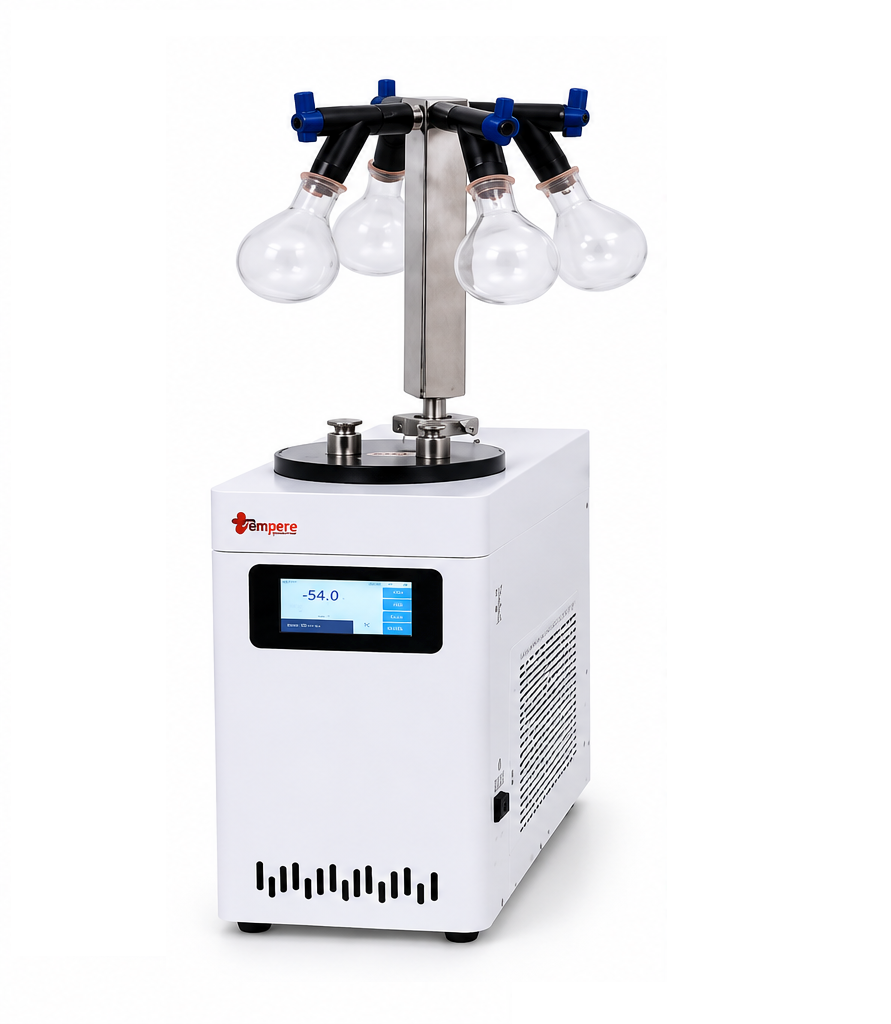

The Labmart LMFD160E Mini Freeze Dryer is a compact freeze-drying system designed for small-scale experimental and laboratory applications. It operates with a –60°C condenser, 4.3-inch touchscreen display, 4-manifold valve, high-precision vacuum gauge and a standard double-stage oil-lubricated rotary vane vacuum pump. The system includes four 250 mL flasks and provides an ice-condenser capacity of 1–1.8 L/24h.

Product Overview

The Labmart LMFD160E Mini Freeze Dryer is a compact laboratory freeze-drying system designed to remove water from frozen materials through sublimation, where ice is converted directly into vapour without passing through the liquid state.

The freeze-drying process combines controlled heating to vaporize ice, vacuum to remove the resulting vapour and a cold collector to condense the vapour back into ice. The LMFD160E incorporates a single-cascade refrigeration system with a condenser temperature of –60°C.

The system features a 4.3-inch touchscreen, high-precision vacuum gauge and a tree-type 4-manifold valve. Four 250 mL flasks can be connected for small-scale processing. A DSVP57 double-stage oil-lubricated rotary vane vacuum pump is supplied as standard.

The supplied catalogue identifies the LMFD160E as suitable for small-scale experimental use and emphasizes its compact design and easy handling.

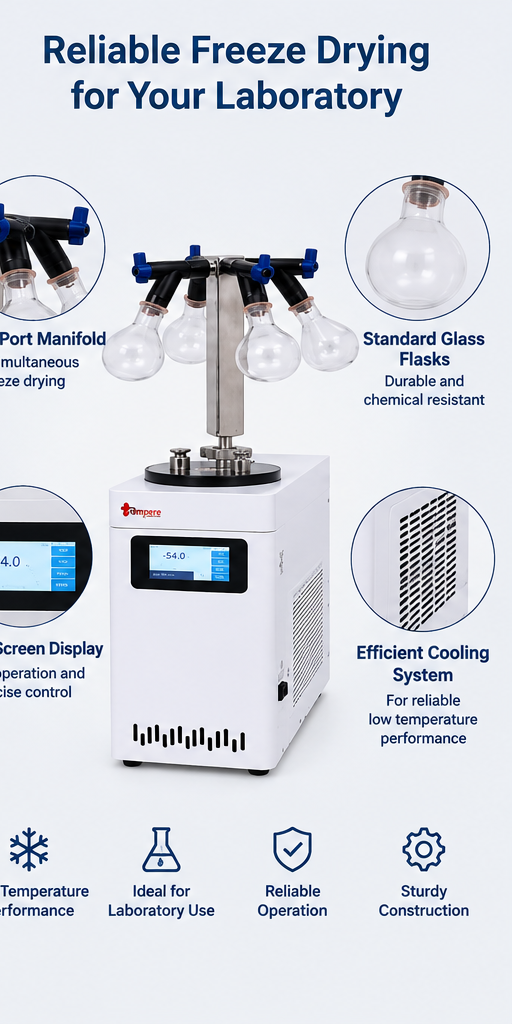

Key Features and Benefits

• –60°C condenser temperature

• Ice condenser capacity of 1–1.8 L/24h

• Compact design for small-scale experimental use

• 4.3-inch touchscreen display

• Simple touchscreen operation

• Tree-type 4-manifold valve

• Four 250 mL flasks

• High-precision vacuum gauge

• Vacuum pressure <1 Pa; standard specification <5 Pa

• Single-cascade refrigeration system

• Double-stage oil-lubricated rotary vane vacuum pump

• Vacuum pump supplied as standard

• Pump speed 1400 RPM

• Pump noise level 57 dB

• Defrost heating coil

• Compact machine size for easier handling

4. Technical Specifications

5. Applications

• Small-scale laboratory freeze drying

• Experimental freeze-drying studies

• Research sample preparation

• Preservation of temperature-sensitive materials

• Laboratory sublimation experiments

• Biological sample preparation

• Pharmaceutical research and development

• Food and natural-product research

• Chemical and material research

• Academic laboratory experiments

6. Product Benefits

• Compact laboratory footprint: Designed for small-scale experimental applications.

• –60°C condenser: Provides low-temperature vapour condensation during freeze drying.

• Good condenser capacity: Handles approximately 1–1.8 L per 24 hours according to the supplied specification.

• Four-flask configuration: Allows connection of four 250 mL flasks.

• Touchscreen operation: 4.3-inch touchscreen provides a straightforward operating interface.

• High-precision vacuum monitoring: Integrated high-precision vacuum gauge supports monitoring of the vacuum system.

• Low-pressure operation: Specification states vacuum pressure below 1 Pa, with standard specification below 5 Pa.

• Integrated manifold: Tree-type 4-manifold valve supports multiple flask connections.

• Standard vacuum pump: DSVP57 double-stage oil-lubricated rotary vane pump is included.

• Single-cascade refrigeration: Provides the specified –60°C condenser temperature.

• Compact and manageable: Designed as a mini freeze dryer for laboratory environments.

8. Compatibility

9. Installation / Usage

1. Place the LMFD160E on a stable laboratory surface with adequate ventilation and clearance.

2. Position the supplied vacuum pump appropriately.

3. Connect the vacuum pump to the freeze dryer using the supplied vacuum pump tube.

4. Install the tree-type 4-manifold valve and appropriate flasks.

5. Connect the supplied top glass and holder as required.

6. Ensure all vacuum connections are properly sealed.

7. Add the appropriate vacuum pump oil before operation as required by the pump instructions.

8. Switch on the freeze dryer and vacuum pump.

9. Use the 4.3-inch touchscreen to operate the system.

10. Place appropriately frozen samples into the connected flasks.

11. Establish the required vacuum and allow the freeze-drying process to proceed.

12. Monitor condenser temperature and vacuum conditions during operation.

13. After completion, follow the appropriate procedure for returning the system to atmospheric pressure.

14. Remove the processed samples.

15. Clean the applicable components and maintain the vacuum pump according to the operating instructions.

Important: Freeze-drying parameters depend on the sample and application. Users should follow the supplied operating instructions and appropriate laboratory safety procedures.

10. FAQs

1. What is the LMFD160E?

The LMFD160E is a Mini Freeze Dryer designed for small-scale experimental and laboratory freeze-drying applications.

2. What is the condenser temperature?

The specified condenser temperature is –60°C.

3. What is the ice condenser capacity?

The specified ice condenser capacity is 1–1.8 L per 24 hours.

4. How many flasks can be connected?

The system is supplied with a tree-type 4-manifold valve and is specified for four 250 mL flasks.

5. What is the vacuum pressure?

The specification states <1 Pa, with a standard specification of <5 Pa.

6. What type of vacuum pump is supplied?

A DSVP57 double-stage oil-lubricated rotary vane vacuum pump is supplied as standard.

7. What is the vacuum pump speed?

The specified rotary speed is 1400 RPM.

8. What is the pump oil capacity?

The vacuum pump oil capacity is 600 mL.

9. Does the freeze dryer have a touchscreen?

Yes. It has a 4.3-inch touchscreen display.

10. What refrigeration system is used?

The LMFD160E uses a single-cascade refrigeration system.

11. What environmental conditions are specified?

The catalogue specifies an ambient temperature of 15°C–25°C and relative humidity of ≤70%.

12. What is included with the freeze dryer?

Standard accessories include the main instrument, top glass with holder, valve rubber, DSVP57 vacuum pump, vacuum pump tube, 250 mL flask, vacuum pump oil, point-to-point power cord, tree-type 4-manifold valve, instruction manual and test certificate.
