The Labmart MS-20T Magnetic Stirrer with Timer is a laboratory heating and stirring system designed for controlled mixing and heating of liquid samples up to 5 litres. It provides 100–1500 RPM stirring, heating up to 380°C, digital LED displays for operating parameters, timer functionality and a ceramic-coated work surface.

Product Overview

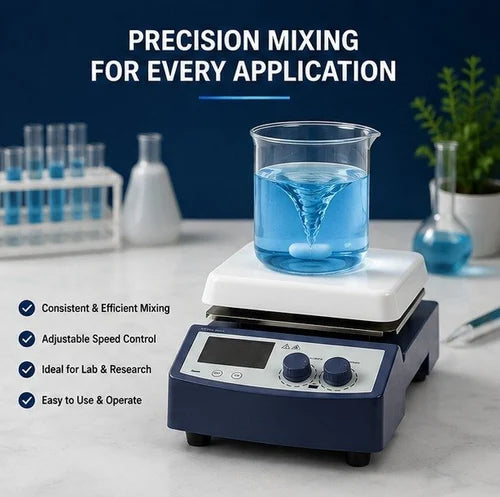

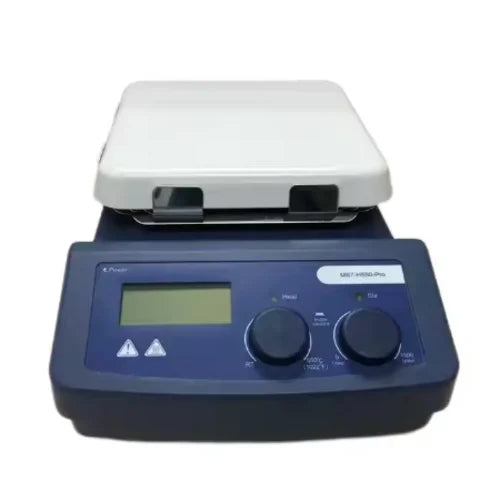

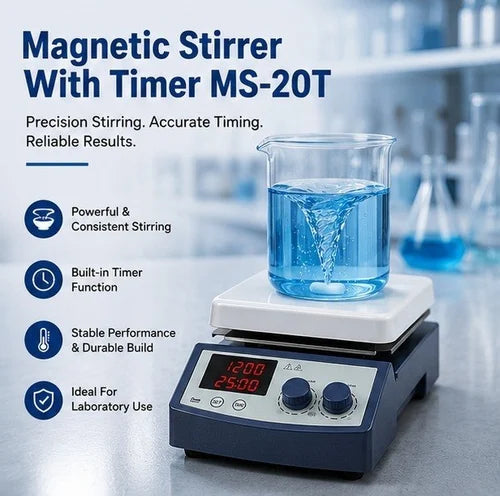

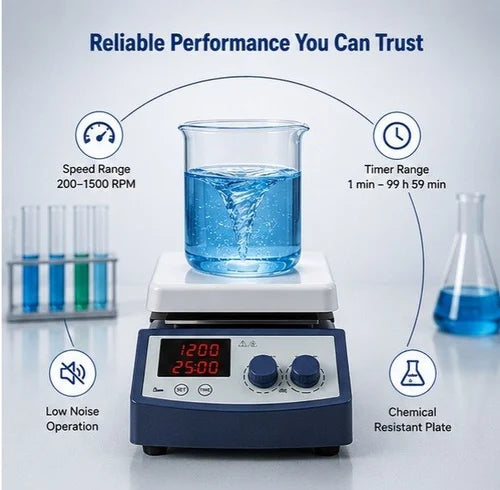

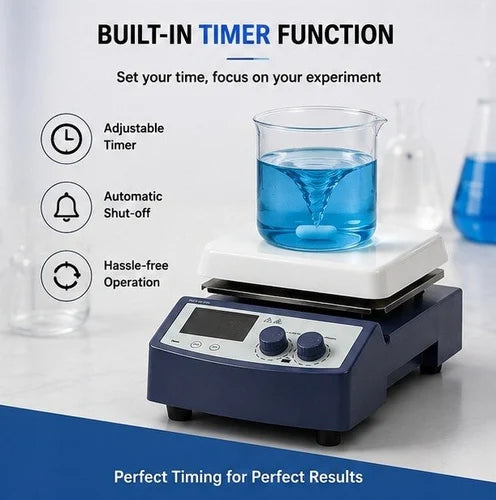

The MS-20T Magnetic Stirrer with Timer combines magnetic stirring, hotplate heating and timed operation in a single laboratory instrument. It is designed for applications requiring consistent agitation and controlled heating of liquid samples.

The unit features a 200 × 200 mm alloy plate with ceramic coating, a brushless DC motor for stable and low-noise operation, and an 800 W heating output. Digital LED displays provide visibility of stirring speed, temperature and timer settings.

Its 5-litre maximum stirring capacity and 100–1500 RPM speed range make it suitable for routine laboratory sample preparation, chemical mixing, solution preparation and controlled heating applications.

Key Features and Benefits

• Maximum stirring capacity of 5 litres
• Stirring speed 100–1500 RPM
• Integrated hotplate
• Heating temperature up to 380°C
• 800 W heating output
• 200 × 200 mm working surface
• Alloy construction with ceramic coating
• Digital LED speed, temperature and timer displays
• Speed resolution of approximately 1 RPM
• Temperature control accuracy ±1°C
• Temperature display accuracy ±0.1°C
• External PT1000 temperature sensor support
• Brushless DC motor
• Low-noise operation
• Corrosion-resistant and temperature-stable housing
• Waterproof-style housing designed to help protect electrical components from sample splashes
• One stirring position

4. Technical Specifications

Specification note: The available technical information confirms timer functionality but does not clearly specify the timer's minimum/maximum programmable duration. Therefore, a specific timer range has not been stated.

5. Applications

• Solution preparation
• Reagent preparation
• Chemical mixing
• Buffer preparation
• Dissolution studies
• Laboratory sample preparation
• Pharmaceutical laboratory applications
• Chemical research
• Quality-control testing
• R&D laboratories
• Educational laboratory experiments
• Controlled heating and stirring
• General laboratory mixing

6. Suitable For

• Chemistry laboratories
• Pharmaceutical laboratories
• Biotechnology laboratories
• Research institutions
• Quality-control laboratories
• Industrial laboratories
• Educational institutions
• Chemical industries
• R&D departments
• Analytical laboratories
• Sample-preparation facilities

7. Product Benefits

• Large 5 L capacity for larger laboratory batches.
• Integrated heating and stirring eliminates the need for separate equipment.
• 100–1500 RPM speed range provides flexible mixing control.
• 380°C maximum heating supports high-temperature laboratory processes.
• Ceramic-coated work surface provides a laboratory-friendly heating surface.
• Digital LED displays allow convenient monitoring of speed, temperature and timer.
• PT1000 compatibility supports external temperature measurement.
• Brushless DC motor provides stable operation with low noise and no sparking at the motor.
• 800 W heating output supports rapid and controlled heating.
• Temperature control accuracy of ±1°C supports controlled heating applications.
• Compact laboratory format makes efficient use of bench space.
