The LMDV111 Digital Viscometer with Small Sample Adaptor is a digital direct-reading rotational viscometer designed for measuring the absolute viscosity of Newtonian liquids and apparent viscosity of non-Newtonian liquids. It combines a wide 12–6,000,000 mPa·s viscosity range with a dedicated small sample adaptor requiring approximately 10–20 mL of sample.

Product Overview

The LABMAN LMDV111 Digital Viscometer with Small Sample Adaptor is a digital direct-reading rotational viscometer specifically configured for viscosity measurement where a smaller sample volume is desirable.

The LMDV111 provides a measuring range of 12–6,000,000 mPa·s, selectable stepless speed from 0.1 to 99.9, and 1000 speeds. It provides direct viscosity and temperature display through an LCD and includes temperature monitoring.

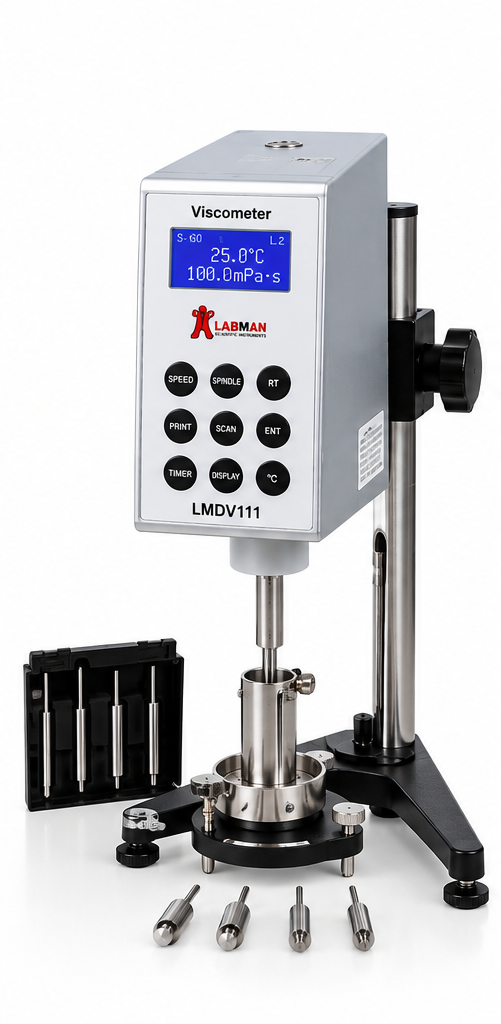

The supplied Small Sample Adaptor is a standard accessory. The catalogue describes it as consisting of a coupling nut, extension link, spindle set #21, #27, #28 and #29, sample chamber and adjustable base. The catalogue specifies approximately 15 mL sample requirement in its product description, while the specification table gives a minimum sample range of 10 mL–20 mL.

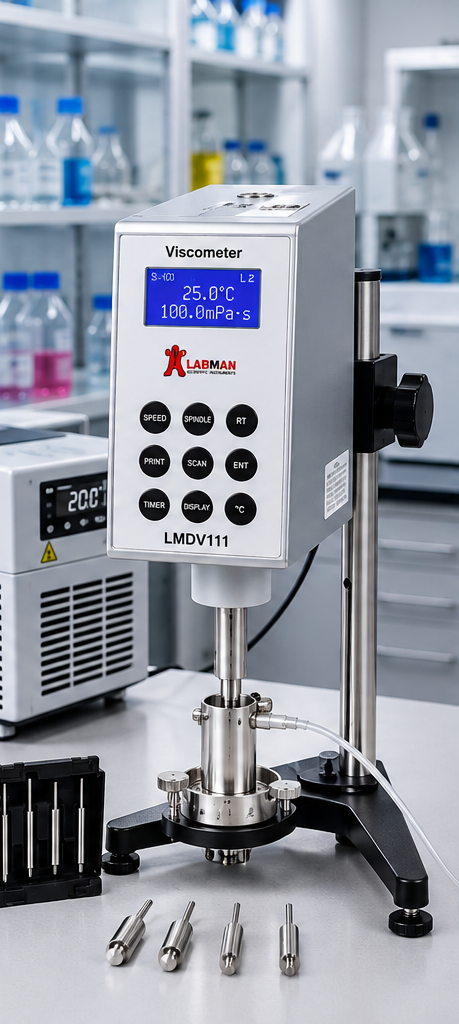

The sample chamber fits into a water jacket, and sample temperature can be controlled using an optional Refrigerated Circulating Bath.

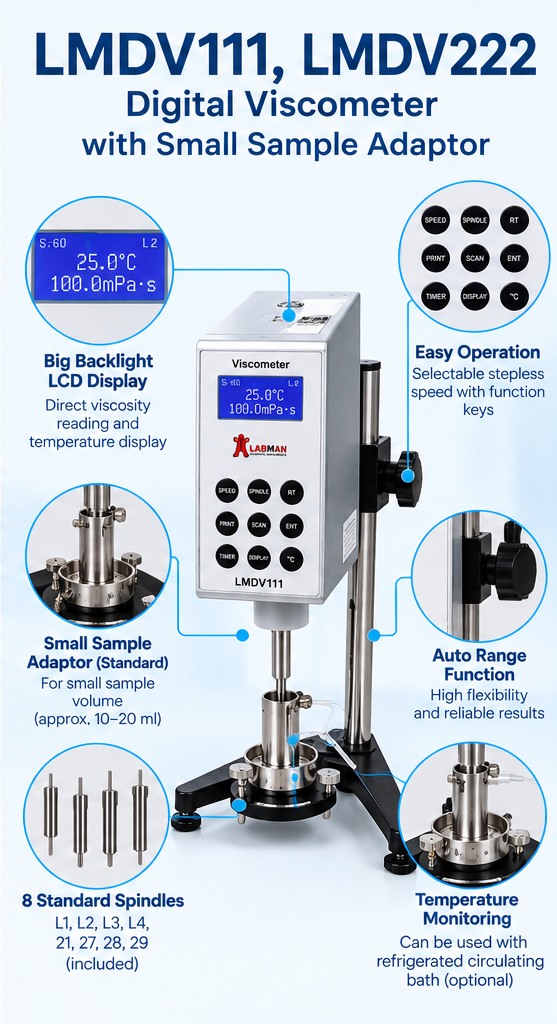

Key Features

• Digital direct-reading rotational viscometer
• Small Sample Adaptor supplied as standard
• 12–6,000,000 mPa·s measuring range
• 0.1–99.9 speed range
• 1000 speeds
• Selectable stepless speed
• Auto Range function
• Direct viscosity and temperature display
• Big ultra-bright backlight LCD display
• Temperature monitoring
• Eight-spindle configuration: L1, L2, L3, L4, #21, #27, #28 and #29
• ±1% FS measurement accuracy
• ±0.5% FS repeatability
• RS232C interface
• Small sample testing with approximately 10–20 mL sample requirement
• Sample temperature control possible using optional refrigerated circulating bath

4. Technical Specifications

The specifications above are taken specifically from the LMDV111 column of the catalogue specification table.

Small Sample Spindle Range

The catalogue's spindle range table identifies these ranges for the LMDV111 Small Sample Adaptor.

5. Applications

The catalogue specifies the LMDV series for:

• Absolute viscosity measurement of Newtonian liquids
• Apparent viscosity measurement of non-Newtonian liquids
• Digital rotational viscosity measurement
• Small-volume viscosity testing
• Laboratory viscosity measurement
• Viscosity testing where sample quantity is limited

The catalogue does not specify individual industries or materials for the LMDV111, so specific industry applications are not claimed here.

6. Suitable For

• Research laboratories
• Analytical laboratories
• Quality-control laboratories
• R&D laboratories
• Laboratories working with limited sample volumes
• Newtonian liquid viscosity testing
• Non-Newtonian liquid viscosity testing
• Laboratories requiring temperature-controlled small-sample viscosity measurement

7. FAQs

1. What is the LMDV111?

The LMDV111 is a Digital Viscometer with Small Sample Adaptor designed for direct-reading rotational viscosity measurement.

2. What is the measuring range of the LMDV111?

The specified range is 12–6,000,000 mPa·s.

3. Does the LMDV111 include a Small Sample Adaptor?

Yes. The Small Sample Adaptor is specified as a standard accessory.

4. How much sample is required?

The specification table states a minimum sample requirement of 10–20 mL. The descriptive section of the catalogue states that approximately 15 mL is needed for testing with the Small Sample Adaptor.

5. Which spindles are supplied with the Small Sample Adaptor?

The Small Sample Adaptor uses spindle #21, #27, #28 and #29.

6. What are the Small Sample Adaptor spindle ranges?

For LMDV111, the catalogue specifies:

• #21: 10–50K mPa·s
• #27: 50–250K mPa·s
• #28: 100–500K mPa·s
• #29: 200–1M mPa·s

7. How many total standard spindles are specified?

The catalogue specifies 8 spindles: L1, L2, L3, L4, #21, #27, #28 and #29.

8. What is the speed range?

The LMDV111 has a speed range of 0.1–99.9 with 1000 speeds.

9. Does the LMDV111 have shear-rate and shear-force display?

No. The catalogue specifies No for Shear Rate / Shear Force Display on the LMDV111.

10. Does the LMDV111 have temperature monitoring?

Yes. Temperature Monitoring: Yes is specified.

11. Can the sample temperature be controlled?

Yes. The catalogue states that sample temperature can be controlled using an optional Refrigerated Circulating Bath, with the sample chamber fitting into a water jacket.

12. What is the measurement accuracy?

The specified measurement accuracy is ±1% FS.

13. What is the repeatability?

The specified repeatability is ±0.5% FS.

14. Does the LMDV111 have an RS232C interface?

Yes. The output is specified as an RS232C Interface.

15. What is the power supply?

The catalogue specifies an adaptor using AC 220V, 50/60Hz.

16. What is the packing dimension?

The LMDV111 packing dimension is 420 × 375 × 550 mm.

17. What is the gross weight?

The catalogue specifies a gross weight of 15 kg.
