The Labmart LMDV100 Digital Rotational Viscometer is a digital direct-reading rotational viscometer designed to measure the absolute viscosity of Newtonian liquids and apparent viscosity of non-Newtonian liquids. It features a 12–6,000,000 mPa·s measuring range, 0.1–99.9 speed range, Auto Range function, temperature monitoring, LCD display and RS232C output.

3. Detailed Product Description

Product Overview

The LMDV100 Digital Rotational Viscometer is part of the LABMAN LMDV series of Digital Direct Reading Rotational Viscometers. It is designed for measuring the absolute viscosity of Newtonian liquids as well as the apparent viscosity of non-Newtonian liquids.

The LMDV100 provides a broad measuring range of 12 to 6,000,000 mPa·s and a selectable speed range of 0.1 to 99.9. The catalogue specifies 1000 speeds and selectable stepless speed operation.

The instrument provides direct viscosity and temperature display, an Auto Range function, temperature monitoring and a big ultra-bright backlight LCD display.

The standard configuration includes four spindles — L1, L2, L3 and L4 — along with an RTD probe, spindle guard and wrench, indicator stand and other standard accessories.

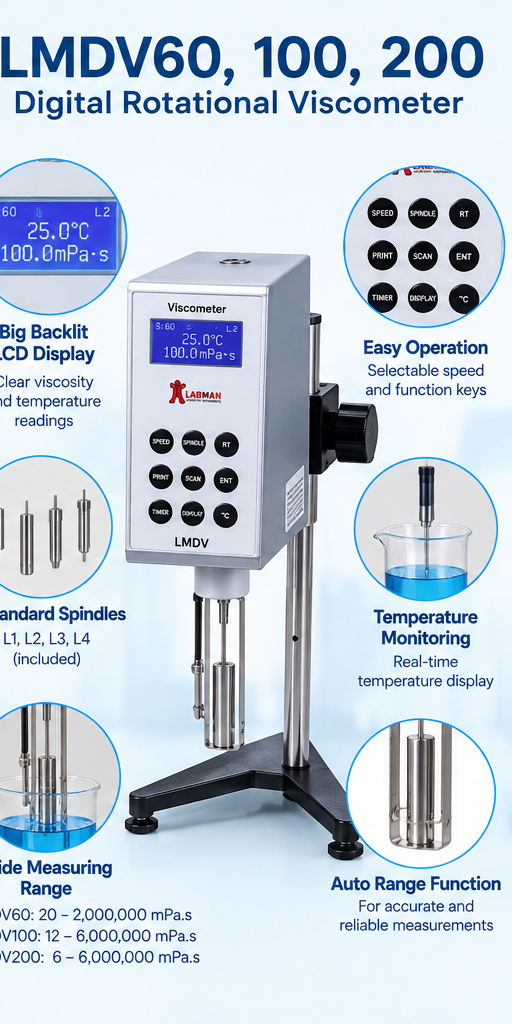

Key Features and Benefits

• Digital direct-reading rotational viscometer
• Measuring range of 12–6,000,000 mPa·s
• Selectable speed range of 0.1–99.9
• 1000 speeds
• Selectable stepless speed
• Auto Range function
• Direct viscosity reading and temperature display
• Big ultra-bright backlight LCD display
• Temperature monitoring
• Four standard spindles: L1, L2, L3 and L4
• Measurement accuracy of ±1% FS
• Repeatability of ±0.5% FS
• RS232C interface
• Designed for Newtonian and non-Newtonian liquids

4. Technical Specifications

5. Applications

The catalogue specifically describes the LMDV series for:

• Absolute viscosity measurement of Newtonian liquids
• Apparent viscosity measurement of non-Newtonian liquids
• Digital rotational viscosity measurement
• Laboratory viscosity testing
• Research viscosity measurement
• Quality-control viscosity testing

Specific industry applications are not individually specified in the catalogue.

6. Suitable For

• Research laboratories
• Analytical laboratories
• Quality-control laboratories
• Laboratory viscosity testing
• Newtonian liquid testing
• Non-Newtonian liquid testing
• Research and development laboratories
• Laboratories requiring direct digital viscosity measurement

7. FAQs

1. What is the LMDV100?

The LMDV100 is a Digital Direct Reading Rotational Viscometer designed for viscosity measurement.

2. What is the measuring range of the LMDV100?

The specified measuring range is 12–6,000,000 mPa·s.

3. What liquids can the LMDV100 measure?

The LMDV series is specified for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.

4. What is the speed range?

The LMDV100 has a specified speed range of 0.1–99.9.

5. How many speeds are specified?

The catalogue specifies 1000 speeds for the LMDV100.

6. Does the LMDV100 have an Auto Range function?

Yes. Auto Range function is listed as a salient feature.

7. Does the LMDV100 monitor temperature?

Yes. Temperature monitoring is specified.

8. How many standard spindles are included?

Four standard spindles are specified:

• L1
• L2
• L3
• L4

9. What is the measurement accuracy?

The specified measurement accuracy is ±1% FS.

10. What is the repeatability?

The specified repeatability is ±0.5% FS.

11. Does the LMDV100 have an RS232C interface?

Yes. The output is specified as an RS232C Interface.

12. Does the LMDV100 have Shear Rate and Shear Force Display?

No. The catalogue specifies No for the LMDV100.

13. What power supply does it require?

The catalogue specifies a DC adaptor using AC 220V, 50/60Hz.

14. What is the packing dimension?

The specified packing dimension is 425 × 375 × 405 mm.

15. What is the gross weight?

The catalogue specifies 8 kg.

16. What standard accessories are included?

The catalogue lists the main instrument, protection cap, adaptor, L1–L4 spindle set, RTD probe, test certificate, spindle guard and wrench, indicator stand and instruction manual as standard accessories.
