The Labmart Type A1 Macro Spectrophotometer Cuvette is a rounded-bottom macro cuvette featuring two polished windows and thermally fused construction. It is available in quartz and glass configurations with path lengths from 1 mm to 100 mm and corresponding volumes from 0.35 mL to 35 mL. The optical-path tolerance is specified as ±0.1 mm.
Product Overview
The Labmart Type A1 Macro Spectrophotometer Cuvette is designed for spectrophotometric applications requiring a macro-format cell with two polished optical windows.
The connected sides are joined using fire-flame or thermal-fusing techniques, rather than glued or fritted assembly. The source states that the fused construction provides highly transparent connected sides and helps maintain the surface quality of the cell.
The optical path is manufactured with high parallel precision, with the light-path tolerance maintained within ±0.1 mm. The source also specifies acid-, alkali- and organic-solvent-resistant properties. The fused sides form an integrated structure intended to prevent leakage and avoid adhesion to testing materials that could contribute to cross-contamination.

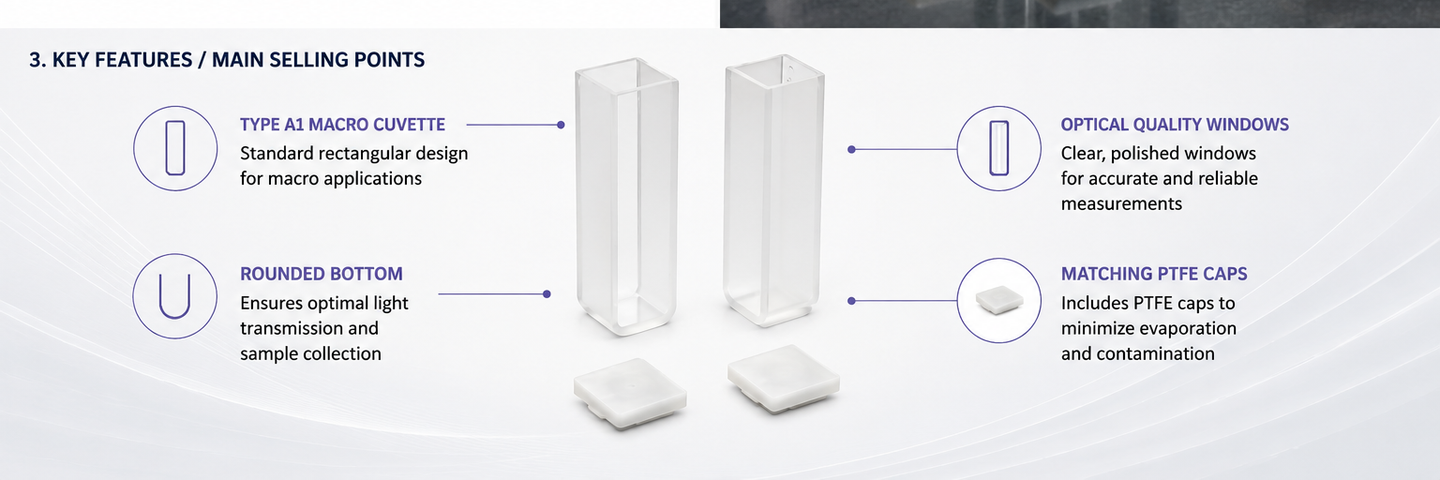

Key Features and Benefits
- Macro Cuvette with Rounded Bottom – Provides the Type A1 macro-cell configuration for spectrophotometric testing.
- Two Polished Windows – Provides two polished optical surfaces for measurement.
- Thermal-Fused Construction – Uses fire-flame/thermal fusing instead of glued or fritted assembly.
- ±0.1 mm Light-Path Tolerance – Supports consistent optical-path geometry.
- Chemical Resistance – The source specifies acid-proof, alkali-proof and organic-solvent-resistant properties.
- Leak-Resistant Fused Construction – The connected sides fuse into one integrated structure.
- Well-Matched Construction – The source describes the cells as well consistent and well matched.
- Multiple Path-Length Options – Available from 1 mm through 100 mm.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Macro Spectrophotometer Cuvette |
| Type | A1 |
| Brand | Labmart |
| Design | Rounded Bottom |
| Optical Windows | Two Polished Windows |
| Construction | Fire-flame / Thermal Fused |
| Optical-Path Tolerance | ±0.1 mm |
| Chemical Properties | Acid-proof, alkali-proof and organic-solvent resistant |
| Available Material | Quartz / Glass |
| Path Lengths | 1, 2, 5, 10, 20, 30, 40, 50, 100 mm |
| Volume Range | 0.35–35 mL |
| Height | 45 mm |
| Width | 12.5 mm |
| Length | Varies according to path length |
| Stopper | PTFE stopper configuration specified |
| Unit | Pair |
| Matching | Well consistent and well matched |
| Certifications / Standards | Not specified by the manufacturer |
Available Configurations
| Path Length | Volume | Dimensions L × W × H | Quartz Code | Glass Code |
|---|---|---|---|---|
| 1 mm | 0.35 mL | 3.5 × 12.5 × 45 mm | LAQ-111 | LAG-111 |
| 2 mm | 0.7 mL | 4.5 × 12.5 × 45 mm | LAQ-112 | LAG-112 |
| 5 mm | 1.7 mL | 7.5 × 12.5 × 45 mm | LAQ-113 | LAG-113 |
| 10 mm | 3.5 mL | 12.5 × 12.5 × 45 mm | LAQ-114 | LAG-114 |
| 20 mm | 7 mL | 22.5 × 12.5 × 45 mm | LAQ-115 | LAG-115 |
| 30 mm | 10.5 mL | 32.5 × 12.5 × 45 mm | LAQ-116 | LAG-116 |
| 40 mm | 14 mL | 42.5 × 12.5 × 45 mm | LAQ-117 | LAG-117 |
| 50 mm | 17.5 mL | 52.5 × 12.5 × 45 mm | LAQ-118 | LAG-118 |
| 100 mm | 35 mL | 102.5 × 12.5 × 45 mm | LAQ-119 | LAG-119 |
The source table identifies the listed product as supplied with PTFE stopper, in pairs, and provides separate quartz and glass codes for each configuration.
5. Applications
- Spectrophotometric analysis
- Absorbance measurements
- Chemical analysis
- Analytical laboratory testing
- Research and development
- Quality-control testing
- UV-Vis laboratory workflows where the selected material is suitable
- Routine spectrophotometer measurements
6. Suitable For
- Analytical laboratories
- Chemical laboratories
- Pharmaceutical laboratories
- Research laboratories
- Quality-control laboratories
- Industrial testing laboratories
- Educational laboratories
- Spectroscopy laboratories
7. Product Benefits
- Precise optical-path geometry
- Multiple path-length choices
- Quartz and glass material options
- Two polished optical windows
- Rounded-bottom macro-cell design
- Thermally fused construction
- Specified chemical resistance
- Reduced leakage concerns from fused construction
- Consistent and matched cells
- Multiple sample-volume options
