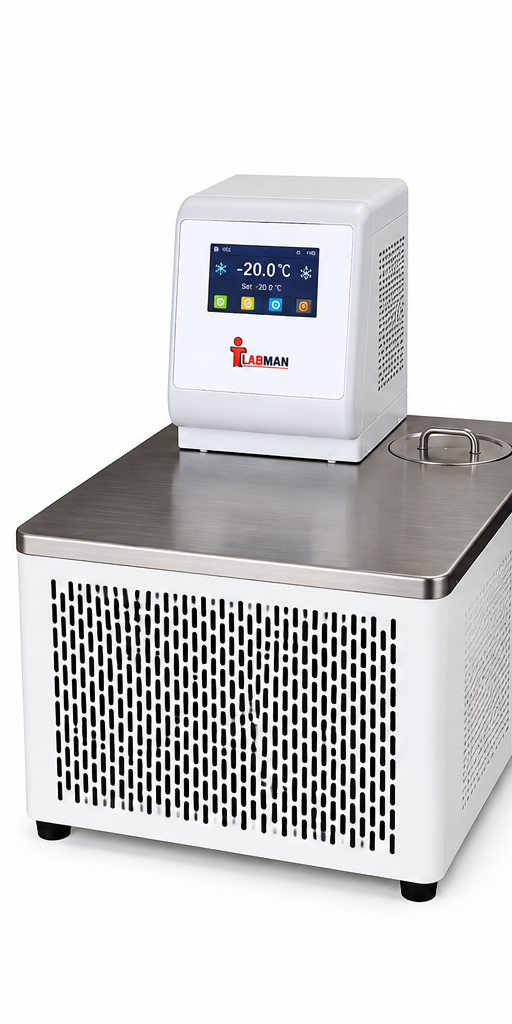

The Labmart RCB620T Refrigerated Circulating Bath is a horizontal temperature-control system designed especially for viscometers and other laboratory instruments requiring controlled circulating liquid temperature. It provides a –20°C to 100°C temperature range, ±0.05°C accuracy, 0.01°C resolution, 6L bath capacity, 6 L/min circulation flow and microprocessor PID control.

Product Overview

The RCB620T Refrigerated Circulating Bath is a temperature-controlled circulating bath with a horizontal configuration specifically designed for applications where controlled liquid temperature is required. Its horizontal design allows a viscometer to be attached on top, making it particularly suitable for viscosity measurements requiring temperature control.

The system uses air-cooled compressor refrigeration with R-134A refrigerant, a PT100 temperature sensor and microprocessor-based PID temperature control. It supports both internal and external pump circulation with a specified pump flow rate of 6 L/min.

The 6-litre bath features a stainless-steel inner tank, touchscreen operation, overheat protection and a water-level alarm. The supplied design also incorporates fast cooling, low noise and low vibration operation.

Key Features & Benefits

• –20°C to 100°C temperature range
• ±0.05°C temperature accuracy
• 0.01°C display resolution
• Microprocessor PID temperature control
• 6 L/min pump flow rate
• 6L bath tank capacity
• Internal and external circulation
• Air-cooled compressor refrigeration
• R-134A refrigerant
• PT100 temperature sensor
• Touchscreen display
• Horizontal design specifically suited to viscometer applications
• Stainless-steel inner tank
• Overheat protection
• Water-level alarm
• Programmable temperature controller
• Fast cooling
• Low-noise, low-vibration operation

4. Technical Specifications

5. Applications

The RCB620T can be used for temperature maintenance and controlled circulation in:

• Viscometers
• Spectrophotometers
• Polarimeters
• Refractometers
• Electrophoresis systems
• Fermentation tanks
• Rotary evaporators
• Chromatographic columns
• Other laboratory equipment requiring external temperature-controlled circulation

6. Suitable For

The RCB620T is suitable for:

• Viscosity measurement laboratories
• Pharmaceutical laboratories
• Chemical laboratories
• Food and beverage laboratories
• Research and development laboratories
• Quality-control laboratories
• Instrumentation laboratories
• Academic and university laboratories
• Laboratories using temperature-sensitive analytical instruments

7. FAQs

1. What is the RCB620T used for?

The RCB620T is a refrigerated circulating bath for maintaining controlled temperatures and can be connected to laboratory instruments such as viscometers, refractometers, polarimeters and rotary evaporators.

2. What is the temperature range?

The temperature range is –20°C to 100°C.

3. What is the temperature accuracy?

The specified temperature accuracy is ±0.05°C.

4. What is the temperature resolution?

The display resolution is 0.01°C.

5. What is the bath capacity?

The bath tank capacity is 6 litres.

6. What is the circulation flow rate?

The specified pump flow rate is 6 L/min.

7. Can the RCB620T be connected to a viscometer?

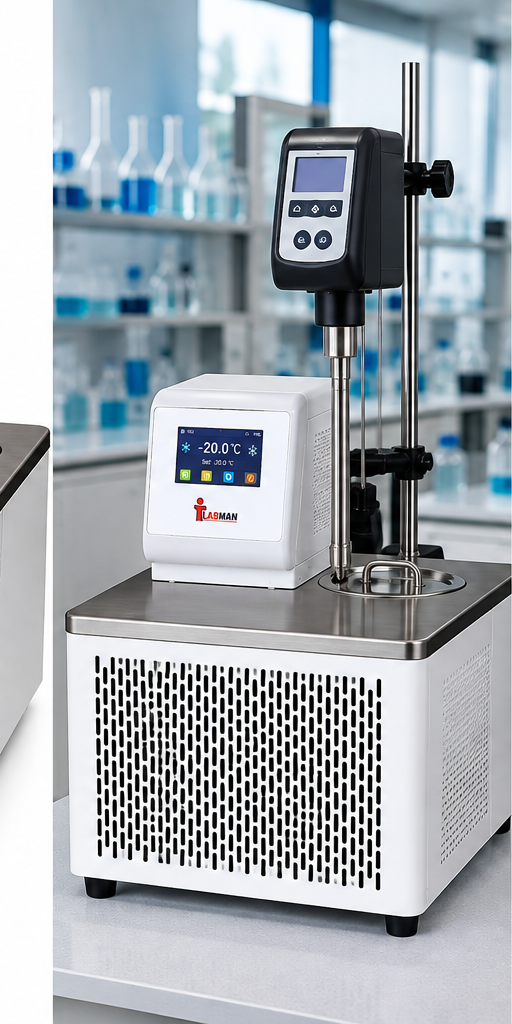

Yes. The RCB620T is specifically described as a horizontal model specialized for attaching a viscometer on top.

8. Does it support external circulation?

Yes. The pump provides internal and external circulation.

9. What type of refrigeration system is used?

It uses air-cooled refrigeration through a compressor with R-134A refrigerant.

10. What temperature sensor is used?

The specified temperature sensor is PT100.

11. Does the RCB620T have safety features?

Yes. It includes overheat protection and a water-level alarm function.

12. What liquids are recommended?

The supplied specifications identify alcohol for temperatures of 5°C and below, pure water for 5°C to 85°C, and a 15% glycerin-water solution for 85°C to 95°C.
