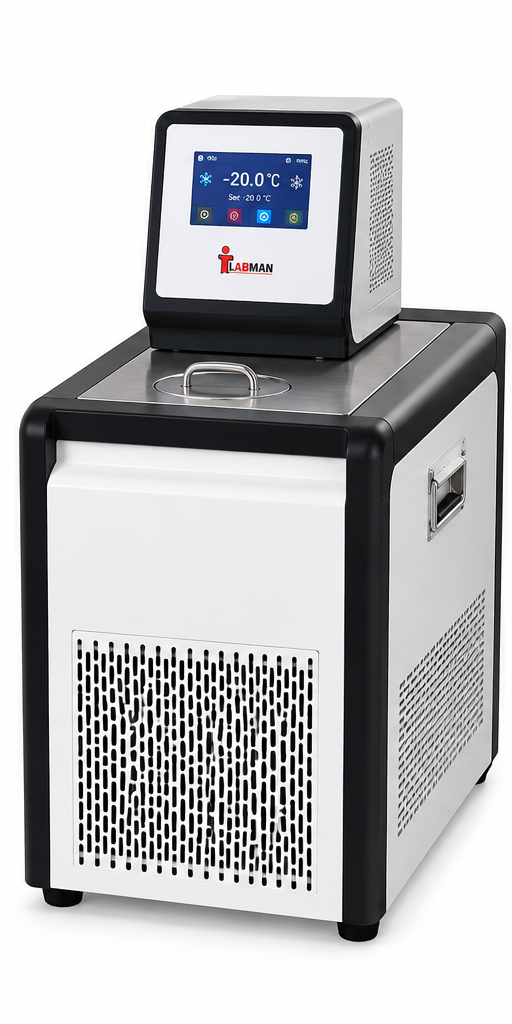

The Labmart RCB1020T Refrigerated Circulating Bath is a temperature-controlled laboratory circulation system with a –20°C to 100°C temperature range, 10L bath capacity, PT100 temperature sensor, microprocessor PID control and touchscreen operation. It provides 8 L/min pump flow, internal and external circulation, air-cooled compressor refrigeration and overheat protection.
3. Detailed Product Description
Product Overview
The RCB1020T Refrigerated Circulating Bath is designed to provide controlled-temperature liquid circulation for laboratory instruments and processes requiring stable heating or cooling.
The system offers a –20°C to 100°C temperature control range, with 0.01°C display resolution and ±0.05°C temperature accuracy. Temperature regulation is managed through a microprocessor PID control system and a PT100 temperature sensor.
The 10L stainless-steel bath incorporates internal and external circulation, with an 8 L/min pump flow rate. Refrigeration is provided through an air-cooled compressor using R-134A refrigerant.
The catalogue identifies applications with fermentation tanks, spectrophotometers, rotary evaporators, polarimeters, refractometers, viscometers, electrophoresis systems and chromatographic columns.

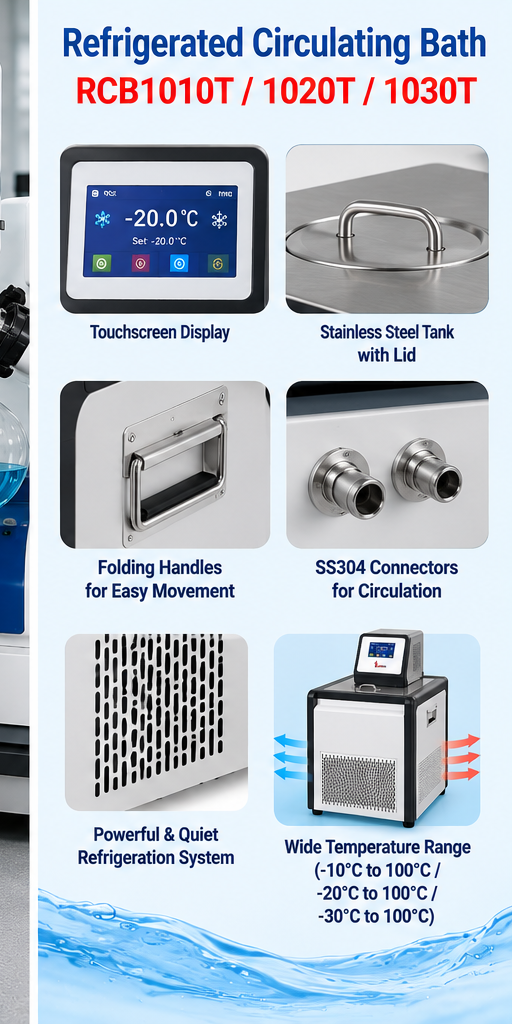

Key Features & Benefits
- –20°C to 100°C temperature range
- 10L bath capacity
- 0.01°C temperature display resolution
- ±0.05°C temperature accuracy
- Microprocessor PID temperature control
- PT100 temperature sensor
- Touchscreen display
- Air-cooled compressor refrigeration
- R-134A refrigerant
- Internal and external circulation
- 8 L/min pump flow rate
- Stainless-steel inner tank
- Water-level alarm function
- Overheat protection
- Fast cooling
- Low-noise and low-vibration operation
- Programmable temperature controller
- Folding handles on both sides for movement
- Stainless-steel lid
- Suitable for connection to multiple laboratory instruments
4. Technical Specifications
| Specification | RCB1020T |
|---|---|
| Product Type | Refrigerated Circulating Bath |
| Model | RCB1020T |
| Brand | Labmart |
| Temperature Range | –20°C to 100°C |
| Temperature Display Resolution | 0.01°C |
| Temperature Accuracy | ±0.05°C |
| Temperature Control | Microprocessor PID |
| Display | Touchscreen |
| Temperature Sensor | PT100 |
| Refrigeration | Air-cooled compressor refrigeration |
| Refrigerant | R-134A |
| Pump Circulation | Internal & External |
| Pump Flow Rate | 8 L/min |
| Bath Tank Capacity | 10 L |
| Tank Size | 270 × 200 × 200 mm |
| Bath Opening | 180 × 140 mm |
| Bath Depth | 200 mm |
| Inner Tank Material | Stainless Steel |
| Circulation & Drainage | Stainless Steel |
| Power Supply | AC 220V / 50Hz |
| Instrument Dimensions | 440 × 300 × 510 mm |
| Packing Dimensions | 535 × 380 × 800 mm |
| Gross Weight | 41 kg |
| HSN Code | 84198990 |
5. Applications

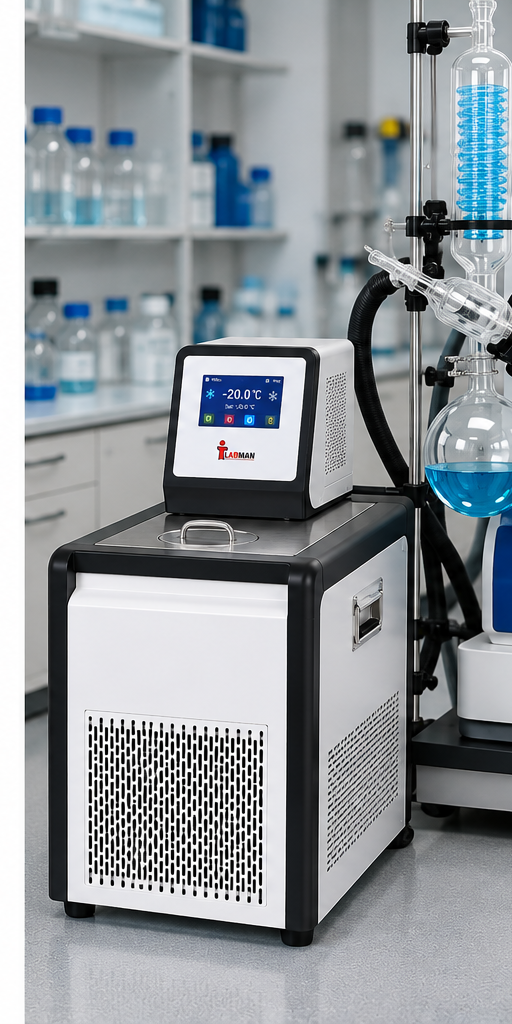

The RCB1020T can be used for temperature maintenance and circulation with:
- Fermentation tanks
- Spectrophotometers
- Rotary evaporators
- Polarimeters
- Refractometers
- Viscometers
- Electrophoresis systems
- Chromatographic columns
- Laboratory processes requiring controlled liquid temperature
6. Suitable For
The RCB1020T is suitable for:
- Research laboratories
- Pharmaceutical laboratories
- Chemical laboratories
- Biotechnology laboratories
- Food laboratories
- Quality-control laboratories
- R&D laboratories
- University and academic laboratories
- Instrument temperature-control applications
- Laboratory processes requiring heating and cooling circulation
7. FAQs
1. What is the RCB1020T used for?
The RCB1020T is a refrigerated circulating bath used to maintain and circulate liquid at a controlled temperature for laboratory instruments and processes.
2. What is the temperature range?
The RCB1020T provides a temperature range of –20°C to 100°C.
3. What is the bath capacity?
The bath tank capacity is 10 litres.
4. What is the temperature accuracy?
The specified temperature accuracy is ±0.05°C.
5. What is the temperature display resolution?
The display resolution is 0.01°C.
6. What type of temperature sensor is used?
The RCB1020T uses a PT100 temperature sensor.
7. What type of temperature control does it use?
It uses microprocessor PID temperature control.
8. What is the pump flow rate?
The specified pump flow rate is 8 L/min.
9. Can the RCB1020T provide external circulation?
Yes. The system supports internal and external pump circulation.
10. What refrigeration system is used?
The RCB1020T uses air-cooled compressor refrigeration with R-134A refrigerant.
11. Which laboratory instruments can it be connected to?
The catalogue identifies applications with fermentation tanks, spectrophotometers, rotary evaporators, polarimeters, refractometers, viscometers, electrophoresis systems and chromatographic columns.
12. What is supplied with the RCB1020T?
The standard accessories include the main instrument, stainless-steel lid, circulating tube, thermal sleeve for circulating tube, fuse, power cord, instructional manual and test certificate.
- Regular price
- Rs.185,399.00
- Sale price
- Rs.102,399.00
