The Labmart PBH40T Paddle Blender Homogenizer is designed for microbiological sample preparation, particularly for extracting and washing intact microorganisms into solution. It handles 4–400 mL samples, provides adjustable paddle flapping speed, programmable operation with 8 stored programs, a 4.3-inch touchscreen, adjustable flapping distance and an automatic stop function. The PBH40T is the non-heating, non-UV version of the PBH40T/PBH80T series.

3. Detailed Product Description

Product Overview

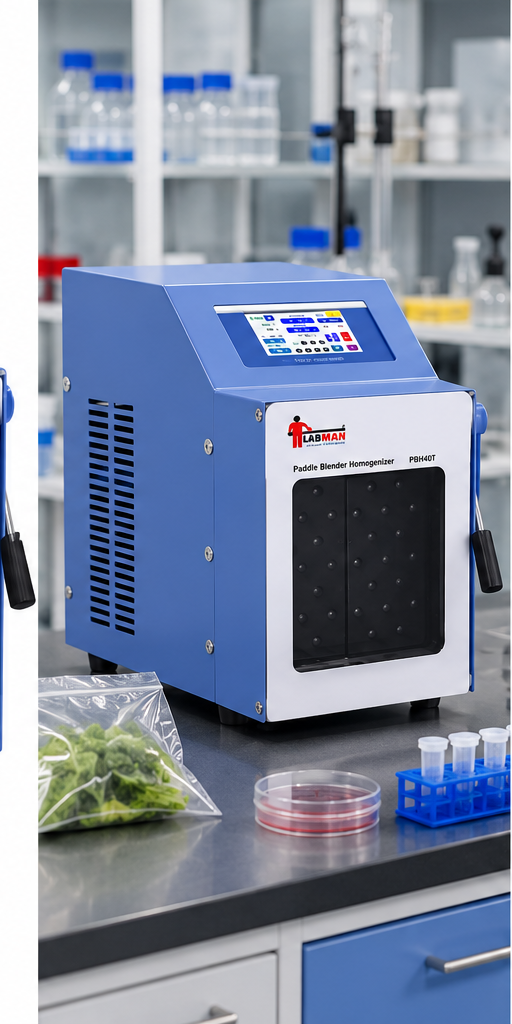

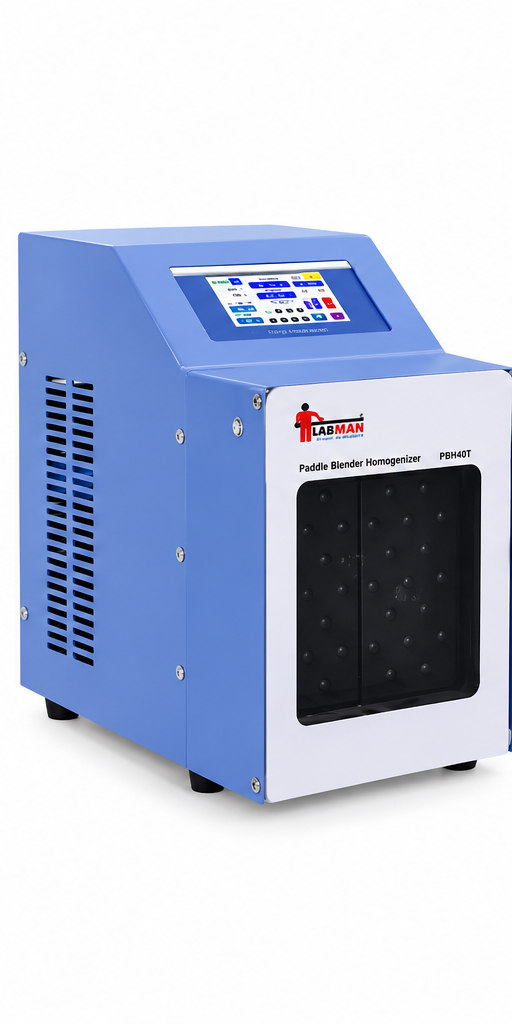

The PBH40T Paddle Blender Homogenizer is a laboratory sample-preparation instrument designed primarily for microbiological applications where samples need to be blended and homogenized in a sterile bag without direct contact between the sample and the homogenizer.

The system is specified for sample volumes from 4 mL to 400 mL and uses paddle movement to process samples inside a sterile homogeneous bag. The adjustable flapping speed ranges from 3.0 to 12.0 squeezing cycles per second, while the flapping distance can be adjusted from 0 to 50 mm.

The PBH40T features a 4.3-inch touchscreen, programmable speed and time settings, storage for 8 programs, a transparent viewing window and an automatic stop function. It is constructed with stainless steel and an anticorrosive plastic-sprayed finish.

Unlike the PBH80T, the PBH40T does not include heating or UV sterilization.

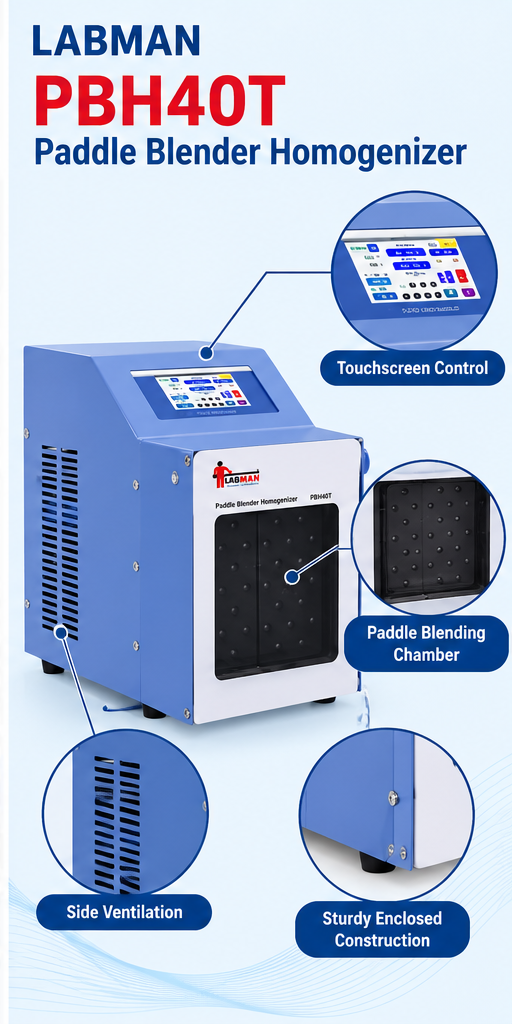

Key Features & Benefits

• Sample capacity: 4–400 mL
• 4.3-inch touchscreen display
• Adjustable flapping speed: 3.0–12.0 squeezing cycles/second
• Adjustable flapping distance: 0–50 mm
• 8 programmable speed/time sets
• Timing function
• Automatic stop function
• Alarm and pause functions
• Transparent glass window for sample observation
• No direct contact between sample and homogenizer
• Stainless-steel construction with anticorrosive plastic spraying
• Designed for sterile homogeneous bags
• Suitable for bags up to 170 × 300 mm
• Paddle size: 145 × 85 mm
• AC 220V / 50Hz operation
• No heating or UV sterilization in the PBH40T configuration

4. Technical Specifications

5. Applications

The PBH40T is primarily suitable for:

• Microbiology sample preparation
• Extraction of intact microorganisms into solution
• Washing of intact microorganisms into solution
• Food testing laboratories
• Environmental microbiology
• Life-science research
• Laboratory sample homogenization
• Preparation of samples for subsequent microbiological analysis

6. Suitable For

The PBH40T is suitable for:

• Microbiology laboratories
• Food testing laboratories
• Environmental laboratories
• Life-science research laboratories
• Biotechnology laboratories
• Quality-control laboratories
• Academic research laboratories
• Laboratories requiring bag-based sample homogenization

7. FAQs

1. What is the PBH40T used for?

The PBH40T is primarily used for microbiological sample homogenization, including extraction and washing of intact microorganisms into solution.

2. What sample volume can the PBH40T process?

The specified capacity is 4 mL to 400 mL.

3. Does the PBH40T directly contact the sample?

No. The source specifies no direct contact between the sample and homogenizer.

4. What type of bag is used?

The instrument is designed for sterile homogeneous bags.

5. What is the specified bag size?

The specified sterile homogeneous bag size is 170 × 300 mm.

6. What is the flapping speed range?

The flapping speed is 3.0–12.0 squeezing cycles per second.

7. Can the flapping distance be adjusted?

Yes. The flapping distance can be adjusted from 0 to 50 mm.

8. How many programs can be stored?

The PBH40T can store 8 programmable speed/time sets.

9. Does the PBH40T have heating?

No. Heating is not provided in the PBH40T configuration.

10. Does the PBH40T have UV sterilization?

No. UV sterilization is not provided in the PBH40T configuration.

11. What type of display does the instrument have?

It has a 4.3-inch touchscreen display.

12. Does it have an automatic stop function?

Yes. The PBH40T includes an automatic stop function, along with alarm and pause functions.
