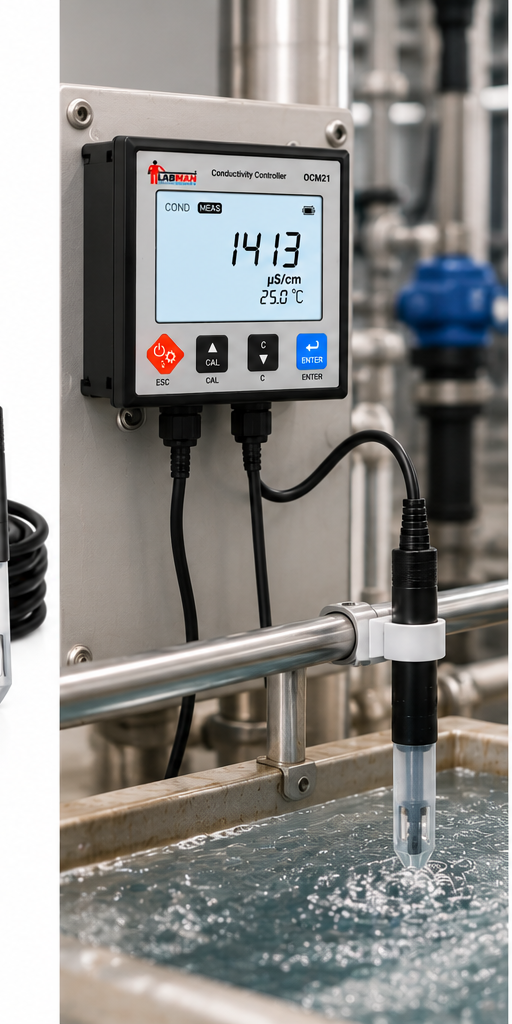

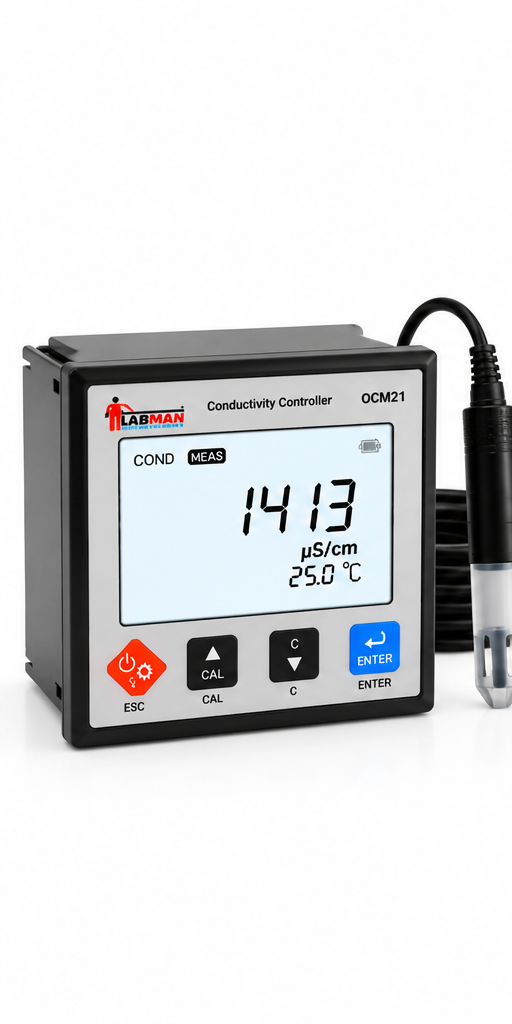

The Labmart OCM21 Online Conductivity Controller is designed for continuous monitoring of water conductivity and total dissolved solids (TDS) in industrial and process applications. It offers a wide conductivity measurement range, selectable cell constant and temperature coefficient, adjustable TDS conversion factor, automatic temperature compensation, configurable high/low alarms, 4–20 mA output and RS485 communication.
The OCM21 supports 1–3 point calibration with automatic recognition of conductivity standards and is supplied with an online conductivity electrode and 5 m cable.
Product Overview
The Labmart OCM21 Online Conductivity Controller is an online conductivity monitoring instrument intended for applications where continuous measurement of electrical conductivity and total dissolved solids of water is required.
The controller provides multiple selectable conductivity measurement ranges extending from 0.01 µS/cm through 200.0 mS/cm, with measurement resolution selectable according to the operating range. It also provides TDS measurement, automatic temperature compensation and adjustable TDS conversion factors.
The OCM21 is designed with configurable process-monitoring functions including high/low limit alarms, a 4–20 mA analogue output and RS485 communication. A setup menu allows configuration of calibration points, alarm limits, hysteresis and output-related settings.
Key Features and Benefits
- Wide conductivity measurement range: Supports measurements from 0.01 µS/cm up to 200.0 mS/cm, accommodating a broad range of water-quality applications.
- TDS measurement: Provides TDS ranges from ppm through ppt for monitoring dissolved solids alongside conductivity.
- 1–3 point calibration: Automatic recognition of conductivity standards simplifies calibration.
- Selectable cell constant: Allows configuration according to the conductivity measurement setup.
- Adjustable temperature coefficient: Can be configured from 0.0 to 10.0%/°C.
- Adjustable TDS conversion factor: User-selectable from 0.1 to 1.0, with 0.5 specified as the default.
- Automatic temperature compensation: Built-in compensation supports measurements across the specified temperature range.
- 4–20 mA output: Suitable for integration with compatible process monitoring or control systems.
- RS485 interface: Provides digital communication capability for compatible systems.
- Configurable high/low alarms: Allows selectable conductivity alarm limits.
- Factory reset: Enables settings to be restored to factory defaults.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Online Conductivity Controller |
| Model | OCM21 |
| Brand | Labmart |
| Conductivity Range | 0.01 to 20.00, 200.0, 2000 µS/cm; 20.00, 200.0 mS/cm |
| Conductivity Resolution | 0.001, 0.01, 0.1, 1 |
| Conductivity Accuracy | ±1% F.S. |
| Calibration | 1–3 points |
| Conductivity Calibration Standards | 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS |
| TDS Range | 0 to 10.00, 100.0, 1000 ppm; 10.00, 200.0 ppt |
| TDS Resolution | 0.01, 0.1, 1 |
| TDS Accuracy | ±1% F.S. |
| TDS Conversion Factor | 0.1 to 1.0; default 0.5 |
| Temperature Range | 0–100°C / 32–212°F |
| Temperature Resolution | 0.1°C/°F |
| Temperature Accuracy | ±1°C / ±1.8°F |
| Temperature Coefficient | 0.0–10.0%/°C |
| Offset Calibration | 1 point; reading ±10°C |
| Signal Output | 4–20 mA |
| Maximum Load | 500 Ω |
| High/Low Limit Alarm | 0.02 µS/cm to 20.0 mS/cm, selectable |
| Communication Interface | RS485 |
| Power Supply | DC 24 V |
| Packing Dimensions (L × W × H) | 290 × 230 × 155 mm |
| Gross Weight | 1 kg |
| Standard Electrode Cable | 5 m |
| Standard Conductivity Solution | 1413 µS/cm |
| HSN Code | 90275090 |
The above values are taken from the OCM21 specification table on page 2 of the supplied catalogue.
5. Applications
The Labmart OCM21 is suitable for online monitoring applications such as:
- Water-quality monitoring
- Total dissolved solids monitoring
- Industrial water monitoring
- Process-water monitoring
- Water-treatment systems
- Wastewater-treatment processes
- Conductivity monitoring in industrial processes
- TDS monitoring
- Continuous online water-quality measurement
- Process instrumentation and control
The catalogue specifically describes the OCM21 as an industrial online conductivity controller suitable for monitoring conductivity and total dissolved solids of water quality.
6. Suitable For
- Water-treatment plants
- Wastewater-treatment facilities
- Industrial laboratories
- Quality-control laboratories
- Chemical processing facilities
- Environmental monitoring teams
- Process engineering departments
- Research laboratories
- Water-quality monitoring systems
- Industrial process-control applications
7. FAQs
1. What is the Labmart OCM21?
The OCM21 is an online conductivity controller designed for continuous monitoring of conductivity and TDS in water-quality applications.
2. What conductivity range does the OCM21 measure?
The specified conductivity ranges extend from 0.01 µS/cm to 200.0 mS/cm, with selectable ranges depending on the measurement configuration.
3. Can the OCM21 measure TDS?
Yes. The OCM21 provides TDS measurement with ranges extending from 0 to 1000 ppm and up to 200.0 ppt, depending on the selected range.
4. What is the conductivity accuracy?
The specified conductivity accuracy is ±1% F.S.
5. How many calibration points are supported?
The OCM21 supports 1 to 3 point calibration with automatic recognition of conductivity standards.
6. Which conductivity calibration standards are supported?
The specified standards are 10 µS, 84 µS, 1413 µS, 12.88 mS and 111.8 mS.
7. Does the OCM21 have automatic temperature compensation?
Yes. The controller provides built-in automatic temperature compensation across the specified 0–100°C temperature range.
8. Can the TDS conversion factor be adjusted?
Yes. The TDS conversion factor can be selected from 0.1 to 1.0, with 0.5 as the default.
9. Does the OCM21 provide 4–20 mA output?
Yes. A 4–20 mA signal output is provided.
10. Does the controller support RS485?
Yes. The OCM21 includes an RS485 communication interface.
11. What electrode is supplied with the OCM21?
The standard accessories include an online conductivity electrode with a 5-metre cable.
12. What power supply does the OCM21 require?
The specified power supply is DC 24 V.
- Regular price
- Rs.52,799.00
- Sale price
- Rs.32,799.00
The Labmart OCM21 Online Conductivity Controller is designed for continuous monitoring of water conductivity and total dissolved solids (TDS) in industrial and process applications. It offers a wide conductivity measurement range, selectable cell constant and temperature coefficient, adjustable TDS conversion factor, automatic temperature compensation, configurable high/low alarms, 4–20 mA output and RS485 communication.
The OCM21 supports 1–3 point calibration with automatic recognition of conductivity standards and is supplied with an online conductivity electrode and 5 m cable.
Product Overview
The Labmart OCM21 Online Conductivity Controller is an online conductivity monitoring instrument intended for applications where continuous measurement of electrical conductivity and total dissolved solids of water is required.
The controller provides multiple selectable conductivity measurement ranges extending from 0.01 µS/cm through 200.0 mS/cm, with measurement resolution selectable according to the operating range. It also provides TDS measurement, automatic temperature compensation and adjustable TDS conversion factors.
The OCM21 is designed with configurable process-monitoring functions including high/low limit alarms, a 4–20 mA analogue output and RS485 communication. A setup menu allows configuration of calibration points, alarm limits, hysteresis and output-related settings.
Key Features and Benefits
- Wide conductivity measurement range: Supports measurements from 0.01 µS/cm up to 200.0 mS/cm, accommodating a broad range of water-quality applications.
- TDS measurement: Provides TDS ranges from ppm through ppt for monitoring dissolved solids alongside conductivity.
- 1–3 point calibration: Automatic recognition of conductivity standards simplifies calibration.
- Selectable cell constant: Allows configuration according to the conductivity measurement setup.
- Adjustable temperature coefficient: Can be configured from 0.0 to 10.0%/°C.
- Adjustable TDS conversion factor: User-selectable from 0.1 to 1.0, with 0.5 specified as the default.
- Automatic temperature compensation: Built-in compensation supports measurements across the specified temperature range.
- 4–20 mA output: Suitable for integration with compatible process monitoring or control systems.
- RS485 interface: Provides digital communication capability for compatible systems.
- Configurable high/low alarms: Allows selectable conductivity alarm limits.
- Factory reset: Enables settings to be restored to factory defaults.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Online Conductivity Controller |
| Model | OCM21 |
| Brand | Labmart |
| Conductivity Range | 0.01 to 20.00, 200.0, 2000 µS/cm; 20.00, 200.0 mS/cm |
| Conductivity Resolution | 0.001, 0.01, 0.1, 1 |
| Conductivity Accuracy | ±1% F.S. |
| Calibration | 1–3 points |
| Conductivity Calibration Standards | 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS |
| TDS Range | 0 to 10.00, 100.0, 1000 ppm; 10.00, 200.0 ppt |
| TDS Resolution | 0.01, 0.1, 1 |
| TDS Accuracy | ±1% F.S. |
| TDS Conversion Factor | 0.1 to 1.0; default 0.5 |
| Temperature Range | 0–100°C / 32–212°F |
| Temperature Resolution | 0.1°C/°F |
| Temperature Accuracy | ±1°C / ±1.8°F |
| Temperature Coefficient | 0.0–10.0%/°C |
| Offset Calibration | 1 point; reading ±10°C |
| Signal Output | 4–20 mA |
| Maximum Load | 500 Ω |
| High/Low Limit Alarm | 0.02 µS/cm to 20.0 mS/cm, selectable |
| Communication Interface | RS485 |
| Power Supply | DC 24 V |
| Packing Dimensions (L × W × H) | 290 × 230 × 155 mm |
| Gross Weight | 1 kg |
| Standard Electrode Cable | 5 m |
| Standard Conductivity Solution | 1413 µS/cm |
| HSN Code | 90275090 |
The above values are taken from the OCM21 specification table on page 2 of the supplied catalogue.
5. Applications
The Labmart OCM21 is suitable for online monitoring applications such as:
- Water-quality monitoring
- Total dissolved solids monitoring
- Industrial water monitoring
- Process-water monitoring
- Water-treatment systems
- Wastewater-treatment processes
- Conductivity monitoring in industrial processes
- TDS monitoring
- Continuous online water-quality measurement
- Process instrumentation and control
The catalogue specifically describes the OCM21 as an industrial online conductivity controller suitable for monitoring conductivity and total dissolved solids of water quality.
6. Suitable For
- Water-treatment plants
- Wastewater-treatment facilities
- Industrial laboratories
- Quality-control laboratories
- Chemical processing facilities
- Environmental monitoring teams
- Process engineering departments
- Research laboratories
- Water-quality monitoring systems
- Industrial process-control applications
7. FAQs
1. What is the Labmart OCM21?
The OCM21 is an online conductivity controller designed for continuous monitoring of conductivity and TDS in water-quality applications.
2. What conductivity range does the OCM21 measure?
The specified conductivity ranges extend from 0.01 µS/cm to 200.0 mS/cm, with selectable ranges depending on the measurement configuration.
3. Can the OCM21 measure TDS?
Yes. The OCM21 provides TDS measurement with ranges extending from 0 to 1000 ppm and up to 200.0 ppt, depending on the selected range.
4. What is the conductivity accuracy?
The specified conductivity accuracy is ±1% F.S.
5. How many calibration points are supported?
The OCM21 supports 1 to 3 point calibration with automatic recognition of conductivity standards.
6. Which conductivity calibration standards are supported?
The specified standards are 10 µS, 84 µS, 1413 µS, 12.88 mS and 111.8 mS.
7. Does the OCM21 have automatic temperature compensation?
Yes. The controller provides built-in automatic temperature compensation across the specified 0–100°C temperature range.
8. Can the TDS conversion factor be adjusted?
Yes. The TDS conversion factor can be selected from 0.1 to 1.0, with 0.5 as the default.
9. Does the OCM21 provide 4–20 mA output?
Yes. A 4–20 mA signal output is provided.
10. Does the controller support RS485?
Yes. The OCM21 includes an RS485 communication interface.
11. What electrode is supplied with the OCM21?
The standard accessories include an online conductivity electrode with a 5-metre cable.
12. What power supply does the OCM21 require?
The specified power supply is DC 24 V.
- Regular price
- Rs.52,799.00
- Sale price
- Rs.32,799.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Labmart OCM21 Online Conductivity Controller is designed for continuous monitoring of water conductivity and total dissolved solids (TDS) in industrial and process applications. It offers a wide conductivity measurement range, selectable cell constant and temperature coefficient, adjustable TDS conversion factor, automatic temperature compensation, configurable high/low alarms, 4–20 mA output and RS485 communication.
The OCM21 supports 1–3 point calibration with automatic recognition of conductivity standards and is supplied with an online conductivity electrode and 5 m cable.
Product Overview
The Labmart OCM21 Online Conductivity Controller is an online conductivity monitoring instrument intended for applications where continuous measurement of electrical conductivity and total dissolved solids of water is required.
The controller provides multiple selectable conductivity measurement ranges extending from 0.01 µS/cm through 200.0 mS/cm, with measurement resolution selectable according to the operating range. It also provides TDS measurement, automatic temperature compensation and adjustable TDS conversion factors.
The OCM21 is designed with configurable process-monitoring functions including high/low limit alarms, a 4–20 mA analogue output and RS485 communication. A setup menu allows configuration of calibration points, alarm limits, hysteresis and output-related settings.
Key Features and Benefits
- Wide conductivity measurement range: Supports measurements from 0.01 µS/cm up to 200.0 mS/cm, accommodating a broad range of water-quality applications.
- TDS measurement: Provides TDS ranges from ppm through ppt for monitoring dissolved solids alongside conductivity.
- 1–3 point calibration: Automatic recognition of conductivity standards simplifies calibration.
- Selectable cell constant: Allows configuration according to the conductivity measurement setup.
- Adjustable temperature coefficient: Can be configured from 0.0 to 10.0%/°C.
- Adjustable TDS conversion factor: User-selectable from 0.1 to 1.0, with 0.5 specified as the default.
- Automatic temperature compensation: Built-in compensation supports measurements across the specified temperature range.
- 4–20 mA output: Suitable for integration with compatible process monitoring or control systems.
- RS485 interface: Provides digital communication capability for compatible systems.
- Configurable high/low alarms: Allows selectable conductivity alarm limits.
- Factory reset: Enables settings to be restored to factory defaults.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Online Conductivity Controller |
| Model | OCM21 |
| Brand | Labmart |
| Conductivity Range | 0.01 to 20.00, 200.0, 2000 µS/cm; 20.00, 200.0 mS/cm |
| Conductivity Resolution | 0.001, 0.01, 0.1, 1 |
| Conductivity Accuracy | ±1% F.S. |
| Calibration | 1–3 points |
| Conductivity Calibration Standards | 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS |
| TDS Range | 0 to 10.00, 100.0, 1000 ppm; 10.00, 200.0 ppt |
| TDS Resolution | 0.01, 0.1, 1 |
| TDS Accuracy | ±1% F.S. |
| TDS Conversion Factor | 0.1 to 1.0; default 0.5 |
| Temperature Range | 0–100°C / 32–212°F |
| Temperature Resolution | 0.1°C/°F |
| Temperature Accuracy | ±1°C / ±1.8°F |
| Temperature Coefficient | 0.0–10.0%/°C |
| Offset Calibration | 1 point; reading ±10°C |
| Signal Output | 4–20 mA |
| Maximum Load | 500 Ω |
| High/Low Limit Alarm | 0.02 µS/cm to 20.0 mS/cm, selectable |
| Communication Interface | RS485 |
| Power Supply | DC 24 V |
| Packing Dimensions (L × W × H) | 290 × 230 × 155 mm |
| Gross Weight | 1 kg |
| Standard Electrode Cable | 5 m |
| Standard Conductivity Solution | 1413 µS/cm |
| HSN Code | 90275090 |
The above values are taken from the OCM21 specification table on page 2 of the supplied catalogue.
5. Applications
The Labmart OCM21 is suitable for online monitoring applications such as:
- Water-quality monitoring
- Total dissolved solids monitoring
- Industrial water monitoring
- Process-water monitoring
- Water-treatment systems
- Wastewater-treatment processes
- Conductivity monitoring in industrial processes
- TDS monitoring
- Continuous online water-quality measurement
- Process instrumentation and control
The catalogue specifically describes the OCM21 as an industrial online conductivity controller suitable for monitoring conductivity and total dissolved solids of water quality.
6. Suitable For
- Water-treatment plants
- Wastewater-treatment facilities
- Industrial laboratories
- Quality-control laboratories
- Chemical processing facilities
- Environmental monitoring teams
- Process engineering departments
- Research laboratories
- Water-quality monitoring systems
- Industrial process-control applications
7. FAQs
1. What is the Labmart OCM21?
The OCM21 is an online conductivity controller designed for continuous monitoring of conductivity and TDS in water-quality applications.
2. What conductivity range does the OCM21 measure?
The specified conductivity ranges extend from 0.01 µS/cm to 200.0 mS/cm, with selectable ranges depending on the measurement configuration.
3. Can the OCM21 measure TDS?
Yes. The OCM21 provides TDS measurement with ranges extending from 0 to 1000 ppm and up to 200.0 ppt, depending on the selected range.
4. What is the conductivity accuracy?
The specified conductivity accuracy is ±1% F.S.
5. How many calibration points are supported?
The OCM21 supports 1 to 3 point calibration with automatic recognition of conductivity standards.
6. Which conductivity calibration standards are supported?
The specified standards are 10 µS, 84 µS, 1413 µS, 12.88 mS and 111.8 mS.
7. Does the OCM21 have automatic temperature compensation?
Yes. The controller provides built-in automatic temperature compensation across the specified 0–100°C temperature range.
8. Can the TDS conversion factor be adjusted?
Yes. The TDS conversion factor can be selected from 0.1 to 1.0, with 0.5 as the default.
9. Does the OCM21 provide 4–20 mA output?
Yes. A 4–20 mA signal output is provided.
10. Does the controller support RS485?
Yes. The OCM21 includes an RS485 communication interface.
11. What electrode is supplied with the OCM21?
The standard accessories include an online conductivity electrode with a 5-metre cable.
12. What power supply does the OCM21 require?
The specified power supply is DC 24 V.
Similar Products
-
Vendor: Labmart
Digital PH Meter & TDS Meter Combo with buffer,3 in 1 TDS EC Meter & Temperature,0.01 PH High Accuracy PH Meter with 0-14 pH range & +/- 2% Accuracy I 1 year Warranty
Sale price Rs.520.00Regular price Rs.1,000.00 -
Vendor: Acutek
7-in-1 Multiparameter, PH/TDS/EC/Salinity/ Temp/ORP/SG. Meter,Water Quality Analyzer
Sale price Rs.2,799.00Regular price Rs.4,500.00 -
Vendor: Acutek
5-in-1 Multiparameter, PH/TDS/EC/Salinity/ Temp. Meter,Water Quality Analyzer
Sale price Rs.1,850.00Regular price Rs.3,400.00 -
Vendor: Acutek
4-in-1 Combo PH/TDS/EC/Temp. Meter,Water Quality Analyzer
Sale price Rs.1,500.00Regular price Rs.3,000.00
