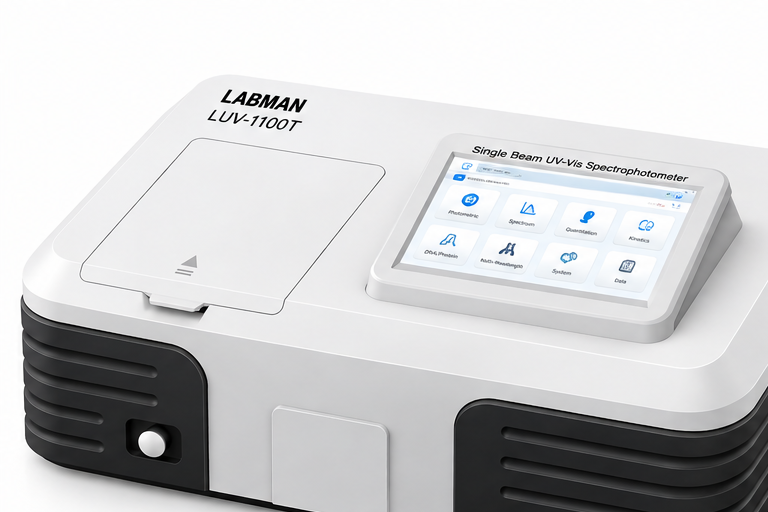

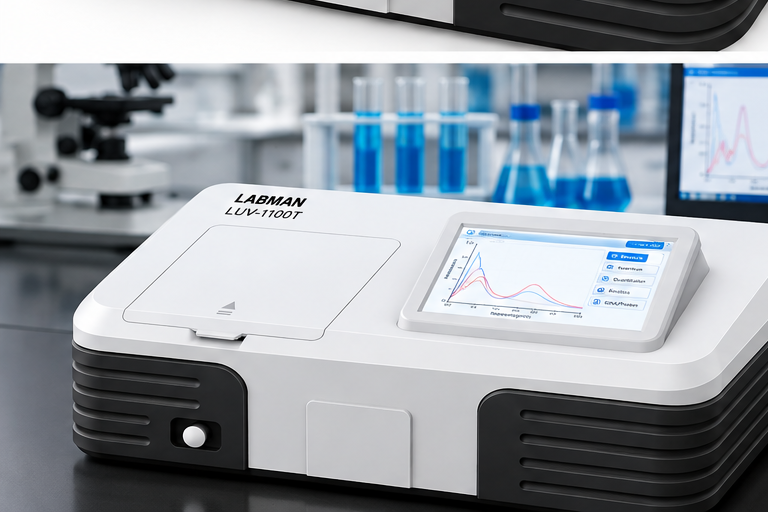

The Labmart LUV1100T Touchscreen Single Beam UV-Vis Spectrophotometer is a versatile analytical instrument with a 190–1100 nm wavelength range, 2 nm bandwidth, 7-inch touchscreen, 32GB memory and USB data output. It supports photometric measurement, quantitative analysis, spectral scanning, kinetics, DNA/Protein testing, multi-wavelength and multi-curve measurements.
3. Detailed Product Description
Product Overview
The LUV1100T Touchscreen Single Beam UV-Vis Spectrophotometer is designed for routine and advanced UV-Visible spectrophotometric analysis across the 190–1100 nm wavelength range.
The instrument uses a single-beam optical system, tungsten and deuterium lamps, and a silicon photodiode detector. Its 7-inch HD TFT touchscreen and built-in 32GB memory provide an integrated platform for instrument control, measurement and data management.
The LUV1100T supports a broad range of analytical functions including photometric measurement, quantitative measurement, spectral scanning, kinetics testing, DNA/Protein testing, multi-wavelength analysis and multi-curve analysis. It can operate as a standalone system or be used with PC software.
The optical system incorporates protective measures intended to reduce the effect of dust and corrosive gases on optical components, while automatic power-on self-testing and system positioning functions assist with routine instrument startup and positioning.
Key Features and Benefits
- 190–1100 nm wavelength range: Covers UV and visible measurement applications.
- 2 nm spectral bandwidth: Provides the specified optical bandwidth for routine UV-Vis analysis.
- 7-inch touchscreen: Provides direct access to measurement and analysis functions.
- 32GB internal memory: Allows substantial storage of measurement and spectral data.
- Multiple analytical modes: Supports photometric, quantitative, kinetics, spectrum scanning, DNA/Protein and multi-wavelength measurements.
- Dual lamp configuration: Tungsten and deuterium lamps support the specified wavelength range.
- USB data output: Allows measurement data and analysis reports to be exported.
- Standalone operation: Internal computing capability allows multiple analytical functions without requiring a separate PC for routine operation.
- Automatic self-test and positioning: Helps inspect the instrument and check positioning during startup.
- 3D graph display: Supports graphical presentation of analytical results.
- Direct printing capability: The system can be connected to a compatible printer for A4 data and graph printing.
- PC software: Provides additional data management functions including user management, logging and data tracking.
4. Technical Specifications
| Specification | LUV1100T |
|---|---|
| Product Type | Touchscreen Single Beam UV-Vis Spectrophotometer |
| Model | LUV1100T |
| Brand | Labmart |
| Optical System | Single Beam |
| Wavelength Range | 190–1100 nm |
| Bandwidth | 2.0 nm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | +0.2 nm |
| Wavelength Resolution | 0.1 nm |
| Photometric Range | 0–200%T; -0.3–3.0A; 0–9999C |
| Photometric Accuracy | ±0.2%T (0–100%T); ±0.002 Abs (0–0.5 Abs); ±0.004 Abs (0.5–1.0 Abs) |
| Photometric Repeatability | ≤0.1%T (0–100%T); 0.001 Abs (0–0.5 Abs); 0.002 Abs (0.5–1.0 Abs) |
| Stability | +0.001 A/h @ 500 nm |
| Baseline Flatness | ±0.001 A/h |
| Stray Light | 0.05%T @ 220 nm and 360 nm |
| Cell Holder | 10 mm sample and reference cuvette holders |
| Focal Length | 10 mm |
| Light Source | Tungsten Lamp & Deuterium Lamp |
| Detector | Silicon Photodiode |
| Display | 7-inch Touchscreen, 800 × 480 HD TFT |
| Internal Memory | 32GB |
| Control Mode | Standalone System / PC Software |
| Data Output | USB |
| Power Supply | AC 220V, 50/60Hz |
| Packing Dimensions | 645 × 550 × 405 mm |
| Gross Weight | 25 kg |
| HSN Code | 90273020 |
5. Applications
The LUV1100T can be used for:
- UV-Visible photometric analysis
- Quantitative analysis
- Spectral scanning
- Kinetics studies
- DNA analysis
- Protein analysis
- Multi-wavelength measurements
- Multi-curve analysis
- Calibration-curve development
- Concentration determination
- Research and development
- Quality-control testing
- Pharmaceutical laboratory analysis
- Chemical laboratory analysis
- Biotechnology and life-science applications
- Educational laboratory experiments
6. Suitable For
The LUV1100T is suitable for:
- Pharmaceutical laboratories
- Chemical laboratories
- Biotechnology laboratories
- Research institutions
- Quality-control laboratories
- R&D departments
- Food and beverage laboratories
- Environmental testing laboratories
- Universities and colleges
- Scientific research facilities
- Industrial analytical laboratories
7. FAQs
1. What is the LUV1100T used for?
The LUV1100T is a single-beam UV-Vis spectrophotometer designed for photometric, quantitative, spectral scanning, kinetics, DNA/Protein and multi-wavelength analysis.
2. What is the wavelength range?
The wavelength range is 190–1100 nm.
3. What is the spectral bandwidth?
The specified bandwidth is 2.0 nm.
4. What is the wavelength accuracy?
The specified wavelength accuracy is ±0.5 nm.
5. What detector does the instrument use?
The LUV1100T uses a silicon photodiode detector.
6. What light sources are used?
The instrument uses tungsten and deuterium lamps.
7. Does the LUV1100T have a touchscreen?
Yes. It features a 7-inch HD TFT touchscreen with 800 × 480 resolution.
8. How much internal memory does it have?
The instrument has 32GB of internal memory.
9. Can the LUV1100T perform spectral scanning?
Yes. Spectrum scanning is one of the specified analytical functions.
10. Can it perform DNA and Protein testing?
Yes. The supplied specifications identify DNA/Protein testing as an available function.
11. Can measurement data be exported?
Yes. Data can be exported through USB, and the system supports direct data transfer to a USB storage device.
12. What cuvettes are supplied?
The standard accessories include a 10 mm quartz cuvette and 10 mm glass cuvette.
- Regular price
- Rs.349,000.00
- Sale price
- Rs.204,699.00
