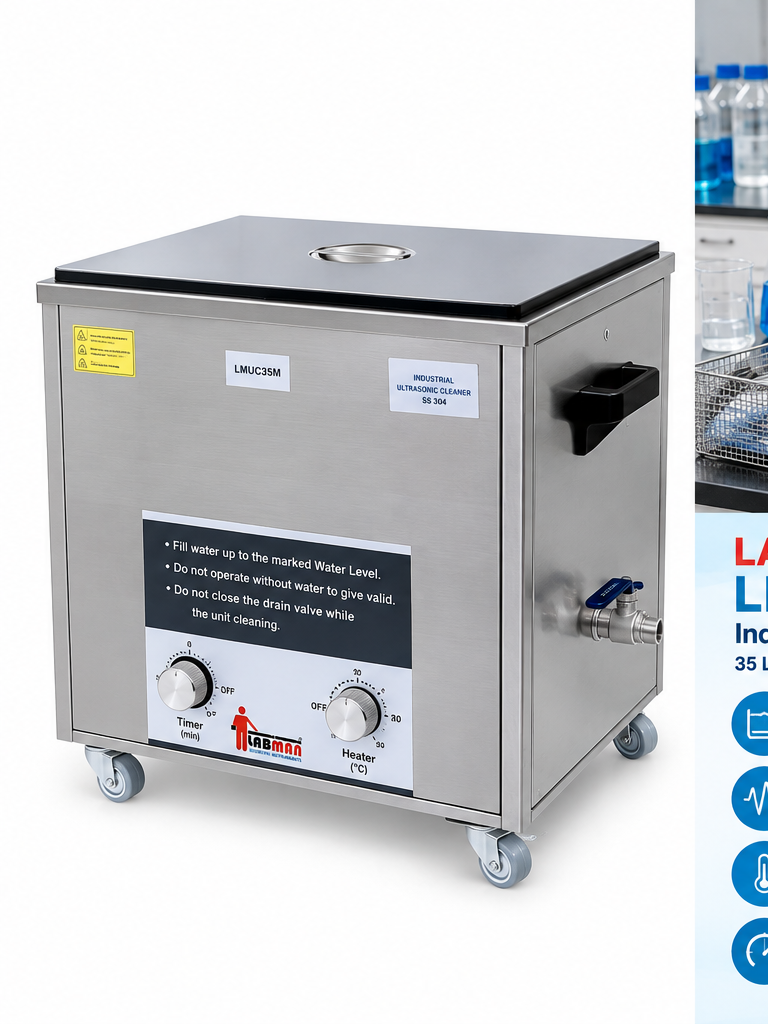

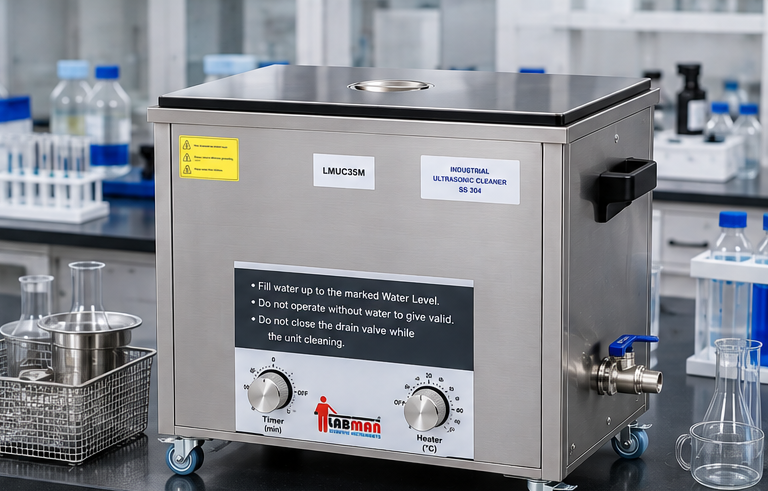

The Labmart LMUC35M Industrial Ultrasonic Cleaner is a 35-litre SS304 ultrasonic cleaning system designed for efficient cleaning of instruments, mechanical parts and components using ultrasonic cavitation. It operates at 40 kHz and provides 600 W ultrasonic power, adjustable from 0–100%, along with 800 W heating power.

The LMUC35M features a 0–30 minute timer, heating from RT +7°C to 80°C, SS304 inner and outer tanks, an SS304 lid, drain valve and four wheels for mobility. A lid and basket are supplied as standard. LMUC35M

3. Detailed Product Description

Product Overview

The Labmart LMUC35M Industrial Ultrasonic Cleaner is a higher-capacity ultrasonic cleaning system intended for applications requiring batch cleaning of instruments, mechanical components and parts.

Ultrasonic cleaning works through cavitation produced by high-frequency ultrasonic vibration in the cleaning fluid. Microscopic bubbles form in the liquid and collapse rapidly, creating an intense scrubbing action on the surface of the item being cleaned. Because the bubbles are small, they can penetrate microscopic crevices and difficult-to-reach areas. LMUC35M

With its 35 L approximate tank capacity, the LMUC35M provides a larger cleaning chamber than the LMUC13M. It combines adjustable ultrasonic power, heating and timed operation in a stainless-steel construction.

The catalogue specifies 600 W ultrasonic power, 800 W heating power, 40 kHz frequency, 0–100% adjustable ultrasonic power, 0–30 minute timer and heating from RT +7°C to 80°C. LMUC35M

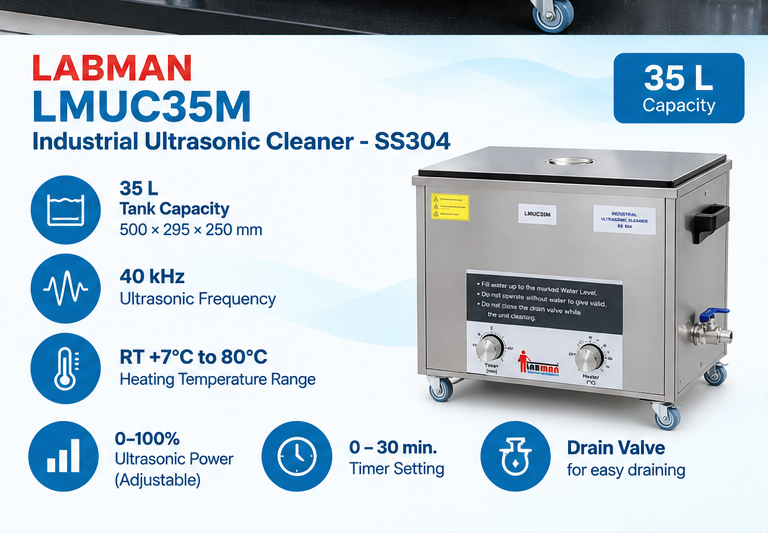

Key Features & Benefits

• 35 L Approximate Capacity: Provides a larger ultrasonic cleaning chamber for batch cleaning.
• 40 kHz Ultrasonic Frequency: Generates cavitation for intensive cleaning action.
• 600 W Ultrasonic Power: Provides the specified ultrasonic output for the LMUC35M.
• 0–100% Adjustable Ultrasonic Power: Allows the cleaning intensity to be adjusted.
• 800 W Heating Power: Supports heated ultrasonic cleaning.
• RT +7°C to 80°C Heating: Provides a specified adjustable heating range.
• 0–30 Minute Timer: Enables controlled cleaning cycles.
• SS304 Inner Tank: Provides stainless-steel construction for the cleaning chamber.
• SS304 Outer Tank: Provides stainless-steel external construction.
• SS304 Lid: Stainless-steel top cover.
• Knob Controls: Control is provided through knob-type operation.
• Drain Valve: Facilitates draining of the cleaning liquid.
• Four Wheels: The LMUC35M is equipped with four wheels for movement.
• Basket Included: A basket is included in the standard supply.
• Industrial Configuration: Designed for cleaning a wide variety of instruments and mechanical parts. LMUC35M

4. Technical Specifications

The specifications above are specifically for LMUC35M and have been kept separate from the LMUC13M specifications. LMUC35M

5. Applications

The LMUC35M is suitable for ultrasonic cleaning applications involving:

• Laboratory instruments
• Mechanical parts
• Industrial components
• Precision components
• Tools and equipment
• Instrument parts
• Components with intricate surfaces
• Parts requiring removal of dirt and grime
• Batch cleaning applications

The supplied catalogue states that ultrasonic cleaning is used for a wide variety of instruments and mechanical parts and is particularly useful where manual cleaning would be tedious. LMUC35M

6. Suitable For

The LMUC35M is suitable for:

• Research laboratories
• Quality-control laboratories
• Industrial laboratories
• Engineering workshops
• Instrument maintenance departments
• Manufacturing facilities
• Mechanical workshops
• Equipment maintenance teams
• Component-cleaning operations
• Institutions requiring higher-capacity ultrasonic cleaning

7. FAQs

1. What is the Labmart LMUC35M?

The LMUC35M is a 35 L industrial ultrasonic cleaner designed for ultrasonic cleaning of instruments, mechanical parts and components.

2. What is the tank capacity of the LMUC35M?

The approximate tank capacity is 35 litres.

3. What is the ultrasonic power?

The LMUC35M has 600 W ultrasonic power.

4. Can ultrasonic power be adjusted?

Yes. Ultrasonic power is adjustable from 0–100%.

5. What frequency does the LMUC35M operate at?

The specified ultrasonic frequency is 40 kHz.

6. Does the LMUC35M have a heater?

Yes. It has 800 W heating power.

7. What is the heating temperature range?

The specified heating range is RT +7°C to 80°C.

8. What is the timer range?

The timer can be set from 0 to 30 minutes.

9. What material is used for the tank?

The inner and outer tanks are constructed from SS304. The lid is also SS304.

10. Does the LMUC35M have wheels?

Yes. The specification table lists 4 wheels for LMUC35M. LMUC35M

11. Is a basket supplied?

Yes. The catalogue lists a basket as a standard accessory. LMUC35M

12. What power supply does it require?

The specified power supply is AC 220 V, 50/60 Hz.

13. What are the tank dimensions?

The tank dimensions are 500 × 295 × 250 mm (L × W × H).

14. What are the overall dimensions?

The overall dimensions are 570 × 360 × 450 mm (L × W × H).

15. What is the gross weight?

The specified gross weight is 33 kg.

16. Can the LMUC35M be used for gemstones?

The catalogue specifically advises against ultrasonic cleaning of opal, pearl, emerald, tanzanite, malachite, turquoise, lapis and coral. LMUC35M
