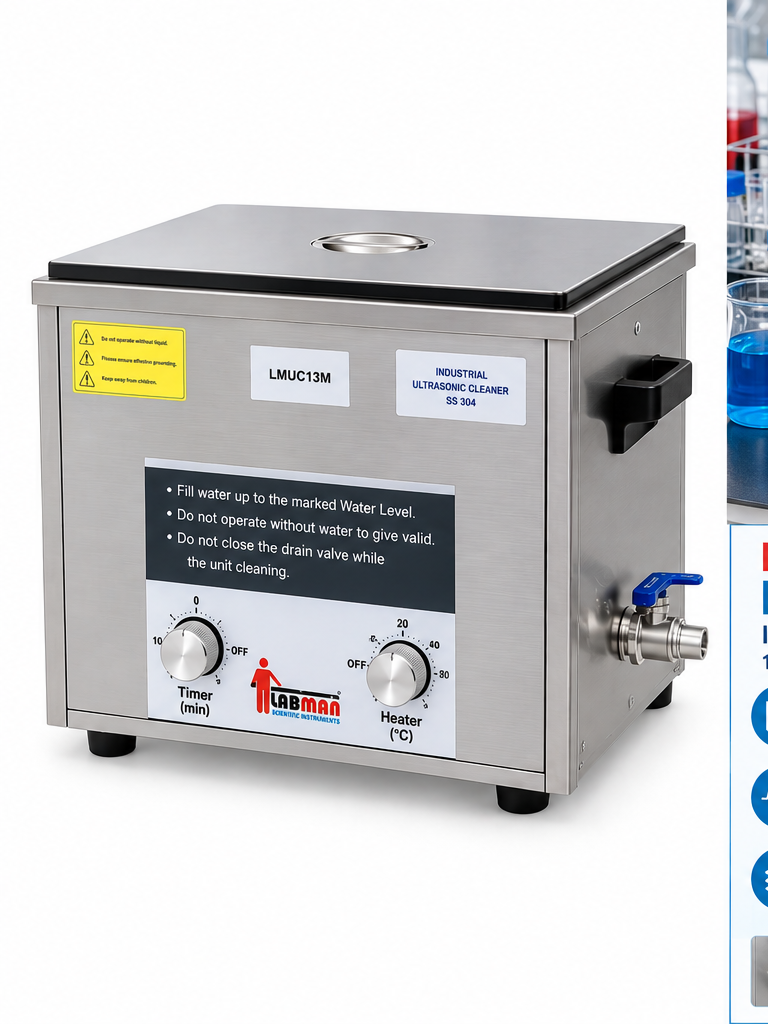

The Labmart LMUC13M Industrial Ultrasonic Cleaner is a 12-litre SS304 ultrasonic cleaning system designed for effective removal of dirt, grime and contaminants from laboratory instruments, components and mechanical parts. It uses 40 kHz ultrasonic cavitation to generate microscopic bubbles that penetrate small crevices and provide intensive cleaning.

The LMUC13M features 300 W adjustable ultrasonic power, 500 W heating power, 0–30 minute timer, and heating from RT +7°C to 80°C. The inner tank, outer tank and lid are constructed from SS304, with a lid and basket supplied as standard. LMUC13M

3. Detailed Product Description

Product Overview

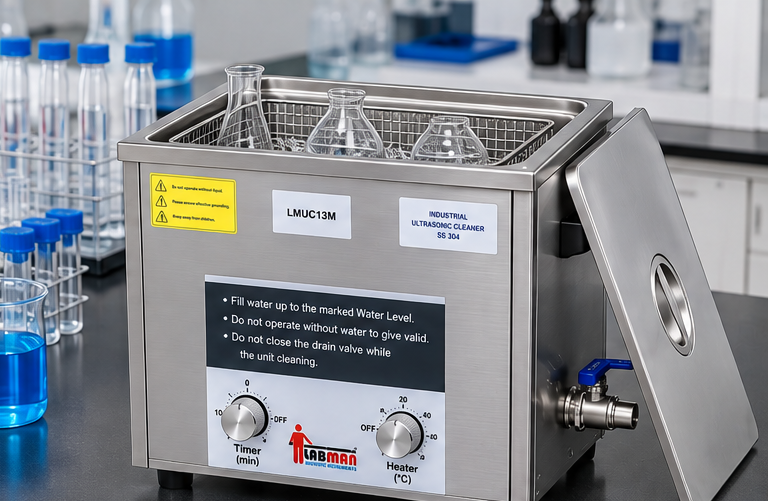

The Labmart LMUC13M Industrial Ultrasonic Cleaner is designed for ultrasonic cleaning applications where conventional manual cleaning may be time-consuming or unable to reach small cavities and intricate surfaces.

Ultrasonic cleaning works through cavitation generated by high-frequency ultrasonic vibrations in the cleaning fluid. Microscopic bubbles form and collapse rapidly, creating a scrubbing action that can reach microscopic crevices and difficult-to-access areas.

The LMUC13M provides a 12 L approximate tank capacity, 40 kHz ultrasonic frequency, adjustable ultrasonic power from 0–100%, and a 0–30 minute timer. Its integrated heater provides a temperature range of RT +7°C to 80°C. LMUC13M

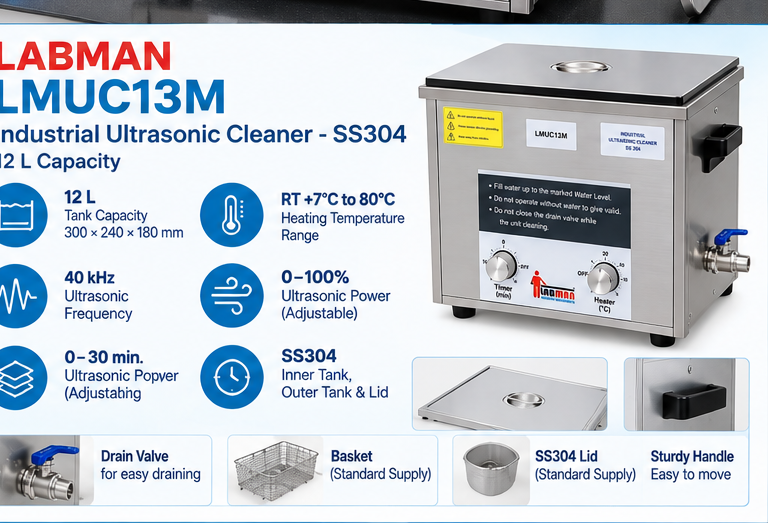

Key Features & Benefits

• 12 L Cleaning Capacity: Suitable for batch cleaning of laboratory instruments, components and parts.
• 40 kHz Ultrasonic Frequency: Produces ultrasonic cavitation for intensive cleaning.
• 300 W Ultrasonic Power: Provides ultrasonic cleaning performance for the 12 L configuration.
• 0–100% Adjustable Ultrasonic Power: Allows the operator to adjust ultrasonic intensity according to the cleaning requirement.
• 500 W Heating Power: Supports heated cleaning applications.
• RT +7°C to 80°C Heating: Provides controlled temperature adjustment during cleaning.
• 0–30 Minute Timer: Enables timed cleaning cycles.
• SS304 Inner Tank: Provides a stainless-steel cleaning chamber.
• SS304 Outer Tank: Stainless-steel outer construction.
• SS304 Lid: Stainless-steel top cover supplied with the system.
• Knob Control: Ultrasonic power, timer and heater functions are controlled through knobs.
• Drain Valve: Allows cleaning liquid to be drained from the tank.
• Basket Included: A basket is supplied as part of the standard configuration.
• Compact Industrial Design: Designed for laboratory and industrial cleaning applications.

The catalogue specifically identifies the SS304 construction, adjustable ultrasonic power, timer, heater, 40 kHz frequency and standard lid/basket configuration. LMUC13M

4. Technical Specifications

Specifications are taken from the LMUC13M/LMUC35M technical specification table; the values shown above are specifically for LMUC13M. LMUC13M

5. Applications

The LMUC13M is suitable for ultrasonic cleaning of:

• Laboratory instruments
• Mechanical parts
• Precision components
• Tools and instruments
• Metal components
• Intricate parts with difficult-to-reach surfaces
• Components requiring removal of dirt and grime
• Parts where manual cleaning is time-consuming

The catalogue states that ultrasonic cleaners are used for a wide variety of instruments and mechanical parts. LMUC13M

6. Suitable For

• Laboratory cleaning departments
• Research laboratories
• Quality-control laboratories
• Pharmaceutical laboratories
• Industrial workshops
• Engineering workshops
• Instrument maintenance teams
• Mechanical component cleaning
• Precision-part cleaning
• Equipment maintenance applications

7. FAQs

1. What is the Labmart LMUC13M?

The LMUC13M is a 12 L industrial ultrasonic cleaner with ultrasonic cleaning, heating and timer functions.

2. What is the tank capacity?

The approximate tank capacity is 12 litres.

3. What ultrasonic frequency does it use?

The LMUC13M operates at 40 kHz.

4. What is the ultrasonic power?

The ultrasonic power is 300 W.

5. Can ultrasonic power be adjusted?

Yes. Ultrasonic power is adjustable from 0–100%.

6. Does the LMUC13M have a heater?

Yes. It has a 500 W heater.

7. What is the heating temperature range?

The specified heating range is RT +7°C to 80°C.

8. What is the timer range?

The timer can be set from 0 to 30 minutes.

9. What material is the tank made from?

The inner tank and outer tank are made from SS304, and the lid is also SS304.

10. Does it include a basket?

Yes. A basket is supplied as standard.

11. Does it have a drain?

Yes. The LMUC13M has a drain valve.

12. Is the LMUC13M suitable for gemstones?

The manufacturer specifically states that ultrasonic cleaning is not recommended for opal, pearl, emerald, tanzanite, malachite, turquoise, lapis and coral. LMUC13M
