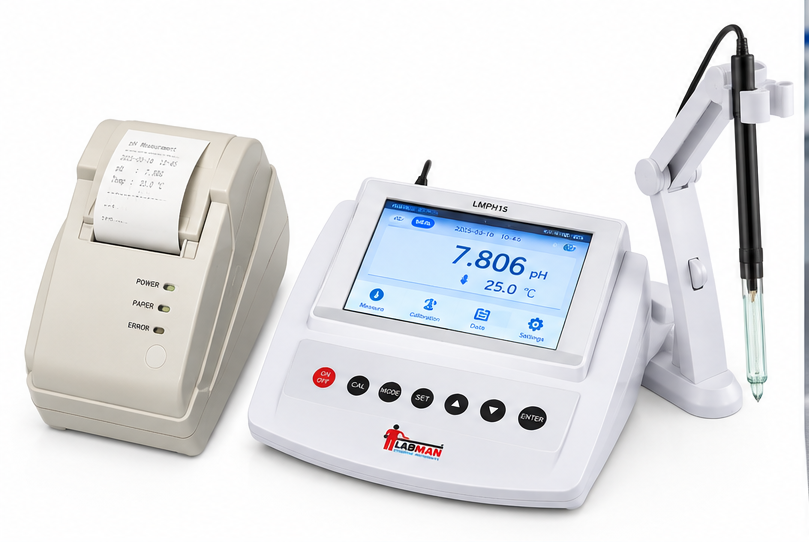

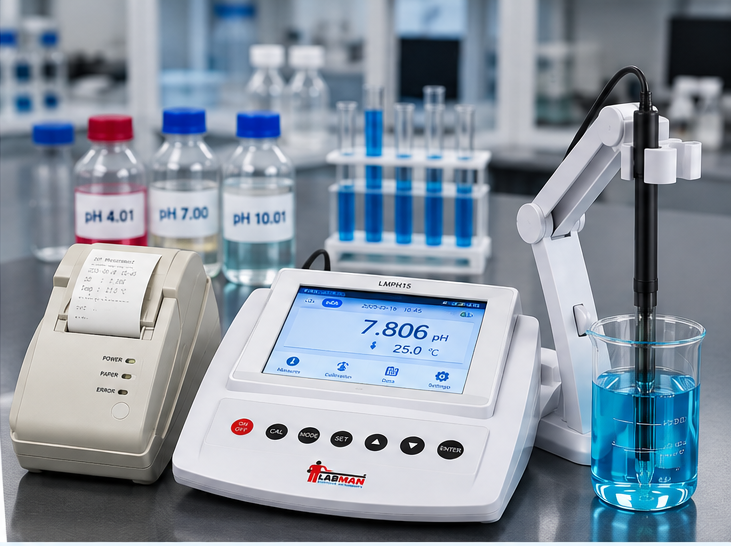

The Labmart LMPH15 pH Meter with Thermal Printer is a benchtop laboratory pH/ORP meter featuring 1–5 point pH calibration, automatic temperature compensation, automatic electrode diagnosis, Auto-Read endpoint detection, built-in thermal printing and 1000-data memory. It measures pH from -2.000 to 20.000 with selectable 0.001/0.01 resolution and provides ORP measurement up to ±2000 mV.

3. Detailed Product Description

Product Overview

The LMPH15 pH Meter with Thermal Printer is designed for accurate laboratory measurement of pH and ORP, with integrated temperature measurement and compensation. Its large 7-inch TFT LCD provides a clear interface for measurement, calibration and data-management functions.

The instrument supports up to 5-point pH calibration with automatic recognition of USA, NIST, DIN and user-defined buffer sets. Automatic electrode diagnosis displays pH slope and zero offset, helping users assess electrode condition during calibration.

For ORP measurements, the LMPH15 provides absolute and relative millivolt modes and 1-point offset calibration. Additional features include Auto-Read endpoint detection, high/low limit alarms, calibration-due alarms, password protection and storage for up to 1000 data sets.

An integrated thermal printer allows measurement information and calibration reports to be printed directly from the instrument. The supplied catalogue also shows dedicated print formats for pH analysis and calibration reports.

Key Features & Benefits

  • pH range -2.000 to 20.000
  • Selectable pH resolution 0.001 or 0.01
  • pH accuracy ±0.002 pH
  • Up to 5-point pH calibration
  • USA, NIST, DIN and user-defined buffer options
  • Automatic electrode diagnosis
  • ORP range ±2000 mV
  • Relative and absolute mV modes
  • Automatic temperature compensation
  • Temperature measurement from 0–105°C
  • Auto-Read endpoint detection
  • High/low limit alarm
  • Calibration-due alarm
  • Password protection
  • Memory for 1000 data sets
  • Built-in real-time clock
  • 7-inch TFT LCD
  • Built-in thermal printer
  • RS-compatible data transfer through the specified interface configuration
  • pH electrode and ATC probe supplied
  • Electrode stand supplied

4. Technical Specifications

Specification LMPH15
Product Type pH Meter with Thermal Printer
Model LMPH15
Brand Labmart
pH Range -2.000 to 20.000 pH
pH Resolution 0.001 / 0.01 selectable
pH Accuracy ±0.002 pH
Calibration Points Up to 5 points
pH Buffer Options USA, NIST, DIN, User Define
ORP / mV Range ±2000 mV
ORP Accuracy ±0.2 mV
ORP Resolution 0.1 mV
Temperature Range 0–105°C / 32–221°F
Temperature Accuracy ±0.5°C / ±0.9°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Compensation 0–100°C, Manual / Automatic
Input Impedance <10¹² Ω
Stability Standard or High Accuracy
Calibration Due Alarm 1–31 days or Off
Password Protection Yes, 4 digits
Data Memory 1000 data sets
Connector BNC
Display 7-inch TFT LCD
Thermal Printer Built-in
Power DC Adaptor, AC 220V, 50/60Hz
Packing Dimensions 330 × 235 × 420 mm
Gross Weight 2 kg
HSN Code 90275090

5. Applications

The LMPH15 is suitable for:

  • pH measurement
  • ORP measurement
  • Laboratory water testing
  • Chemical solution analysis
  • Pharmaceutical laboratory testing
  • Food and beverage laboratory testing
  • Environmental laboratory analysis
  • Research and development
  • Quality-control laboratories
  • Academic laboratory work
  • Routine analytical measurements requiring printed records

6. Suitable For

The LMPH15 is suitable for:

  • Pharmaceutical laboratories
  • Chemical laboratories
  • Food and beverage laboratories
  • Water-testing laboratories
  • Environmental laboratories
  • Research laboratories
  • Quality-control departments
  • Colleges and universities
  • Testing laboratories
  • Industrial laboratories requiring printed measurement records

7. FAQs

1. What is the LMPH15 used for?

The LMPH15 is a benchtop laboratory meter for pH, ORP and temperature measurement, with an integrated thermal printer.

2. What is the pH measurement range?

The pH range is -2.000 to 20.000 pH.

3. What is the pH accuracy?

The specified accuracy is ±0.002 pH.

4. How many calibration points are available?

The LMPH15 supports up to 5-point pH calibration.

5. Which pH buffer standards are supported?

The instrument supports USA, NIST, DIN and user-defined buffer options.

6. What is the ORP range?

The ORP/mV range is ±2000 mV, with 0.1 mV resolution and ±0.2 mV accuracy.

7. Does the LMPH15 provide automatic temperature compensation?

Yes. Temperature compensation is available from 0–100°C, with manual or automatic operation.

8. Does the instrument have automatic electrode diagnosis?

Yes. The electrode diagnosis function displays pH slope and zero offset.

9. How much data can the LMPH15 store?

The internal memory stores up to 1000 data sets.

10. Does the LMPH15 print measurement results?

Yes. It has a built-in thermal printer for printing measurement and calibration information.

11. Does the LMPH15 have a calibration reminder?

Yes. The calibration-due alarm can be configured from 1 to 31 days or switched off.

12. What accessories are supplied?

The standard accessories include the main instrument, pH electrode, pH buffer solutions, ATC probe, electrode stand, printer, printer adaptor, instruction manual and test certificate.
