Product Description

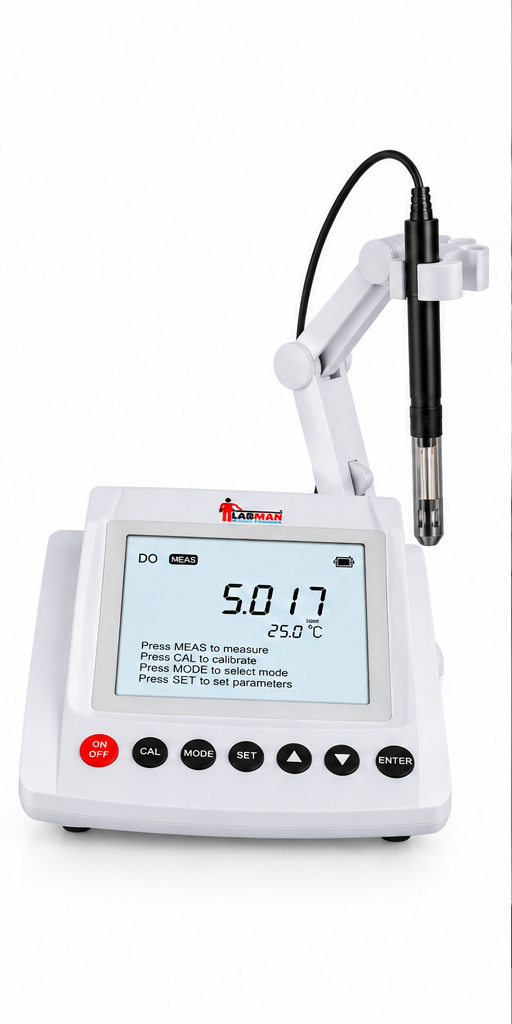

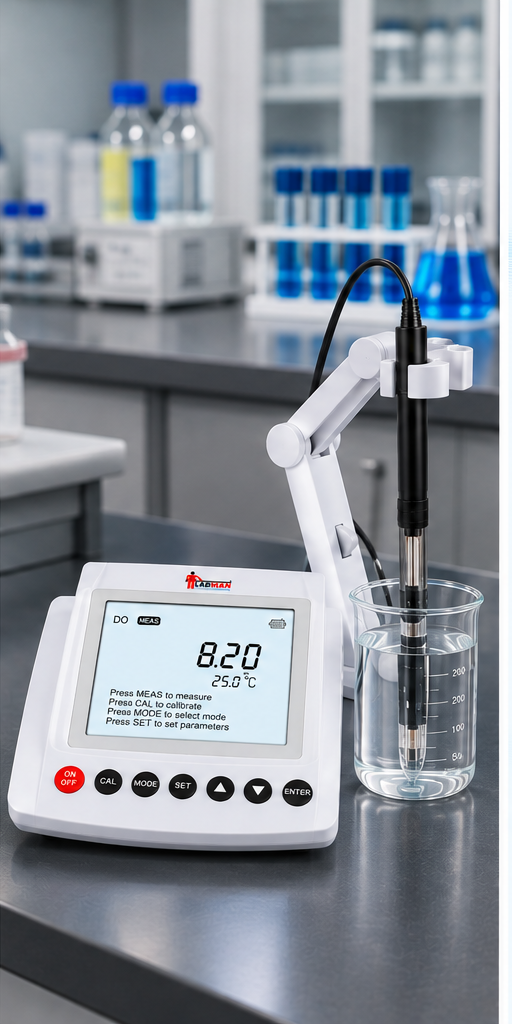

The LABMAN LMDO50 is a professional bench top dissolved oxygen meter for laboratory applications. It uses a polarographic sensor to measure dissolved oxygen concentration or % saturation in water, with 1 or 2 point auto-calibration, automatic temperature compensation and salinity and barometric pressure correction.

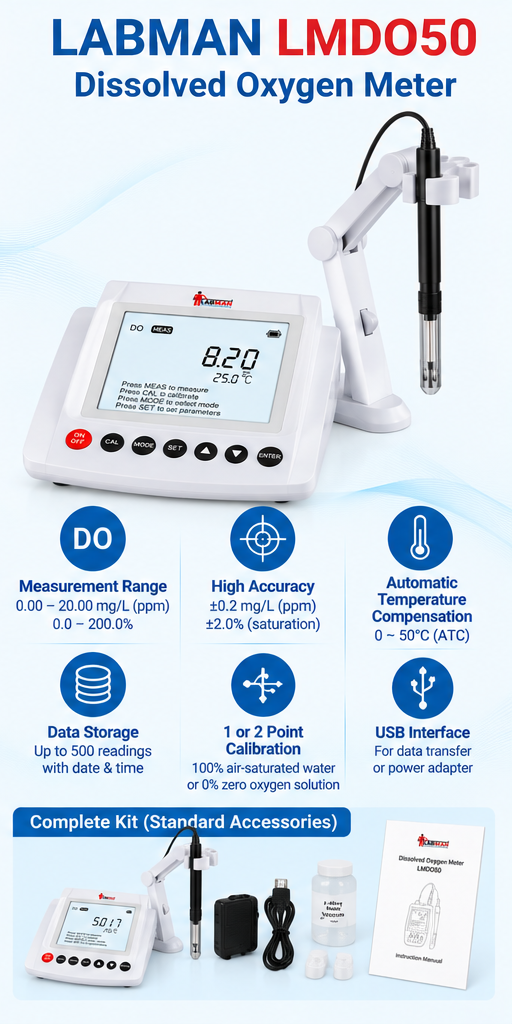

Key features

  • 1 or 2 point auto-calibration (100% in saturated air or air-saturated water, 0% in zero oxygen solution)
  • Selectable readout in ppm, mg/L or % saturation
  • Automatic temperature compensation; salinity and barometric pressure correction
  • Automatic endpoint function freezes the stable value
  • Memory stores and recalls up to 500 readings with real-time clock stamps (GLP)
  • Calibration due reminder; help messages; reset to factory defaults
  • Selectable °C / °F

Technical specifications

Parameter Specification
Model LMDO50
Make LABMAN
Dissolved oxygen range 0.00–20.00 mg/L or ppm
Resolution 0.1, 0.01 ppm (selectable)
Dissolved oxygen accuracy ±0.2 mg/L or ppm
Saturation of oxygen 0.0–200.0%
Saturation resolution 0.1 / 1% (selectable)
Saturation accuracy ±2.0%
Temperature range 0.0–50.0°C
Temperature accuracy ±0.5°C
Temperature compensation 0–50°C, automatic
Salinity correction 0–50 g/L
Barometric pressure correction 60.0–112.5 kPa, 450–850 mmHg
Calibration points 1 or 2 points (100% in air or 0% in zero oxygen solution)
Memory 500 data sets with date & time
Display LCD
Hold function Available
Interface USB
Connector 6-pin mini-DIN
Power supply DC adaptor, using AC 220 V, 50/60 Hz
Packing dimension (L×W×H) 310 × 250 × 190 mm
Gross weight 2 kg
HSN code 90275090

Supplied with

Main instrument, DO probe, probe membrane cap, USB adaptor, electrode stand, electrolyte solution, instruction manual, test certificate.

Frequently asked questions

What does the LMDO50 measure?

Dissolved oxygen concentration (0.00–20.00 mg/L or ppm) and % saturation (0–200%) in water, using a polarographic sensor.

How is it calibrated?

1 or 2 point auto-calibration: 100% in saturated air or air-saturated water, and 0% in a zero oxygen solution.

Does it compensate for temperature, salinity and pressure?

Yes. It has automatic temperature compensation (0–50°C), salinity correction (0–50 g/L) and barometric pressure correction after manual input.

Can it store and export data?

It stores up to 500 readings with date and time and has a USB interface.

Which units can I read in?

ppm, mg/L or % saturation, with temperature in °C or °F.

What power supply does it need?

DC adaptor, using AC 220 V, 50/60 Hz.

What is supplied with it?

Main instrument, DO probe, probe membrane cap, USB adaptor, electrode stand, electrolyte solution, instruction manual, test certificate.

What are the packing size and weight?

310 × 250 × 190 mm (L×W×H as per catalogue), gross weight 2 kg.

Can I get a GST invoice and a bulk or institutional quotation?

Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.

What is the warranty and delivery time?

LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
