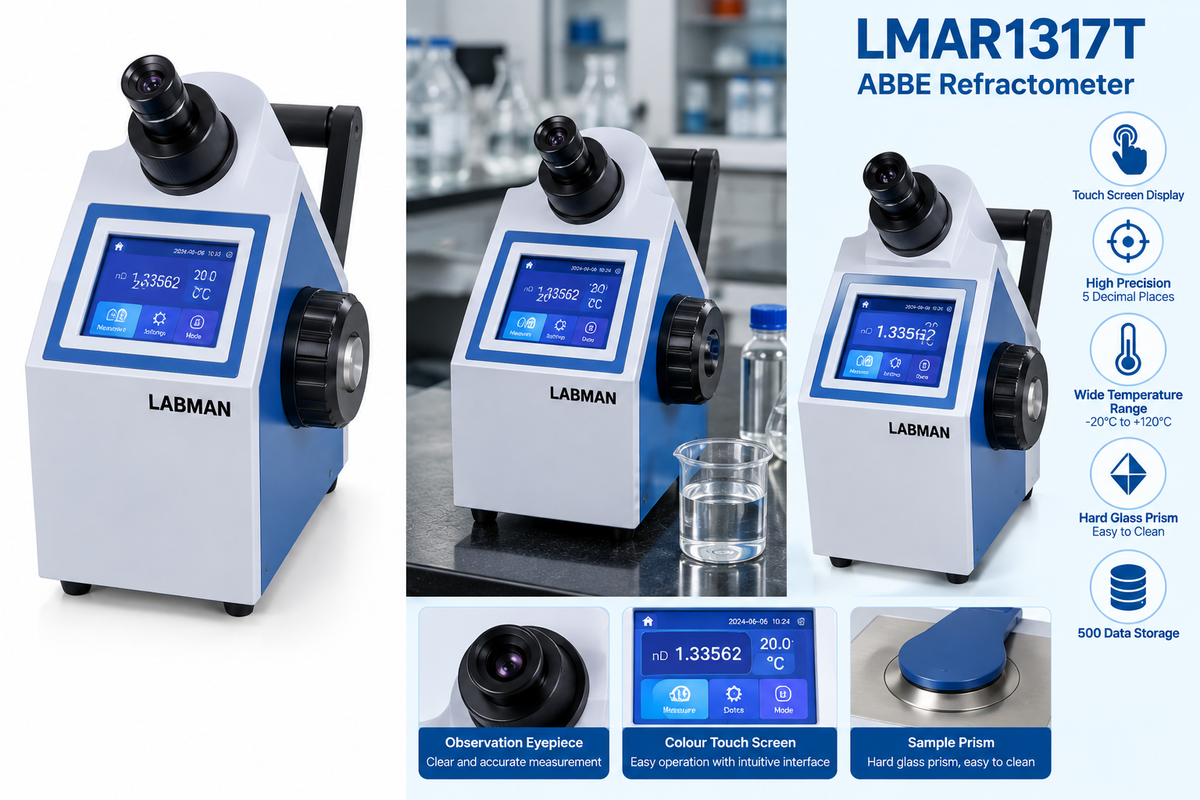

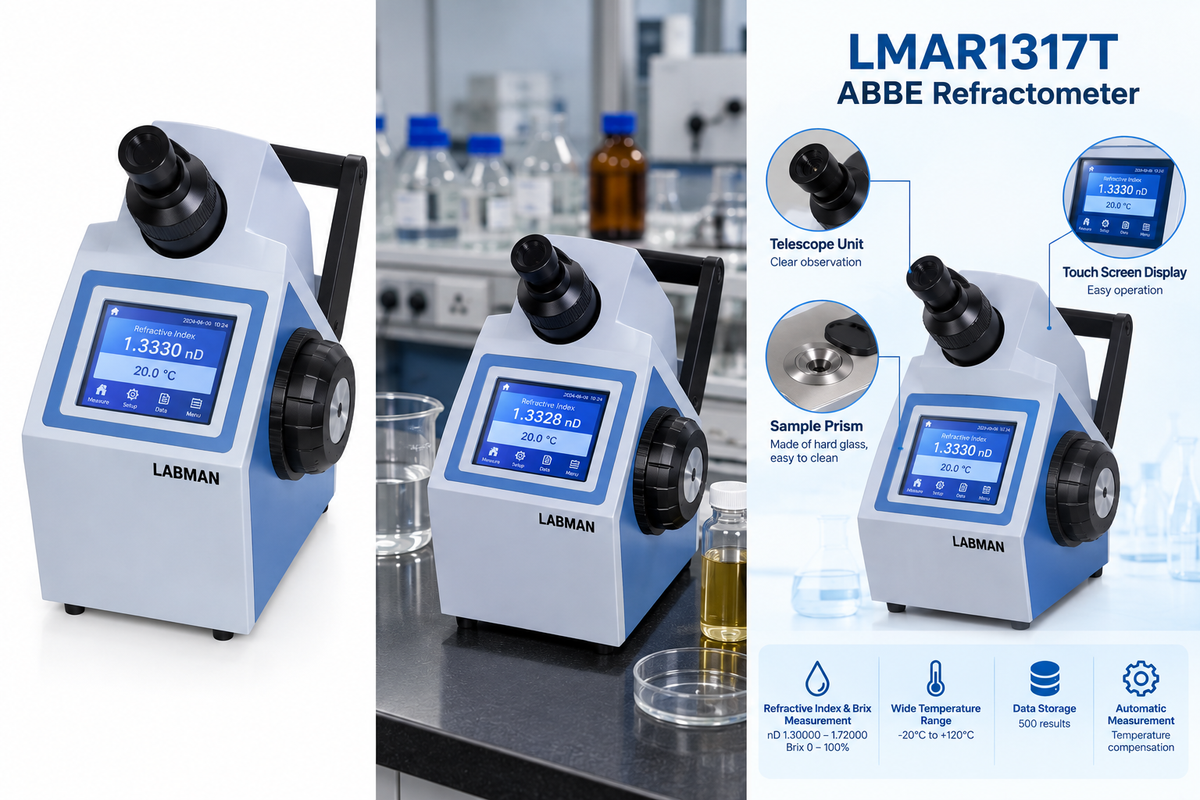

The Labmart LMAR1317T Touchscreen Abbe Refractometer is a fully automatic refractometer for measuring the refractive index of transparent, translucent liquids and solid substances, as well as Brix of sugar solutions. It features a 1.30000–1.72000 nD range, 0.00001 resolution, -20°C to +120°C temperature range, 500-data memory, 589 nm LED illumination and touchscreen operation.

3. Detailed Product Description

Product Overview

The LMAR1317T Touchscreen Abbe Refractometer is a laboratory instrument designed for measurement of refractive index (nD) and Brix (BX). The instrument can measure the refractive index of transparent or translucent liquid and solid substances and can determine the Brix value of sugar solutions.

The system provides automatic correction of the temperature effect on Brix and can display the temperature of the sample. A touchscreen interface provides access to measurement functions, while the instrument uses a 589 nm LED light source and a hard-glass prism.

The LMAR1317T provides a refractive-index range of 1.30000–1.72000 nD with 0.00001 resolution and stores up to 500 data sets. Sample temperature can additionally be controlled using an optional refrigerated circulating bath.

Key Features & Benefits

• Fully automatic measuring system
• Touchscreen colour display
• Refractive-index range of 1.30000–1.72000 nD
• 0.00001 nD measuring resolution
• ±0.00002 nD refractive-index accuracy
• 0–100% Brix range
• ±0.1% Brix accuracy
• 0.01% Brix resolution
• Automatic temperature correction for Brix
• -20°C to +120°C temperature range
• 0.1°C temperature resolution
• Hard-glass prism
• 589 nm LED light source
• 500 data-set memory
• RS232C / USB interface
• Colour touchscreen
• Optional refrigerated circulating bath for sample-temperature control
• IP20 protection grade

4. Technical Specifications

The specification table in the supplied product catalogue gives the above model-specific values, including the 1.30000–1.72000 nD range, 0–100% Brix range, 0.00001 resolution, -20°C to +120°C temperature range, 500-data memory, IP20 protection and 30W input power.

5. Applications

The LMAR1317T can be used for:

• Refractive-index measurement
• Brix measurement of sugar solutions
• Pharmaceutical laboratory analysis
• Chemical laboratory analysis
• Petroleum laboratory applications
• Sugar-refining applications
• Food and beverage analysis
• Research and development
• Quality-control testing
• Academic laboratory applications

6. Suitable For

The LMAR1317T is suitable for:

• Pharmaceutical laboratories
• Chemical laboratories
• Food and beverage laboratories
• Sugar-processing and refining laboratories
• Petroleum laboratories
• Quality-control departments
• R&D laboratories
• Colleges and universities
• Scientific research institutions

7. FAQs

1. What is the LMAR1317T used for?

It is used to measure refractive index of transparent, translucent liquids and solid substances, as well as Brix of sugar solutions.

2. What is the refractive-index measurement range?

The range is 1.30000–1.72000 nD.

3. What is the refractive-index resolution?

The measuring resolution is 0.00001 nD.

4. What is the refractive-index accuracy?

The specified accuracy is ±0.00002 nD.

5. Can the LMAR1317T measure Brix?

Yes. It provides a 0–100% Brix measurement range.

6. Does it automatically correct Brix for temperature?

Yes. The instrument automatically corrects the effect of temperature on the Brix measurement.

7. What is the temperature range?

The specified temperature range is -20°C to +120°C.

8. Can the sample temperature be externally controlled?

Yes. The catalogue specifies that sample temperature can be controlled using an optional refrigerated circulating bath.

9. How much data can be stored?

The instrument stores up to 500 data sets.

10. What type of prism does the instrument use?

The LMAR1317T uses a hard-glass prism.

11. What light source does it use?

It uses an LED light source at 589 nm.

12. What interfaces are available?

The instrument provides RS232C and USB interfaces.
