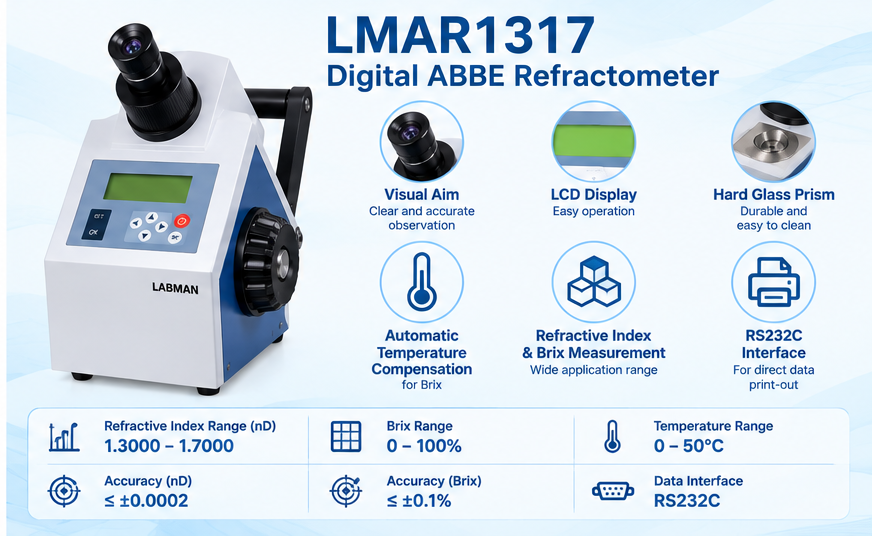

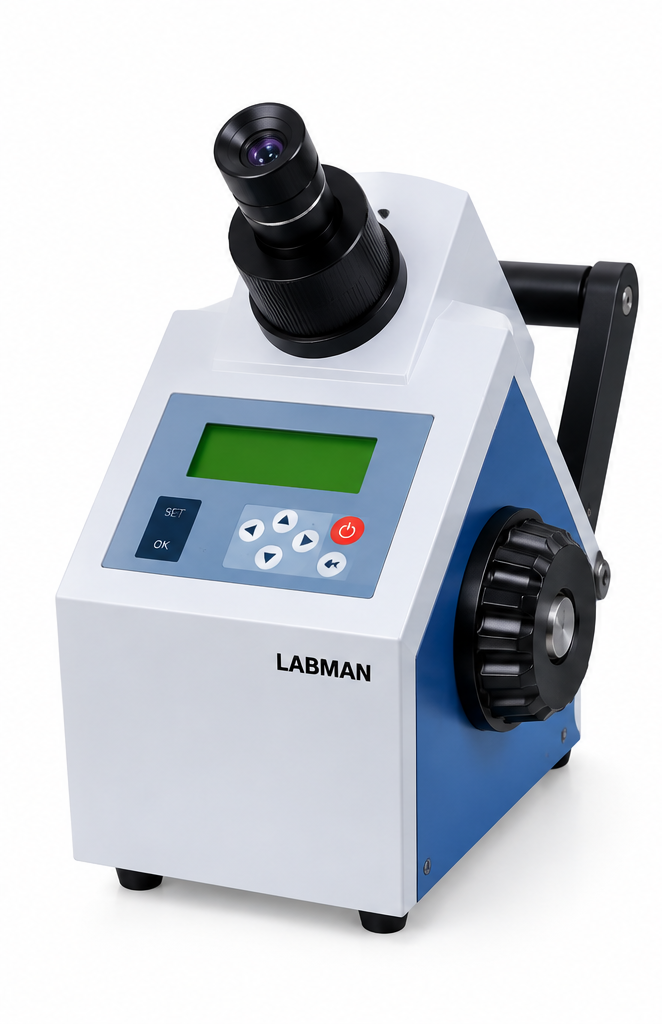

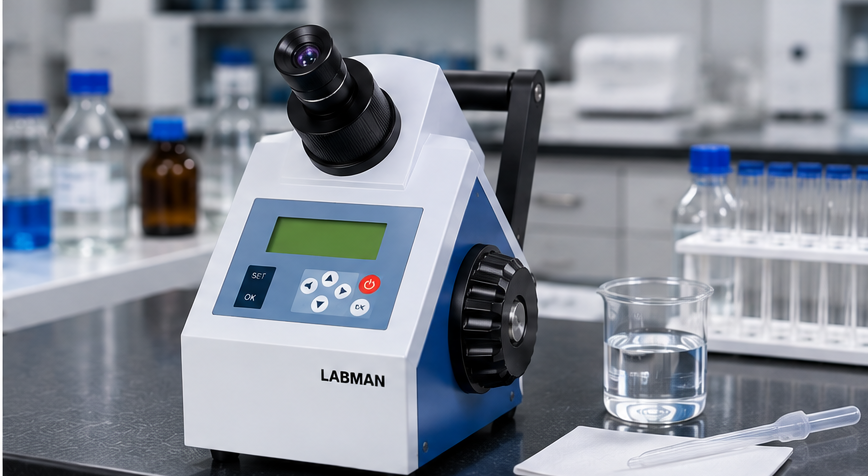

The Labmart LMAR1317 Digital Abbe Refractometer is designed for measuring the refractive index of transparent and translucent liquids and solid substances, as well as Brix of sugar solutions. It features a 1.3000–1.7000 nD measurement range, 0–100% Brix range, 0.1°C temperature resolution, automatic Brix temperature correction, LCD display and RS232C interface.

3. Detailed Product Description

Product Overview

The LMAR1317 Digital Abbe Refractometer is a laboratory instrument for measuring the refractive index (nD) of transparent or translucent liquids and solid substances. It can also determine the Brix value of sugar solutions, with automatic correction for the effect of temperature on the Brix result.

The instrument uses a hard-glass prism, visual aiming system and LCD display. It provides a refractive-index range of 1.3000–1.7000, a Brix range of 0–100%, and a temperature resolution of 0.1°C.

The instrument also includes an RS232C interface and printer interface capability for direct data print-out. Sample temperature can optionally be controlled using a refrigerated circulating bath.

Key Features & Benefits

• Digital Abbe refractometer design
• Refractive-index measurement range of 1.3000–1.7000 nD
• 0–100% Brix measurement
• 0.0002 nD or better specified accuracy
• 0.1°C temperature resolution
• Automatic correction of temperature effects on Brix
• Measurement of transparent and translucent liquids
• Measurement of suitable solid substances
• Hard-glass prism
• Visual aiming system
• LCD display
• Printer interface for direct data print-out
• RS232C communication interface
• Optional refrigerated circulating bath for sample-temperature control
• Compact laboratory benchtop format

4. Technical Specifications

5. Applications

The LMAR1317 can be used for:

• Refractive-index measurement
• Brix measurement of sugar solutions
• Pharmaceutical laboratory analysis
• Chemical laboratory analysis
• Petroleum-related laboratory applications
• Sugar and sugar-refining applications
• Food industry testing
• Quality-control laboratories
• Research laboratories
• College and university laboratories
• Scientific research institutions

6. Suitable For

The LMAR1317 is suitable for:

• Pharmaceutical laboratories
• Chemical laboratories
• Food and beverage laboratories
• Sugar-processing laboratories
• Sugar-refining laboratories
• Petroleum laboratories
• Quality-control departments
• R&D laboratories
• Universities and colleges
• Scientific research institutions

7. FAQs

1. What is the LMAR1317 used for?

The LMAR1317 is used to measure the refractive index of transparent/translucent liquids and suitable solid substances, as well as the Brix of sugar solutions.

2. What is the refractive-index range?

The measurement range is 1.3000–1.7000 nD.

3. What is the Brix measurement range?

The instrument measures 0–100% Brix.

4. What is the refractive-index accuracy?

The specified accuracy is ≤ ±0.0002 nD.

5. What is the Brix accuracy?

The specified Brix accuracy is ≤ ±0.1%.

6. Does the LMAR1317 automatically correct Brix for temperature?

Yes. The instrument provides automatic correction of the effect of temperature on Brix.

7. What is the temperature range?

The specified temperature range is 0–50°C.

8. What is the temperature resolution?

The temperature resolution is 0.1°C.

9. Can the sample temperature be externally controlled?

Yes. A refrigerated circulating bath is available as an optional accessory for sample-temperature control.

10. Does the instrument have a printer interface?

Yes. The specifications identify a printer interface for direct data print-out.

11. What communication interface is available?

The instrument provides an RS232C interface.

12. What prism does the LMAR1317 use?

The refractometer uses a hard-glass prism.
