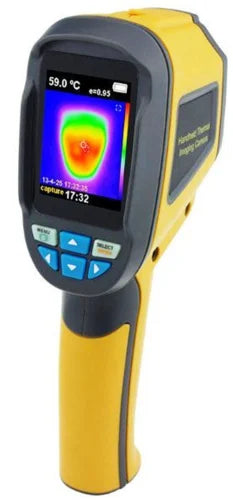

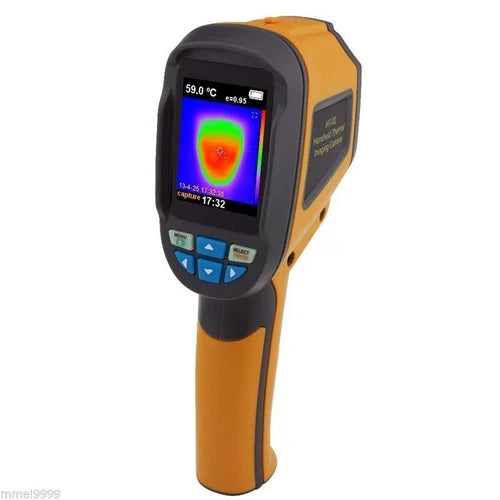

The Labmart HT-02 Thermal Imaging Camera is a handheld infrared thermal imager designed for rapid surface-temperature measurement and thermal inspection. With 60 × 60 infrared resolution, -20°C to 300°C measurement range, adjustable emissivity and visible/infrared image blending, it is suitable for electrical, HVAC, maintenance, building and industrial inspection applications.

Product Overview

The Labmart HT-02 combines infrared thermal imaging with visible-light imaging to help users identify abnormal temperature areas quickly. Instead of checking individual components one at a time, the thermal image provides a visual representation of temperature distribution across the target surface.

The camera provides a 60 × 60 infrared image resolution, a 2.4-inch colour display and a temperature measurement range of -20°C to 300°C. Adjustable emissivity allows the instrument to be configured for different surface materials, while multiple colour palettes help users interpret thermal patterns.

The HT-02 is particularly useful for preventive maintenance, electrical inspection, HVAC troubleshooting, equipment inspection and general thermal analysis.

Key Features and Benefits

  • 60 × 60 IR Resolution: Provides 3,600 infrared pixels for thermal visualization.
  • -20°C to 300°C Measurement Range: Covers a broad range of routine industrial and maintenance temperature inspections.
  • Adjustable Emissivity: Adjustable from 0.1 to 1.0 to accommodate different surface characteristics.
  • Visible + Infrared Imaging: Helps correlate thermal patterns with the physical appearance of the target.
  • 2.4-inch Colour Display: Provides convenient real-time viewing of thermal information.
  • 6 Hz Image Frequency: Supports responsive thermal-image viewing.
  • Multiple Colour Palettes: Allows thermal patterns to be viewed using different visual representations.
  • Image Storage: Supports saving thermal images to a memory card for later review and documentation.
  • Fixed Focus: Simplifies operation for routine inspection work.

4. Technical Specifications

Specification Details
Product Type Handheld Thermal Imaging Camera
Model HT-02
Brand Labmart
Infrared Image Resolution 60 × 60 pixels
Total IR Pixels 3,600
Visible Image Resolution 0.3 megapixels
Display 2.4-inch colour display
Field of View 20° × 20°
Shortest Focal Length 0.5 m
Thermal Sensitivity 0.15°C
Temperature Measurement Range -20°C to 300°C
Measurement Accuracy ±2% or ±2°C
Spectral/Wavelength Range 8–14 μm
Emissivity 0.1–1.0, adjustable
Image Frequency 6 Hz
Focus Mode Fixed
Colour Palettes Iron red, rainbow, rainbow high contrast, grayscale/black & white options
Image Storage 4 GB SD card
Image Format BMP
Image Modes Infrared, visible and mixed/combined imaging
Temperature Display °C / °F selectable

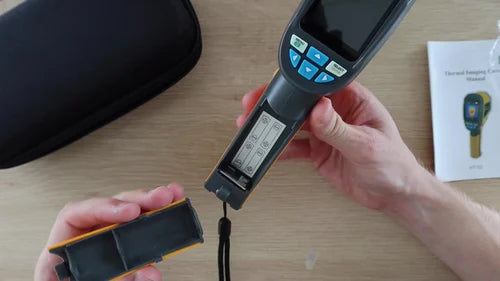

Battery 4 × AA batteries
Operating Temperature 5°C to 40°C
Storage Temperature -20°C to 50°C
Relative Humidity 10% RH to 80% RH
Dimensions 230 × 80 × 52 mm
Weight Approx. 320 g

5. Applications

  • Electrical panel inspection
  • Electrical equipment maintenance
  • Transformer and power equipment inspection
  • HVAC troubleshooting
  • Air-conditioning system inspection
  • Motor and machinery inspection
  • Building thermal inspection
  • Heating-system inspection
  • Preventive maintenance
  • Industrial equipment diagnostics
  • Automotive inspection
  • Electronic equipment inspection
  • Thermal leakage detection
  • Research and educational applications

6. Suitable For

  • Electrical maintenance teams
  • HVAC technicians
  • Industrial maintenance engineers
  • Facility-management teams
  • Manufacturing plants
  • Electrical laboratories
  • Quality-control departments
  • Automotive service professionals
  • Building inspection professionals
  • R&D laboratories
  • Technical training institutions
  • Field service engineers

7. Product Benefits

  • Quickly identifies abnormal temperature zones.
  • Reduces the need for point-by-point temperature inspection.
  • Combines thermal and visible images for easier interpretation.
  • Suitable for both routine maintenance and troubleshooting.
  • Adjustable emissivity improves suitability across different surface materials.
  • Multiple thermal palettes help highlight temperature variations.
  • Stored images can support inspection records and reporting.
  • Portable handheld format is convenient for field work.
  • Broad temperature range covers many electrical, mechanical and HVAC applications.
