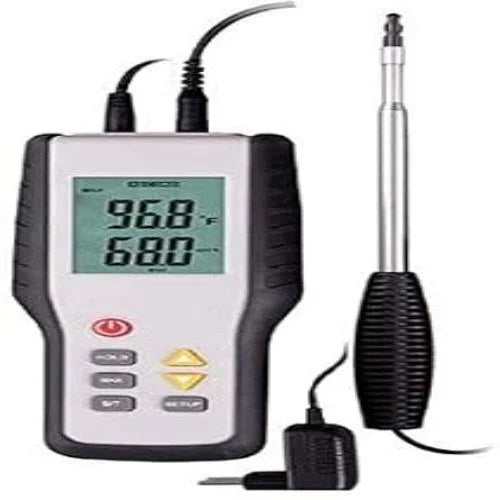

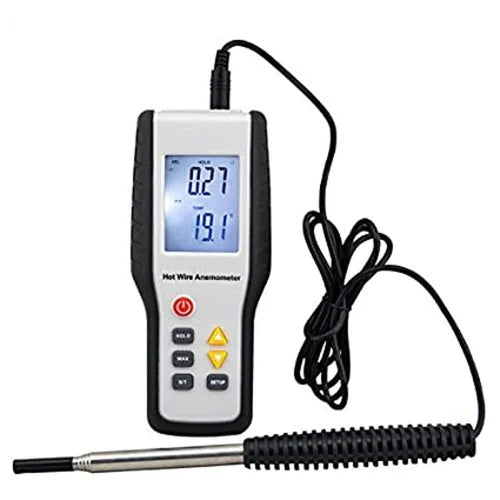

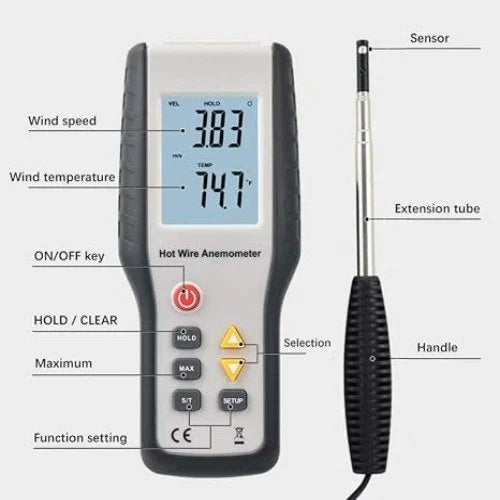

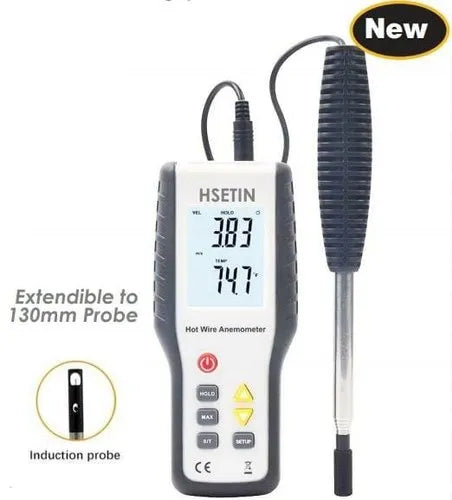

The Labmart HT-9829 Hot Wire Anemometer is a digital thermal anemometer designed for accurate measurement of low air velocities, air flow and air temperature. It features a slim probe suitable for grilles, diffusers, ducts and confined air passages, with multiple selectable air-velocity units, CFM/CMM airflow measurement, backlit LCD display and MAX/MIN memory functions.
Product Overview
The HT-9829 Hot Wire Anemometer is a portable air velocity measurement instrument using hot-wire thermal sensing technology for applications where reliable measurement of relatively low air movement is required.
Its slim probe makes it suitable for checking airflow through HVAC ducts, grilles, diffusers, clean rooms, flow hoods and ventilation systems. The instrument can display air velocity in multiple units and can also calculate volumetric airflow in CFM and CMM when the relevant duct or opening area is entered.
The built-in thermistor provides simultaneous air-temperature measurement, while the large backlit LCD enables convenient viewing during field and laboratory measurements.
Key Features & Benefits
- Hot-wire thermal anemometer for low air-velocity measurement
- Air velocity measurement from 0.10 to 25.00 m/s
- Measures air velocity in m/s, km/h, ft/min, MPH and knots
- CFM and CMM airflow measurement
- Built-in air-temperature measurement
- Slim probe suitable for grilles, diffusers and HVAC ducts
- Large backlit LCD display
- Displays air velocity and temperature
- MAX/MIN recording and recall
- Data Hold function
- Combination of hot-wire sensing and thermistor temperature measurement
- Microprocessor-controlled measurement
- Portable handheld design
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Hot Wire Anemometer |
| Model | HT-9829 |
| Measurement Principle | Hot-wire thermal sensing |
| Air Velocity Range – m/s | 0.10–25.00 m/s |
| Resolution – m/s | 0.01 m/s |
| Accuracy – m/s | ±(3% + 0.20 m/s) |
| Air Velocity Range – km/h | 0.3–90.0 km/h |
| Resolution – km/h | 0.1 km/h |
| Accuracy – km/h | ±(3% + 0.8 km/h) |
| Air Velocity Range – ft/min | 20–4926 ft/min |
| Resolution – ft/min | 1 ft/min |
| Accuracy – ft/min | ±(3% + 40 ft/min) |
| Air Velocity Range – MPH | 0.2–55.8 MPH |
| Resolution – MPH | 0.1 MPH |
| Accuracy – MPH | ±(3% + 0.4 MPH) |
| Air Velocity Range – Knots | 0.2–48.5 knots |
| Resolution – Knots | 0.1 knots |
| Accuracy – Knots | ±(3% + 0.4 knots) |
| Airflow – CMM | 0–9999 m³/min |
| CMM Resolution | 1 |
| CMM Area Setting | 0–9.999 m² |
| Airflow – CFM | 0–9999 ft³/min |
| CFM Resolution | 1 |
| CFM Area Setting | 0–9.999 ft² |
| Air Temperature Range | 0–50°C / 32–122°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±2.0°C / ±4.0°F |
| Temperature Sensor | Thermistor |
| Display | Large LCD with backlight |
| Functions | MAX/MIN, Recall, Data Hold |
| Probe | Slim hot-wire probe |
| Power Supply | 9V battery |
| Operating Temperature | 0–50°C |
| Operating Humidity | <80% RH |
| Dimensions | 198 × 85 × 45 mm |
| Weight | 390 g |
| Accessories | Battery, manual, black box and gift box |
5. Applications
The HT-9829 is suitable for:
- HVAC airflow measurement
- Air-conditioning system testing
- Ventilation system inspection
- Air duct velocity measurement
- Air balancing
- Clean room airflow checking
- Flow hood testing
- Laboratory airflow measurements
- Environmental testing
- Air conveyors
- Fans, motors and blowers
- Furnace airflow/velocity measurement
- Refrigerated display cases
- Paint spray booths
- Industrial ventilation
- General air-velocity assessment
6. Suitable For
- HVAC engineers and technicians
- Laboratory technicians
- Clean room maintenance teams
- Facility management teams
- Industrial maintenance departments
- Environmental testing laboratories
- Ventilation contractors
- Air-conditioning service professionals
- Manufacturing plants
- Research and engineering facilities
- Quality-control departments
7. Product Benefits
- Sensitive low-velocity measurement: Hot-wire technology is suitable for measuring relatively low air movement.
- Multi-unit operation: Select from five commonly used air-velocity units.
- Airflow calculation: Supports CFM and CMM measurements based on entered area.
- Temperature measurement: Allows air velocity and air temperature to be monitored with the same instrument.
- Slim probe design: Useful for ducts, grilles, diffusers and restricted measurement locations.
- Easy-to-read display: Large backlit LCD supports measurements in low-light environments.
- MAX/MIN memory: Helps capture measurement extremes during testing.
- Portable construction: Suitable for field, maintenance and laboratory work.
- Data Hold: Helps retain readings for convenient recording.
