2. Short Product Description

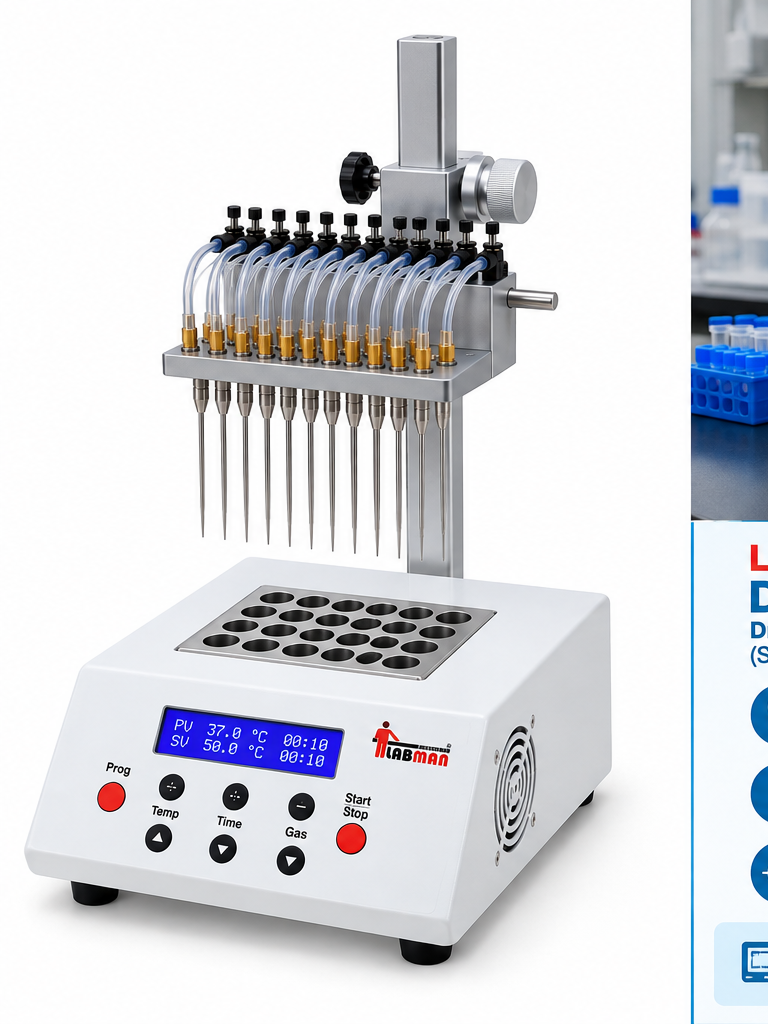

The Labmart DBNE24 Dry Bath Nitrogen Evaporator is a microcomputer-controlled nitrogen sample concentrator designed for controlled solvent evaporation and concentration of multiple samples. It combines an aluminium dry bath with controlled nitrogen gas delivery to provide rapid and controllable evaporation at temperatures up to 150°C.

The DBNE24 provides 24 × 16.5 mm sample positions, 600 W heating power, PID temperature control, LCD display and 5-point multipoint operation. It is suitable for controlled sample concentration applications in pharmaceutical, biotechnology and environmental analysis laboratories. DBNE12

3. Detailed Product Description

Product Overview

The Labmart DBNE24 Dry Bath Nitrogen Evaporator is a laboratory sample concentrator that uses nitrogen gas blown onto heated sample surfaces to assist controlled solvent evaporation.

The DBNE24 is designed for higher-throughput sample processing, providing 24 sample positions with 16.5 mm diameter openings. Its 600 W heating system works with an aluminium block bath designed for even heat conductivity and rapid temperature control. DBNE12

The instrument uses a microcomputer-controlled processing unit with PID control, providing a temperature range of R.T. +5°C to 150°C, 0.1°C display resolution and temperature-control accuracy of ≤±0.5°C.

Nitrogen is delivered through the gas distribution assembly and needle system. The catalogue specifies a maximum gas pressure of 0.12 MPa for the DBNE24. DBNE12

4. Key Features & Benefits

• 24 Sample Positions – Designed for simultaneous processing of 24 samples.
• 16.5 mm Sample Positions – Standard sample-position diameter.
• 600 W Heating Power – Higher heating capacity for the 24-position configuration.
• Nitrogen-Assisted Evaporation – Nitrogen is blown onto heated sample surfaces to assist solvent evaporation.
• Temperature Range up to 150°C – Operates from R.T. +5°C to 150°C.
• PID Temperature Control – Supports controlled and precise heating.
• Microcomputer Control – Automated processing control.
• 5-Point Multipoint Operation – Supports programmed multipoint operation.
• LCD Display – Digital monitoring of operating parameters.
• 0.1°C Display Resolution – Fine temperature indication.
• ≤±0.5°C Temperature-Control Accuracy – Provides controlled heating conditions.
• Aluminium Block Bath – Designed for even heat conductivity and temperature control.
• Independent Glass Pipettes – Designed to help avoid cross-contamination.
• Gas Distribution Assembly – Needle channels can be used in combined or separate configurations.
• 285 mm Maximum Lifting Stroke – Allows adjustment of the sample/needle assembly.
• Optional Nitrogen Flow Meter – Available separately for nitrogen-flow monitoring.
• 24-Sample Higher Throughput – Provides twice the sample-position count of the DBNE12 model. DBNE12

5. Technical Specifications

The above model-specific specifications are provided in the DBNE12/DBNE24 technical table in the supplied catalogue. DBNE12

6. How the DBNE24 Works

The DBNE24 uses nitrogen-assisted dry-bath evaporation.

Operating Principle

Load Samples → Set Temperature → Position Nitrogen Needles → Start Nitrogen Flow → Heat Samples → Controlled Solvent Evaporation → Sample Concentration

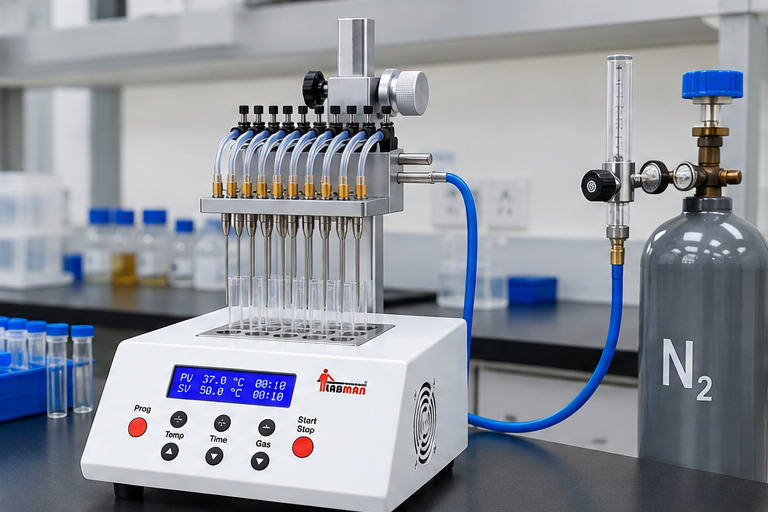

Nitrogen is blown onto the surface of heated samples in a fast, consecutive and controllable manner. The aluminium block provides heating and temperature control while nitrogen assists evaporation.

The catalogue describes nitrogen blowing as achieving oxygen-free concentration, making the system suitable for controlled sample concentration workflows. DBNE12

7. Applications

The supplied catalogue describes the Dry Bath Nitrogen Evaporator as suitable for:

• Pharmaceutical applications
• Biotechnology
• Environmental analysis
• Sample concentration
• Controlled solvent evaporation
• Heat-sensitive sample processing

The product is specifically described as a laboratory instrument that uses nitrogen gas to gently evaporate solvents and concentrate samples at controlled temperatures. DBNE12

8. Suitable For

• Pharmaceutical laboratories
• Biotechnology laboratories
• Environmental analysis laboratories
• Analytical laboratories
• Research laboratories
• Sample preparation laboratories
• Laboratories requiring multi-sample solvent evaporation
• Laboratories requiring nitrogen-assisted concentration
• Higher-throughput sample concentration workflows

9. FAQs

1. What is the Labmart DBNE24?

The DBNE24 is a Dry Bath Nitrogen Evaporator and sample concentrator designed for controlled solvent evaporation and sample concentration.

2. How many samples can the DBNE24 process?

It provides 24 sample positions.

3. What is the sample-position size?

The specification is 24 × 16.5 mm.

4. What is the temperature range?

The temperature range is R.T. +5°C to 150°C.

5. What is the heating power?

The DBNE24 has 600 W heating power.

6. What is the temperature-control accuracy?

The specified accuracy is ≤±0.5°C.

7. What is the temperature resolution?

The display resolution is 0.1°C.

8. Does the DBNE24 use nitrogen gas?

Yes. Nitrogen is blown onto the heated sample surface to assist controlled solvent evaporation.

9. What is the maximum gas pressure?

The specified maximum gas pressure is 0.12 MPa.

10. What is the gas flow rate?

The specified gas flow rate is <15 L/min.

11. Does the DBNE24 support multipoint operation?

Yes. It supports 5-point multipoint operation.

12. Does it have PID control?

Yes. It uses a microcomputer-controlled processing unit with PID control.

13. Does it have an LCD display?

Yes. The DBNE24 has an LCD display.

14. What is the maximum lifting stroke?

The maximum lifting stroke is 285 mm.

15. What is the gas needle length?

The specified gas needle length is 150 mm for the stated module configuration.

16. Is a nitrogen flow meter included?

No. The Nitrogen Flow Meter is an optional accessory.

17. What is the power supply?

The specified power supply is 220 V.

18. What is the gross weight?

The specified gross weight is 9 kg.

19. What applications is the DBNE24 suitable for?

The catalogue identifies pharmaceuticals, biotechnology and environmental analysis, along with controlled sample concentration and solvent evaporation. DBNE12
