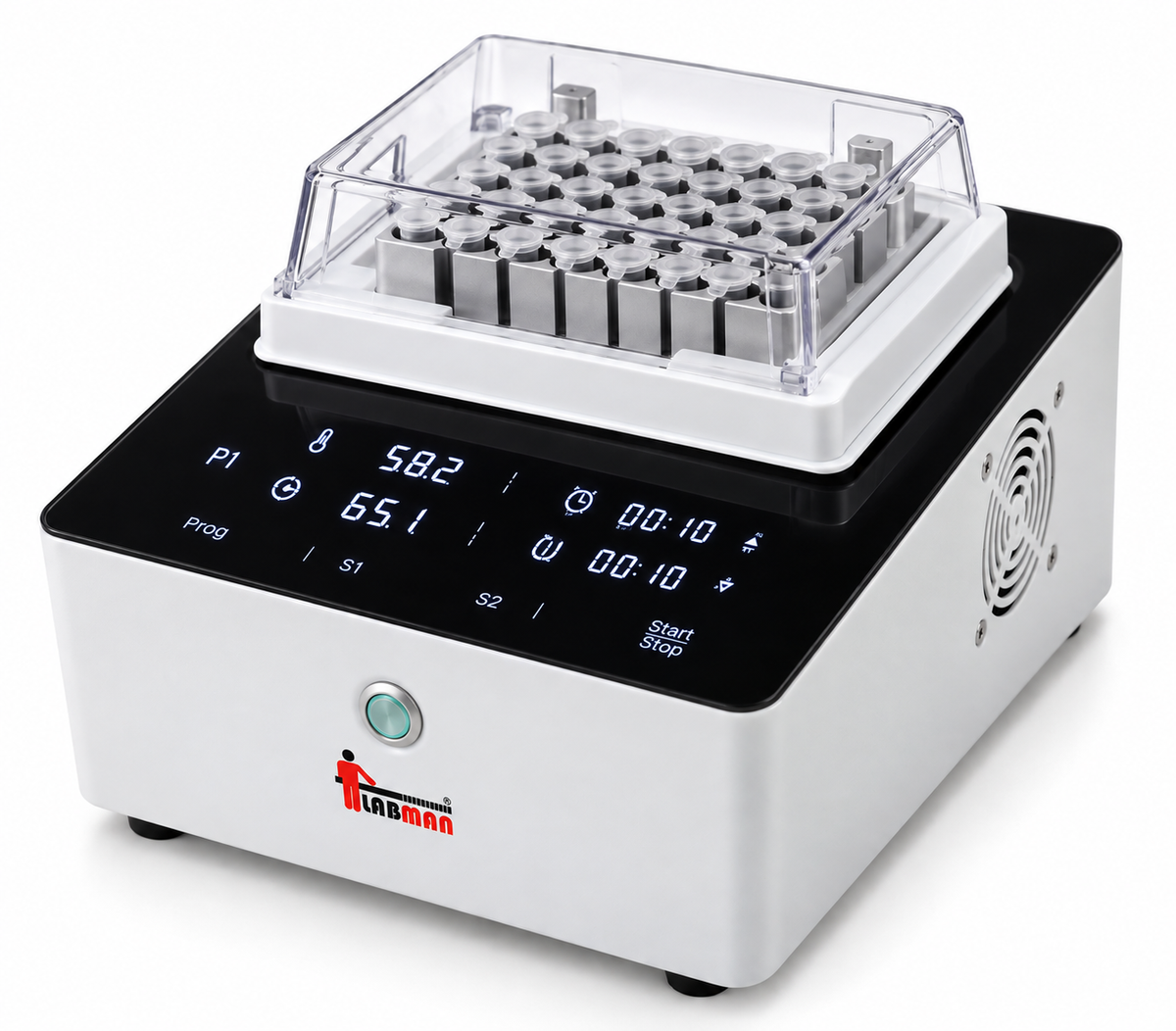

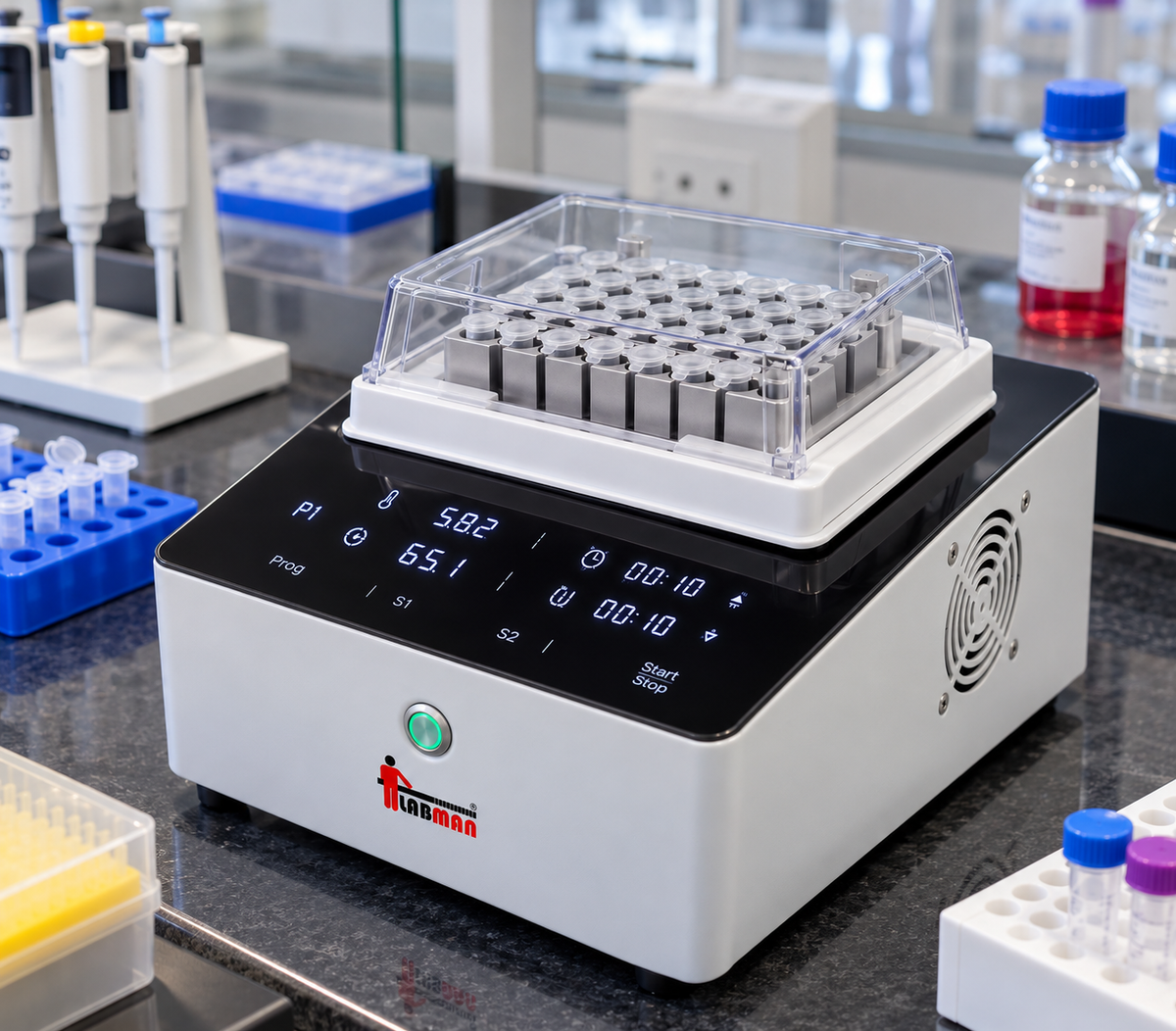

The Labmart DBI16SC Dry Bath Incubator is a versatile laboratory dry bath combining stirring, heating and cooling in a single instrument. It features microprocessor technology, a holographic projection display, 9-stage programmable multipoint cycle operation, timing and alarm functions, and built-in over-temperature protection.

The DBI16SC provides a 200–1500 RPM stirring range, heating from room temperature +5°C to 100°C, and cooling from room temperature to -16°C. The standard block accommodates 35 × 2 mL tubes, while optional interchangeable blocks support multiple tube sizes. DBI15SH

3. Detailed Product Description

Product Overview

The DBI16SC Dry Bath Incubator is designed for automated laboratory processes requiring controlled sample mixing, heating and cooling.

Unlike a heating-only dry bath, the DBI16SC combines three functions:

Stirring + Heating + Cooling

This allows users to control sample temperature and mixing within the same instrument.

The specified stirring range is 200–1500 RPM, with a heating range of R.T. +5°C to 100°C and a cooling range of room temperature to -16°C. The catalogue specifies a 10–15 minute cooling time. DBI15SH

The DBI16SC uses a 35-hole × 2 mL standard block, with optional interchangeable blocks available for tube formats from 0.2 mL through 50 mL. DBI15SH

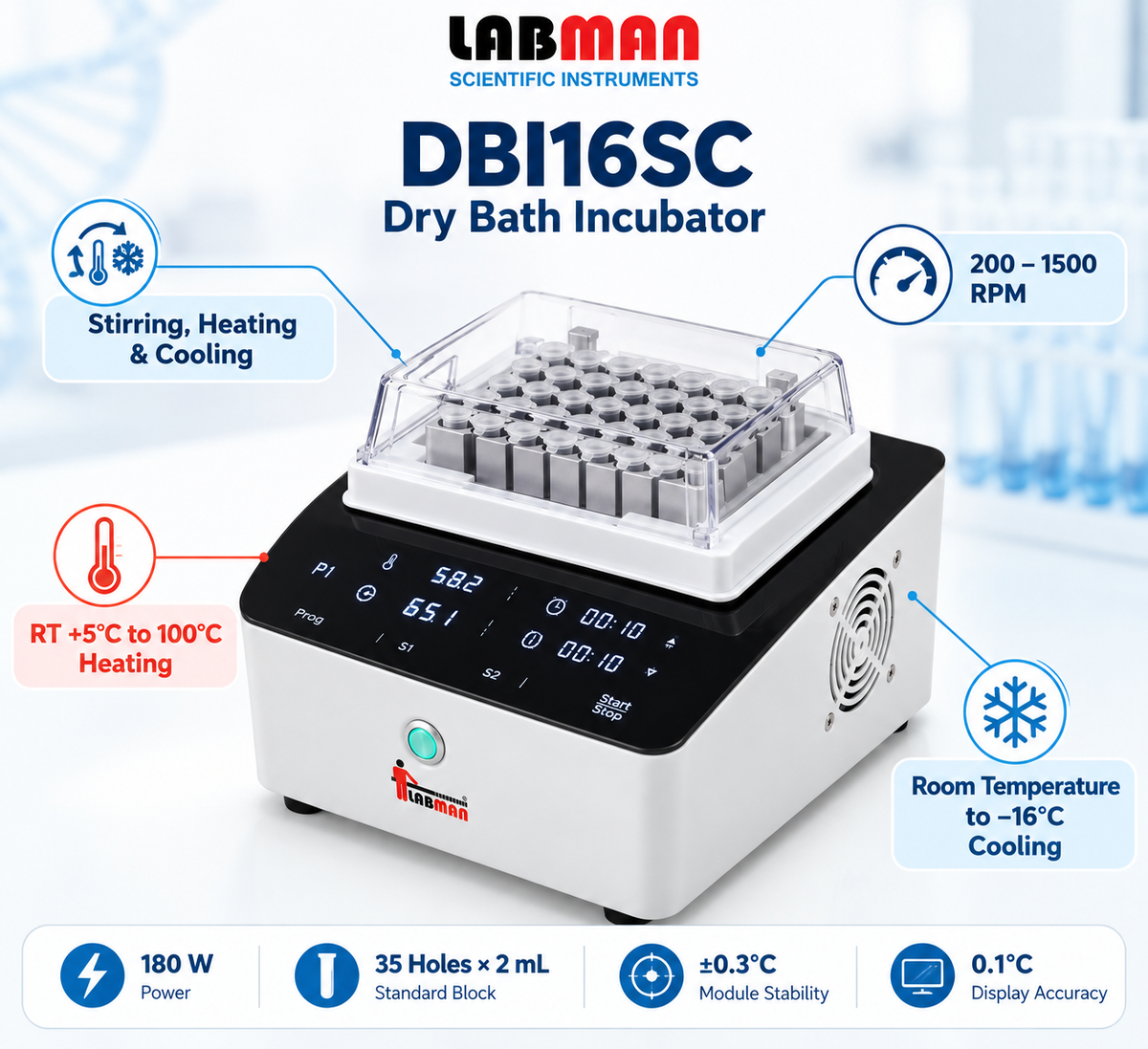

4. Key Features & Benefits

  • Stirring, Heating & Cooling – Three laboratory functions integrated into one instrument.
  • 200–1500 RPM Stirring Range – Adjustable sample mixing speed.
  • Heating up to 100°C – Supports controlled heating from R.T. +5°C to 100°C.
  • Cooling to -16°C – Provides controlled cooling from room temperature to -16°C.
  • Holographic Projection Display – Digital display interface.
  • 9-Stage Programmable Operation – Supports multipoint cycle programming.
  • Microprocessor Technology – Automated control of operating parameters.
  • Continuous Operation at Irregular Intervals – Supports programmed irregular operating cycles.
  • 35 × 2 mL Standard Block – Suitable for 35 tubes in the standard configuration.
  • Optional Interchangeable Blocks – Supports different tube sizes and formats.
  • Timing Function – Enables timed operation.
  • Alarm Function – Provides an operating alarm function.
  • Built-In Over-Temperature Protection – Helps protect the instrument during excessive-temperature conditions.
  • High Temperature Uniformity – Metal cabinet design with high temperature uniformity.
  • ABS Protection Cover – Supplied as a standard accessory.

The salient features are described on page 2 of the catalogue. DBI15SH

5. Technical Specifications

Specification DBI16SC
Product Type Dry Bath Incubator
Model DBI16SC
Make LABMAN
Operation Stirring, Heating & Cooling
Stirring Range 200–1500 RPM
Heating Temperature Range R.T. +5°C to 100°C
Cooling Temperature Range Room Temperature to -16°C
Power 180 W
Cooling Time 10–15 min
Timing Function Yes
Display White LED Display
Standard Block 35 holes × 2 mL
Module Temperature Stability ≤ ±0.3°C
Over-Temperature Protection Available
Display Accuracy 0.1°C
Heating Time 5–10 min
Ambient Temperature 10°C–30°C
Power Supply AC 220 V / 50–60 Hz
Packing Dimensions (L × W × H) 330 × 280 × 310 mm
Gross Weight 11 kg
HSN Code 84798200

The DBI16SC-specific specifications are provided in the model comparison table on page 3. DBI15SH

6. Optional Block Modules

The DBI16SC supports optional interchangeable block modules.

Block Tube Configuration Hole Size
Block A 0.2 mL × 96 6.7 mm
Block H 0.2 mL × 32 + 0.5 mL × 10 + 1.5 mL × 15 6.1 / 8 / 10.8 mm
Block B 0.5 mL × 54 8 mm
Block D 2 mL × 35 10.8 mm
Block F 12 mL × 24 12 mm
Block K 5 mL × 24 13.5 mm
Block L 15 mL × 12 16.9 mm
Block M 50 mL × 6 29.5 mm

These configurations are listed in the optional-block section on page 3. DBI15SH

Shopify Listing Note

The 35 × 2 mL block is the standard block. The other configurations should be presented as optional block modules/accessories.

7. Applications

The catalogue describes the DBI15SH/DBI16SC dry bath series for laboratory processes including:

  • Sample incubation
  • Catalysis
  • Mixing
  • Freezing
  • Other reaction processes

For the DBI16SC specifically, the relevant operating combination is stirring, heating and cooling. DBI15SH

8. Suitable For

  • Research laboratories
  • Biotechnology laboratories
  • Molecular biology laboratories
  • Educational laboratories
  • Sample preparation laboratories
  • Laboratories requiring controlled heating and cooling
  • Laboratories requiring simultaneous temperature control and mixing
  • Reaction-process laboratories
  • Laboratories working with different sample tube formats

9. FAQs

1. What is the Labmart DBI16SC?

The DBI16SC is a Dry Bath Incubator with stirring, heating and cooling functions.

2. What is the difference between DBI15SH and DBI16SC?

The DBI15SH provides stirring and heating, while the DBI16SC provides stirring, heating and cooling. DBI15SH

3. What is the stirring speed range?

The DBI16SC has a stirring range of 200–1500 RPM.

4. What is the heating temperature range?

The heating range is R.T. +5°C to 100°C.

5. How low can the DBI16SC cool?

The specified cooling range extends to -16°C from room temperature.

6. How long does cooling take?

The specified cooling time is 10–15 minutes.

7. What is the standard block capacity?

The standard block has 35 holes × 2 mL.

8. Can different tube sizes be used?

Yes. Optional interchangeable blocks are available for different tube formats.

9. What is the largest optional tube format?

The listed Block M accommodates 50 mL × 6 tubes.

10. Does the DBI16SC support programmable operation?

Yes. It supports 9-stage programmable multipoint cycle operation.

11. Does it have an alarm function?

Yes. An alarm function is specified.

12. Does it have over-temperature protection?

Yes. Built-in over-temperature protection is specified.

13. What is the module temperature stability?

The specified module temperature stability is ≤ ±0.3°C.

14. What is the display accuracy?

The specified display accuracy is 0.1°C.

15. What is the heating time?

The specified heating time is 5–10 minutes.

16. What is the power rating?

The DBI16SC has a specified power rating of 180 W.

17. What power supply does it require?

AC 220 V / 50–60 Hz.

18. What is the gross weight?

The specified gross weight is 11 kg.

19. Is the 35 × 2 mL block included?

Yes, the standard block is included. Other block configurations are optional.
