The Labmart DBI15SH Dry Bath Incubator is an automated laboratory dry bath combining stirring and heating in a single instrument. It features microprocessor technology, a holographic projection display, multipoint cycle operation with 9-stage programmable control, continuous operation at irregular intervals, timing and alarm functions, and built-in over-temperature protection.
The DBI15SH provides a 200–2000 RPM stirring range, heating from room temperature +5°C to 100°C, and a standard 35-hole × 2 mL block. Optional interchangeable blocks are available for different tube formats. DBI15SH
3. Detailed Product Description
Product Overview
The DBI15SH Dry Bath Incubator is designed as an automated and intelligent laboratory tool for processes involving sample incubation, catalysis, mixing and other reaction processes.
Unlike a conventional dry bath that only provides heating, the DBI15SH combines controlled heating with stirring, allowing samples to be mixed while being maintained at the selected temperature.
The catalogue specifies a 200–2000 RPM stirring range and a heating temperature range of R.T. +5°C to 100°C. The standard block has 35 holes for 2 mL tubes, while several optional blocks allow the instrument to accommodate tube formats ranging from 0.2 mL tubes through 50 mL tubes. DBI15SH DBI15SH

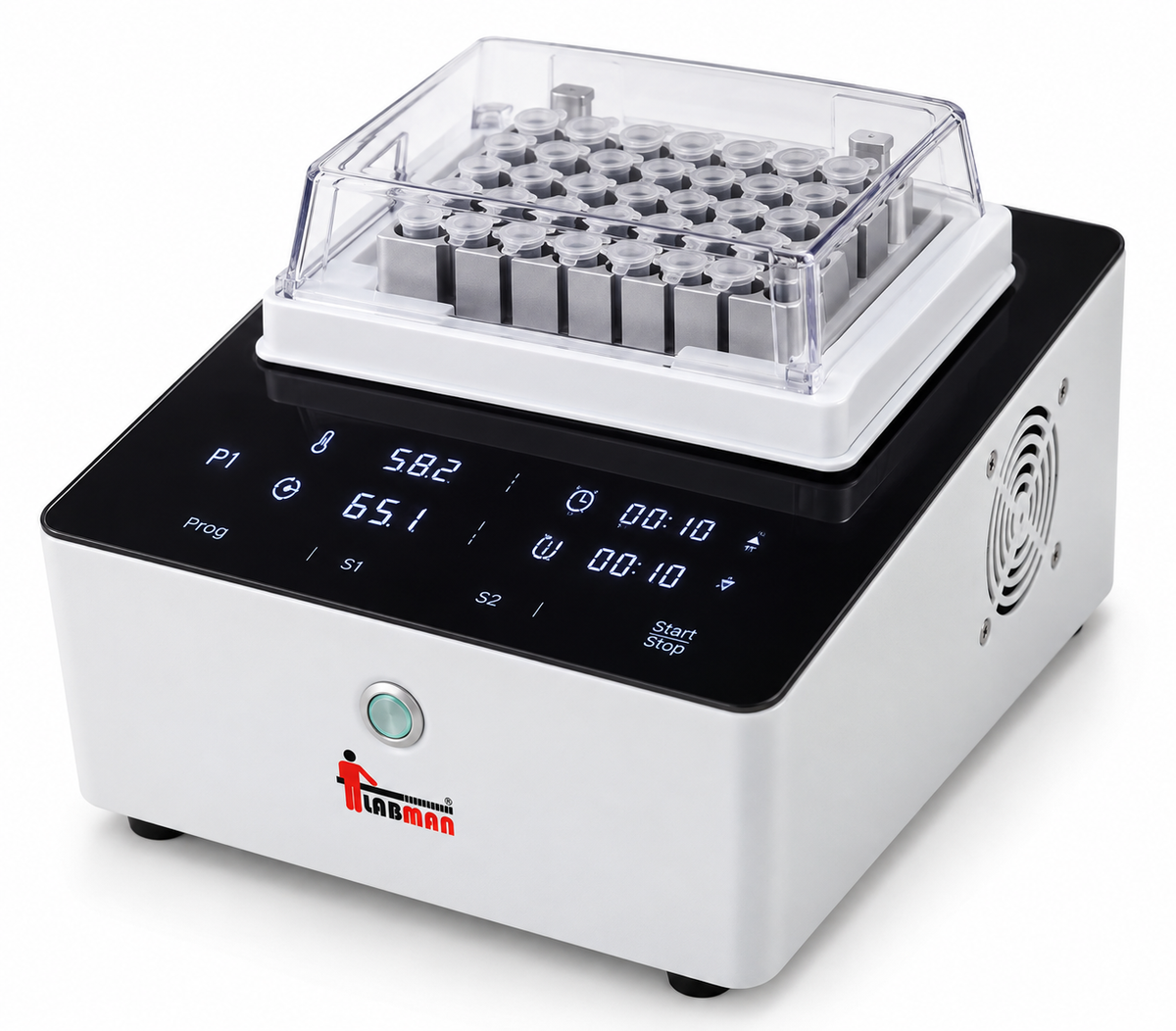

The product images on pages 1–2 show the DBI15SH as a compact benchtop instrument with a top-mounted sample block, protective cover and front digital/holographic display.

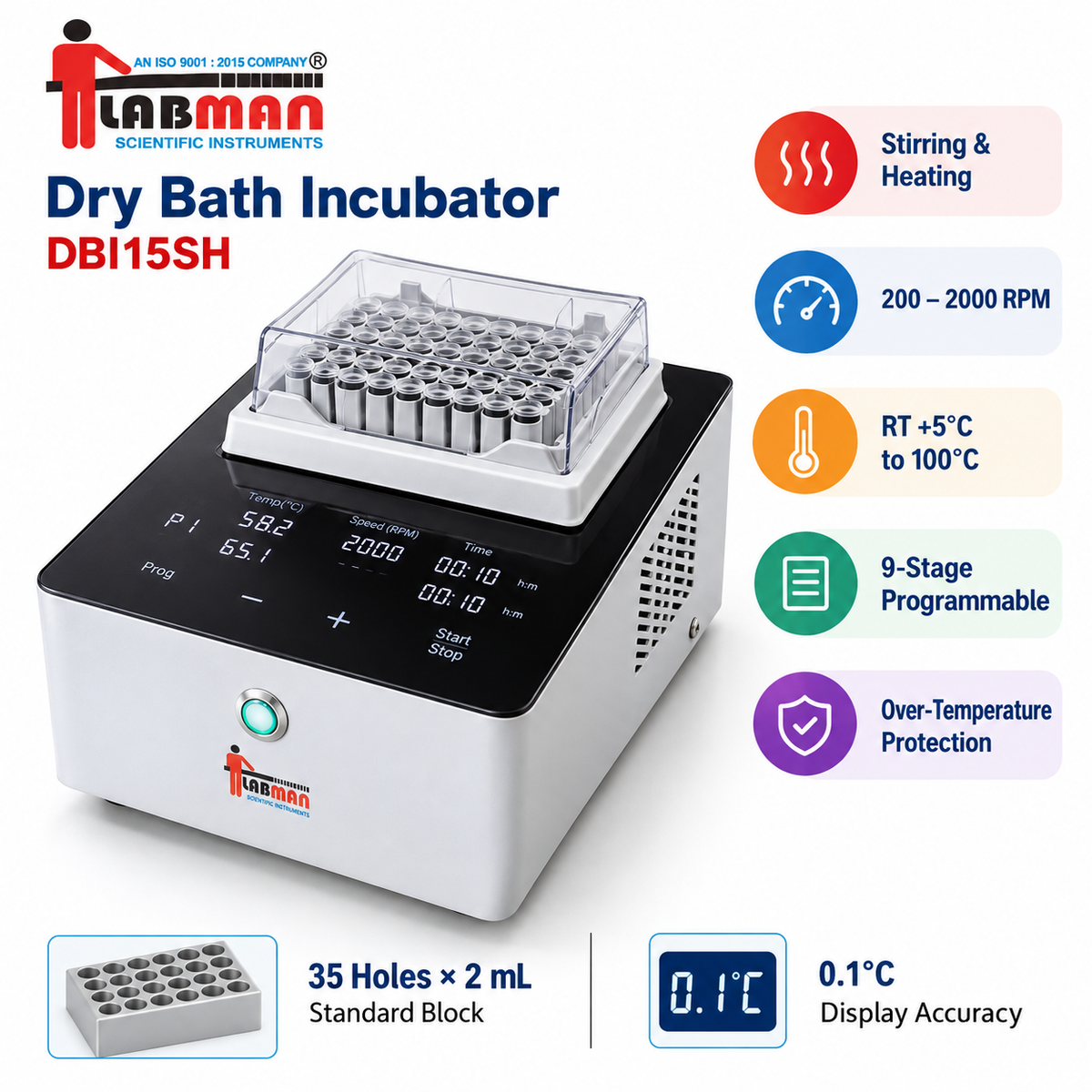

4. Key Features & Benefits
- Stirring + Heating Operation – Combines sample mixing and controlled heating.
- 200–2000 RPM Stirring Range – Provides adjustable stirring speed.
- Heating up to 100°C – Temperature range from R.T. +5°C to 100°C.
- Holographic Projection Display – Modern digital display interface.
- 9-Stage Programmable Operation – Supports multipoint cycle operation with 9-stage programming.
- Microprocessor Technology – Provides automated control of operating parameters.
- Irregular-Interval Continuous Operation – Allows continuous operation at irregular intervals.
- 35-Hole × 2 mL Standard Block – Suitable for standard 2 mL sample tubes.
- Interchangeable Block Modules – Optional blocks can be selected and replaced for different tube sizes.
- Timing Function – Supports timed operation.
- Alarm Function – Built-in alarm functionality.
- Over-Temperature Protection – Helps protect the system during excessive-temperature conditions.
- High Temperature Uniformity – Metal cabinet design with high temperature uniformity.
- Multiple Sample Formats – Optional blocks accommodate a broad range of tube sizes.
- ABS Protection Cover – Supplied as a standard accessory.
The salient-features section specifically identifies the holographic display, 9-stage programming, microprocessor technology, timing, alarm and over-temperature protection. DBI15SH
5. Technical Specifications
| Specification | DBI15SH |
|---|---|
| Product Type | Dry Bath Incubator |
| Model | DBI15SH |
| Make | LABMAN |
| Operation | Stirring & Heating |
| Stirring Range | 200–2000 RPM |
| Heating Temperature Range | R.T. +5°C to 100°C |
| Cooling Temperature Range | NA |
| Power | 140 W |
| Cooling Time | NA |
| Timing Function | Yes |
| Display | White LED Display |
| Standard Block | 35 holes × 2 mL |
| Module Temperature Stability | ≤ ±0.3°C |
| Over-Temperature Protection | Available |
| Display Accuracy | 0.1°C |
| Heating Time | 5–10 min |
| Ambient Temperature | 10°C–30°C |
| Power Supply | AC 220 V / 50–60 Hz |
| Packing Dimensions (L × W × H) | 330 × 280 × 280 mm |
| Gross Weight | 9 kg |
| HSN Code | 84798200 |
The above values are taken from the dedicated DBI15SH/DBI16SC specification table on page 3. DBI15SH
6. Optional Block Modules
One of the major advantages of the DBI15SH is its optional interchangeable block system.
| Block | Tube Configuration | Hole Size |
|---|---|---|
| Block A | 0.2 mL × 96 | 6.7 mm |
| Block H | 0.2 mL × 32 + 0.5 mL × 10 + 1.5 mL × 15 | 6.1 / 8 / 10.8 mm |
| Block B | 0.5 mL × 54 | 8 mm |
| Block D | 2 mL × 35 | 10.8 mm |
| Block F | 12 mL × 24 | 12 mm |
| Block K | 5 mL × 24 | 13.5 mm |
| Block L | 15 mL × 12 | 16.9 mm |
| Block M | 50 mL × 6 | 29.5 mm |
These configurations and hole sizes are specified in the optional-block table on page 3. DBI15SH
Important Shopify Listing Note
The 35 × 2 mL block is the standard block. The other block configurations should be presented as optional accessories/modules, not as included standard accessories. DBI15SH
7. Applications
The catalogue describes the DBI15SH/DBI16SC series as suitable for laboratory processes including:
- Sample incubation
- Catalysis
- Mixing
- Other reaction processes
For the DBI15SH specifically, the relevant operating function is stirring and heating. DBI15SH
Practical applications can include laboratory sample preparation and temperature-controlled mixing where the required sample volume and tube format are compatible with the selected block.
8. Suitable For
- Research laboratories
- Biotechnology laboratories
- Molecular biology laboratories
- Educational laboratories
- Sample preparation laboratories
- Laboratories requiring simultaneous heating and mixing
- Reaction-process laboratories
- Laboratories working with multiple tube sizes
9. FAQs
1. What is the Labmart DBI15SH?
The DBI15SH is a Dry Bath Incubator with stirring and heating functions.
2. What is the difference between DBI15SH and DBI16SC?
The DBI15SH provides stirring and heating, while the DBI16SC provides stirring, heating and cooling. DBI15SH
3. What is the stirring speed range?
The DBI15SH has a stirring range of 200–2000 RPM.
4. What is the heating temperature range?
The heating range is R.T. +5°C to 100°C.
5. What is the standard block capacity?
The standard block has 35 holes × 2 mL.
6. Can different tube sizes be used?
Yes. Optional interchangeable block modules are available for different tube sizes.
7. What is the largest optional tube configuration?
The listed Block M accommodates 50 mL × 6 tubes with a 29.5 mm hole size.
8. Does the DBI15SH have programmable operation?
Yes. The catalogue specifies 9-stage programmable multipoint cycle operation.
9. Does it have an alarm?
Yes. An alarm function is specified.
10. Does it have over-temperature protection?
Yes. Built-in over-temperature protection is specified.
11. What is the temperature stability of the module?
The specified module temperature stability is ≤ ±0.3°C.
12. What is the display accuracy?
The specified display accuracy is 0.1°C.
13. What is the heating time?
The catalogue specifies a heating time of 5–10 minutes.
14. What is the power consumption?
The specified power is 140 W.
15. What power supply is required?
AC 220 V / 50–60 Hz.
16. What is the weight?
The listed gross weight is 9 kg.
17. Is the block included?
Yes, the standard block is included. Additional block configurations are optional.
The Labmart DBI15SH Dry Bath Incubator is an automated laboratory dry bath combining stirring and heating in a single instrument. It features microprocessor technology, a holographic projection display, multipoint cycle operation with 9-stage programmable control, continuous operation at irregular intervals, timing and alarm functions, and built-in over-temperature protection.
The DBI15SH provides a 200–2000 RPM stirring range, heating from room temperature +5°C to 100°C, and a standard 35-hole × 2 mL block. Optional interchangeable blocks are available for different tube formats. DBI15SH
3. Detailed Product Description
Product Overview
The DBI15SH Dry Bath Incubator is designed as an automated and intelligent laboratory tool for processes involving sample incubation, catalysis, mixing and other reaction processes.
Unlike a conventional dry bath that only provides heating, the DBI15SH combines controlled heating with stirring, allowing samples to be mixed while being maintained at the selected temperature.
The catalogue specifies a 200–2000 RPM stirring range and a heating temperature range of R.T. +5°C to 100°C. The standard block has 35 holes for 2 mL tubes, while several optional blocks allow the instrument to accommodate tube formats ranging from 0.2 mL tubes through 50 mL tubes. DBI15SH DBI15SH

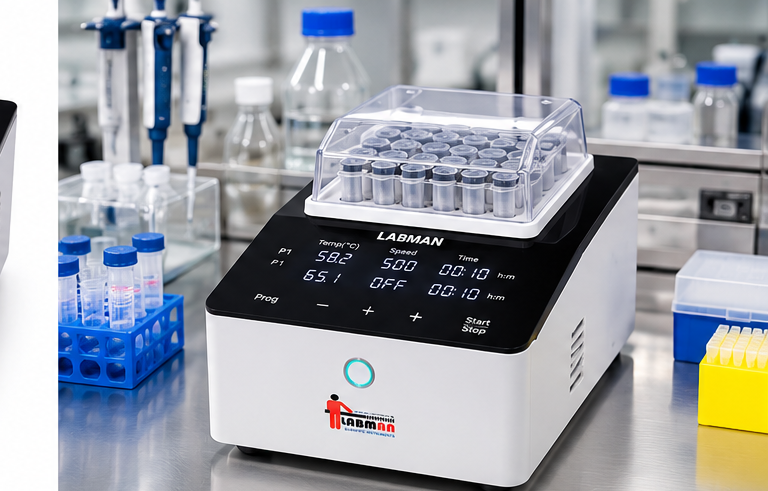

The product images on pages 1–2 show the DBI15SH as a compact benchtop instrument with a top-mounted sample block, protective cover and front digital/holographic display.
