The Labmart DBI11T Dry Bath Incubator is a microprocessor-controlled heating dry bath designed for precise temperature-controlled incubation of laboratory samples. It features a touchscreen interface, 35 × 2.0 mL standard block, temperature control from room temperature +5°C to 100°C, and temperature control accuracy of ±0.5°C.

The DBI11T supports five multipoint programs, continuous operation, programmable timing from 1 minute to 99 hours 59 minutes, built-in over-temperature protection and a long-service-life brushless DC motor.  DBI11T

Product Overview

The Labmart DBI11T Dry Bath Incubator is a compact, microprocessor-controlled laboratory heating system that uses advanced thermoelectric technology for high-precision temperature control.

It is designed for controlled heating and incubation applications involving laboratory samples. The supplied catalogue describes applications including sample cultivation, preservation, DNA amplification reactions, pre-degeneration of electrophoresis and solidification. DBI11T

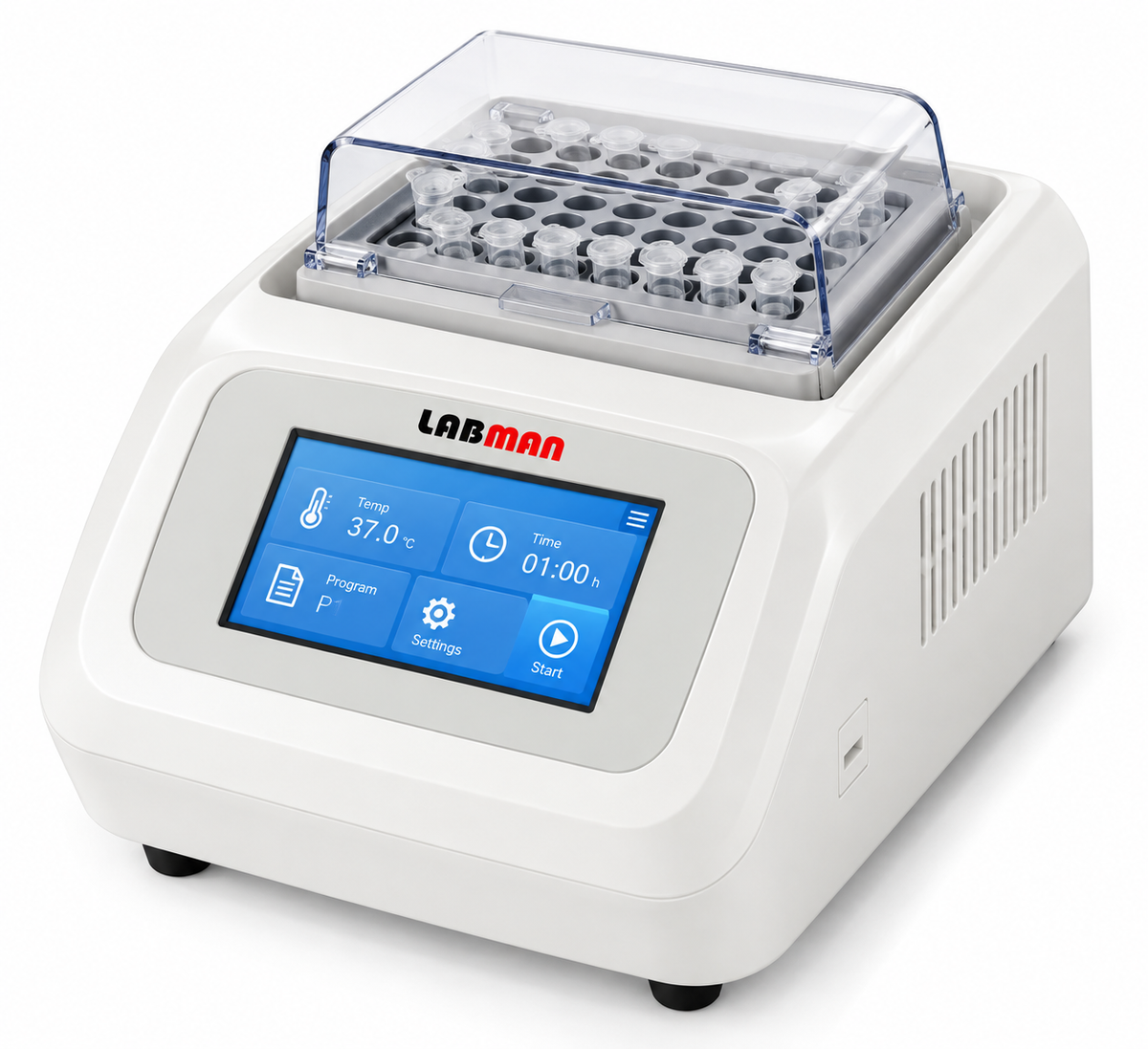

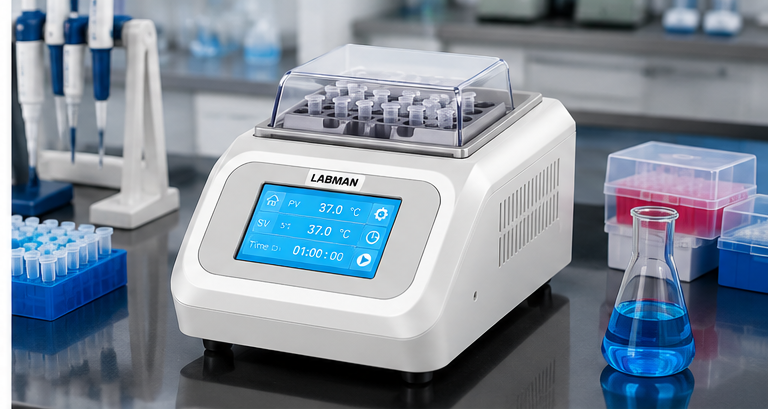

The DBI11T is equipped with a touchscreen display and touch-type keypad operation, allowing users to set and monitor operating parameters directly from the front panel. The product image on page 1 shows the compact benchtop enclosure, touchscreen control panel and interchangeable-style sample block positioned on the top of the instrument.

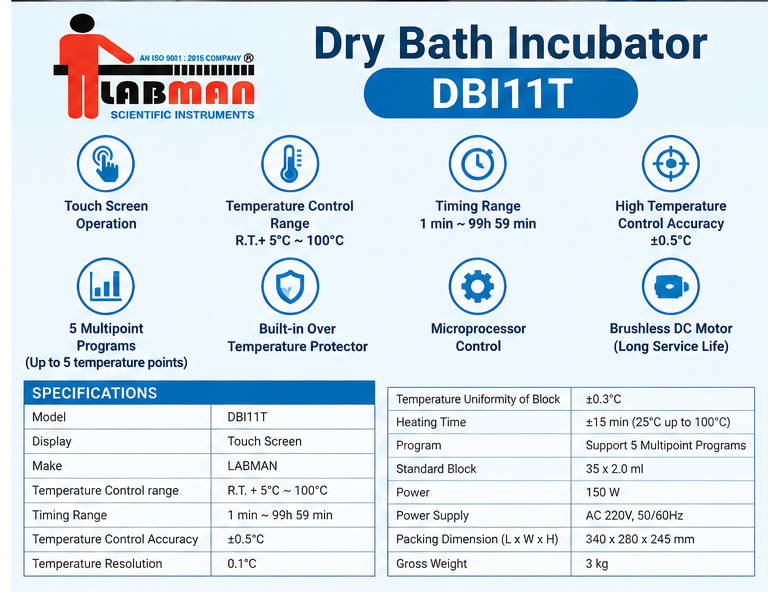

The specification table on page 3 identifies the standard block as 35 × 2.0 mL, with a temperature range of R.T. +5°C to 100°C, ±0.5°C temperature-control accuracy and 0.1°C temperature resolution. DBI11T

4. Key Features and Benefits

• Touchscreen Operation – LCD touchscreen and touch-type keypad provide convenient digital control.
• Microprocessor Control – Provides programmable and controlled heating operation.
• 35 × 2.0 mL Standard Block – Accommodates up to 35 tubes of 2.0 mL format.
• Temperature Range: R.T. +5°C to 100°C – Suitable for controlled laboratory heating applications.
• ±0.5°C Temperature Control Accuracy – Provides precise temperature regulation.
• 0.1°C Temperature Resolution – Allows fine temperature setting.
• ±0.3°C Block Temperature Uniformity – Specified block temperature uniformity.
• Five Multipoint Programs – Supports up to five multipoint programs.
• Independent or Combined Programming – The catalogue specifies that five program groups can be programmed independently or combined.
• Continuous Operation – Supports continuous temperature operation.
• Programmable Timing – Timer range from 1 minute to 99 hours 59 minutes.
• Built-In Over-Temperature Protection – Helps protect samples and equipment against excessive temperature.
• Fast Heating – Maximum heating time specified as ≤15 minutes from 25°C to 100°C.
• Brushless DC Motor – Specified for long serviceable life.
• Compact Benchtop Configuration – Packing dimensions are 340 × 280 × 245 mm.
• Standard Test Certificate – Supplied with a test certificate.

The programmable functions and protective features are described in the salient-features section on page 2. DBI11T

5. Technical Specifications

The above specifications are taken from the dedicated DBI11T specification table on page 3 of the supplied catalogue. DBI11T

6. Applications

The supplied catalogue specifically identifies the DBI11T for applications including:

• Sample cultivation
• Sample preservation
• DNA amplification reactions
• Pre-degeneration of electrophoresis
• Solidification

These applications are stated in the product description on page 2. DBI11T

Additional practical laboratory uses can include controlled heating and incubation of compatible sample tubes, but the source does not provide a more detailed application list.

7. Installation / Usage

The DBI11T requires:

• AC 220 V, 50/60 Hz electrical supply
• A stable laboratory benchtop
• Appropriate ventilation around the instrument
• Correct installation of the supplied standard block
• Compatible sample tubes within the specified block format

The supplied standard block is 35 × 2.0 mL. DBI11T

For routine operation, users should follow the supplied instruction manual and avoid exceeding the specified temperature range or using incompatible tubes.

8. FAQs

1. What is the Labmart DBI11T?

The DBI11T is a microprocessor-controlled Dry Bath Incubator designed for controlled heating and incubation of laboratory samples.

2. Does the DBI11T have a touchscreen?

Yes. It features a touchscreen display and touch-type keypad operation. DBI11T

3. What is the temperature range?

The specified temperature range is R.T. +5°C to 100°C. DBI11T

4. What is the temperature accuracy?

The specified temperature-control accuracy is ±0.5°C.

5. What is the temperature resolution?

The temperature resolution is 0.1°C.

6. How many tubes can the standard block hold?

The standard block is specified as 35 × 2.0 mL, meaning it is configured for 35 tubes of 2.0 mL format.

7. Does the DBI11T support programmable operation?

Yes. It supports 5 multipoint programs.

8. Can the programs be combined?

The catalogue states that the five groups of programs can be programmed independently or combined. DBI11T

9. What is the timer range?

The timing range is 1 minute to 99 hours 59 minutes.

10. How quickly does the DBI11T heat?

The specified heating time is ≤15 minutes from 25°C to 100°C.

11. Does it have over-temperature protection?

Yes. A built-in over-temperature protector is specified.

12. What type of motor does it use?

The salient features specify a brushless DC motor with long serviceable life.

13. What is the power rating?

The specified power is 150 W.

14. What power supply does it require?

The specified power supply is AC 220 V, 50/60 Hz.

15. What applications are specified?

The catalogue lists sample cultivation, preservation, DNA amplification reactions, pre-degeneration of electrophoresis and solidification. DBI11T

16. What accessories are supplied?

The standard accessories are main instrument with standard block, power cord, fuse and test certificate.
