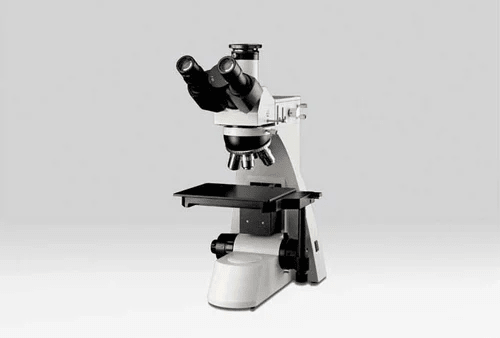

Product Details:
| Brand | Weswox |
| Model Name/Number | WESWOX MHL-47 |
| Mechanical Stage | 210 mm X 140 mm |
| Eyepiece | Wide Field 10X (paired) F.O.V. 18 mm |
| Moving Range | 75 mm x 50 mm |
| Siedentopf Observation Head | Inclined at 30 Degree Rotatable at 360 Degree |
| Diopter Adjustment Ring on Ocular Tube | +/- 5 |
| Interpupillary Distance | 55 mm to 75 mm |
| Polarizing Outfit | Analyzer Rotatable at 360 Degree |
| Differential Interference Contrast | DIC filter for 5X, 10X, 20X, 50X 100X |
Objectives (Infinity corrected):
- M Long working distance plan 5X(W.D. 18.3 mm)
- M Long working distance plan 10X(W.D. 8.8 mm)
- M Long working distance plan 20X(W.D. 8.6 mm)
- M Long working distance plan 50X (S.L.)(W.D. 2.02 mm)
Mechanical Body:
- Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse Quadruple nosepiece on ball bearing.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
Illuminator:
- The Epi illuminator has 6V-20W halogen lamp with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.
Standard Accessories:
- 6V/20W halogen tungsten bulb, operating manual, dust cover , guarantee card and styrofoam molded pack.
Our WESWOX microscopes are equivalent or better in quality than Olympus, Leica or Nikon Make.
our all products bears 2 year warranty.
- Regular price
- Rs.298,100.00
- Sale price
- Rs.228,100.00
Product Details:
| Brand | Weswox |
| Model Name/Number | WESWOX MHL-47 |
| Mechanical Stage | 210 mm X 140 mm |
| Eyepiece | Wide Field 10X (paired) F.O.V. 18 mm |
| Moving Range | 75 mm x 50 mm |
| Siedentopf Observation Head | Inclined at 30 Degree Rotatable at 360 Degree |
| Diopter Adjustment Ring on Ocular Tube | +/- 5 |
| Interpupillary Distance | 55 mm to 75 mm |
| Polarizing Outfit | Analyzer Rotatable at 360 Degree |
| Differential Interference Contrast | DIC filter for 5X, 10X, 20X, 50X 100X |
Objectives (Infinity corrected):
- M Long working distance plan 5X(W.D. 18.3 mm)
- M Long working distance plan 10X(W.D. 8.8 mm)
- M Long working distance plan 20X(W.D. 8.6 mm)
- M Long working distance plan 50X (S.L.)(W.D. 2.02 mm)
Mechanical Body:
- Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse Quadruple nosepiece on ball bearing.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
Illuminator:
- The Epi illuminator has 6V-20W halogen lamp with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.
Standard Accessories:
- 6V/20W halogen tungsten bulb, operating manual, dust cover , guarantee card and styrofoam molded pack.
Our WESWOX microscopes are equivalent or better in quality than Olympus, Leica or Nikon Make.
our all products bears 2 year warranty.
- Regular price
- Rs.298,100.00
- Sale price
- Rs.228,100.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
Product Details:
| Brand | Weswox |
| Model Name/Number | WESWOX MHL-47 |
| Mechanical Stage | 210 mm X 140 mm |
| Eyepiece | Wide Field 10X (paired) F.O.V. 18 mm |
| Moving Range | 75 mm x 50 mm |
| Siedentopf Observation Head | Inclined at 30 Degree Rotatable at 360 Degree |
| Diopter Adjustment Ring on Ocular Tube | +/- 5 |
| Interpupillary Distance | 55 mm to 75 mm |
| Polarizing Outfit | Analyzer Rotatable at 360 Degree |
| Differential Interference Contrast | DIC filter for 5X, 10X, 20X, 50X 100X |
Objectives (Infinity corrected):
- M Long working distance plan 5X(W.D. 18.3 mm)
- M Long working distance plan 10X(W.D. 8.8 mm)
- M Long working distance plan 20X(W.D. 8.6 mm)
- M Long working distance plan 50X (S.L.)(W.D. 2.02 mm)
Mechanical Body:
- Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse Quadruple nosepiece on ball bearing.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
Illuminator:
- The Epi illuminator has 6V-20W halogen lamp with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.
Standard Accessories:
- 6V/20W halogen tungsten bulb, operating manual, dust cover , guarantee card and styrofoam molded pack.
Our WESWOX microscopes are equivalent or better in quality than Olympus, Leica or Nikon Make.
our all products bears 2 year warranty.
