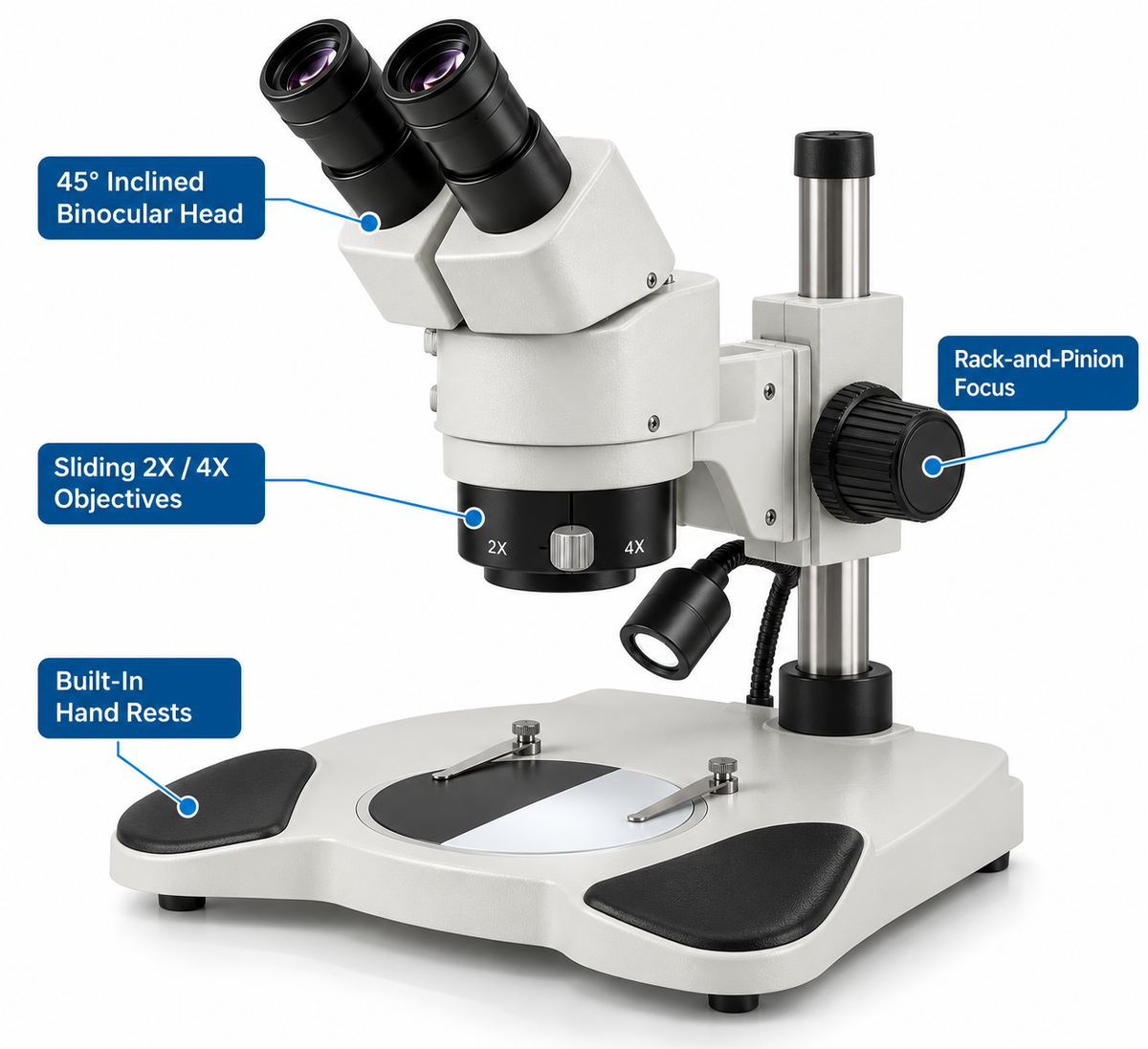

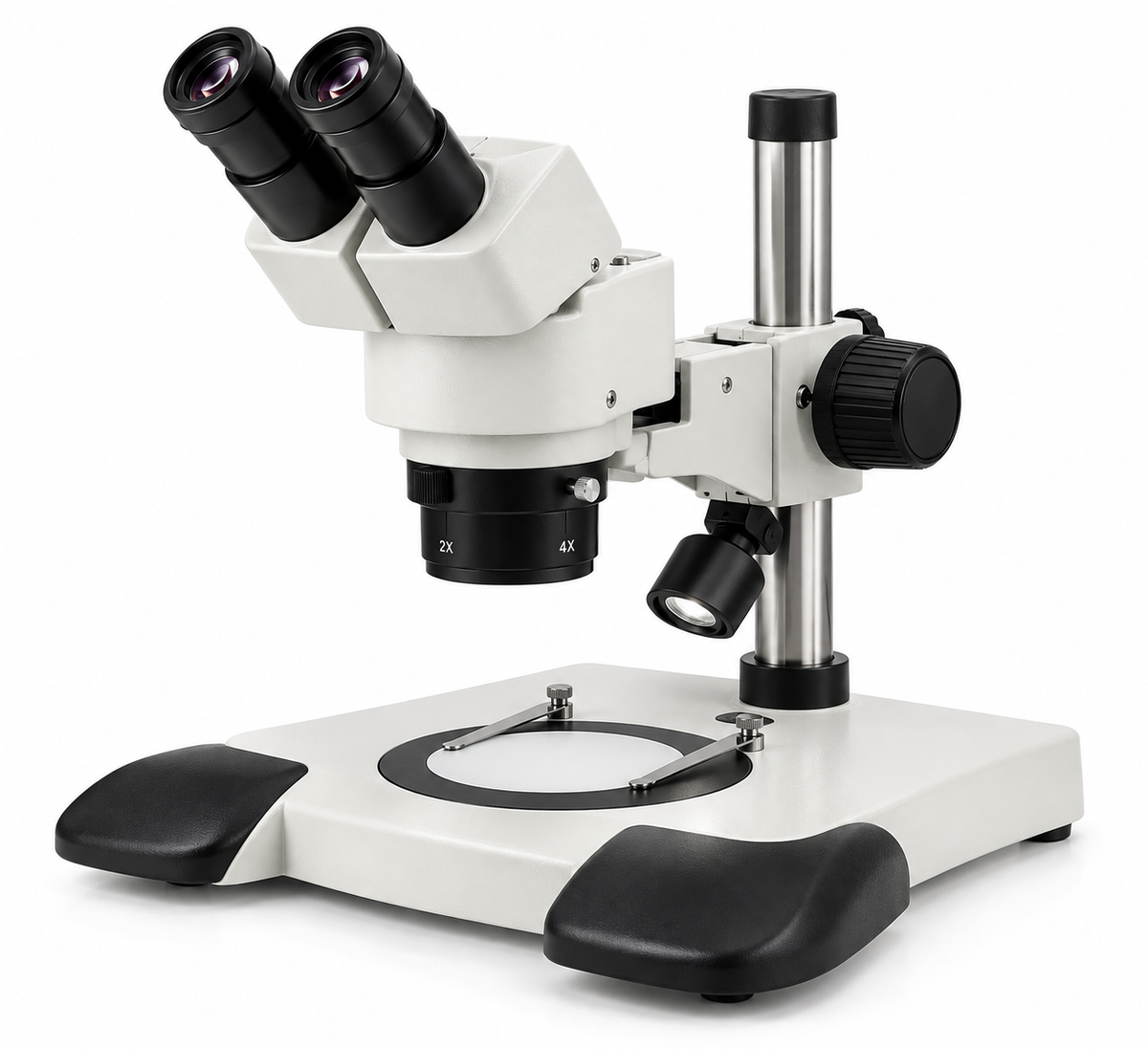

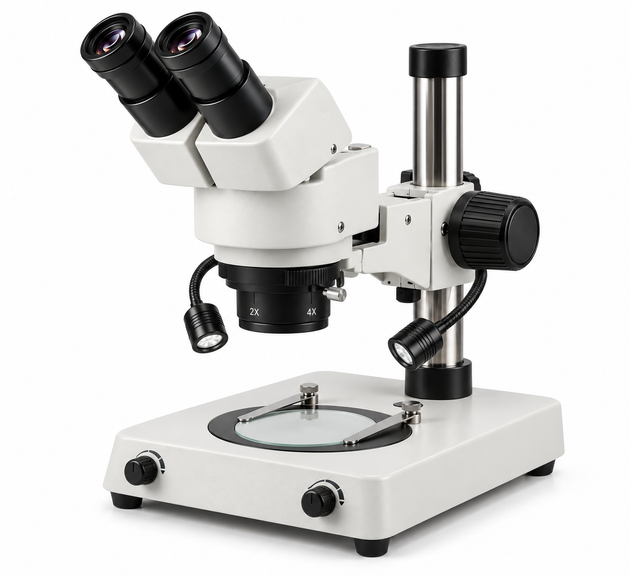

The KG-1852-BR Inclined Stereo Microscope is a binocular stereo microscope designed for inspection, dissection, assembly and detailed examination of three-dimensional specimens. It features a 45° inclined viewing head, sliding-type dual objectives, adjustable interpupillary distance, rack-and-pinion focusing and integrated hand rests for comfortable specimen handling.

Product Overview

The KG-1852-BR is an inclined stereo microscope designed for applications requiring stereoscopic observation and convenient specimen manipulation. Its binocular optical arrangement provides a three-dimensional view of specimens, making it suitable for inspection, dissection, assembly and educational applications.

The microscope features a 45° inclined binocular viewing head with 360° rotation. The interpupillary distance can be adjusted from 55–75 mm, while both eyepieces provide ±5 diopter adjustment.

A sliding-type dual objective system provides the specified magnification options. The microscope incorporates a rack-and-pinion focusing mechanism with 60 mm focusing travel.

The integrated hand rests provide support during detailed inspection and manipulation tasks, while the durable metal construction is suited to routine laboratory and workshop use.

Key Features and Benefits

• Sliding-type dual objective configuration
• 45° inclined binocular viewing head
• 360° rotatable head
• 55–75 mm interpupillary adjustment
• ±5 diopter adjustment on both eyepieces
• Paired WF 10X eyepieces
• 20 mm eyepiece field number
• Rack-and-pinion focusing
• 60 mm focusing travel
• Integrated hand rests
• Durable metal construction
• Suitable for inspection, assembly and dissection applications

4. Technical Specifications

5. Applications

• Industrial inspection
• Small-component inspection
• Electronics assembly
• Jewelry inspection and assembly
• Watchmaking and repair
• Biological dissection
• Entomology
• Botany
• Zoology
• Educational specimen examination
• Small-parts assembly
• Forensic specimen examination
• Quality-control inspection

6. Suitable For

• Industrial inspection laboratories
• Manufacturing workshops
• Electronics assembly and repair
• Jewelry workshops
• Watchmaking facilities
• Schools and colleges
• Biology laboratories
• Zoology laboratories
• Research laboratories
• Quality-control departments
• Forensic laboratories
• Small-component assembly workstations

7. Product Benefits

• Stereoscopic viewing: Binocular observation provides depth perception for three-dimensional specimens.
• Convenient objective selection: Sliding-type dual objectives allow magnification selection without replacing individual objective lenses.
• Ergonomic viewing: The 45° inclined head is suited to prolonged observation.
• Flexible positioning: The head rotates through 360° for convenient viewing.
• Individual eyepiece adjustment: ±5 diopter adjustment accommodates differences between the user's eyes.
• Smooth focusing: Rack-and-pinion focusing provides 60 mm of travel.
• Comfort during inspection: Integrated hand rests support the operator during detailed manipulation.
• Durable construction: Metal construction is suitable for routine laboratory and workshop environments.
• Broad application range: Suitable for inspection, assembly, dissection and educational microscopy.
