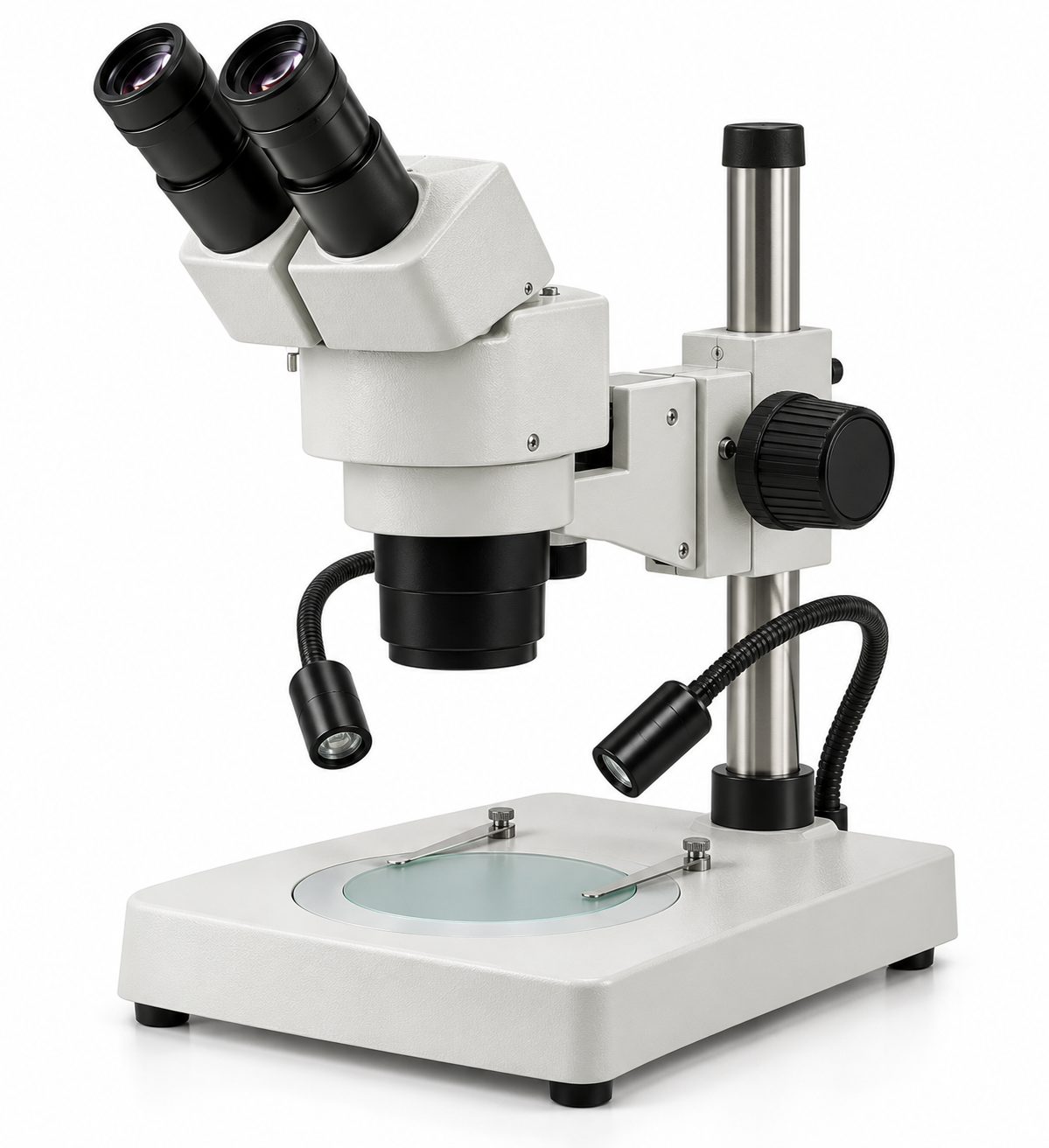

The KG-1850-PDL Inclined Stereo Microscope is a robust binocular stereo microscope designed for industrial inspection, assembly, educational dissection and detailed examination of three-dimensional specimens. It features selectable fixed 2X or 3X objectives, 10X wide-field eyepieces, a 250 mm extension pillar, 60 mm rack-and-pinion focusing travel and independently adjustable incident and transmitted LED illumination.

Product Overview

The KG-1850-PDL Inclined Stereo Microscope combines an inclined binocular viewing system with a tall extension pillar base to provide increased working space around the specimen. The fixed objective configuration can be selected as 2X or 3X, producing total magnification of 20X or 30X when paired with the 10X eyepieces.

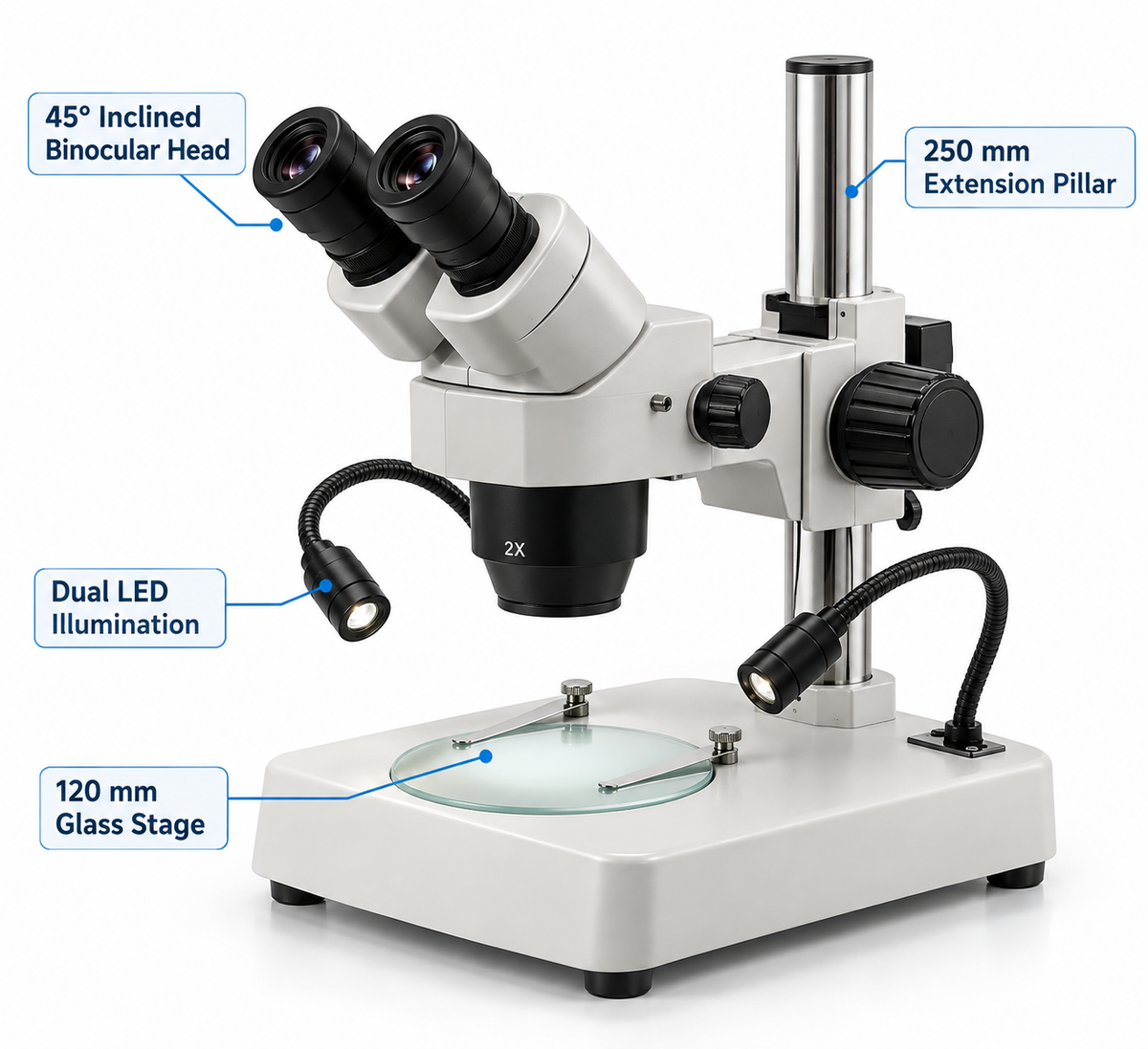

The microscope has a 45° inclined, 360° rotatable binocular head, with 55–75 mm interpupillary adjustment and ±5 diopter adjustment on both eyepieces. Its 250 mm-high heavy-duty extension pillar provides a large working distance for taller specimens and manipulation tasks.

A 120 mm diameter frosted glass stage is supplied along with a black/white contrast plate. The dual illumination system provides independently adjustable incident/top LED illumination and transmitted/bottom LED illumination, allowing examination of both opaque and transparent specimens.

The metal construction, pillar-mounted rack-and-pinion focusing mechanism and dual-light arrangement make the KG-1850-PDL suitable for industrial workshops, inspection laboratories, electronics assembly, jewelry and watchmaking, education and biological dissection.

Key Features and Benefits

• Fixed 2X or 3X objective configuration
• 20X or 30X total magnification
• Paired WF 10X eyepieces
• 45° inclined binocular viewing head
• 360° rotatable head
• 55–75 mm interpupillary adjustment
• ±5 diopter adjustment on both eyepieces
• 250 mm extension pillar
• 60 mm rack-and-pinion focusing travel
• 120 mm diameter frosted glass stage
• Black/white contrast plate
• Adjustable incident/top LED illumination
• Adjustable transmitted/bottom LED illumination
• 110–240V AC power supply with inline controller
• Durable metal construction
• Approximately 5 kg weight

4. Technical Specifications

5. Applications

• Industrial quality control and inspection
• Machined-part inspection
• Electronic component inspection
• PCB and solder-joint inspection
• Electronics assembly and repair
• Watchmaking
• Jewelry inspection and assembly
• Small-parts assembly
• Entomology
• Botany and biological dissection
• Textile and fibre inspection
• Printing quality inspection
• Forensic evidence examination
• Educational specimen examination

6. Suitable For

• Industrial inspection laboratories
• Electronics workshops

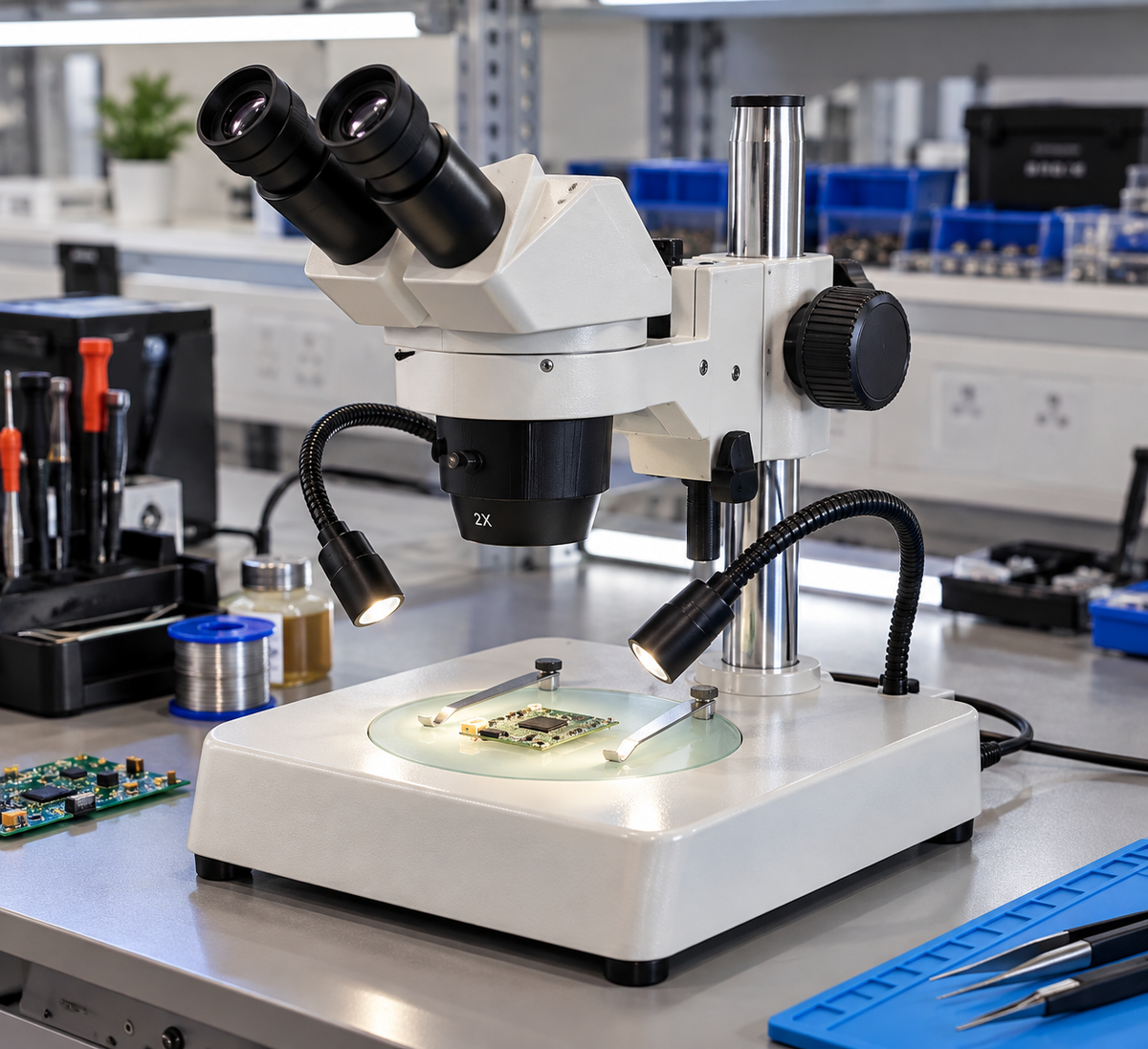

• PCB assembly and repair
• Jewelry workshops
• Watchmaking and repair facilities
• Manufacturing quality-control departments
• Textile laboratories
• Printing inspection facilities
• Schools and colleges
• Biology and zoology laboratories
• Forensic laboratories
• Research and dissection laboratories

7. Product Benefits

• Large working space: The 250 mm extension pillar provides substantial clearance for taller specimens and tools.
• Three-dimensional observation: Binocular stereo viewing provides depth perception for manipulation and inspection tasks.
• Flexible magnification: The objective can be selected as 2X or 3X to provide 20X or 30X total magnification.
• Dual illumination: Separate incident and transmitted LED illumination accommodates opaque as well as transparent or translucent specimens.
• Adjustable viewing: The head rotates 360° and offers 55–75 mm interpupillary adjustment.
• Precise focusing: Rack-and-pinion focusing provides 60 mm of travel.
• Contrast flexibility: The frosted glass stage and black/white contrast plate accommodate different specimen backgrounds.
• Workshop-friendly construction: Metal construction and an extension pillar are suited to routine industrial and workshop environments.
• Convenient illumination control: Both top and bottom LED lighting have adjustable intensity.
