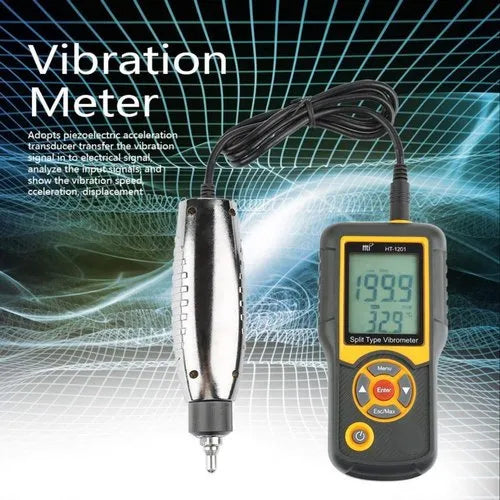

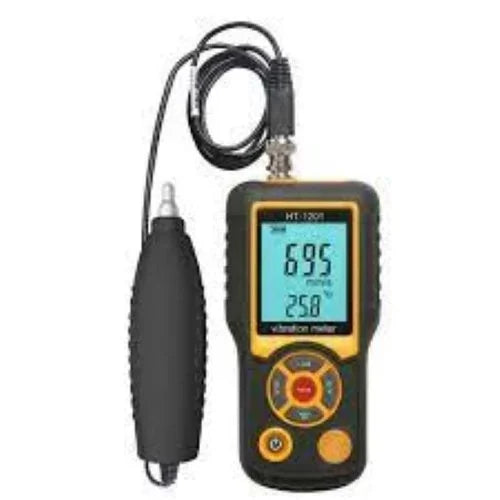

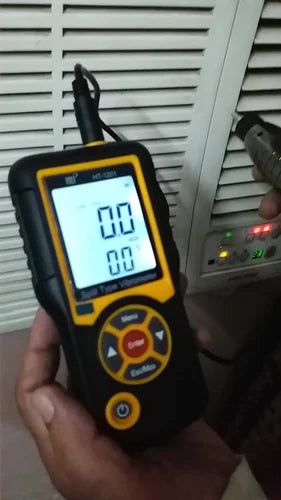

The HT-1201 Split Type Vibration Meter is a portable digital vibrometer designed for routine vibration measurement of mechanical equipment. It uses a piezoelectric ceramic accelerometer to measure vibration acceleration, velocity and displacement, while also providing ambient temperature measurement.

Product Overview

The HT-1201 Split Type Vibration Meter is a compact vibration monitoring instrument for evaluating mechanical equipment vibration. Its split-type construction separates the measuring probe from the main display unit, making it convenient for measurements at different machine locations.

The meter uses a piezoceramic accelerometer (shearing type) and provides measurements in acceleration, velocity and displacement modes. It also supports temperature measurement and provides a clear digital display for viewing readings.

It is suitable for routine condition monitoring, maintenance inspection and troubleshooting of rotating and vibrating machinery.

Key Features & Benefits

  • Three vibration measurement parameters – acceleration, velocity and displacement.
  • Piezoelectric ceramic acceleration sensor for vibration acquisition.
  • Split-type probe design for convenient measurement access.
  • Wide acceleration measurement range up to 199.9 m/s².
  • Velocity measurement up to 199.9 mm/s.
  • Displacement measurement up to 1.999 mm.
  • Separate frequency characteristics for acceleration measurements.
  • Ambient temperature measurement from 0°C to 60°C.
  • Max Hold function for capturing peak vibration values.
  • Digital LCD display for easy reading.
  • Portable battery-operated design.
  • Automatic power-off helps conserve battery life.

4. Technical Specifications

Parameter Specification
Model HT-1201
Product Type Split Type Digital Vibration Meter / Vibrometer
Vibration Sensor Piezoceramic accelerometer, shearing type
Display 3½-digit LCD
Acceleration Range 0.1–199.9 m/s² peak
Velocity Range 0.1–199.9 mm/s effective value
Displacement Range 0.001–1.999 mm effective value
Measurement Accuracy ±(5% + 2 digits)
Acceleration Frequency Range 15 Hz–1 kHz (LO); 1 kHz–10 kHz (HI)
Velocity Frequency Range 15 Hz–1 kHz (LO)
Displacement Frequency Range 15 Hz–1 kHz (LO)
Temperature Measurement Range 0–60°C
Temperature Accuracy ±2°C
Max Hold Yes
Automatic Power-Off Approximately 4 minutes
Power Supply 3 × AA batteries
Operating Temperature 0–45°C
Operating Humidity 20–90% RH, non-condensing
Storage Temperature -20–60°C
Host Dimensions 152 × 75 × 32 mm
Host Weight Approx. 140 g

5. Applications

  • Rotating machinery vibration inspection
  • Motors and electric motors
  • Pumps
  • Fans and blowers
  • Compressors
  • Gearboxes
  • Bearings and mechanical assemblies
  • Industrial machinery maintenance
  • Preventive maintenance programs
  • Mechanical equipment troubleshooting
  • Manufacturing plants
  • Power-generation equipment
  • Chemical-processing machinery
  • Aerospace and aviation equipment

6. Suitable For

  • Maintenance engineers
  • Mechanical engineers
  • Plant maintenance teams
  • Industrial quality-control departments
  • Machinery manufacturers
  • Equipment service technicians
  • R&D and engineering laboratories
  • Predictive maintenance applications
  • Preventive maintenance programs

7. Product Benefits

  • Measures acceleration, velocity and displacement with one instrument.
  • Helps identify abnormal vibration in mechanical equipment.
  • Split probe arrangement facilitates measurements in difficult-to-access locations.
  • Wide measurement range supports different machinery conditions.
  • Max Hold helps capture peak readings during inspection.
  • Portable design makes it suitable for field maintenance.
  • Temperature measurement provides additional environmental information during inspection.
  • Simple digital operation reduces complexity during routine measurements.
