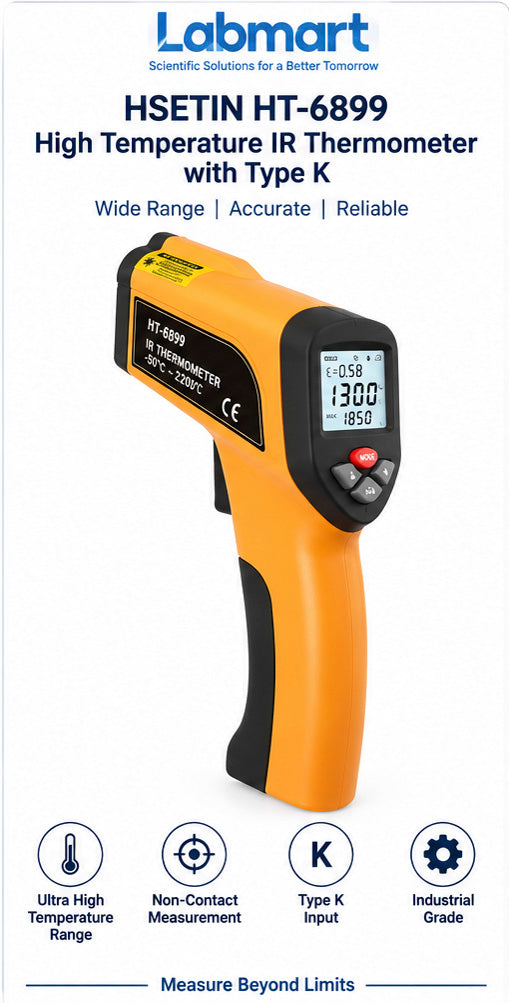

The Labmart HSETIN HT-6899 is a high-temperature, non-contact infrared thermometer designed for industrial temperature measurement up to 2200°C. It also features a Type K thermocouple input for contact temperature measurement up to 1370°C, providing dual-mode temperature measurement for demanding applications.
Product Overview
The HSETIN HT-6899 High Temperature IR Thermometer is designed for measuring the temperature of hot, moving, inaccessible or potentially hazardous surfaces without physical contact.
Its infrared measurement system covers an exceptionally wide temperature range of -50°C to 2200°C, while the integrated Type K input allows contact measurement using a compatible Type K thermocouple.
With a 50:1 distance-to-spot ratio, adjustable emissivity, laser targeting, fast response and backlit display, the HT-6899 is suitable for industrial inspection and high-temperature process monitoring.
Key Features and Benefits
- -50°C to 2200°C infrared measurement range
- Type K thermocouple measurement up to 1370°C
- Non-contact temperature measurement
- 50:1 distance-to-spot ratio
- Fast response time of less than 150 ms
- Adjustable emissivity from 0.1 to 1.0
- 8–14 µm spectral response
- Laser targeting for easier measurement positioning
- Backlit LCD display
- °C/°F selectable
- Automatic data hold and auto power-off
- MAX/MIN/DIF/AVG measurement functions
- High and low temperature alarm
- Over-range indication
- Suitable for high-temperature industrial applications

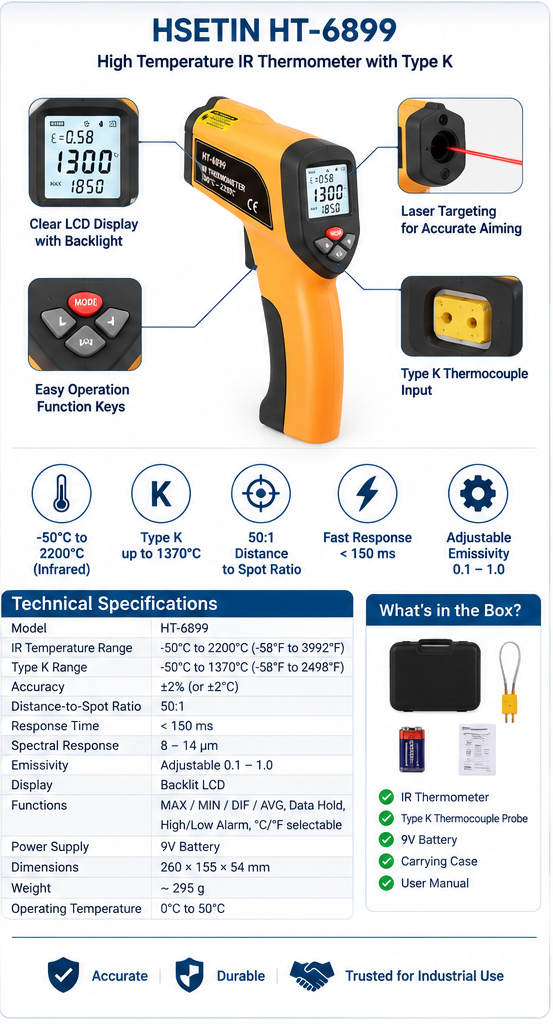

4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | High Temperature Infrared Thermometer |
| Model | HT-6899 |
| Brand | Labmart |
| Original Series | HSETIN HT-6899 |
| Measurement Type | Non-contact Infrared + Type K Contact |
| IR Temperature Range | -50°C to 2200°C |
| IR Range in °F | -58°F to 3992°F |
| Type K Temperature Range | -50°C to 1370°C |
| Type K Range in °F | -58°F to 2498°F |
| IR Resolution | 0.1°C/°F |
| Type K Resolution | 0.1° up to the specified range; 1° above 2000° |
| Basic Accuracy | ±2% |
| Distance-to-Spot Ratio | 50:1 |
| Response Time | <150 ms |
| Spectral Response | 8–14 µm |
| Emissivity | Adjustable 0.1–1.0 |
| Display | Backlit LCD |
| Laser Targeting | Yes |
| Temperature Units | °C / °F |
| Measurement Functions | MAX, MIN, DIF, AVG |
| Data Hold | Automatic |
| High/Low Alarm | Yes |
| Over-Range Indication | Yes |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Power Supply | 9V |
| Dimensions | Approximately 260 × 155 × 54 mm |
| Weight | Approximately 295 g |
| Mounting Type | Handheld |
| Housing Material | ABS |
| Colour | Yellow |
| Feature | Contactless |
| Country of Origin | India |
Specification note: The supplier listing also expresses accuracy in some fields as ±2°C. The detailed technical specification identifies the basic accuracy as ±2%; the exact accuracy specification should be confirmed for the intended temperature range before critical-process use.

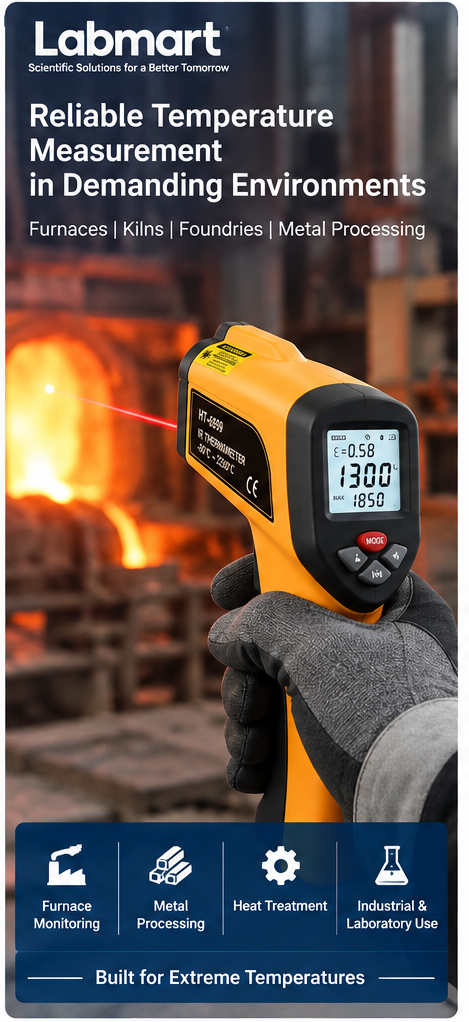

5. Applications
The HT-6899 is suitable for:
- Furnace temperature measurement
- Kiln monitoring
- Steel and metal processing
- Foundry applications
- Heat-treatment processes
- Industrial ovens
- Boilers and high-temperature equipment
- Electrical equipment inspection
- Manufacturing process monitoring
- Laboratory high-temperature measurements
- Ceramic and glass industries
- Welding and fabrication
- Refractory inspection
- Hot machinery and equipment inspection
6. Suitable For
- Steel plants
- Foundries
- Metal-processing industries
- Manufacturing plants
- Furnace operators
- Kiln operators
- Ceramic manufacturers
- Glass industries
- Electrical maintenance teams
- Industrial maintenance departments
- Quality-control laboratories
- Research and development laboratories
7. Product Benefits
- Measures extremely high temperatures up to 2200°C
- Enables safe non-contact measurement
- Type K input provides an additional contact measurement method
- 50:1 optical ratio allows measurement from greater distances
- Fast response under 150 ms
- Adjustable emissivity improves suitability for different surface materials
- Laser targeting helps identify the measurement area
- MAX/MIN/AVG/DIF functions support temperature analysis
- High/low alarms assist process monitoring
- Backlit display improves visibility
- Portable handheld construction
- Useful where conventional contact thermometers are impractical
- Regular price
- Rs.3,999.00
- Sale price
- Rs.2,199.00
