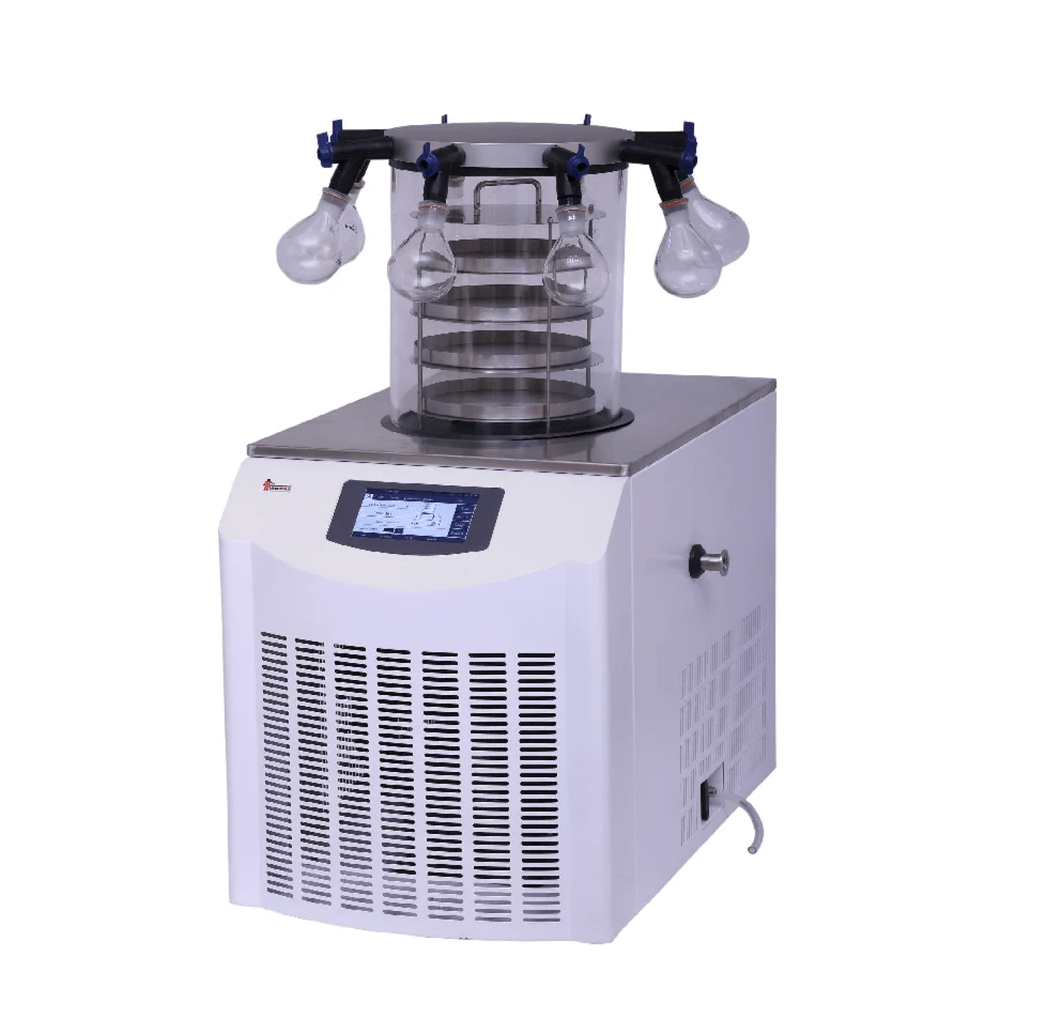

Floor Freeze Dryer from Labmart.in
  • Floor Freeze Dryer from Labmart.in

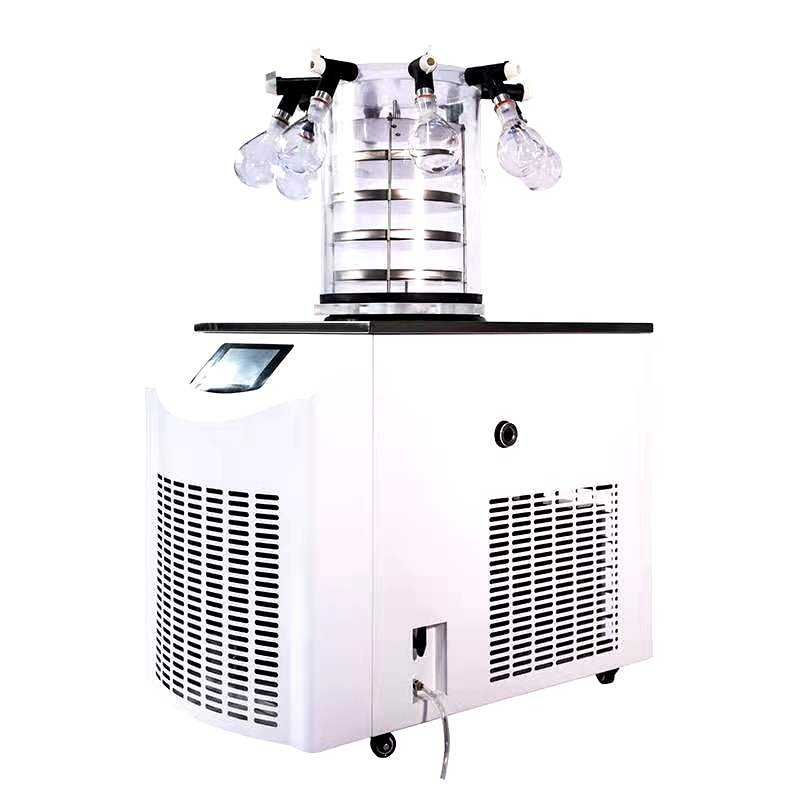

The Labman Floor Freeze Dryer (LMFD Series) is a high-performance lyophilisation system designed for demanding laboratory and industrial applications. It operates on the principle of sublimation — removing moisture from frozen samples by converting ice directly into vapour, bypassing the liquid phase entirely. This gentle drying process preserves the biological activity, structure, and nutritional integrity of heat-sensitive materials, making it the preferred method for pharmaceuticals, biologics, food science, and research applications.

Condenser Temperature Options

–60°C Condenser Temperature
Suitable for samples with most water solvents.

–80°C Condenser Temperature
Applicable for samples with low freezing point substances.

Salient Features

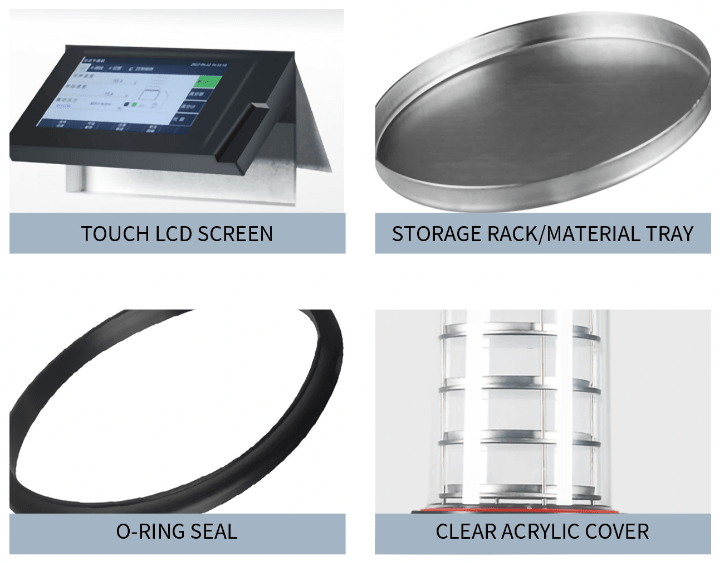

• 7” Touch Screen Display, simple operation
• Vacuum Control Function
• Electric heating defrost system
• Power-off auto recovery function
• Display shows condenser temperature, sample temperature and vacuum with graph
• Vacuum and temperature correction for long-term accuracy
• Power-off auto restart time setting available
• Alarm and prompt functions to prevent mis-operation
• High-precision vacuum gauge
• Easy to move with wheels, locking wheels for stability
• Vacuum pump start/stop control based on condenser temperature
• Oil mist filter included
• Prefreezing shelves available in LMFD460C & LMFD480C

Specifications.

Parameter LMFD460C LMFD660C LMFD1060C LMFD1260C LMFD480C LMFD680C
Ice Condenser Capacity 4 kg/24h 6 kg/24h 10 kg/24h 12 kg/24h 4 kg/24h 6 kg/24h
Freeze Drying Area 0.12 m² 0.18 m² 0.283 m² 0.283 m² 0.12 m² 0.18 m²
Tray Size Ø200 mm × 4 Ø240 mm × 4 Ø300 mm × 4 Ø300 mm × 4 Ø200 mm × 4 Ø240 mm × 4
Condenser Temp –60°C –60°C –60°C –60°C –80°C –80°C
Refrigeration System Single Cascade Dual Cascade Dual Cascade Dual Cascade Single Cascade Dual Cascade
Vacuum Pressure <5 Pa
Display 7” Touch Screen
Tray Spacing 70 mm
Vacuum Control Available
Curve Option Available
Ambient Temp 15°C – 25°C
Relative Humidity ≤ 70%
Defrost Heating Coil
Power Supply 220–240V / 50Hz



Vacuum Pump (Standard Supply)

Model: DSVP55

• Type: Double-stage oil-lubricated rotary vane vacuum pump
• Rotary Speed: 1400 RPM
• Oil Capacity: 0.8 L
• Noise Level: 55 dB
• Weight: 25 kg

Standard Accessories

  1. Tray Size (4 pcs)

  2. Drying Rack

  3. Cylinder Drying Chamber

  4. Sealing Ring (Manifold type)

  5. Flask 250 ml – 8 pcs

  6. Manifold Cover

  7. Vacuum Valve Rubber (3/4") – 8 pcs

  8. Vacuum Pump (DSVP55)

Labman

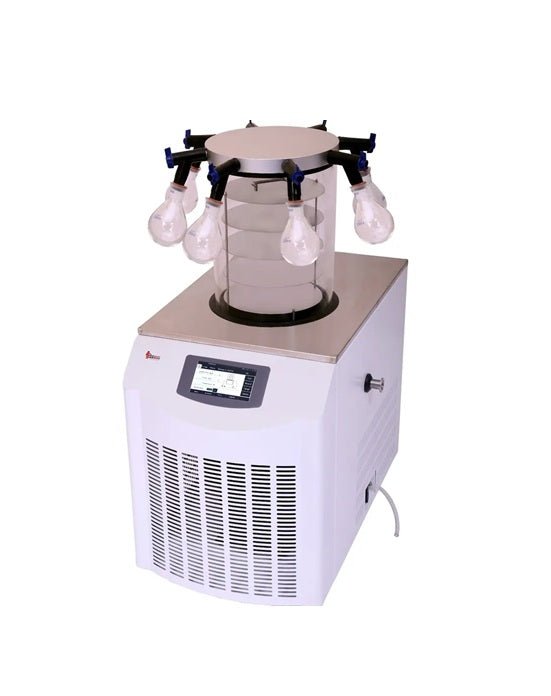

Industrial Floor Freeze Dryer 6kg/24h I Touch Screen Display I With Vacuum Pump

SKU LMFD660C-1
Rs.650,000.00
Rs.525,000.00

The Labman Floor Freeze Dryer (LMFD Series) is a high-performance lyophilisation system designed for demanding laboratory and industrial applications. It operates on the principle of sublimation — removing moisture from frozen samples by converting ice directly into vapour, bypassing the liquid phase entirely. This gentle drying process preserves the biological activity, structure, and nutritional integrity of heat-sensitive materials, making it the preferred method for pharmaceuticals, biologics, food science, and research applications.

Condenser Temperature Options

–60°C Condenser Temperature
Suitable for samples with most water solvents.

–80°C Condenser Temperature
Applicable for samples with low freezing point substances.

Salient Features

• 7” Touch Screen Display, simple operation
• Vacuum Control Function
• Electric heating defrost system
• Power-off auto recovery function
• Display shows condenser temperature, sample temperature and vacuum with graph
• Vacuum and temperature correction for long-term accuracy
• Power-off auto restart time setting available
• Alarm and prompt functions to prevent mis-operation
• High-precision vacuum gauge
• Easy to move with wheels, locking wheels for stability
• Vacuum pump start/stop control based on condenser temperature
• Oil mist filter included
• Prefreezing shelves available in LMFD460C & LMFD480C

Specifications.

Parameter LMFD460C LMFD660C LMFD1060C LMFD1260C LMFD480C LMFD680C
Ice Condenser Capacity 4 kg/24h 6 kg/24h 10 kg/24h 12 kg/24h 4 kg/24h 6 kg/24h
Freeze Drying Area 0.12 m² 0.18 m² 0.283 m² 0.283 m² 0.12 m² 0.18 m²
Tray Size Ø200 mm × 4 Ø240 mm × 4 Ø300 mm × 4 Ø300 mm × 4 Ø200 mm × 4 Ø240 mm × 4
Condenser Temp –60°C –60°C –60°C –60°C –80°C –80°C
Refrigeration System Single Cascade Dual Cascade Dual Cascade Dual Cascade Single Cascade Dual Cascade
Vacuum Pressure <5 Pa
Display 7” Touch Screen
Tray Spacing 70 mm
Vacuum Control Available
Curve Option Available
Ambient Temp 15°C – 25°C
Relative Humidity ≤ 70%
Defrost Heating Coil
Power Supply 220–240V / 50Hz



Vacuum Pump (Standard Supply)

Model: DSVP55

• Type: Double-stage oil-lubricated rotary vane vacuum pump
• Rotary Speed: 1400 RPM
• Oil Capacity: 0.8 L
• Noise Level: 55 dB
• Weight: 25 kg

Standard Accessories

  1. Tray Size (4 pcs)

  2. Drying Rack

  3. Cylinder Drying Chamber

  4. Sealing Ring (Manifold type)

  5. Flask 250 ml – 8 pcs

  6. Manifold Cover

  7. Vacuum Valve Rubber (3/4") – 8 pcs

  8. Vacuum Pump (DSVP55)
Rs.650,000.00
Rs.525,000.00
Condender Temperature:
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Floor Freeze Dryer from Labmart.in
Floor Freeze Dryer from Labmart.in

Product Description

The Labman Floor Freeze Dryer (LMFD Series) is a high-performance lyophilisation system designed for demanding laboratory and industrial applications. It operates on the principle of sublimation — removing moisture from frozen samples by converting ice directly into vapour, bypassing the liquid phase entirely. This gentle drying process preserves the biological activity, structure, and nutritional integrity of heat-sensitive materials, making it the preferred method for pharmaceuticals, biologics, food science, and research applications.

Condenser Temperature Options

–60°C Condenser Temperature
Suitable for samples with most water solvents.

–80°C Condenser Temperature
Applicable for samples with low freezing point substances.

Salient Features

• 7” Touch Screen Display, simple operation
• Vacuum Control Function
• Electric heating defrost system
• Power-off auto recovery function
• Display shows condenser temperature, sample temperature and vacuum with graph
• Vacuum and temperature correction for long-term accuracy
• Power-off auto restart time setting available
• Alarm and prompt functions to prevent mis-operation
• High-precision vacuum gauge
• Easy to move with wheels, locking wheels for stability
• Vacuum pump start/stop control based on condenser temperature
• Oil mist filter included
• Prefreezing shelves available in LMFD460C & LMFD480C

Specifications.

Parameter LMFD460C LMFD660C LMFD1060C LMFD1260C LMFD480C LMFD680C
Ice Condenser Capacity 4 kg/24h 6 kg/24h 10 kg/24h 12 kg/24h 4 kg/24h 6 kg/24h
Freeze Drying Area 0.12 m² 0.18 m² 0.283 m² 0.283 m² 0.12 m² 0.18 m²
Tray Size Ø200 mm × 4 Ø240 mm × 4 Ø300 mm × 4 Ø300 mm × 4 Ø200 mm × 4 Ø240 mm × 4
Condenser Temp –60°C –60°C –60°C –60°C –80°C –80°C
Refrigeration System Single Cascade Dual Cascade Dual Cascade Dual Cascade Single Cascade Dual Cascade
Vacuum Pressure <5 Pa
Display 7” Touch Screen
Tray Spacing 70 mm
Vacuum Control Available
Curve Option Available
Ambient Temp 15°C – 25°C
Relative Humidity ≤ 70%
Defrost Heating Coil
Power Supply 220–240V / 50Hz



Vacuum Pump (Standard Supply)

Model: DSVP55

• Type: Double-stage oil-lubricated rotary vane vacuum pump
• Rotary Speed: 1400 RPM
• Oil Capacity: 0.8 L
• Noise Level: 55 dB
• Weight: 25 kg

Standard Accessories

  1. Tray Size (4 pcs)

  2. Drying Rack

  3. Cylinder Drying Chamber

  4. Sealing Ring (Manifold type)

  5. Flask 250 ml – 8 pcs

  6. Manifold Cover

  7. Vacuum Valve Rubber (3/4") – 8 pcs

  8. Vacuum Pump (DSVP55)
