files/EnvironmentalChamberMS.png
-
files/Environ_Chamber.png

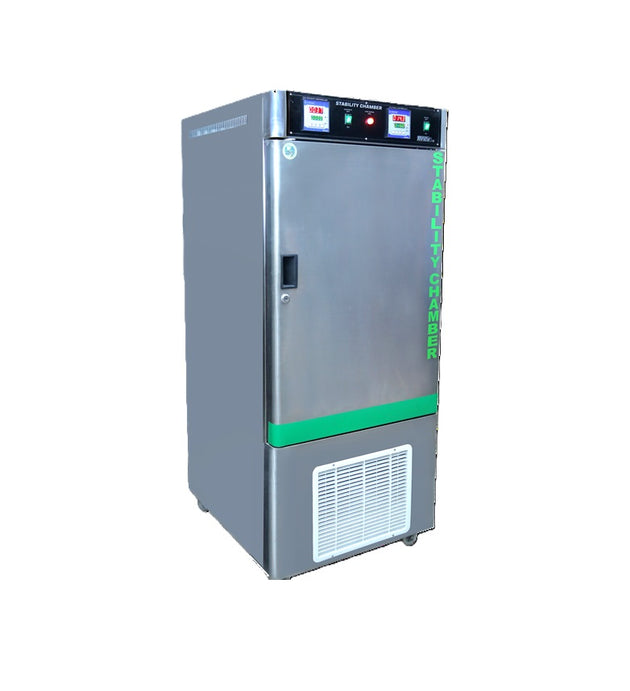

Controlled Environment Chambers are used to create replicated environmental conditions for research sample growth and testing through temperature, humidity, Co2 ,O2 Gas and lighting control.
Controller
* The control system was purpose-built for controlled environments.
* Microprocessor based PID Temperature controller with PT-100 Sensor. * Control/front panel: control panel of our units comprises of on/off
.
Construction
- Chamber Design: Double walled
-
* Inner chamber: Inner chamber made of steel
* Outer Chamber: Outer chamber made of Mild Steel with powder coated finish.
* Door: The door is provided with rubber gasket door closer. * The outer door is made of mild steel sheet and finished with powder coating.
* The inner door is made of steel of.
* The door is provided with latch type lock and Bakelite/PVC handle.
* Inner Glass Door: Inner full-length glass door is provided to view the samples without disturbing the temperature
* Wheels: the unit is mounted on a sturdy steel frame with cast iron/caster wheels for easy movement. * Integrated floor drain
* One access port with air-tight plug.
Heating & Cooling
- An energy efficient cooling unit is installed in our instrument hermetically sealed compressors.
- These compressors are heavy-duty industrial type noise free; vibration free and air-cooled Compressors start in sequence to protect the unit from overloading.
- We use CFC free environmentally friendly refrigerant and compressors of Kirloskar/Tecumseh make, conforming to latest international standards and guidelines
|
Technical Parameters: |
|||||
|
Model |
LM -EVU-100B |
LM -EVU-150B |
LM -EVU-200B |
LM -EVU-250B |
LM -EVU-400B |
|
Capacity(L |
100 |
150 |
200 |
250 |
400 |
|
Control Type |
Microcomputer PID controller |
||||
|
Temp. Range |
0~60°C |
||||
|
Temp. Fluctuation |
±0.5°C |
||||
|
Temp. Uniformity |
±1.0°C(at 37 ) |
||||
|
Humidity Range |
50~95%R H |
||||
|
Humidity Fluctuations |
±3~±5%RH |
||||
|
Humidification Method |
Built-in humidification system |
||||
|
Refrigeration System |
Famous brand compressor, R134a |
||||
|
Heating System |
Stainless steel heater |
||||
|
Time Setting (h) |
0~999:59 |
||||
|
Power Supply |
AC220V±10%, 50Hz (Standard); AC110V±10%, 60Hz (Optional) |
||||
|
Material |
External cold-rolled steel with painting;Internal stainless steel |
||||
|
Sh el ves |
2 pcs/ adjustable |
||||
|
Accesso r y |
Standard: USB port / Testing port |
||||
|
Optional: UV lamp / BOD Socket / Printer |
|||||
|
Consumption |
1200W |
1200W |
1400W |
1500W |
1700W |
|
Internal Size(W*D*H) mm |
500* 350* 580 |
550* 401* 690 |
600* 450* 750 |
660* 450* 850 |
658* 500* 1238 |
|
External Size(W*D*H) mm |
644* 647* 1170 |
690* 697* 1270 |
742* 743* 1340 |
802* 743* 1440 |
845* 800* 1805 |
|
Packing Size(W*D*H) mm |
770* 795* 1330 |
820* 820* 1450 |
880* 880* 1520 |
945* 880* 1720 |
995* 940* 1905 |
|
Net Weight(kg) |
98.5 |
115 |
120 |
135 |
200 |
|
Gross Weight(kg) |
117 |
135 |
148 |
165 |
235 |
- Regular price
- Rs.250,000.00
- Sale price
- Rs.150,000.00
Controlled Environment Chambers are used to create replicated environmental conditions for research sample growth and testing through temperature, humidity, Co2 ,O2 Gas and lighting control.
Controller
* The control system was purpose-built for controlled environments.
* Microprocessor based PID Temperature controller with PT-100 Sensor. * Control/front panel: control panel of our units comprises of on/off
.
Construction
- Chamber Design: Double walled
-
* Inner chamber: Inner chamber made of steel
* Outer Chamber: Outer chamber made of Mild Steel with powder coated finish.
* Door: The door is provided with rubber gasket door closer. * The outer door is made of mild steel sheet and finished with powder coating.
* The inner door is made of steel of.
* The door is provided with latch type lock and Bakelite/PVC handle.
* Inner Glass Door: Inner full-length glass door is provided to view the samples without disturbing the temperature
* Wheels: the unit is mounted on a sturdy steel frame with cast iron/caster wheels for easy movement. * Integrated floor drain
* One access port with air-tight plug.
Heating & Cooling
- An energy efficient cooling unit is installed in our instrument hermetically sealed compressors.
- These compressors are heavy-duty industrial type noise free; vibration free and air-cooled Compressors start in sequence to protect the unit from overloading.
- We use CFC free environmentally friendly refrigerant and compressors of Kirloskar/Tecumseh make, conforming to latest international standards and guidelines
|
Technical Parameters: |
|||||
|
Model |
LM -EVU-100B |
LM -EVU-150B |
LM -EVU-200B |
LM -EVU-250B |
LM -EVU-400B |
|
Capacity(L |
100 |
150 |
200 |
250 |
400 |
|
Control Type |
Microcomputer PID controller |
||||
|
Temp. Range |
0~60°C |
||||
|
Temp. Fluctuation |
±0.5°C |
||||
|
Temp. Uniformity |
±1.0°C(at 37 ) |
||||
|
Humidity Range |
50~95%R H |
||||
|
Humidity Fluctuations |
±3~±5%RH |
||||
|
Humidification Method |
Built-in humidification system |
||||
|
Refrigeration System |
Famous brand compressor, R134a |
||||
|
Heating System |
Stainless steel heater |
||||
|
Time Setting (h) |
0~999:59 |
||||
|
Power Supply |
AC220V±10%, 50Hz (Standard); AC110V±10%, 60Hz (Optional) |
||||
|
Material |
External cold-rolled steel with painting;Internal stainless steel |
||||
|
Sh el ves |
2 pcs/ adjustable |
||||
|
Accesso r y |
Standard: USB port / Testing port |
||||
|
Optional: UV lamp / BOD Socket / Printer |
|||||
|
Consumption |
1200W |
1200W |
1400W |
1500W |
1700W |
|
Internal Size(W*D*H) mm |
500* 350* 580 |
550* 401* 690 |
600* 450* 750 |
660* 450* 850 |
658* 500* 1238 |
|
External Size(W*D*H) mm |
644* 647* 1170 |
690* 697* 1270 |
742* 743* 1340 |
802* 743* 1440 |
845* 800* 1805 |
|
Packing Size(W*D*H) mm |
770* 795* 1330 |
820* 820* 1450 |
880* 880* 1520 |
945* 880* 1720 |
995* 940* 1905 |
|
Net Weight(kg) |
98.5 |
115 |
120 |
135 |
200 |
|
Gross Weight(kg) |
117 |
135 |
148 |
165 |
235 |
- Regular price
- Rs.250,000.00
- Sale price
- Rs.150,000.00
- Delivery Period :3-5 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
Controlled Environment Chambers are used to create replicated environmental conditions for research sample growth and testing through temperature, humidity, Co2 ,O2 Gas and lighting control.
Controller
* The control system was purpose-built for controlled environments.
* Microprocessor based PID Temperature controller with PT-100 Sensor. * Control/front panel: control panel of our units comprises of on/off
.
Construction
- Chamber Design: Double walled
-
* Inner chamber: Inner chamber made of steel
* Outer Chamber: Outer chamber made of Mild Steel with powder coated finish.
* Door: The door is provided with rubber gasket door closer. * The outer door is made of mild steel sheet and finished with powder coating.
* The inner door is made of steel of.
* The door is provided with latch type lock and Bakelite/PVC handle.
* Inner Glass Door: Inner full-length glass door is provided to view the samples without disturbing the temperature
* Wheels: the unit is mounted on a sturdy steel frame with cast iron/caster wheels for easy movement. * Integrated floor drain
* One access port with air-tight plug.
Heating & Cooling
- An energy efficient cooling unit is installed in our instrument hermetically sealed compressors.
- These compressors are heavy-duty industrial type noise free; vibration free and air-cooled Compressors start in sequence to protect the unit from overloading.
- We use CFC free environmentally friendly refrigerant and compressors of Kirloskar/Tecumseh make, conforming to latest international standards and guidelines
|
Technical Parameters: |
|||||
|
Model |
LM -EVU-100B |
LM -EVU-150B |
LM -EVU-200B |
LM -EVU-250B |
LM -EVU-400B |
|
Capacity(L |
100 |
150 |
200 |
250 |
400 |
|
Control Type |
Microcomputer PID controller |
||||
|
Temp. Range |
0~60°C |
||||
|
Temp. Fluctuation |
±0.5°C |
||||
|
Temp. Uniformity |
±1.0°C(at 37 ) |
||||
|
Humidity Range |
50~95%R H |
||||
|
Humidity Fluctuations |
±3~±5%RH |
||||
|
Humidification Method |
Built-in humidification system |
||||
|
Refrigeration System |
Famous brand compressor, R134a |
||||
|
Heating System |
Stainless steel heater |
||||
|
Time Setting (h) |
0~999:59 |
||||
|
Power Supply |
AC220V±10%, 50Hz (Standard); AC110V±10%, 60Hz (Optional) |
||||
|
Material |
External cold-rolled steel with painting;Internal stainless steel |
||||
|
Sh el ves |
2 pcs/ adjustable |
||||
|
Accesso r y |
Standard: USB port / Testing port |
||||
|
Optional: UV lamp / BOD Socket / Printer |
|||||
|
Consumption |
1200W |
1200W |
1400W |
1500W |
1700W |
|
Internal Size(W*D*H) mm |
500* 350* 580 |
550* 401* 690 |
600* 450* 750 |
660* 450* 850 |
658* 500* 1238 |
|
External Size(W*D*H) mm |
644* 647* 1170 |
690* 697* 1270 |
742* 743* 1340 |
802* 743* 1440 |
845* 800* 1805 |
|
Packing Size(W*D*H) mm |
770* 795* 1330 |
820* 820* 1450 |
880* 880* 1520 |
945* 880* 1720 |
995* 940* 1905 |
|
Net Weight(kg) |
98.5 |
115 |
120 |
135 |
200 |
|
Gross Weight(kg) |
117 |
135 |
148 |
165 |
235 |
